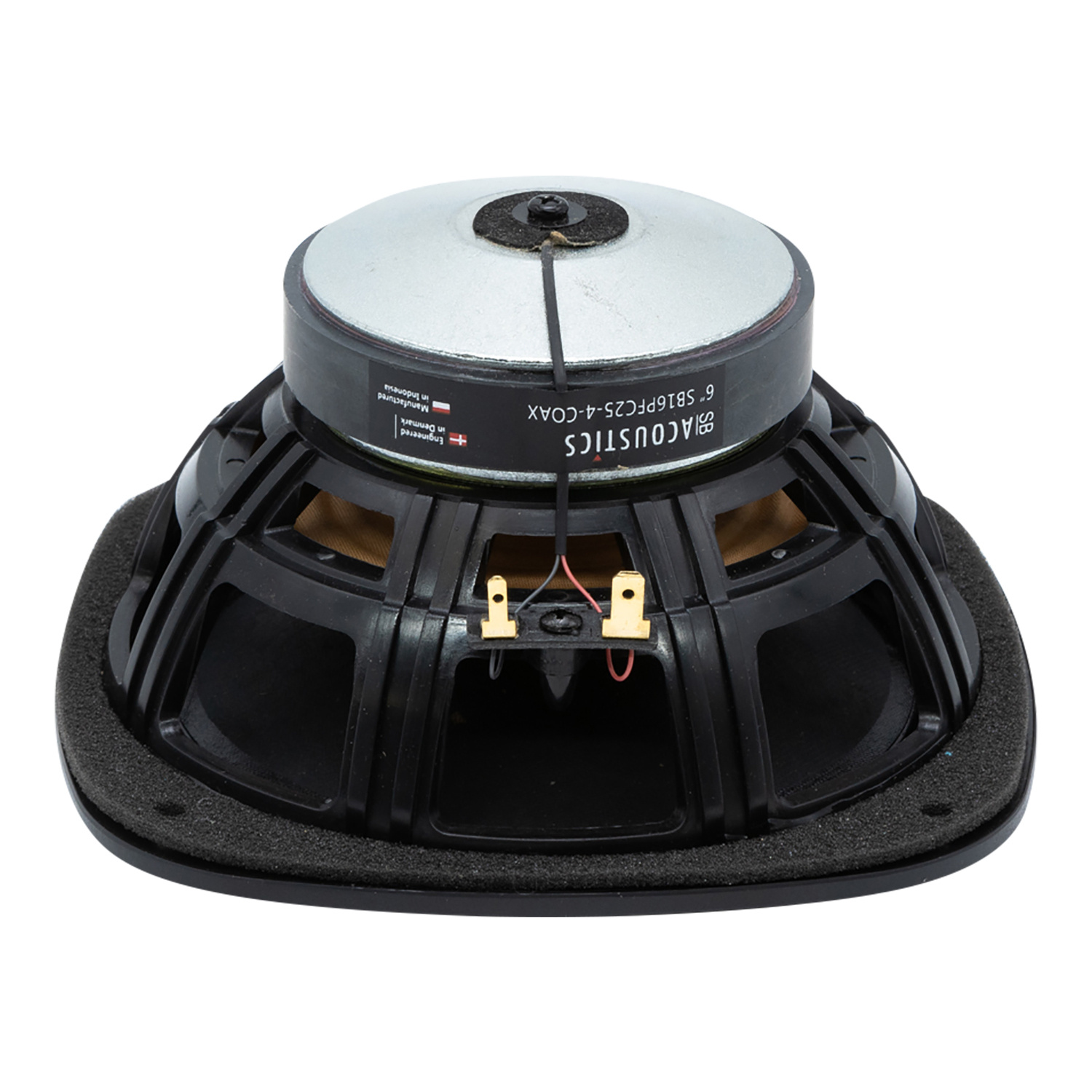

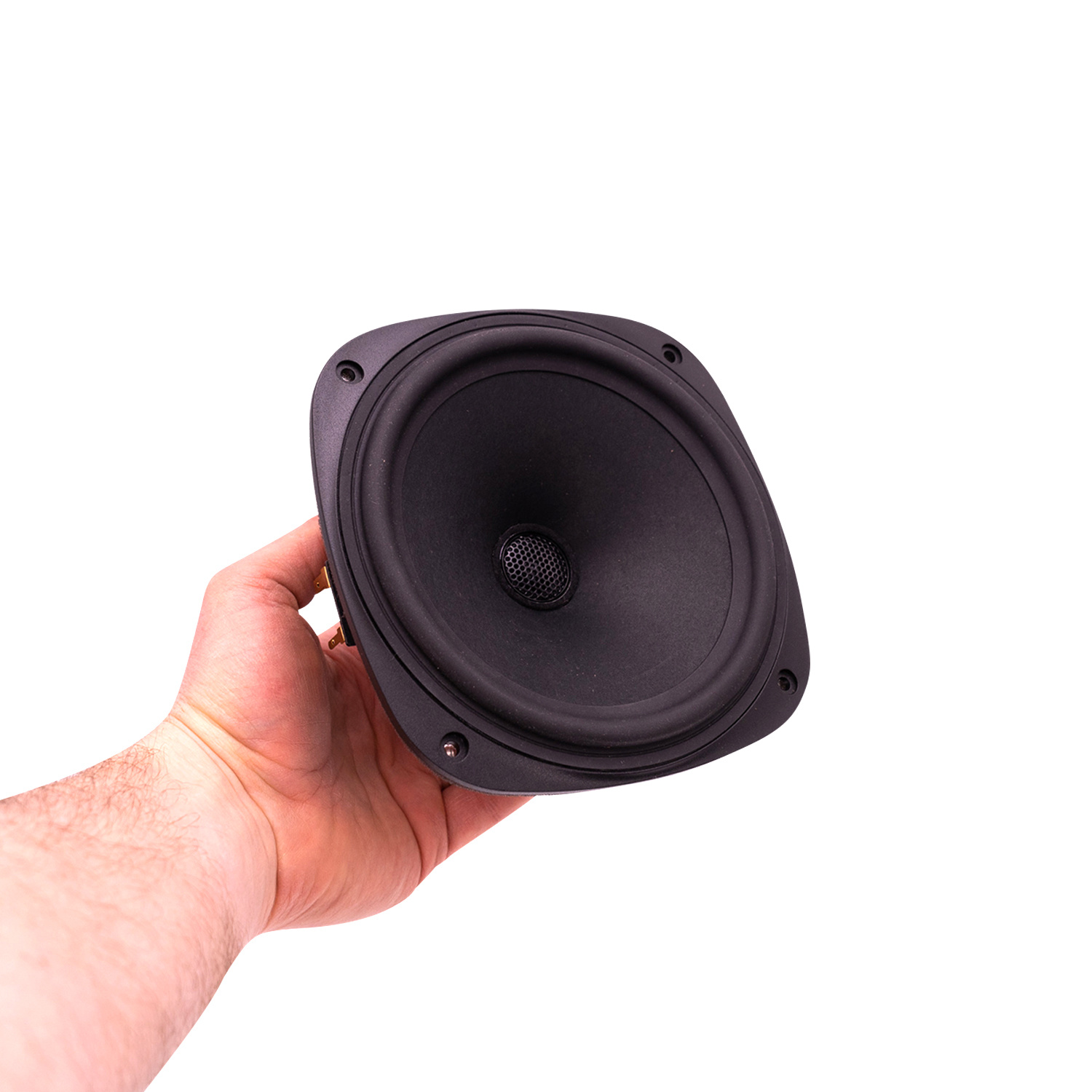

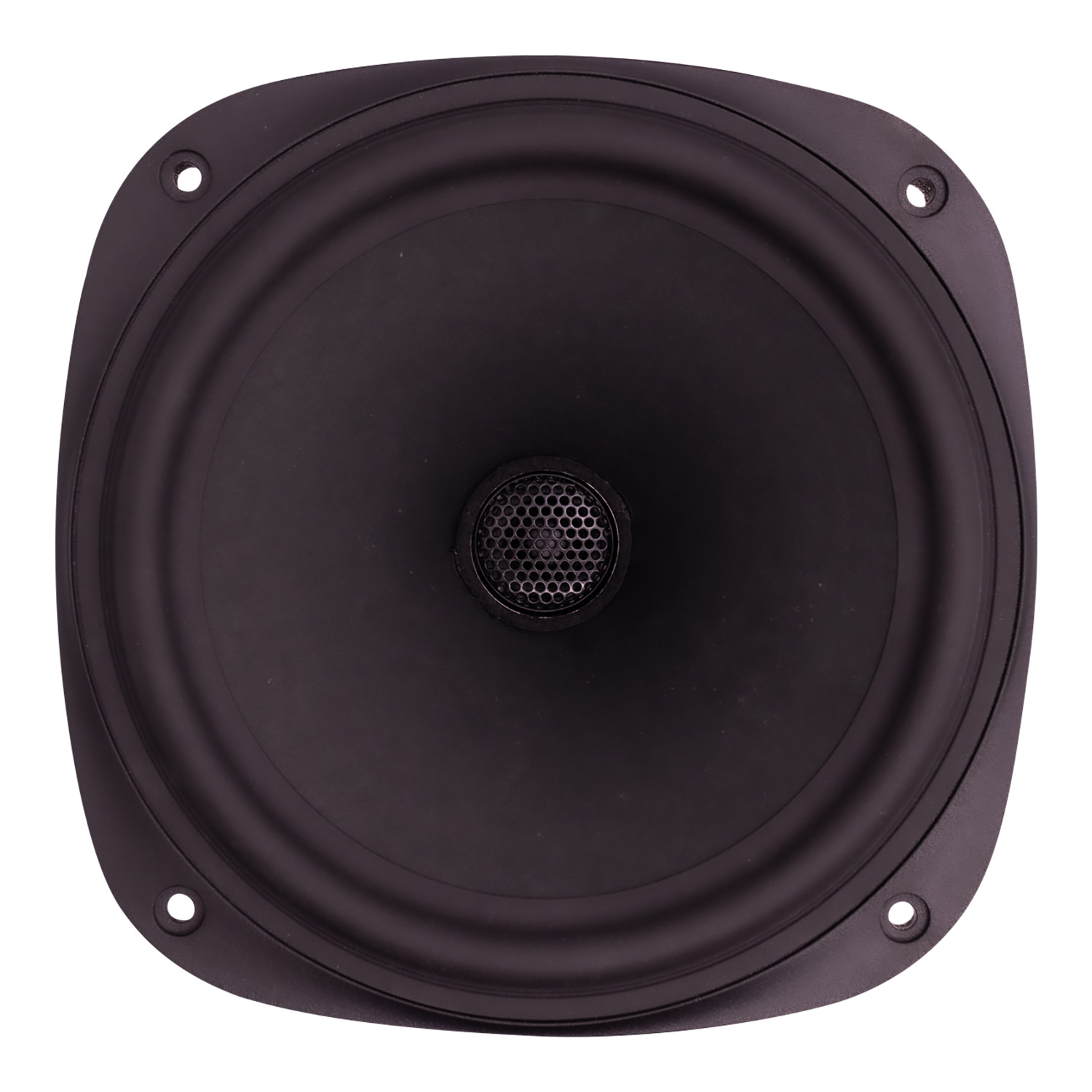

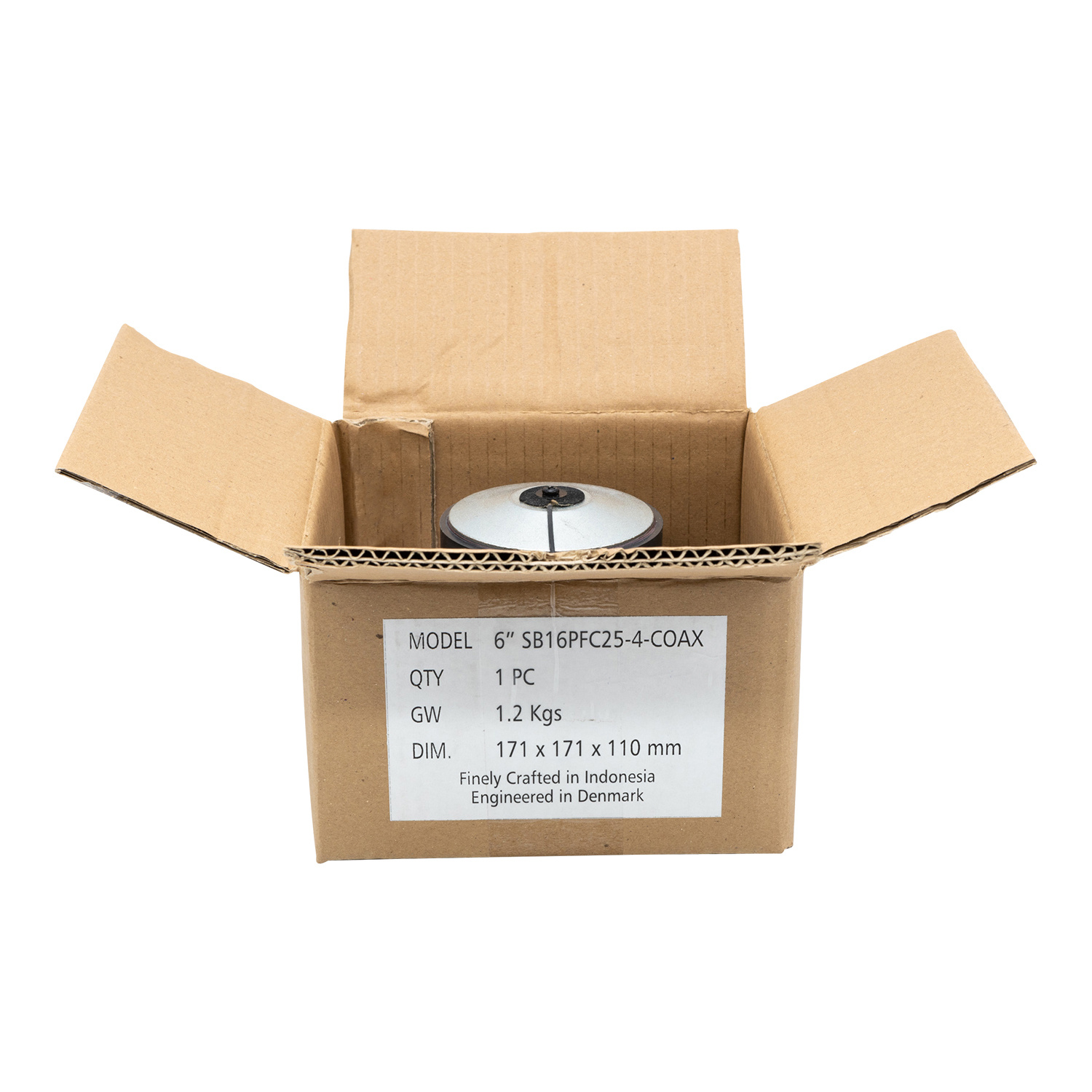

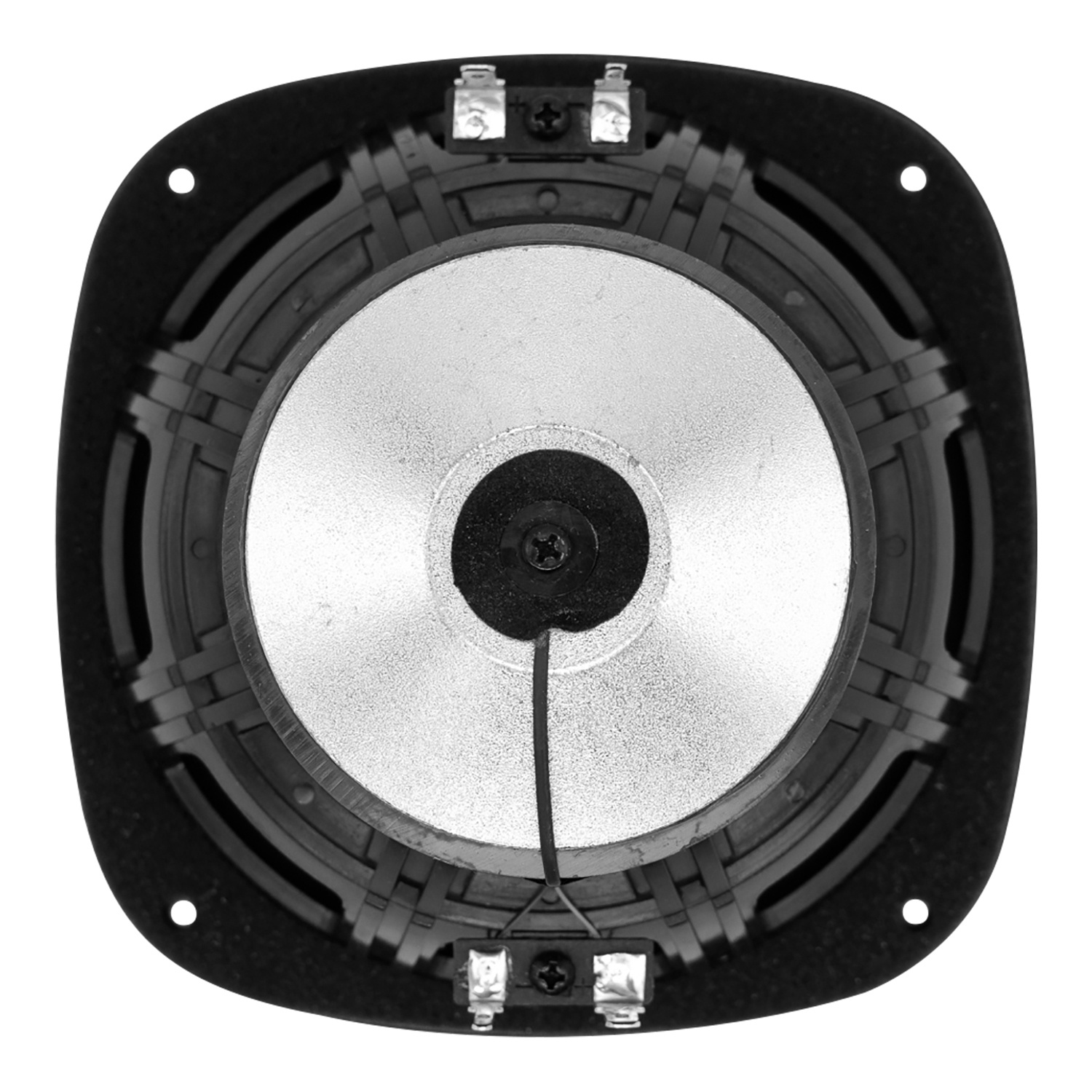

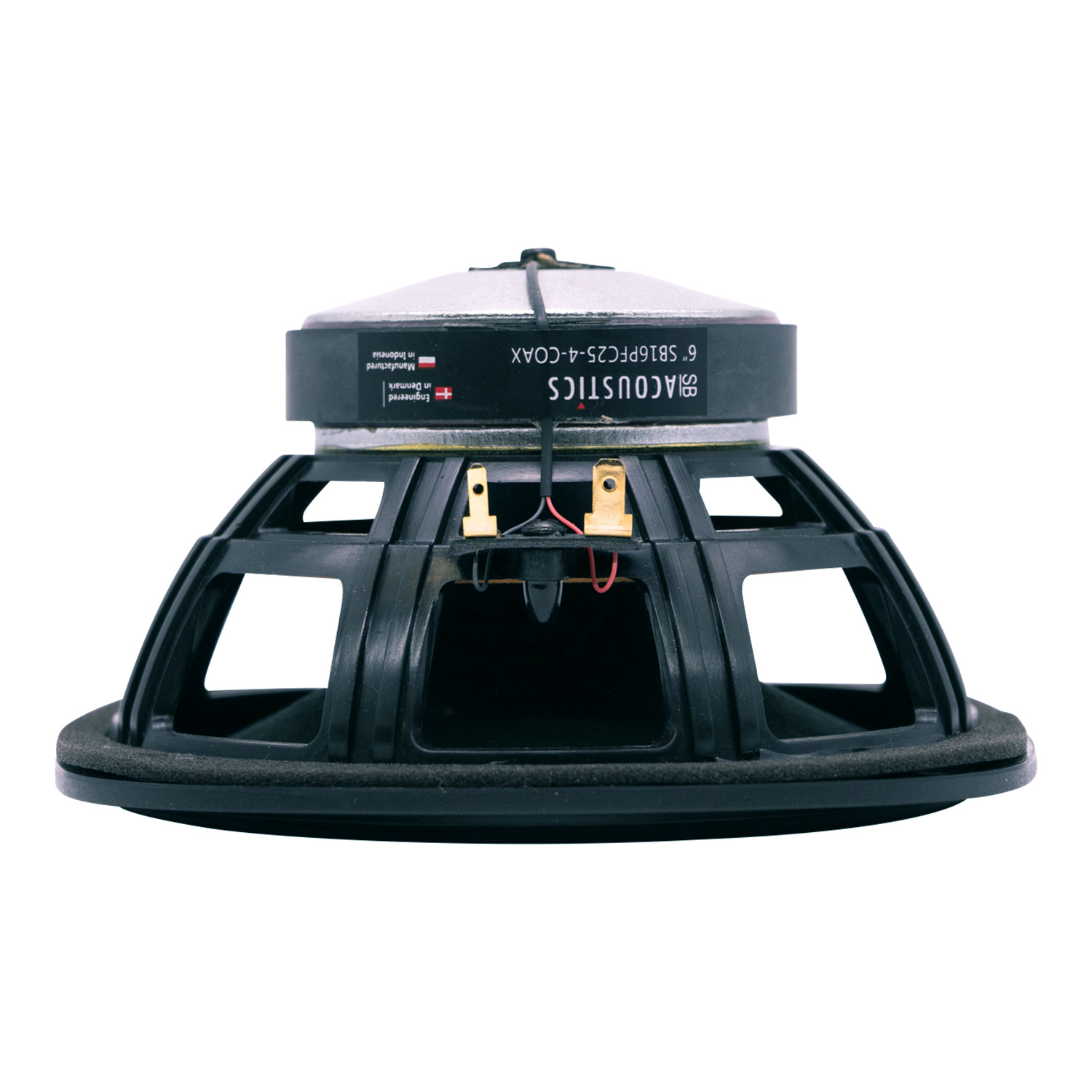

        SB Acoustics SB16PFC25-4-COAX 6" Paper Cone Coaxial

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all Bass-mid woofer
        6" | 4 Ω
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        € 45,41€ 54,95 2 In stock
        • -5% Order 4 for only € 52,20 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial
        SB16PFC25-4-COAX 6" Paper Cone Coaxial

        Product description

        Highlights

        • Vented reinforced plastic chassis
        • Proprietary cone material with natural fibers made in-house
        • Soft low damping rubber surround for improved transient response
        • Optimized motor system
        • Non-resonant long life lead wires
        • Compact large surround dome tweeter



        Product details

        SB Acoustics SB16PFC25-4-COAX 6" Paper Cone Coaxial



        The SB Acoustics SB16PFC25-4-COAX is composed by a vented reinforced plastic chassis and a proprietary cone material with natural made in-house fibers. The soft low damping rubber surround allows an improved transient response. Optimized motor system, non-resonant long life lead wires and compact large surround dome tweeter.

        Show more

        Specifications

        Article number
        SB16PFC25-4-COAX
        Woofer Series
        PFC Series
        Woofer Type
        Coaxial
        Nominal Diameter
        6"
        Power Handling (RMS)
        40 Watts
        Impedance (Z)
        4 ohms
        Sensitivity
        90 dB 2.83V/1m
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        3.2 ohms
        Voice Coil Inductance (Le)
        0.31 mH
        Resonant Frequency (Fs)
        36 Hz
        Mechanical Q (Qms)
        2.6
        Electromagnetic Q (Qes)
        0.35
        Total Q (Qts)
        0.31
        Diaphragm Mass Inc. Airload (Mms)
        12.5 g
        Mechanical Compliance of Suspension (Cms)
        1.51 mm/N
        Surface Area of Cone (Sd)
        124.7 cm2
        BL Product (BL)
        5.1 Tm
        Compliance Equivalent Volume (Vas)
        1.15 ft.³
        Maximum Linear Excursion (Xmax)
        4.65 mm

        Show more
