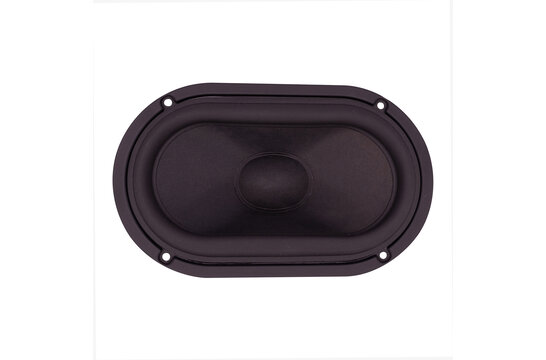

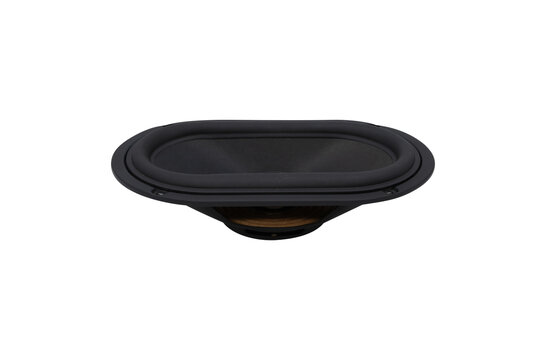

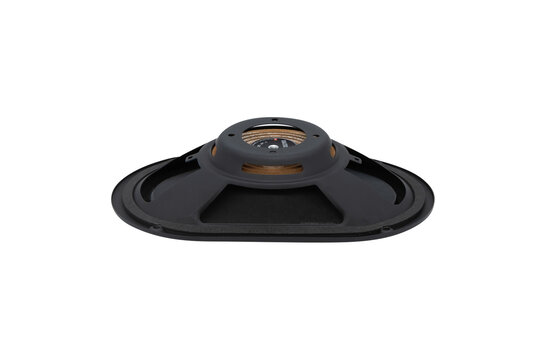

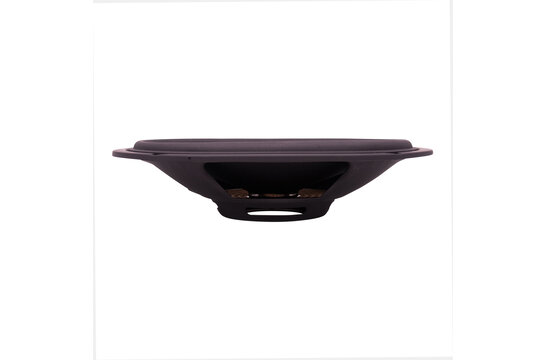

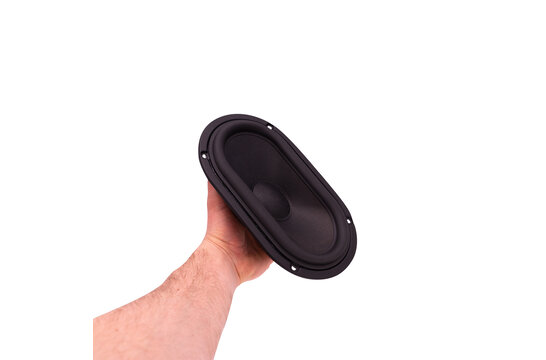

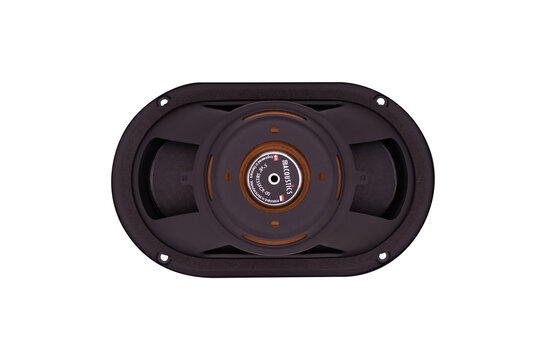

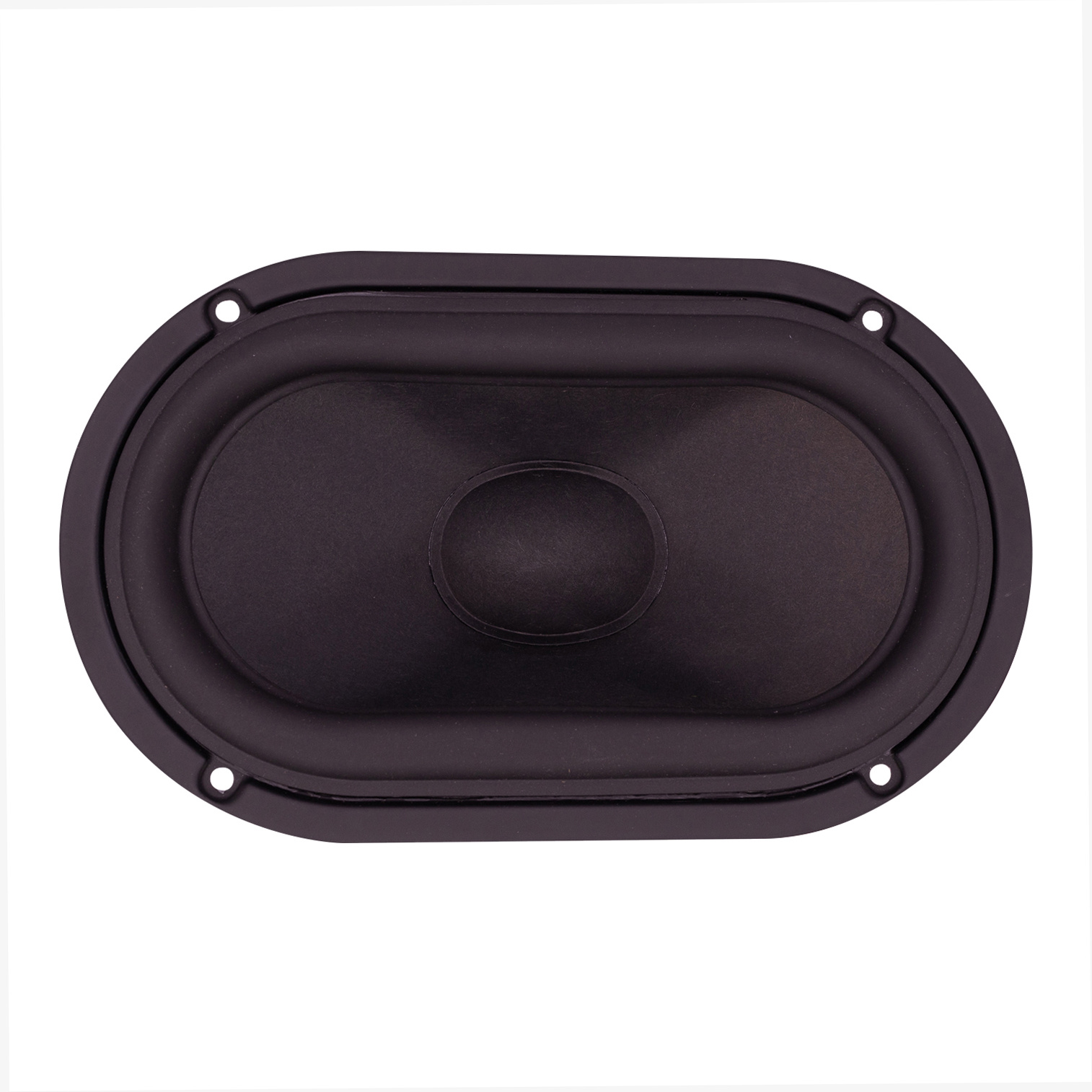

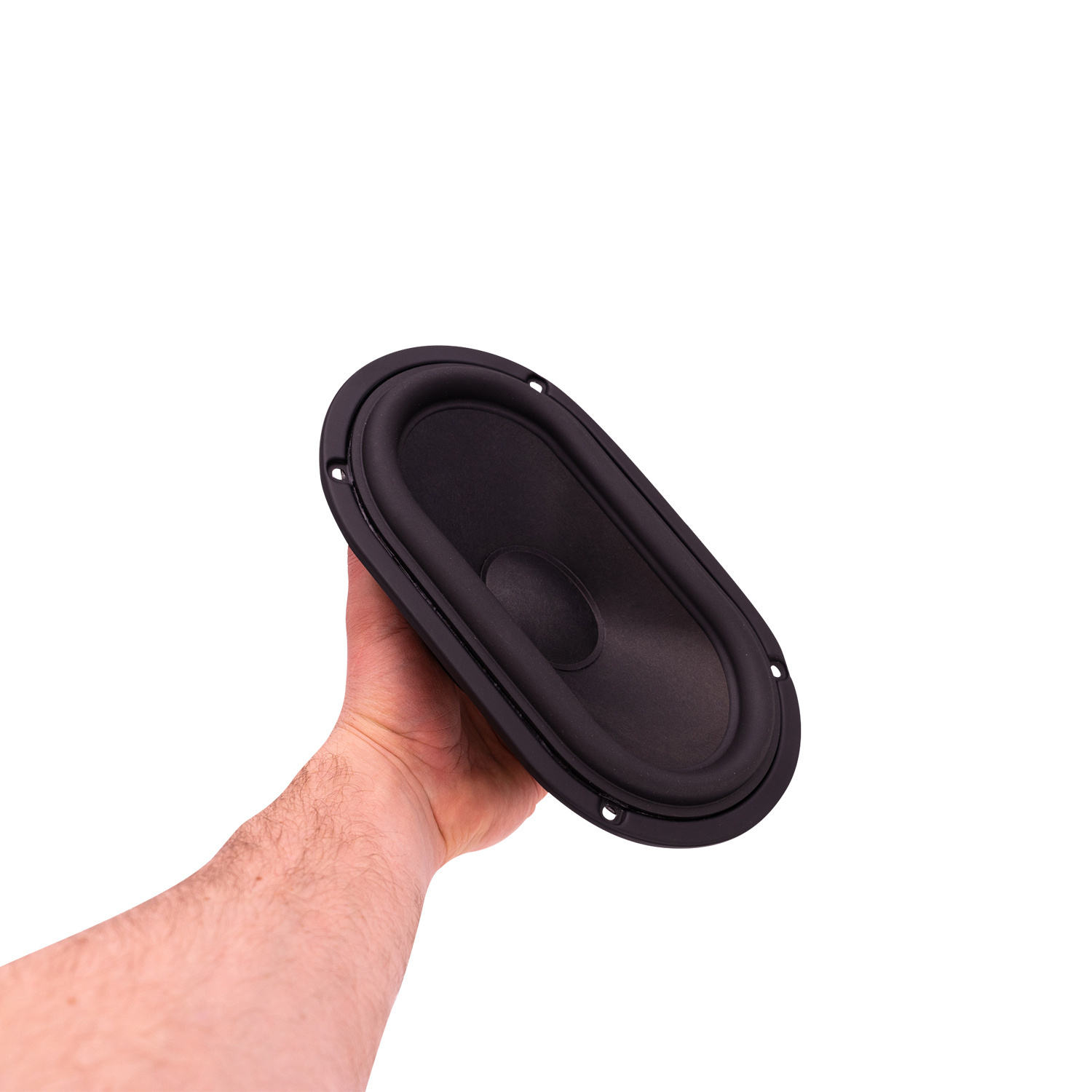

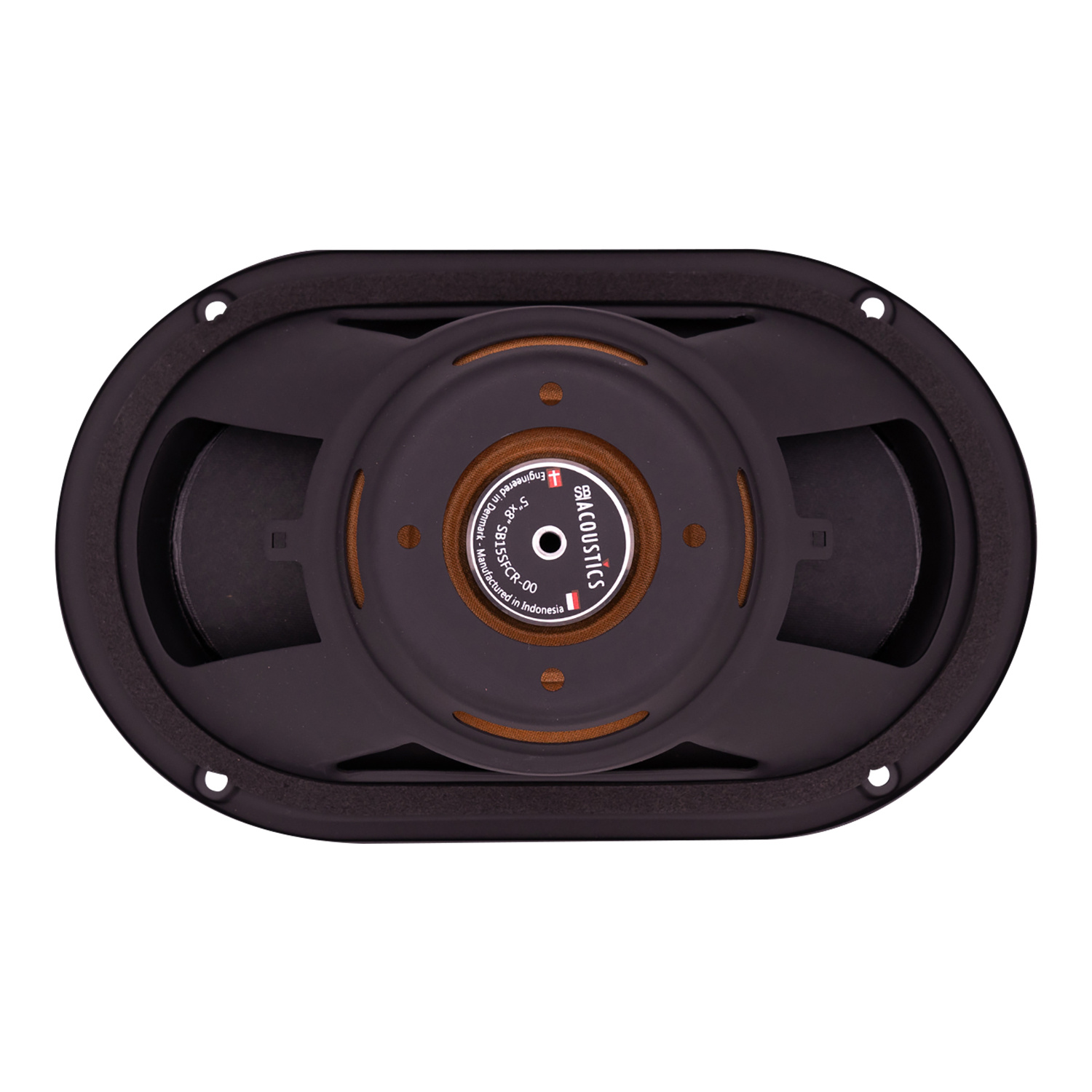

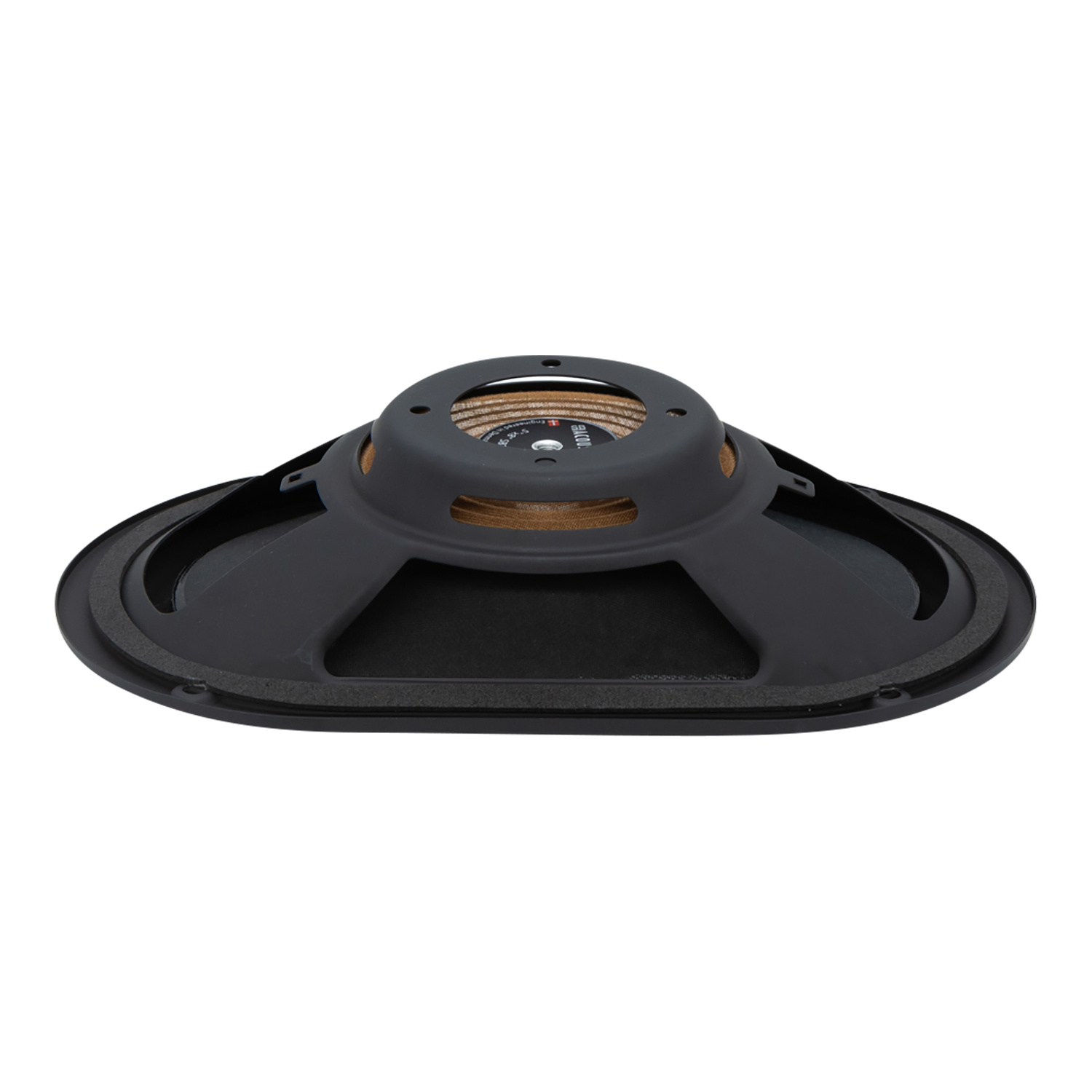

SB Acoustics SB15SFCR-00 5'' x 8'' Passive Radiator

2 reviews

Brand: SB Acoustics

Show all Audio components

Compare

passive | 5"

€ 24,75€ 29,95 9 In stock: delivery time 1-4 business days

With a racetrack design, the SB Acoustics SB15SFCR-00 is a 5" X 8" passive radiator with a made in-house hard paper cone. Its components also include a low damping rubber surround, symmetric suspension as well as an easily adjustable moving mass.... Show more

Shipping always fully insured and with track & trace
Low international shipping rates
Same day shipping*
In-house technical support

Product description

Highlights

Racetrack design
Hard paper cone (made in-house)
Low damping rubber surround
Symmetric suspension
Easily adjustable moving mass

Product details

SB Acoustics SB15SFCR-00 5'' x 8'' Passive Radiator

Specifications

Article number: SB15SFCR-00
Woofer Type: Passive Radiator
Nominal Diameter: 5" X 8"
Resonant Frequency (Fs): 21 Hz
Mechanical Q (Qms): 2.7
Diaphragm Mass Inc. Airload (Mms): 62g
Mechanical Compliance of Suspension (Cms): 0.93 mm/N
Surface Area of Cone (Sd): 178 cm2
Compliance Equivalent Volume (Vas): 1.47 ft.³

Data sheet

Reviews

2 reviews

4 from 5Based on 2 reviews

Review this product

5 van 5

Mooie oplossing in combinatie met een Dayton RS180P-4 in 24 liter.
Zonder extra toegevoegd gewicht op de radiator geeft dit een mooi strak laag. En uiteraard geen last van ongewenste poortresonanties zoals we die kennen van basreflexkasten.

By Bob H. on 25 March 2021

3 van 5

The SB15SFCR is a nice looking unit with a good stiff and light cone. However, for me the half roll rubber top suspension is very stiff and I am wondering if the response will be delicate and dynamic enough to make the most of the quality from the SB15CAC30 5" driving it!? Hopefully with use the stiffness will diminish over time but take note SB Acoustics, study the KEF B139 passive more. Also, I can not find any data for the cut out dimensions to front mount the unit as is designed!? Kind regards, Adam.

By Adam K. on 16 March 2021
