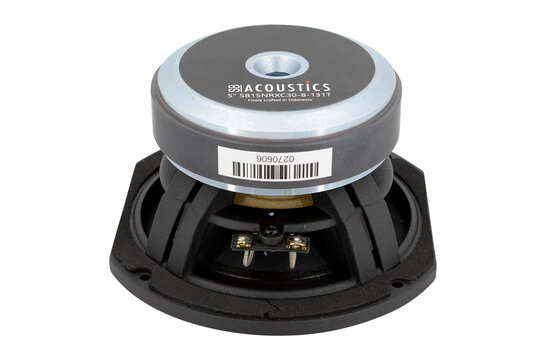

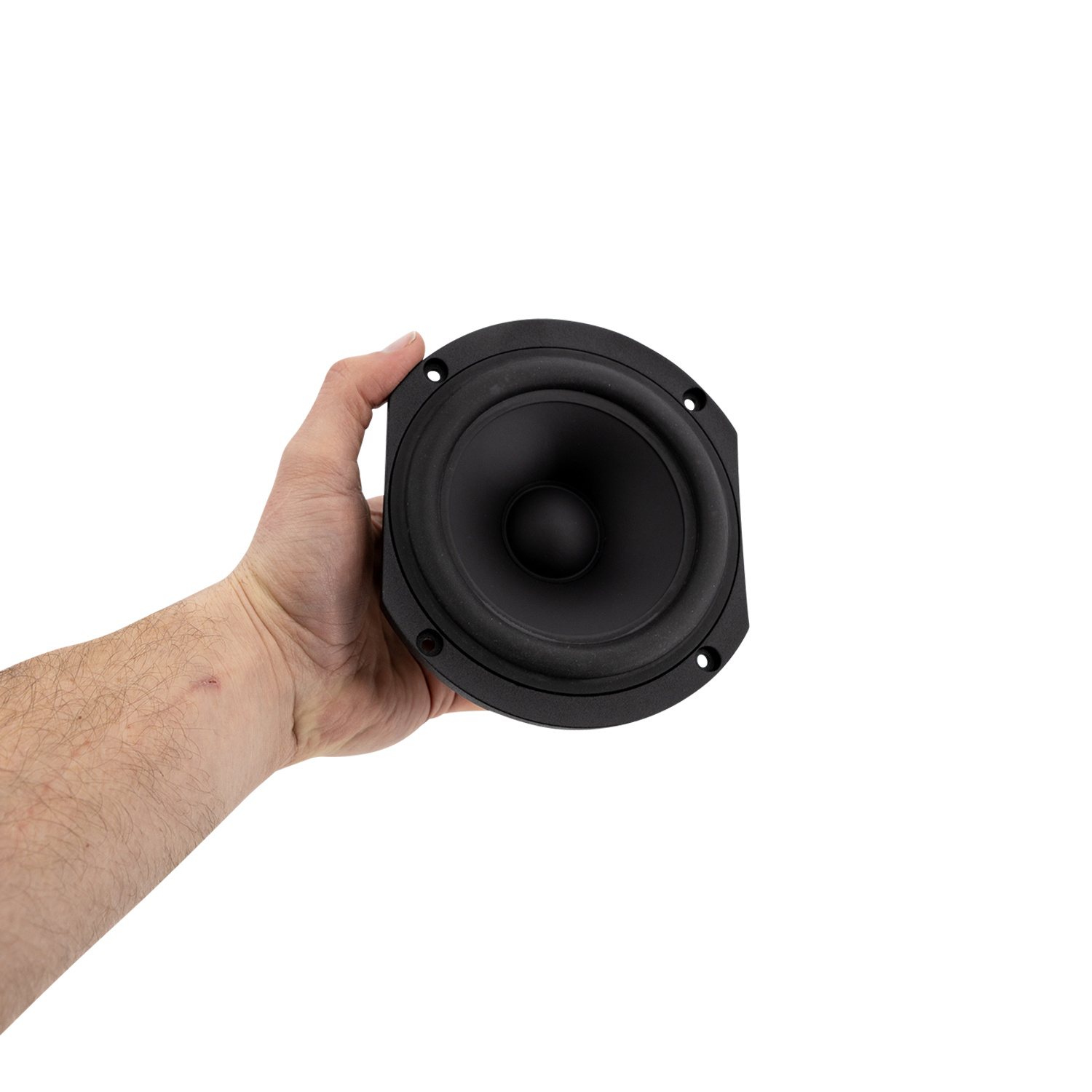

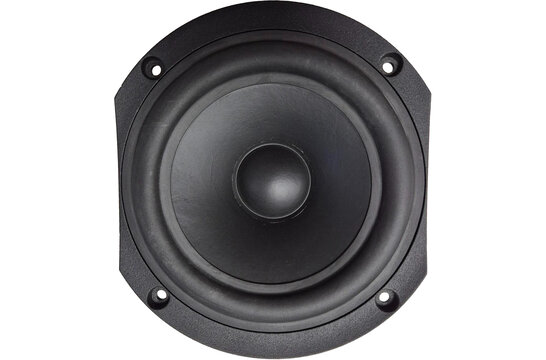

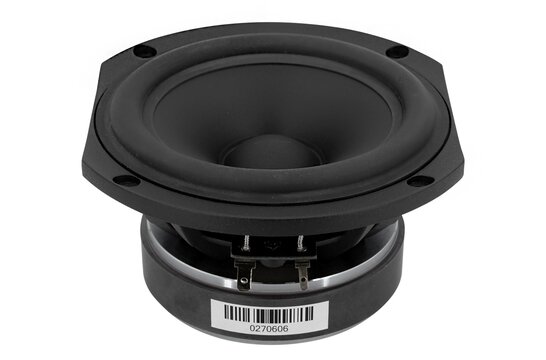

        SB15NRXC30-8-131T 5" Midrange Woofer

        SB Acoustics SB15NRXC30-8-131T 5" Midrange Woofer

        €44,95 €59,95

        10+ In stock

        Add to cart

        SB Acoustics SB15NRXC30-8-131T 5" Midrange Woofer

        3 reviews
        5 from 5
        3 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        5" | 8 Ω
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        € 49,55
        € 59,95
        € 37,15€ 44,95 10+ In stock
        • -5% Purchase 4 for only € 42,70 per piece
        • -10% Purchase 10 for only € 40,46 per piece
        € 44,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer
        SB15NRXC30-8-131T 5" Midrange Woofer

        Product description SB Acoustics SB15NRXC30-8-131T Bass-midwoofer

        The SB Acoustics SB15NRXC30-8-131T is a compact 127 mm bass-midwoofer with an 8 ohm impedance, designed for low distortion, fast transient response and strong value in high-quality DIY loudspeaker projects.





        Highlights of the SB Acoustics SB15NRXC30-8-131T

        • Vented cast aluminium chassis for high rigidity and low compression
        • Proprietary natural-fibre cone material made in-house
        • Soft low-damping rubber surround for improved transient response
        • Extended copper sleeve on the pole piece for low inductance and low distortion
        • CCAW voice coil on a non-conducting fiberglass former for reduced moving mass
        • Vented pole piece and long-life silver lead wires





        Product details SB Acoustics SB15NRXC30-8-131T

        SB Acoustics SB15NRXC30-8-131T 127 mm Bass-Midwoofer 8 Ohm



        The SB15NRXC30-8-131T belongs to the SB Acoustics NRX series, developed for customers who want premium driver engineering at a competitive price. As a versatile bass-midwoofer, it combines a 38 Hz free-air resonance, 88 dB sensitivity and 50 W rated power handling, making it a strong choice for compact high-fidelity loudspeaker designs.



        Its open, vented cast aluminium chassis provides strength while helping to reduce reflections and compression. The proprietary papyrus-style natural-fibre cone, soft SBR rubber surround and carefully controlled suspension support clean midbass reproduction and responsive transient behaviour. This makes the driver a refined option within DIY audio components for builders who value both mechanical quality and acoustic consistency.



        The motor system uses a 30.5 mm CCAW voice coil on a non-conducting fiberglass former to keep moving mass low. An extended copper sleeve on the pole piece helps reduce inductance and distortion, while the vented pole piece improves compression behaviour. Key parameters include 5.7 ohm DC resistance, 0.14 mH voice coil inductance, 5.6 Tm force factor and 8.1 g moving mass.



        With a Qts of 0.33, 20.7 litres Vas and 82 cm² effective piston area, the SB15NRXC30-8-131T is suitable for compact sealed or reflex loudspeaker enclosures. Recommended sealed volumes are 6 to 12 litres, while reflex alignments include 8 litres tuned to 39 Hz or 10 litres tuned to 40 Hz. For custom woofers and DIY speaker projects, it offers a balanced combination of low-frequency extension, controlled response and low-distortion construction.

        Show more

        Specifications

        Article number
        SB15NRXC30-8-131T
        EAN
        0696277269020
        Woofer Series
        SB Acoustics NRX Norex series
        Woofer Type
        Bass Midwoofer
        Nominal Diameter
        5"
        Power Handling (RMS)
        50 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Voice Coil Diameter
        1.2"
        DC Resistance (Re)
        5.7 ohms
        Voice Coil Inductance (Le)
        0.14 mH
        Resonant Frequency (Fs)
        38 Hz
        Mechanical Q (Qms)
        4.8
        Electromagnetic Q (Qes)
        0.35
        Total Q (Qts)
        0.33
        Diaphragm Mass Inc. Airload (Mms)
        8.1 g
        Mechanical Compliance of Suspension (Cms)
        2.17 mm/N
        Surface Area of Cone (Sd)
        82 cm2
        BL Product (BL)
        5.6 Tm
        Compliance Equivalent Volume (Vas)
        0.73 ft.³
        Maximum Linear Excursion (Xmax)
        5 mm

        Show more

        Reviews

        3 reviews
        Review this product
        5 of 5
        -
        By Leo on 28 January 2026
        5 of 5
        Heb deze gebruikt toen de Bas drivers van mijn Focal 705 V opgeblazen waren
        By Dennis on 4 October 2025
