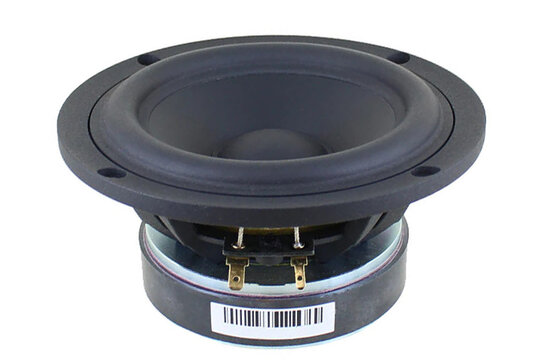

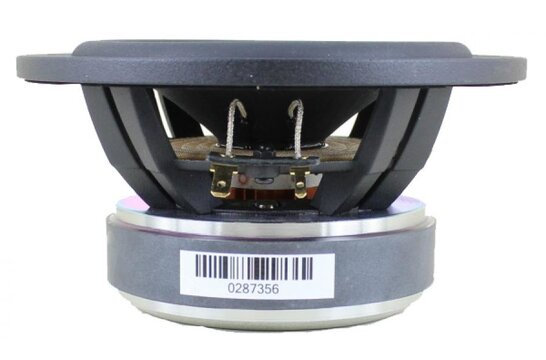

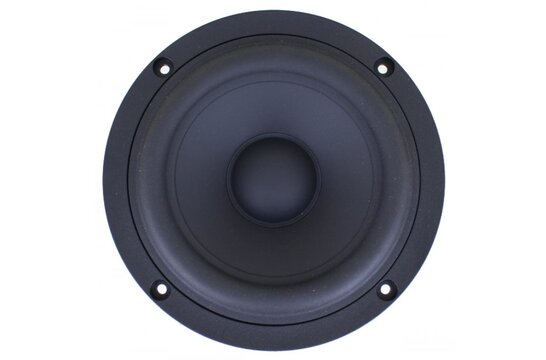

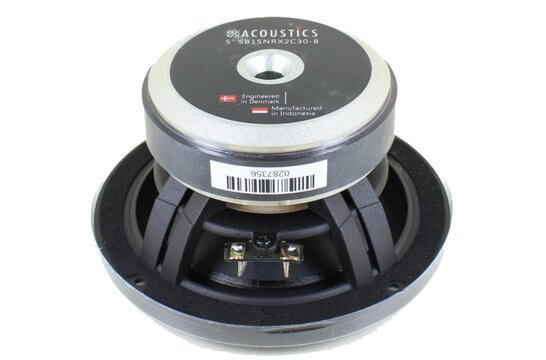

        SB15NRX2C30-8 5" Midrange Woofer

        SB Acoustics SB15NRX2C30-8 5" Midrange Woofer

        €63,95

        10 In stock

        Add to cart

        SB Acoustics SB15NRX2C30-8 5" Midrange Woofer

        3 reviews
        5 from 5
        3 reviews
        5 stars
        67%
        4 stars
        33%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all Bass-mid woofer
        5'' | 8 Ω
        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer
        € 52,85€ 63,95 10 In stock
        • -5% Purchase 4 for only € 60,75 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer
        SB15NRX2C30-8 5" Midrange Woofer

        Product description SB Acoustics SB15NRX2C30-8 Bass-mid Woofer

        Vented cast aluminum chassis for optimum strength and low compression.



        Highlights

        • Vented cast aluminum chassis for optimum strength and low compression
        • Proprietary cone material with natural fibers made in-house
        • Soft low damping rubber surround for improved transient response
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and low distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Vented pole piece for reduced compression



        Product details

        SB Acoustics SB15NRX2C30-8 Bass-mid Woofer


        The SB Acoustics SB15NRX2C30-8 is a 5 inch 8 ohm midwoofer featuring a Norex cone and a vented cast aluminium chassis. Norex is a proprietary paper-based material comprised of wood pulp and selected natural fibers blended for an optimally strong but lightweight cone that gives detailed sound with good midrange extension. It has a soft low damping rubber surround for improved transient response and a non-conducting fiber glass voice coil former for minimum damping

        Show more

        Specifications

        Article number
        SB15NRX2C30-8
        EAN
        8785256846894
        Power Handling (RMS)
        50 Watts
        DC Resistance (Re)
        5.9 ohms
        Voice Coil Inductance (Le)
        0.14 mH
        Resonant Frequency (Fs)
        36.5 Hz
        Mechanical Q (Qms)
        3.48
        Electromagnetic Q (Qes)
        0.37
        Total Q (Qts)
        0.34
        Diaphragm Mass Inc. Airload (Mms)
        9.1g
        Mechanical Compliance of Suspension (Cms)
        2.1 mm/N
        Surface Area of Cone (Sd)
        82 cm²
        BL Product (BL)
        5.75 N/A
        Compliance Equivalent Volume (Vas)
        20 Liters
        Maximum Linear Excursion (Xmax)
        5 mm

        Show more

        Reviews

        3 reviews
        Review this product
        5 of 5
        Good equivalent to replace the woofer in Bose DS100SE - sounds actually better than the original… BUT, I did have to make an adapter ring as it is slightly smaller than the original.
        By Adam on 28 August 2025
        4 of 5
        -
        By Valerio on 20 July 2025
