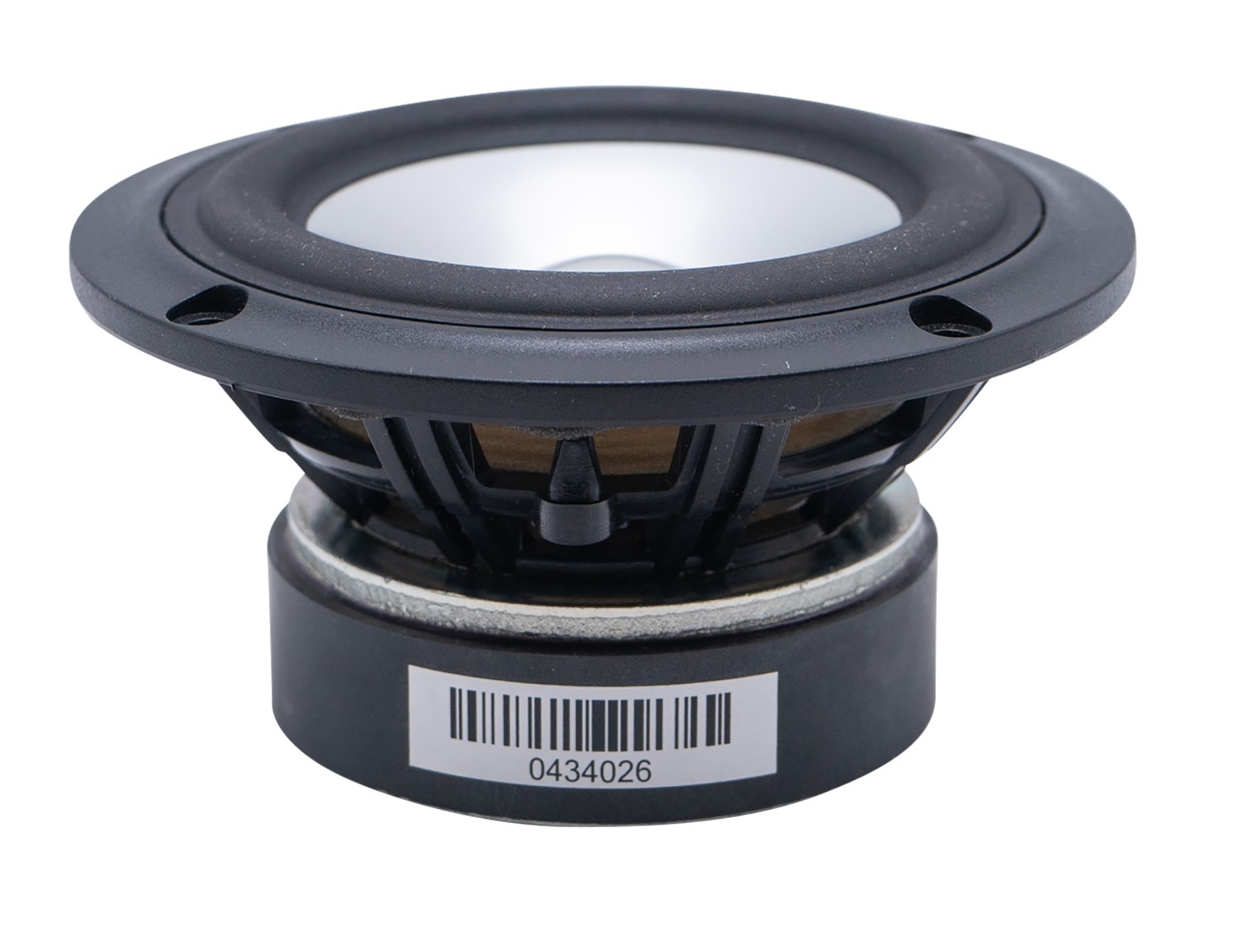

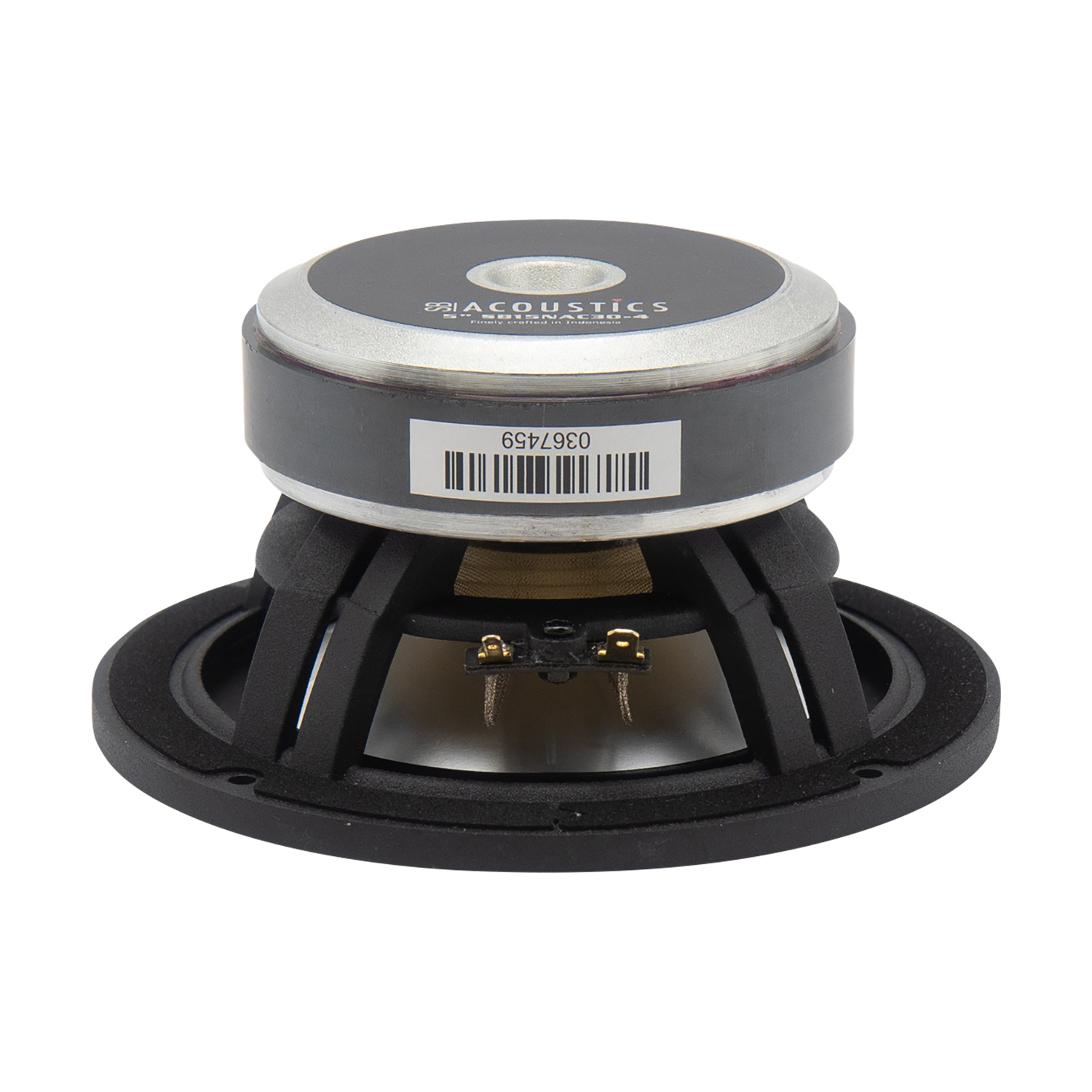

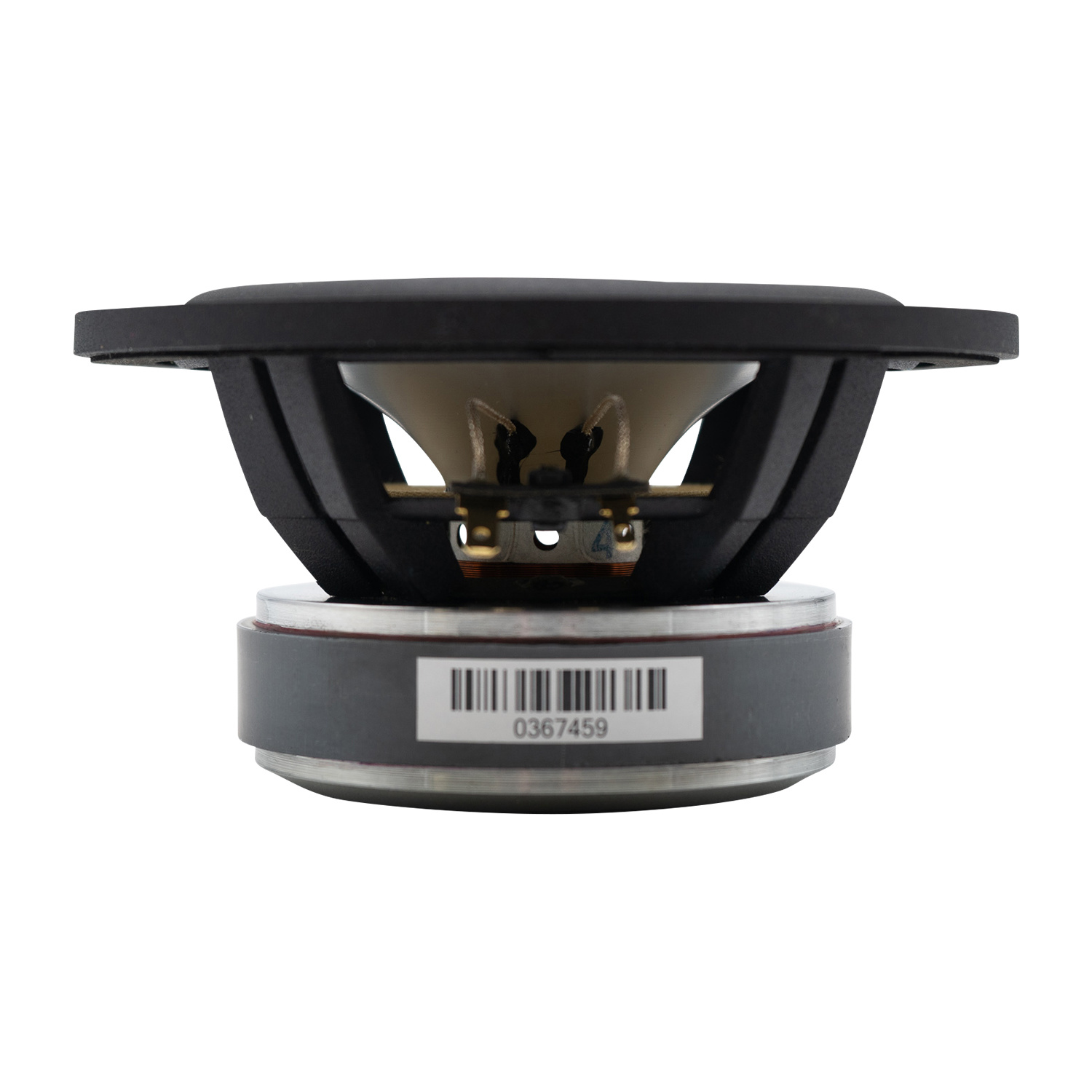

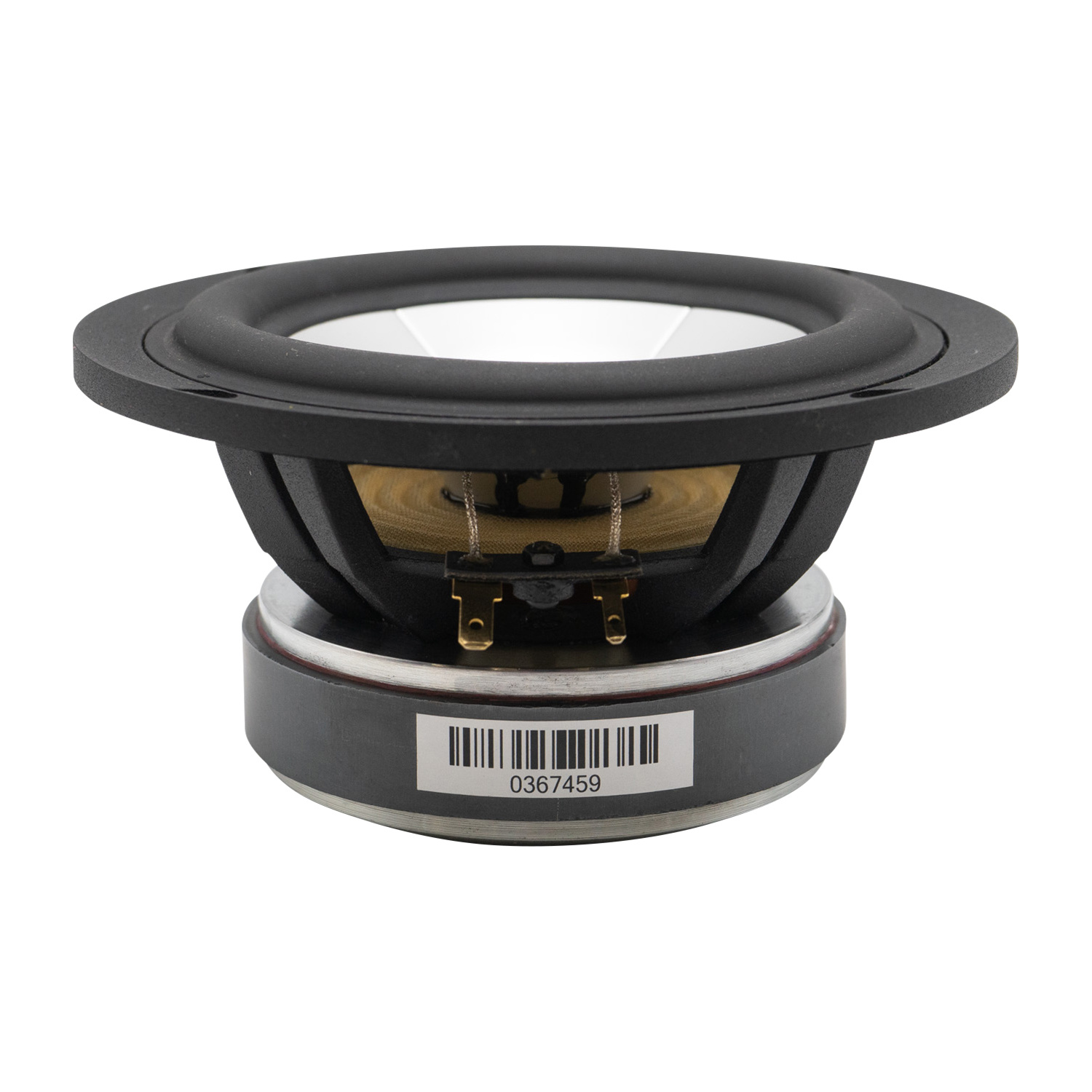

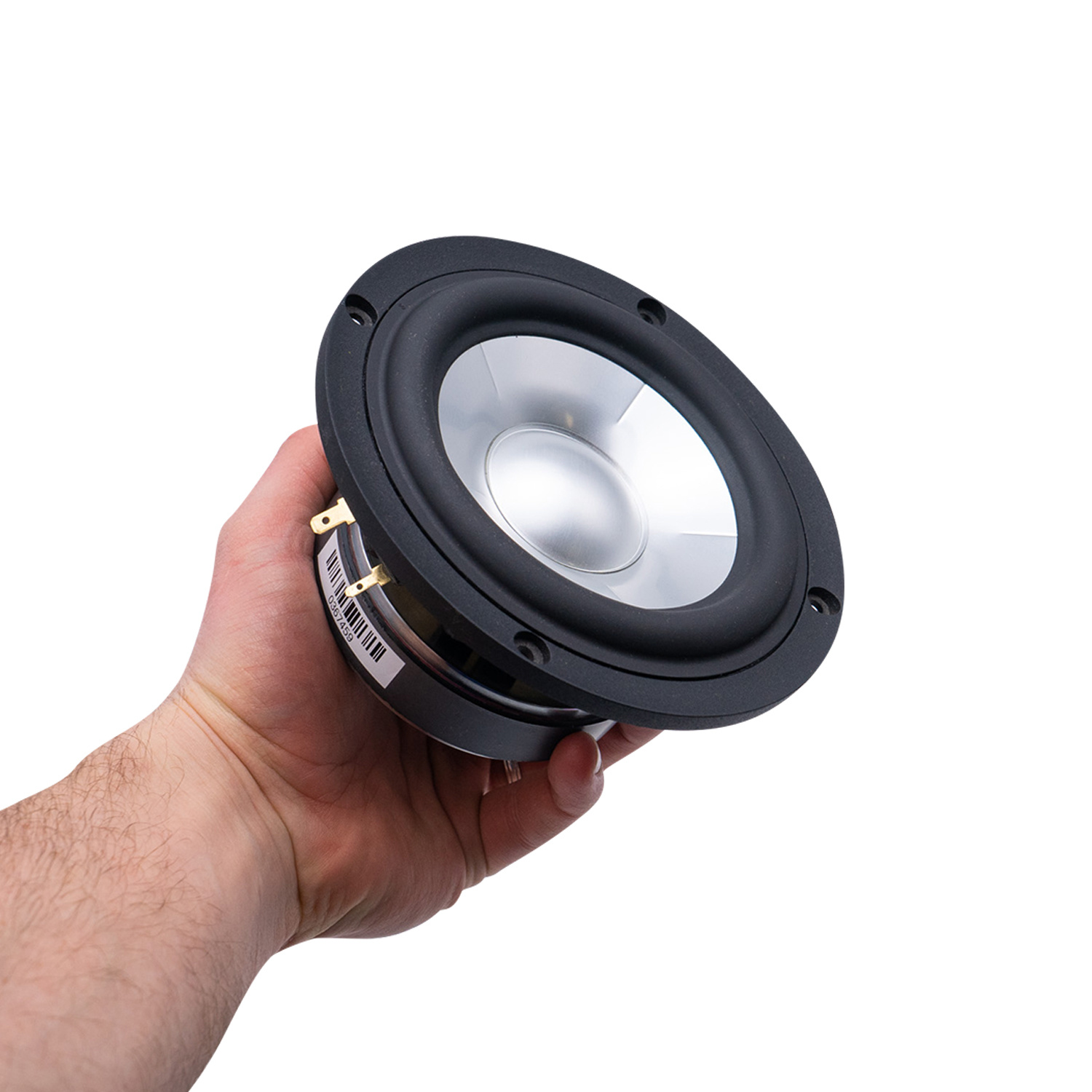

SB Acoustics SB15NAC30-4 5'' Mid-Woofer

1 reviews

Brand: SB Acoustics

Show all Bass-mid woofer

Compare

5" | 4 Ω

€ 63,60€ 76,95 2 In stock

24h express shipping available
Ordered now, shipped on Monday
In-house techniscal support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

Vented cast aluminum chassis for optimum strength and low compression
Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
Soft low damping rubber surround for improved transient response
Non-conducting fiber glass voice coil former for minimum damping
Extended copper sleeve on pole piece for low inductance and low distortion
CCAW voice coil for reduced moving mass
Long life silver lead wires
Vented pole piece for reduced compression

Product details

SB Acoustics SB15NAC30-4 5'' Mid-Woofer

SB Ceramic cones consist of an aluminum/ceramic dual layer cone. Ceramic provides a very hard and robust surface with improved sonic properties and cosmetic appearance.

Other than that, ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide: significantly higher stiffness to weight ratio, more consistent performance over a wide range of temperature and humidity as well as superior immunity to UV light and sunlight, to water and salt water and to combustibility.

Specifications

Article number: SB15NAC30-4
Woofer Series: NAC Series
Woofer Type: Midwoofer
Nominal Diameter: 5"
Power Handling (RMS): 50 Watts
Impedance (Z): 4 ohms
Sensitivity: 88.5 dB 2.83V/1m
Voice Coil Diameter: 1.2"
DC Resistance (Re): 3.1 ohms
Voice Coil Inductance (Le): 0.12 mH
Resonant Frequency (Fs): 35 Hz
Mechanical Q (Qms): 5.65
Electromagnetic Q (Qes): 0.32
Total Q (Qts): 0.3
Diaphragm Mass Inc. Airload (Mms): 10.8 g
Mechanical Compliance of Suspension (Cms): 1.91 mm/N
Surface Area of Cone (Sd): 82 cm2
BL Product (BL): 4.8 Tm
Compliance Equivalent Volume (Vas): 0.64 ft.³
Maximum Linear Excursion (Xmax): 10 mm

Reviews

1 reviews

5 from 5Based on 1 reviews

Review this product

5 of 5

Good construction and very good sound! Good price too! Seller send fast. I compared with Scan-speak 15M/4531K00 and the sound is much better than Scanspeak and the price is more cheap at SB Acoustic

By Cristi Chera on 22 February 2022
