SB Acoustics SB15CRC30-8 Bass-midwoofer

Name: SB Acoustics SB15CRC30-8 Bass-midwoofer
Brand: SB Acoustics
SKU: SB15CRC30-8
Price: 109.95 EUR
Availability: InStock
Rating: 4 (1 reviews)

1 reviews

Brand: SB Acoustics

Show all Full-range woofer

Compare

5" | 8 Ω

€ 90,87€ 109,95 2 In stock

24h express shipping available
Ordered now, shipped today
In-house technical support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

Extended copper sleeve on pole piece for low inductance and low distortion
CCAW voice coil for reduced moving mass
Long life silver lead wires
Vented pole piece for reduced compression

Product details

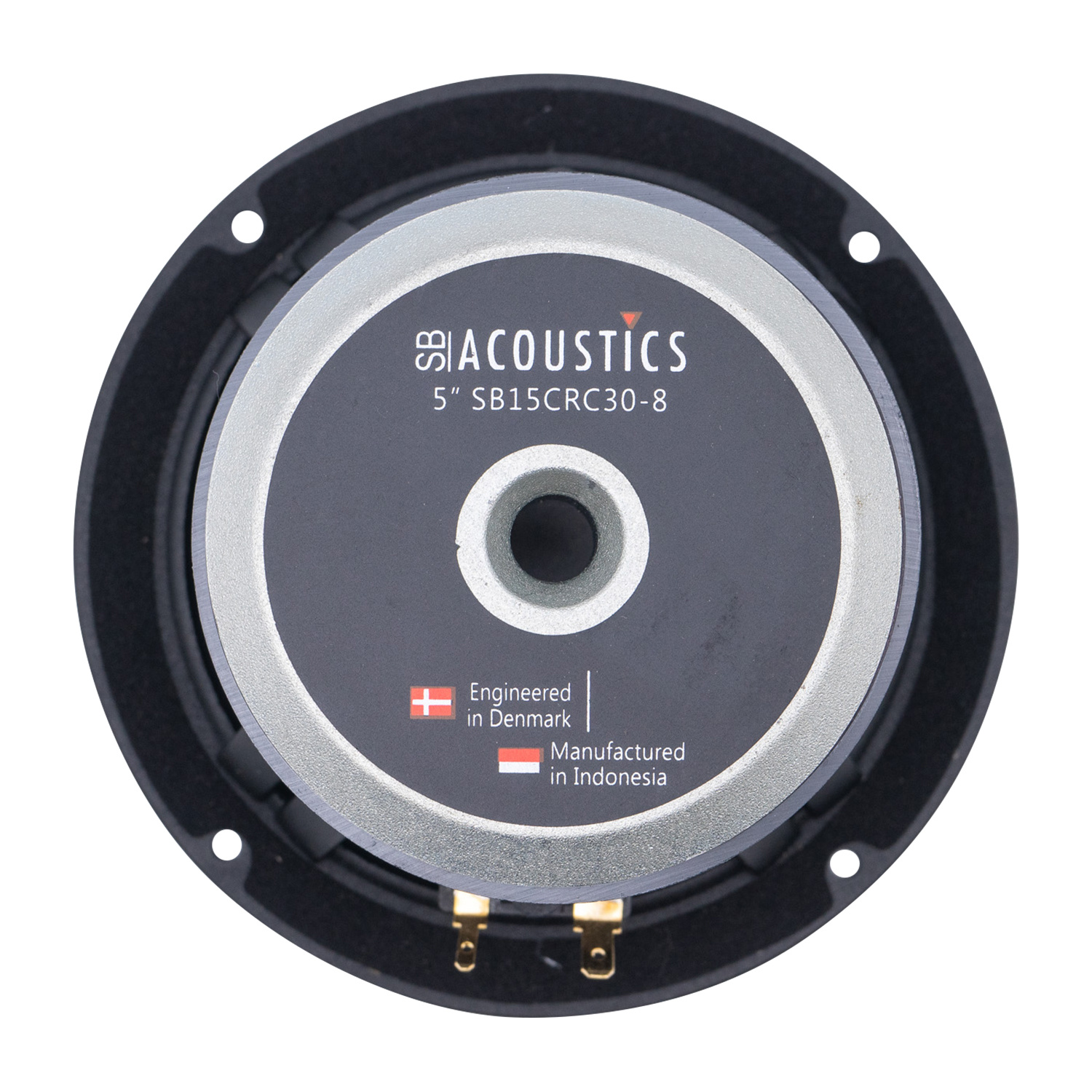

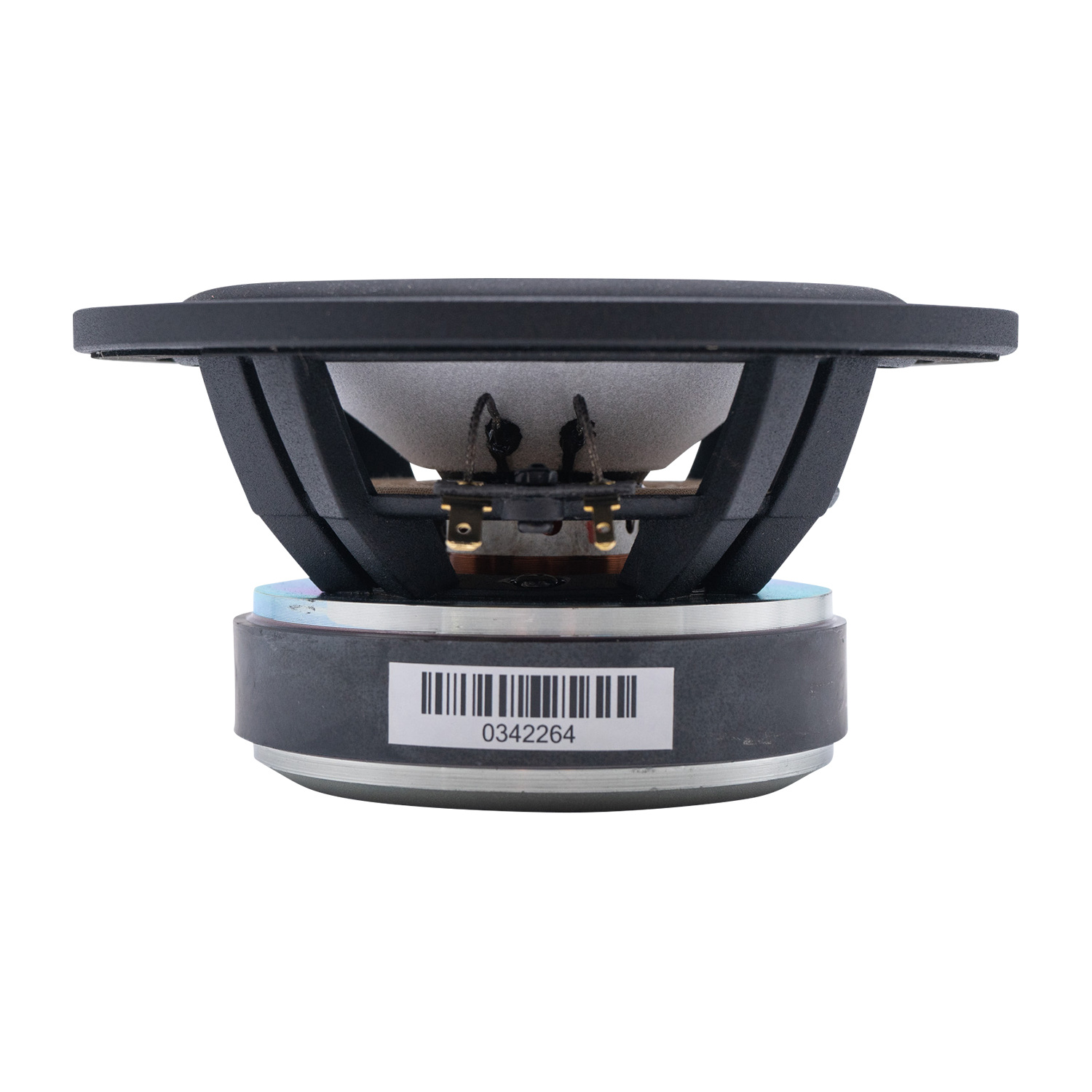

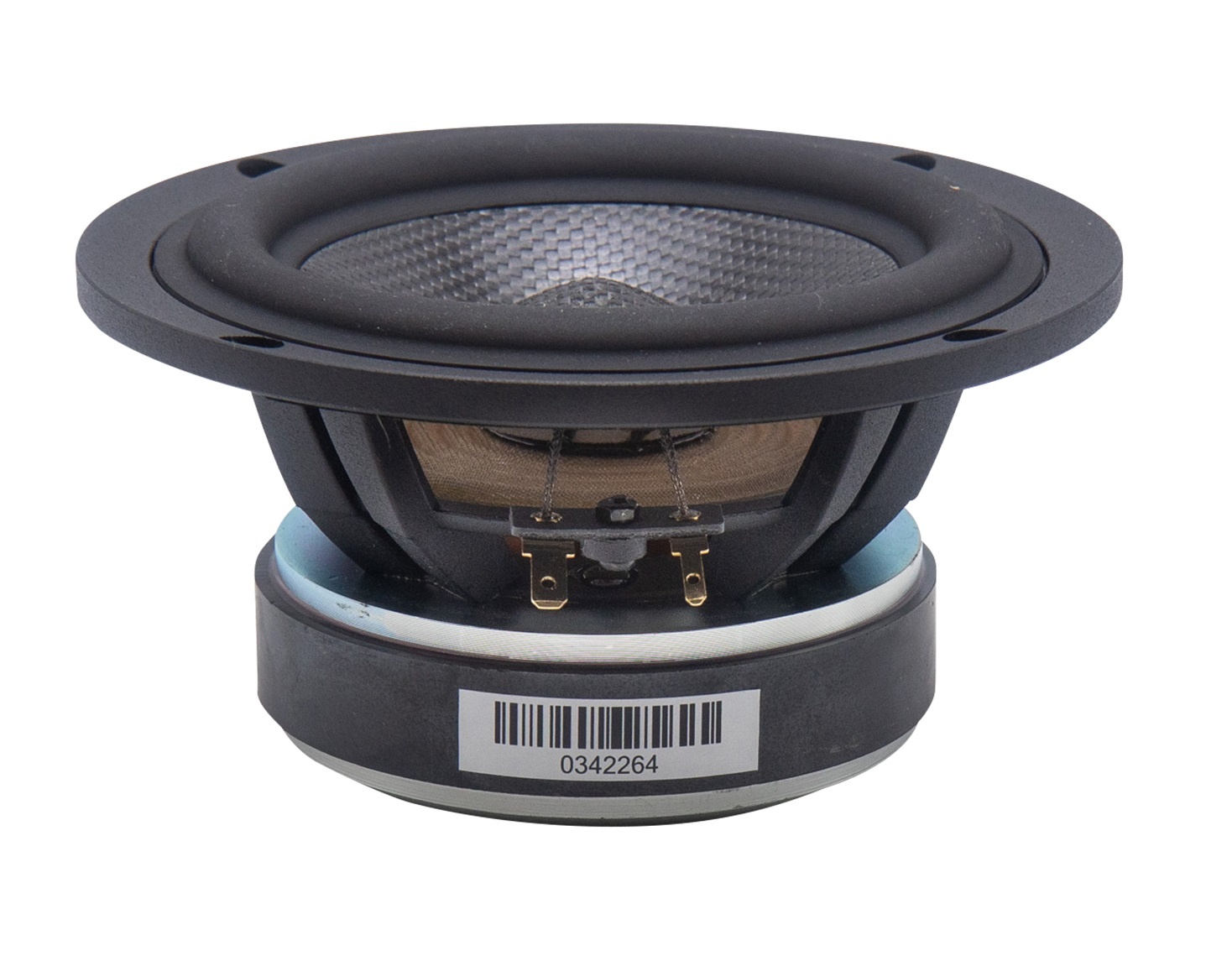

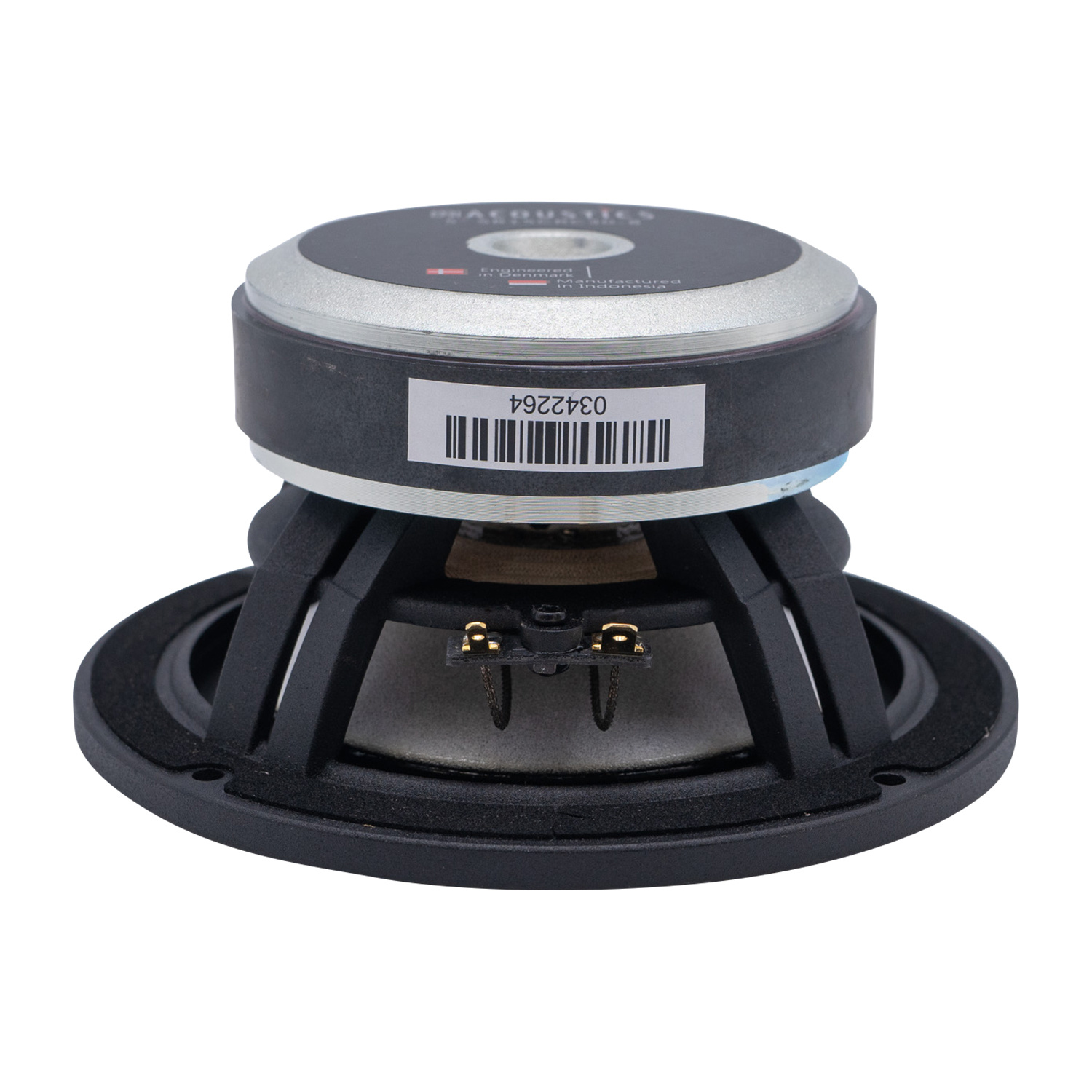

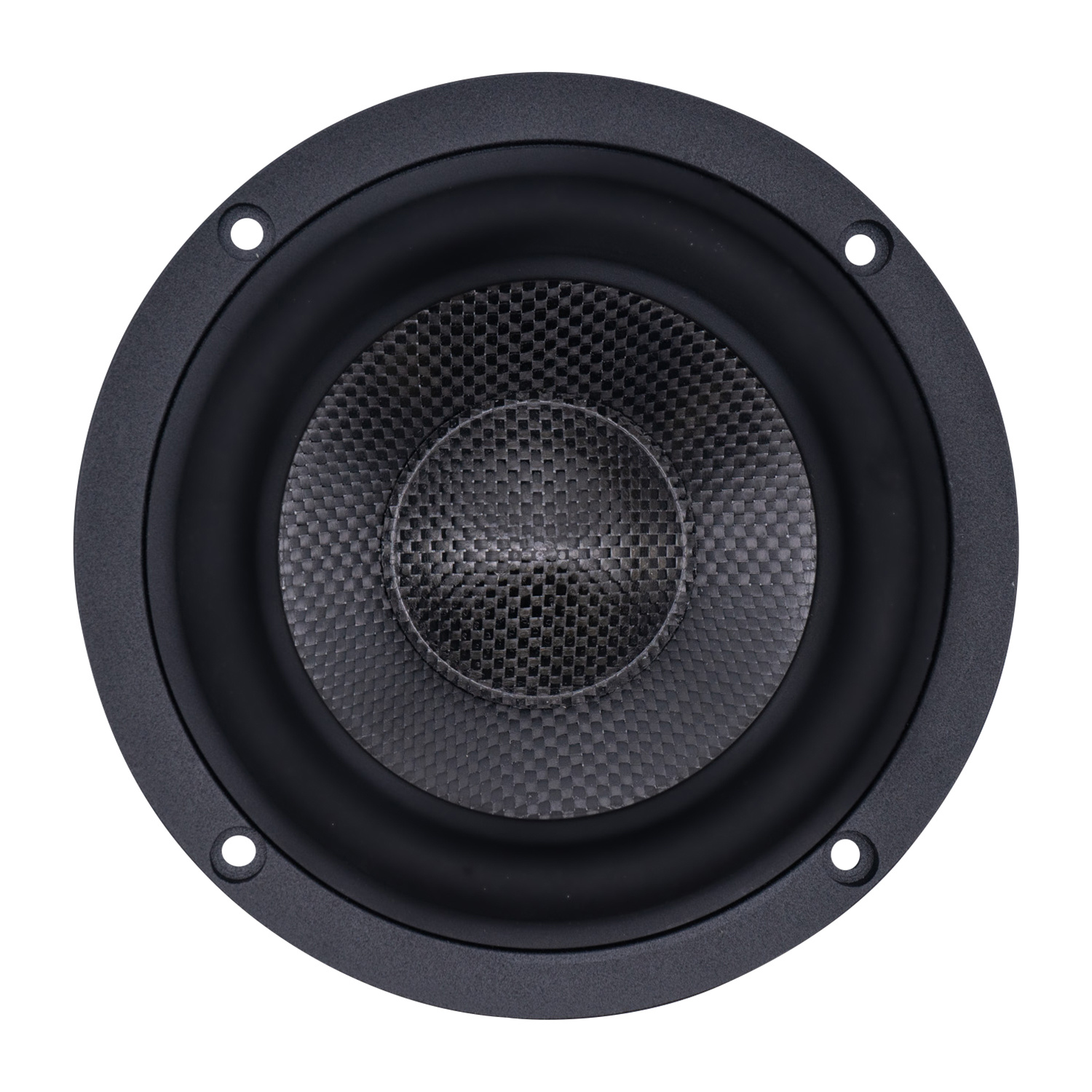

SB Acoustics SB15CRC30-8 5" Woofer

Rohacell®/Carbon fibre sandwich cone for optimized stiffness/damping ratio. Vented cast aluminum chassis for optimum strength and low compression. Low damping rubber surround for improved transient response. Non-conducting fibre glass voice coil former for minimum damping.

Specifications

Article number: SB15CRC30-8
Woofer Series: CRC Series
Nominal Diameter: 5"
Power Handling (RMS): 50 Watts
Impedance (Z): 8 ohms
Sensitivity: 86 dB
Voice Coil Diameter: 30.5 mm
Magnet Weight: 0.54 kg
DC Resistance (Re): 5.9 Ω
Voice Coil Inductance (Le): 0.14 mH
Resonant Frequency (Fs): 40 Hz
Mechanical Q (Qms): 3.51
Electromagnetic Q (Qes): 0.46
Total Q (Qts): 0.41
Diaphragm Mass Inc. Airload (Mms): 9.7 g
Mechanical Compliance of Suspension (Cms): 1.60 mm/N
Surface Area of Cone (Sd): 82 cm²
Compliance Equivalent Volume (Vas): 14.9 liters
Driver's Mechanical Losses (Rms): 0.7 kg/s
Cone / Diaphragm Material: Rohacell®/Carbon fibre sandwich cone
# Mounting Holes: 4

Reviews

1 reviews

4 from 5Based on 1 reviews

Review this product

4 of 5

Ik heb 4 van deze drivers gebuikt om de woofers van mijn Teufel H600F te vervangen, waarvan er 1 defect was. Ik ben zeer tevreden over het resultaat. Geluidsdetails en stereobeeld dik in orde.

By Rob B. on 3 January 2021
