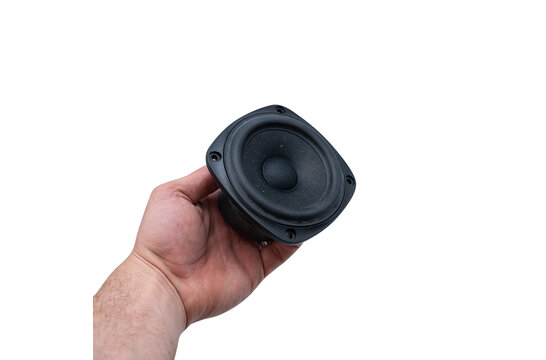

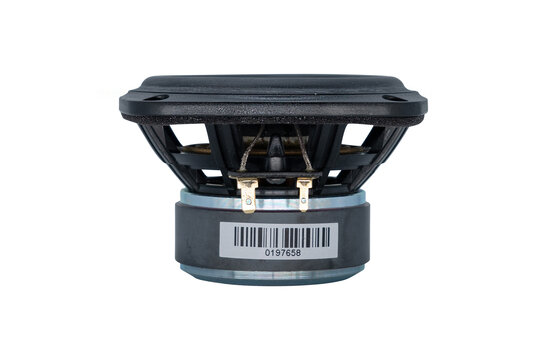

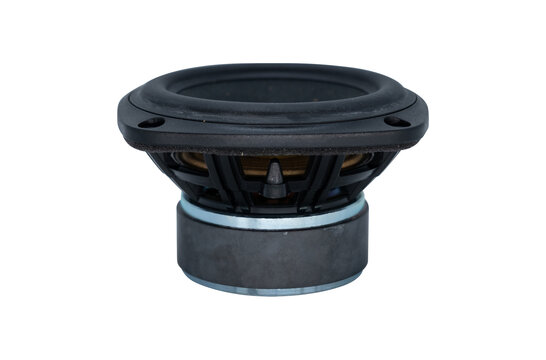

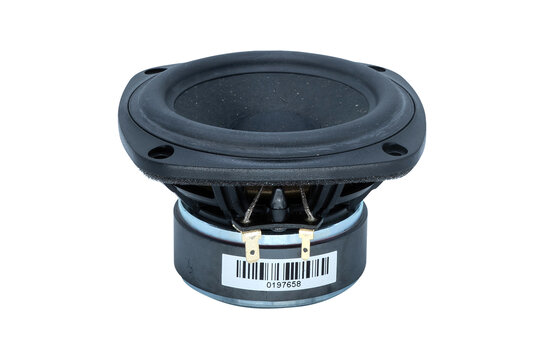

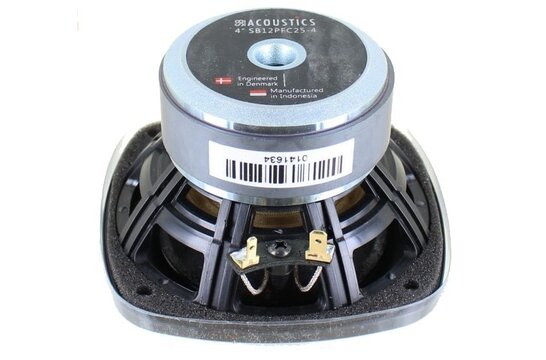

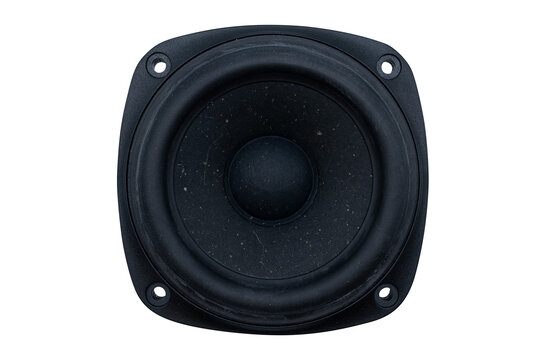

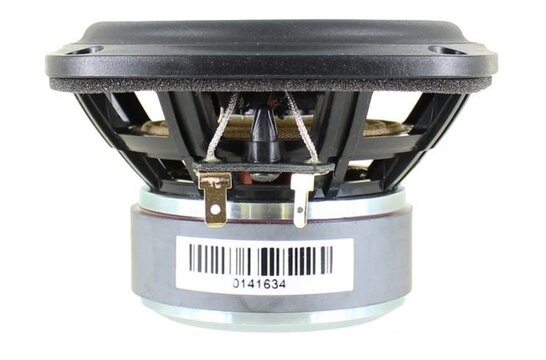

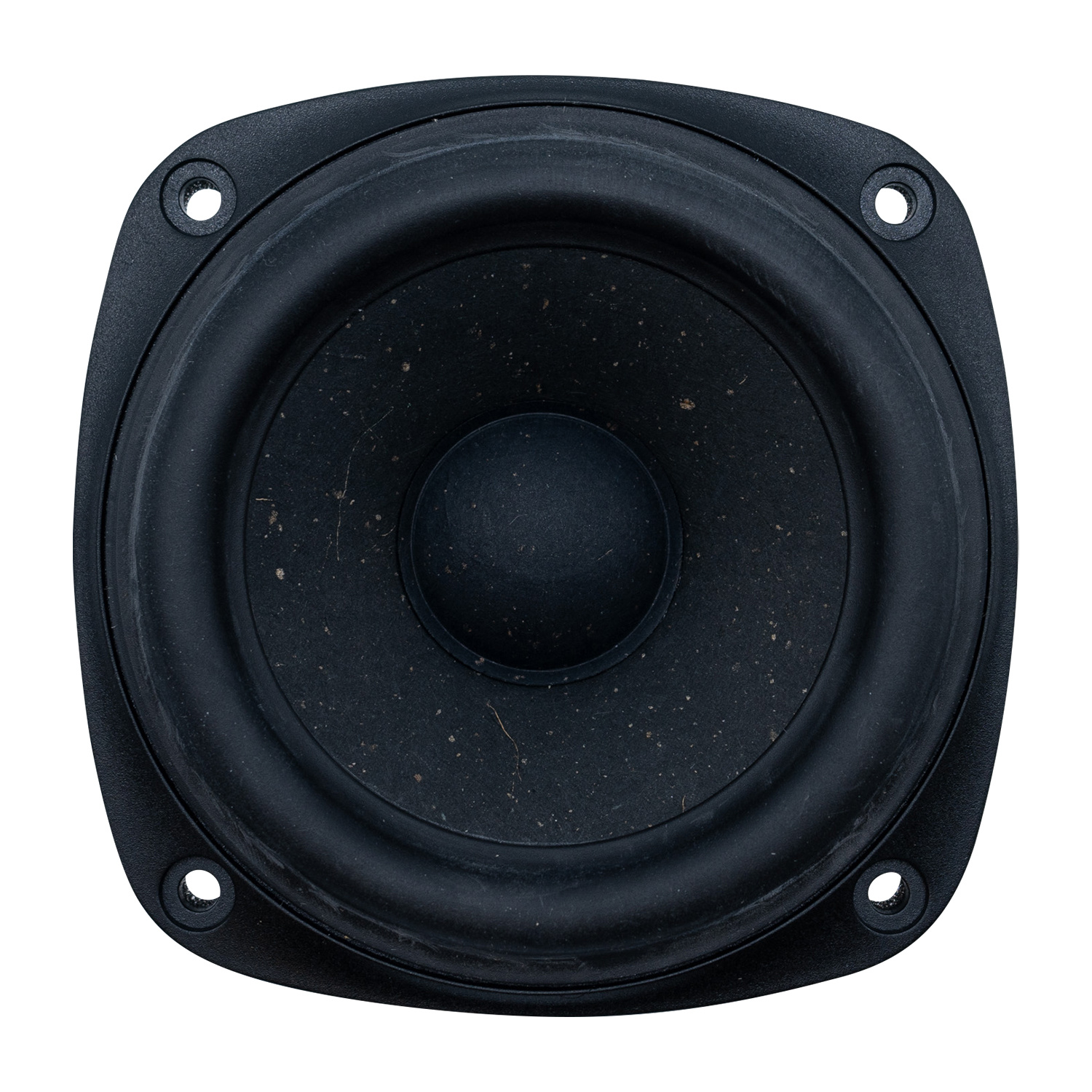

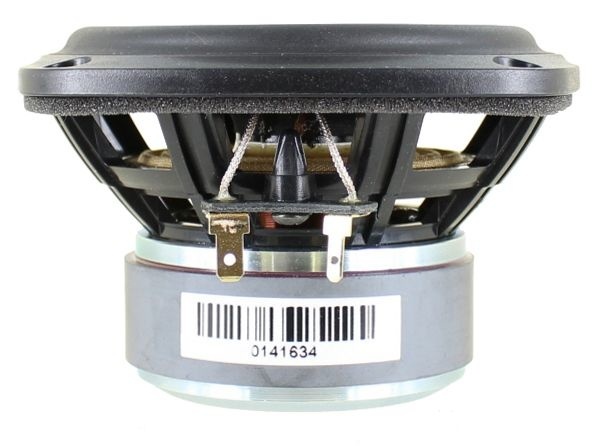

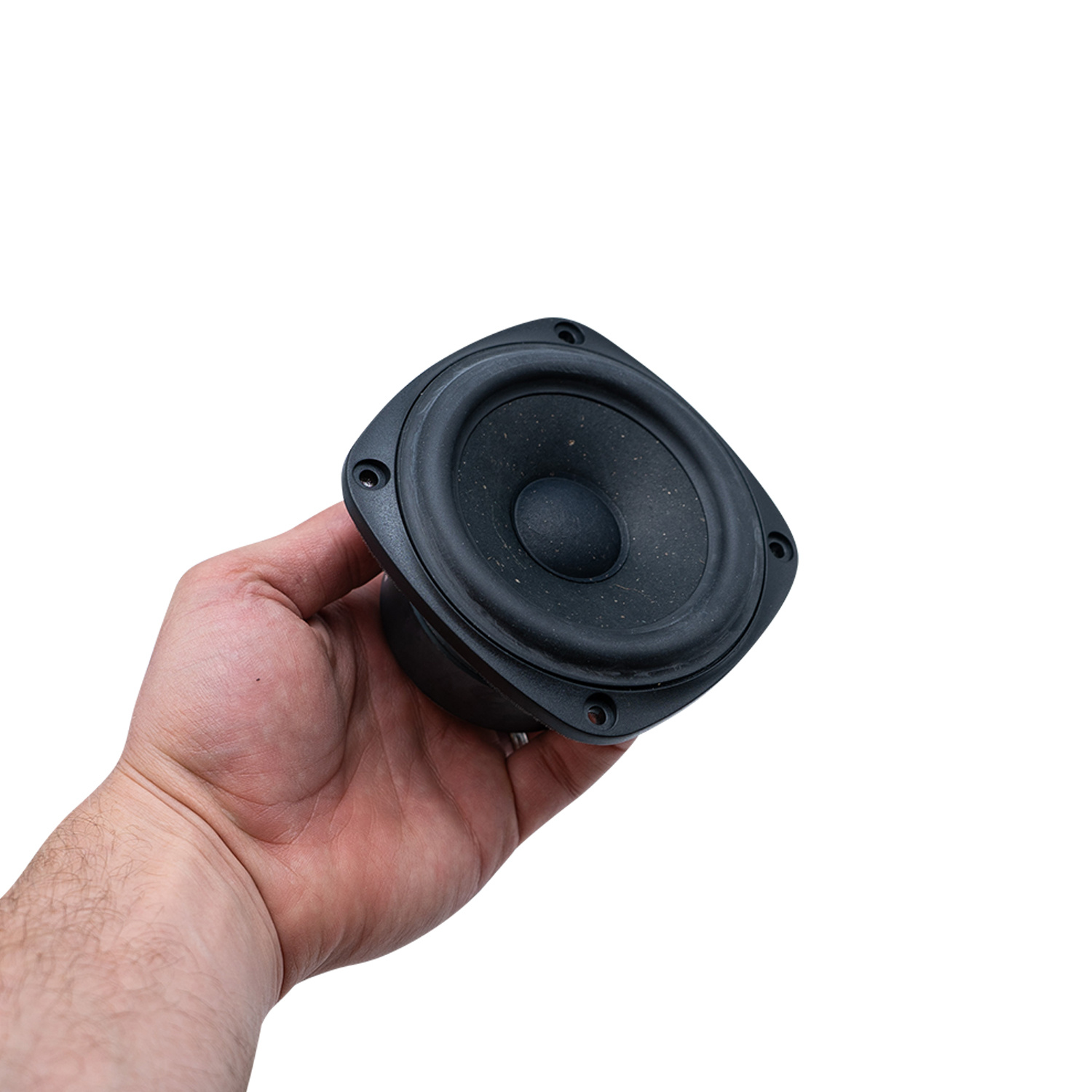

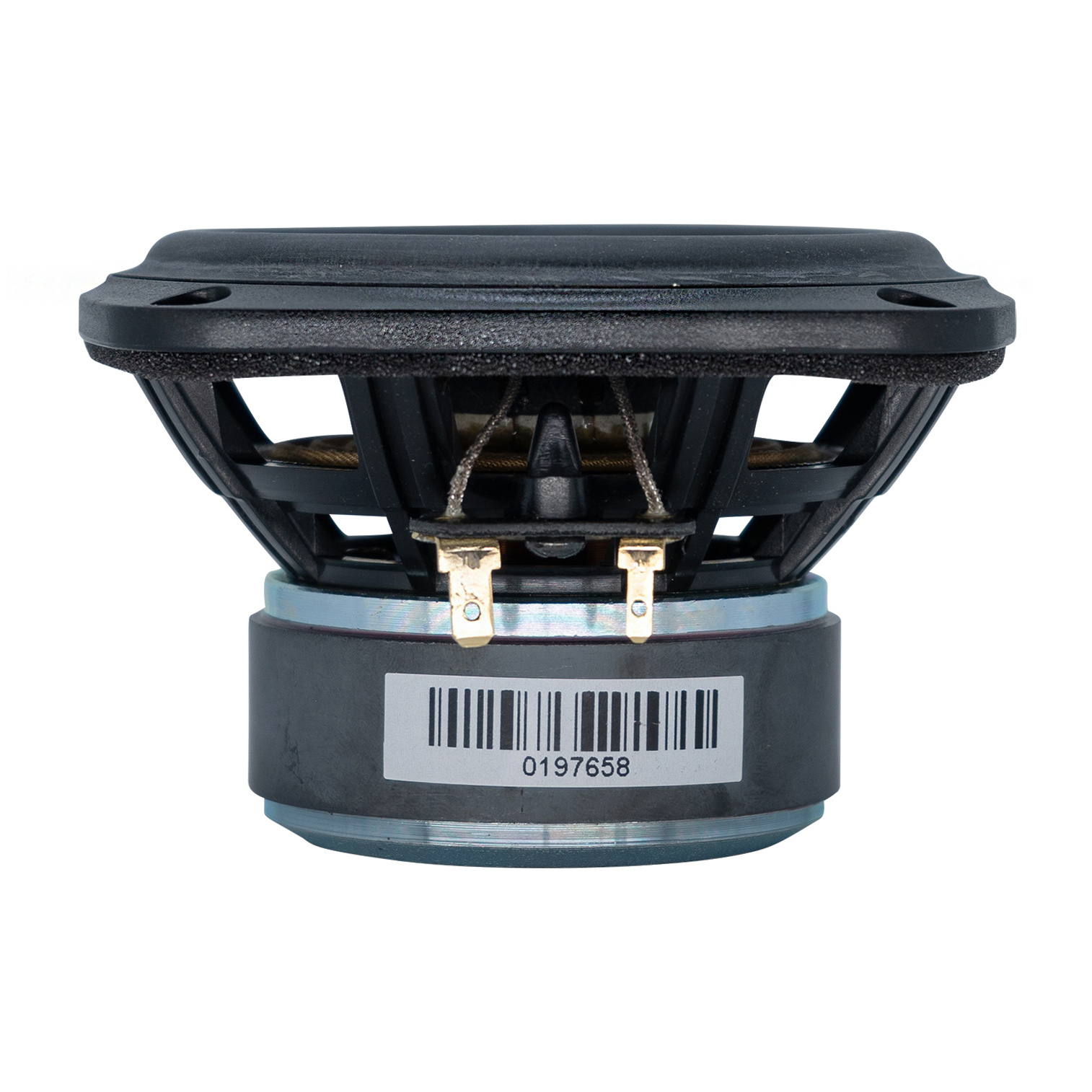

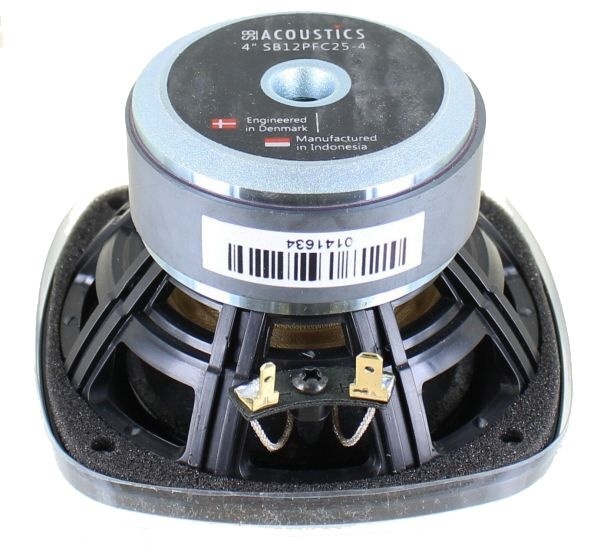

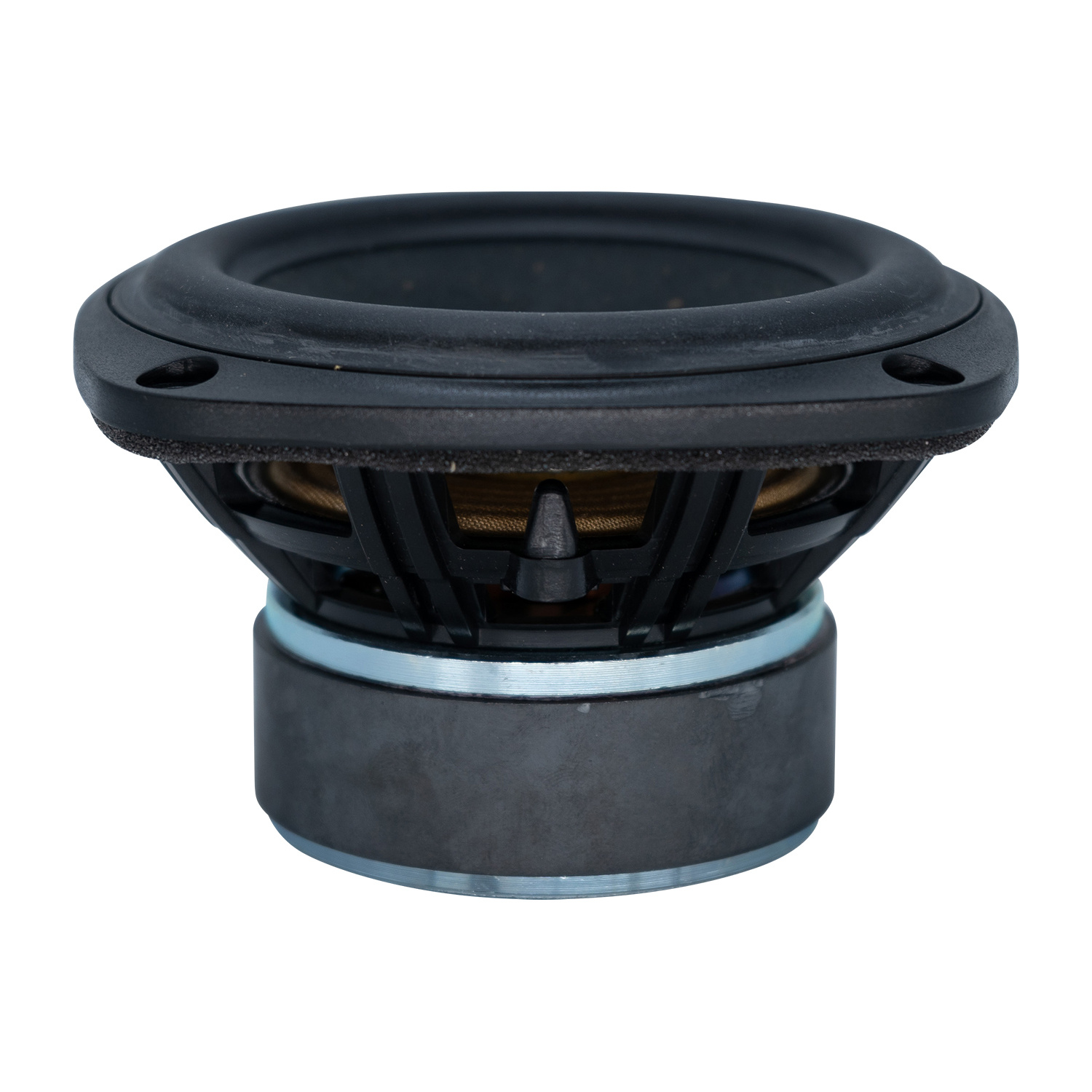

        SB12PFC25-4 4" Reed Cone Mid-Bass

        SB Acoustics SB12PFC25-4 4" Reed Cone Mid-Bass

        €27,45

        4 In stock

        Add to cart

        SB Acoustics SB12PFC25-4 4" Reed Cone Mid-Bass

        1 reviews
        4 from 5
        1 reviews
        5 stars
        0%
        4 stars
        100%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        4" | 4 Ω
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        € 22,69€ 27,45 4 In stock
        • -5% Purchase 4 for only € 26,08 per piece
        € 27,45
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass
        SB12PFC25-4 4" Reed Cone Mid-Bass

        Product description SB Acoustics SB12PFC25-4 Bass-midwoofer

        Highlights

        • Vented reinforced plastic chassis
        • Proprietary cone material with natural fibers made in-house
        • Butyl rubber surround for smooth frequency response
        • Vented motor system for low compression
        • Long stroke linear suspension for improved dynamics
        • Non-resonant long life lead wires



        Product details

        SB Acoustics SB12PFC25-4 4" Reed Cone Mid-Bass



        The SB Acoustics SB12PFC25-4 is composed by a vented reinforced plastic chassis and a proprietary cone material with natural made in-house fibers. The butyl rubber surround allows a smooth frequency response while its vented motor system provides low compression. Long stroke linear suspension for improved dynamics and non-resonant long life lead wires.

        Show more

        Specifications

        Article number
        SB12PFC25-4
        EAN
        0696277269518
        Woofer Series
        SB Acoustics PFC Paper series
        Woofer Type
        Midwoofer
        Nominal Diameter
        4"
        Power Handling (RMS)
        30 Watt
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        87.5 dB
        Frequency Response
        80 - 9,500 Hz
        Voice Coil Diameter
        25 mm
        DC Resistance (Re)
        3.1 Ω
        Voice Coil Inductance (Le)
        0.26 mH
        Resonant Frequency (Fs)
        58 Hz
        Mechanical Q (Qms)
        3.4
        Electromagnetic Q (Qes)
        0.49
        Total Q (Qts)
        0.43
        Diaphragm Mass Inc. Airload (Mms)
        5.3 g
        Mechanical Compliance of Suspension (Cms)
        1.42 mm/N
        Surface Area of Cone (Sd)
        50 cm²
        BL Product (BL)
        3.5 Tm
        Compliance Equivalent Volume (Vas)
        5.1 L
        Maximum Linear Excursion (Xmax)
        5 mm
        Cone / Diaphragm Material
        Paper
        Voice Coil Wire Material
        CCAW
        Voice Coil Former
        Kapton
        Basket / Frame Material
        Stamped Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        209 mm
        Baffle Cutout Diameter
        184.5 mm

        Show more

        Reviews

        1 reviews
        Review this product
        4 of 5
        Nette woofer klinkt erg goed. Heb hem als 1e instantie besteld om in een set beovox speakers te zetten (originele woofer was door vorige eigenaar vervangen door goedkope rommel van china) maar de inbouw maat klopte niet.... hij is groter dan de orginele 4 inch driver. Maar heb u 2 mooie drivers voor mn volgend project
        By Yurian h. on 16 April 2019
