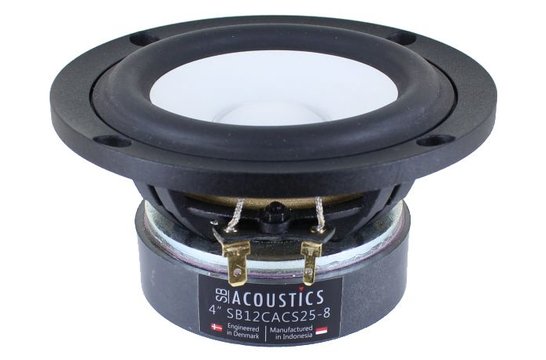

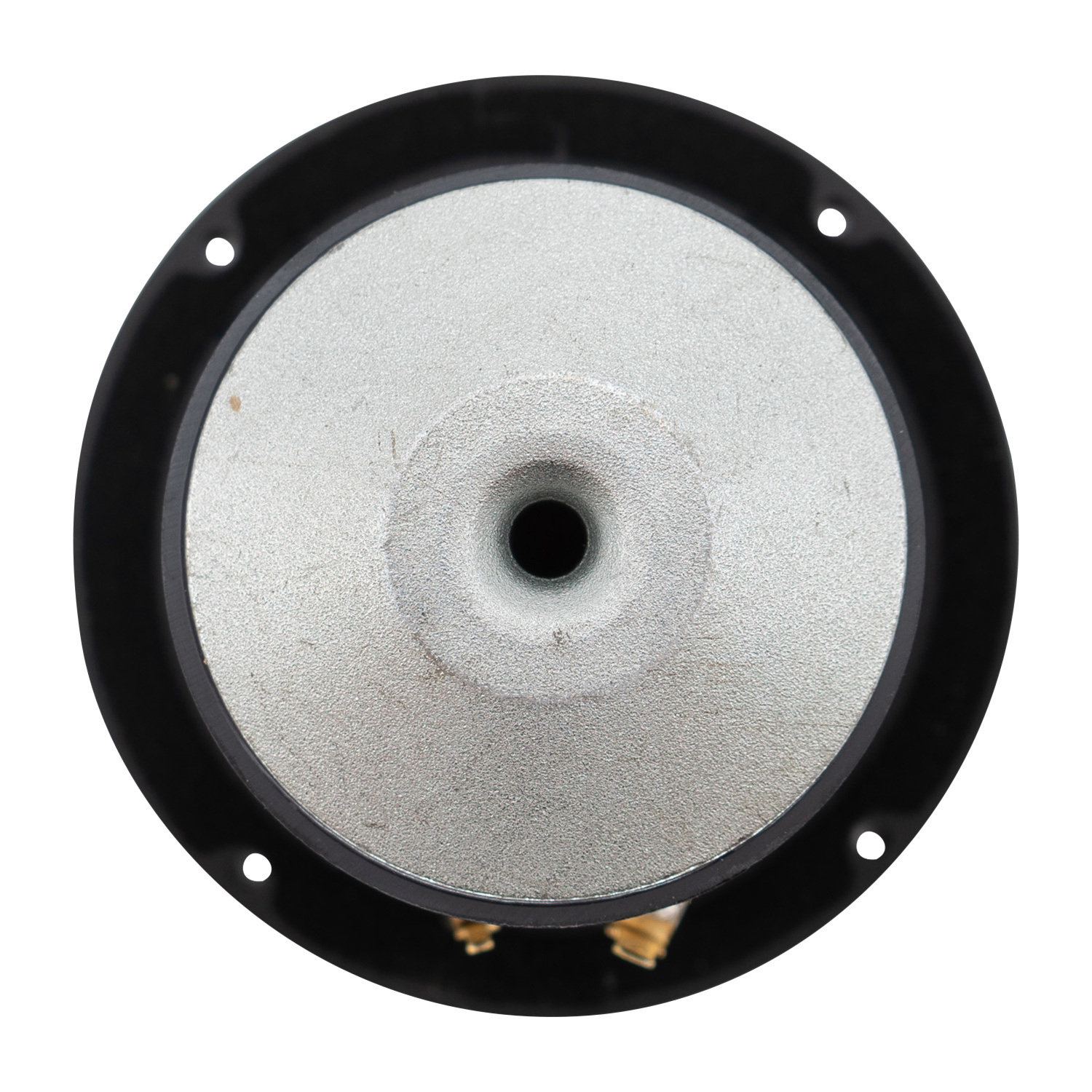

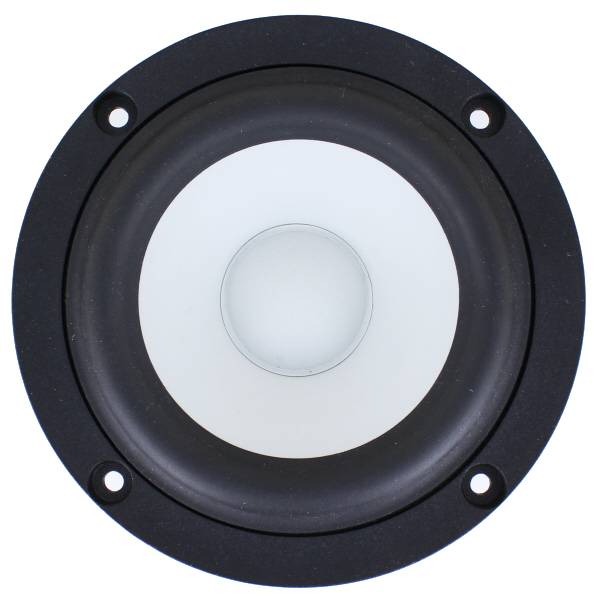

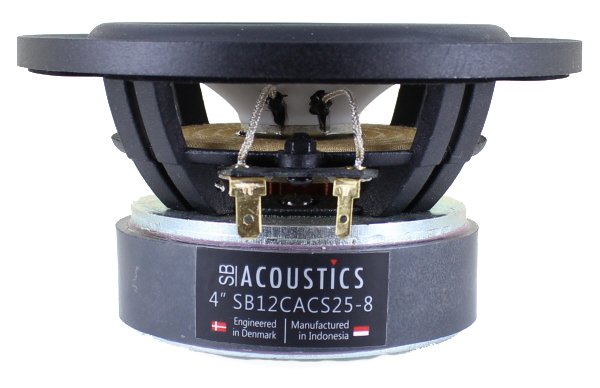

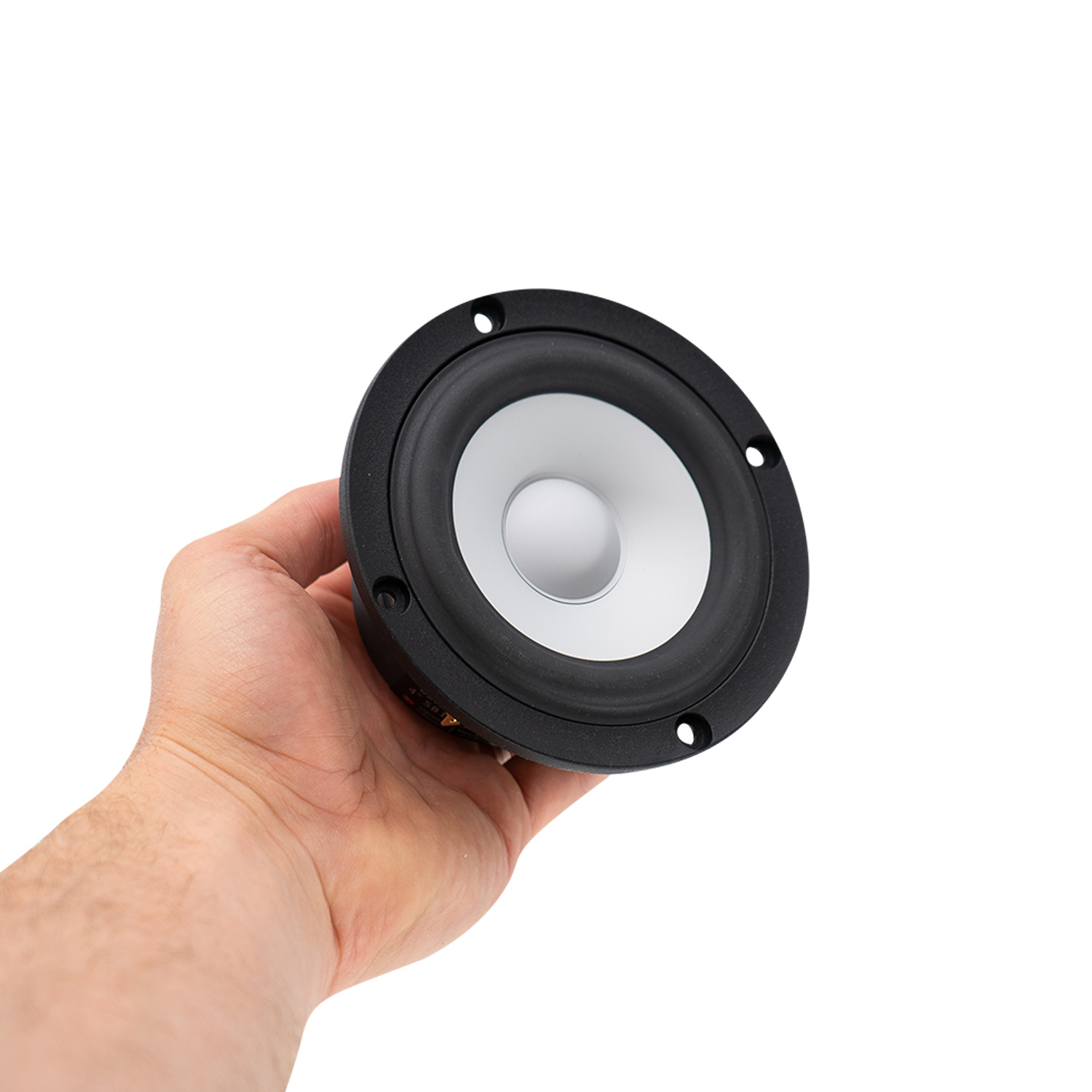

        SB Acoustics SB12CACS25-8 4" Ceramic Woofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all Bass-mid woofer
        4" | 8 Ω
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        € 60,29€ 72,95 2 In stock
        • -5% Purchase 4 for only € 69,30 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer
        SB12CACS25-8 4" Ceramic Woofer

        Product description

        Highlights

        • Vented cast aluminum chassis for optimum strength and low compression
        • Ceramic cone
        • Soft low damping rubber surround for improved transient response
        • Shorting ring in motor system for reduced distortion
        • Non-conducting fiber glass voice coil former for minimum damping
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Vented pole piece for reduced compression



        Product details

        SB Acoustics SB12CACS25-8 4"Ceramic Woofer



        Ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide: significantly higher stiffness to weight ratio, more consistent performance over a wide range of temperature and humidity as well as superior immunity to UV light and sunlight, to water and salt water and to combustibility.

        Show more

        Specifications

        Article number
        SB12CACS25-8
        Woofer Series
        CAC Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        4"
        Power Handling (RMS)
        30 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        85.5 dB
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        6.4 ohms
        Voice Coil Inductance (Le)
        0.34 mH
        Resonant Frequency (Fs)
        51 Hz
        Mechanical Q (Qms)
        4.85
        Electromagnetic Q (Qes)
        0.4
        Total Q (Qts)
        0.37
        Diaphragm Mass Inc. Airload (Mms)
        5.3 g
        Mechanical Compliance of Suspension (Cms)
        1.84 mm/N
        Surface Area of Cone (Sd)
        50 cm2
        BL Product (BL)
        5.2 Tm
        Compliance Equivalent Volume (Vas)
        0.22 ft.³
        Maximum Linear Excursion (Xmax)
        5 mm

        Show more

        Reviews

        1 reviews
        Review this product
        5 of 5
        Koper heeft geen omschrijving achtergelaten.
        By Jean Marie D. on 14 November 2020
