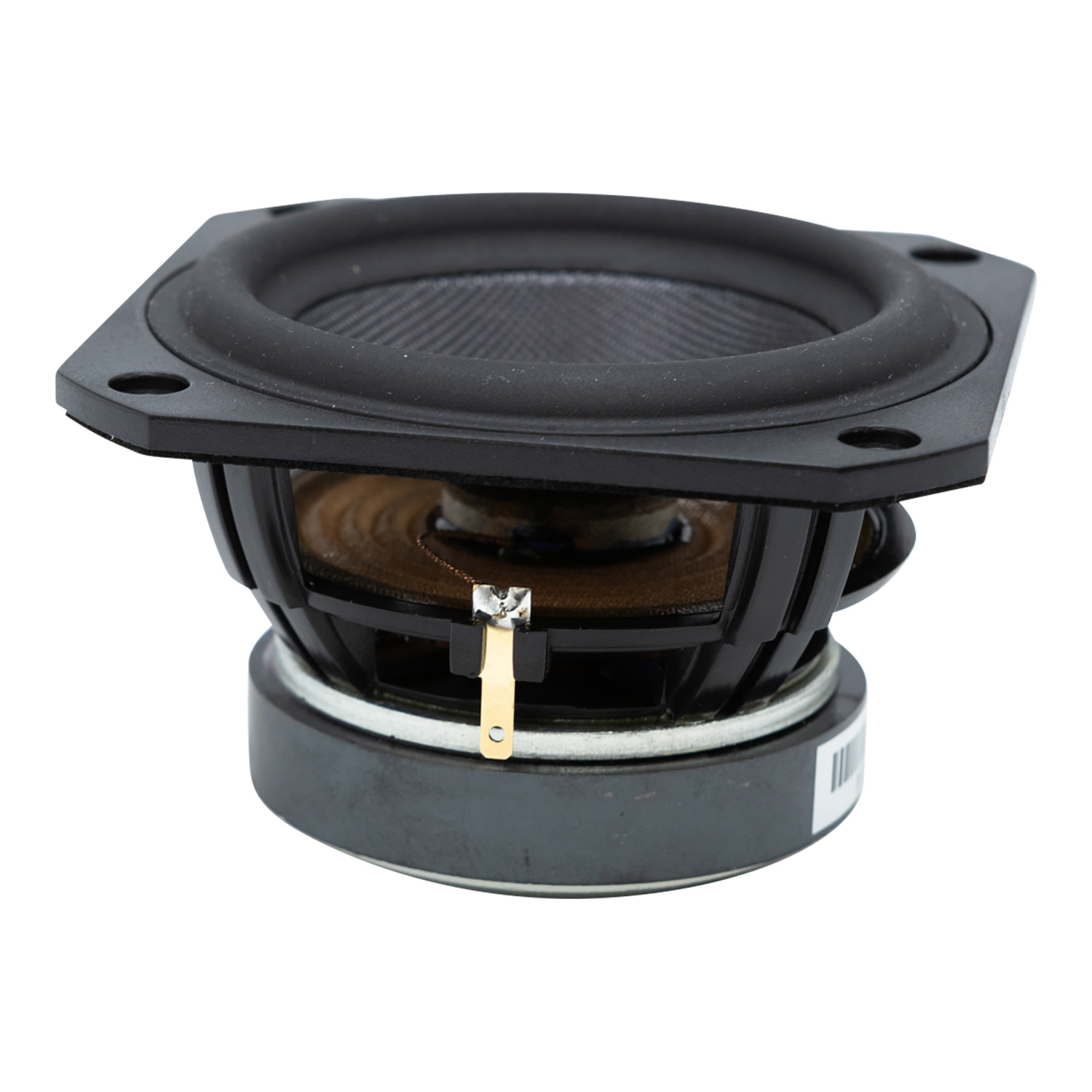

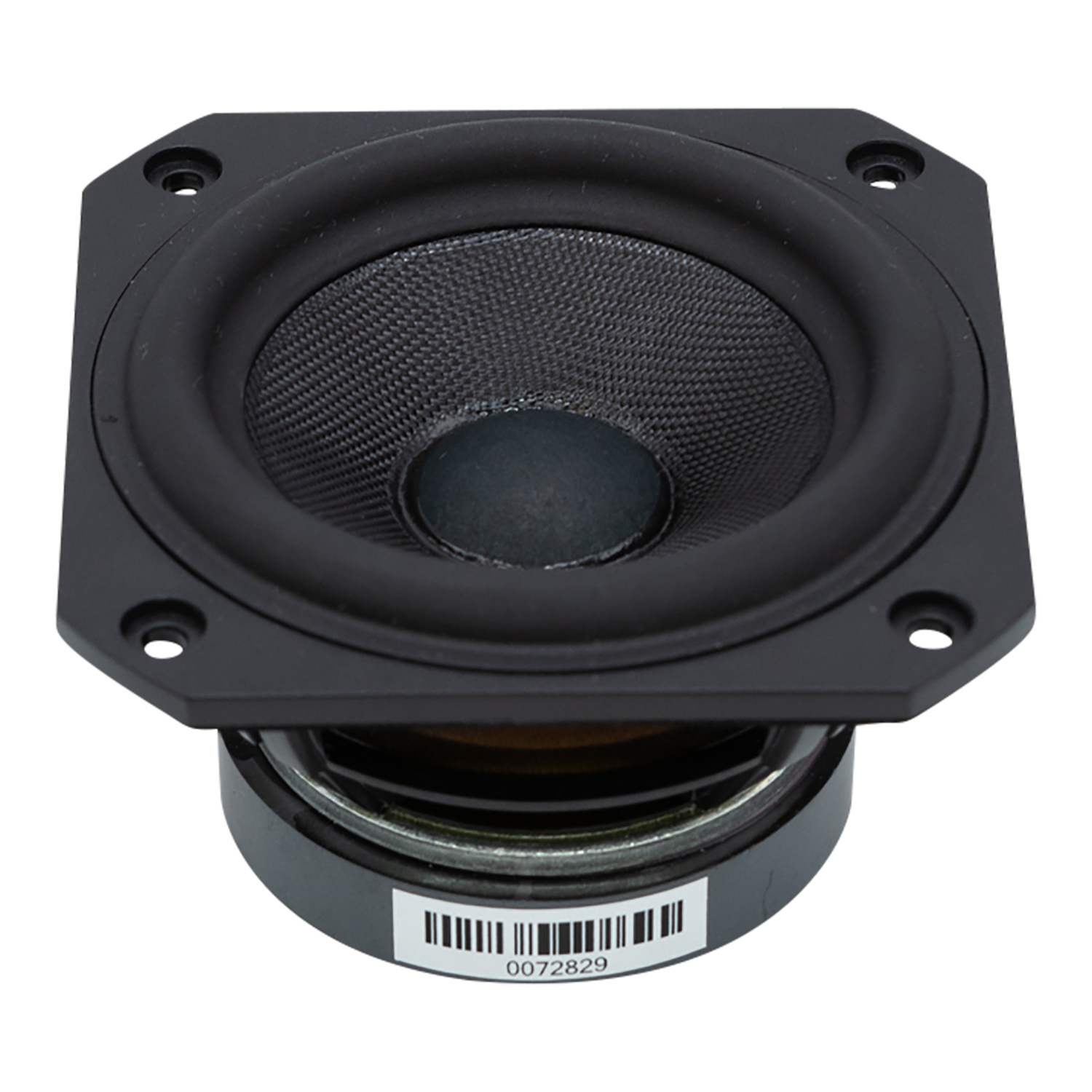

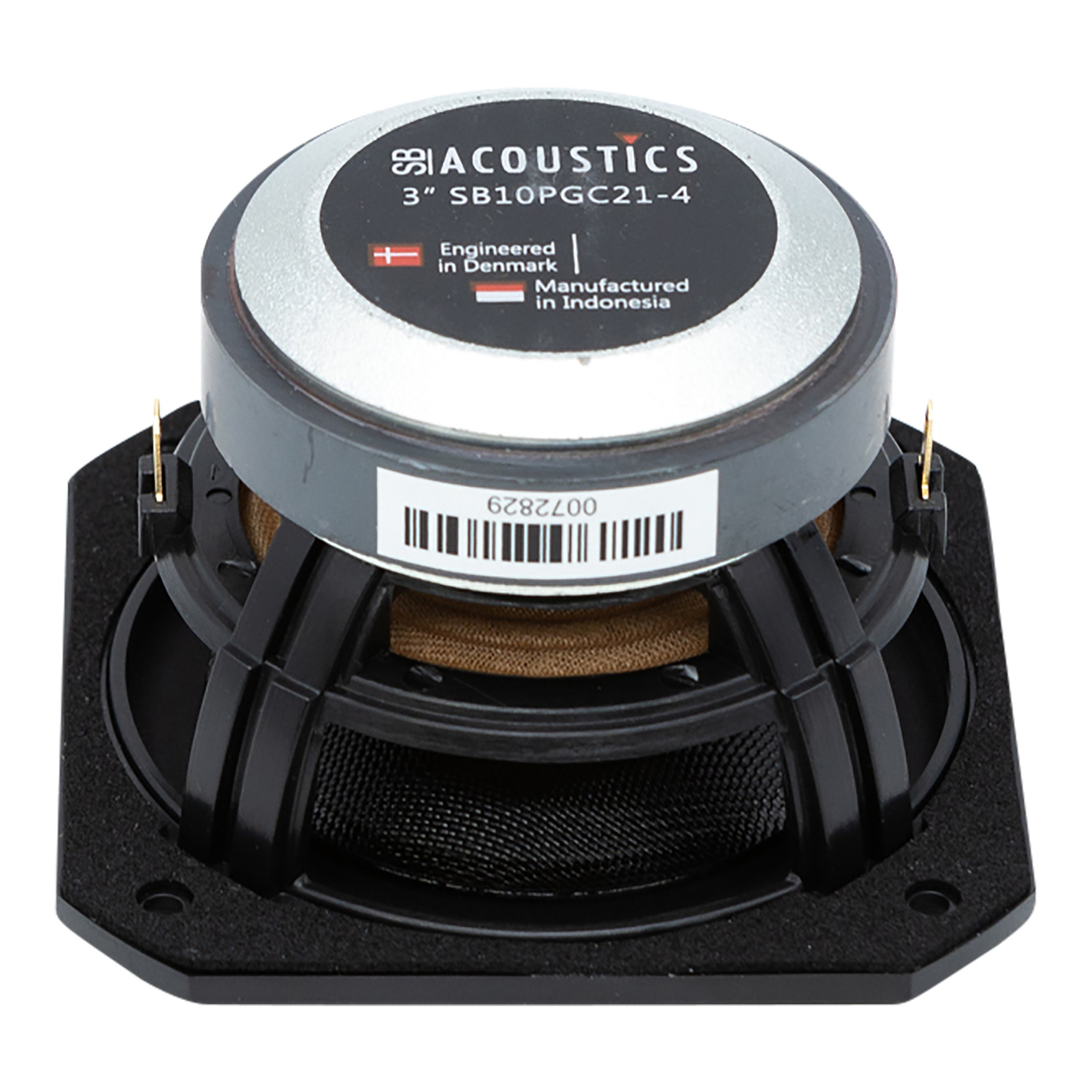

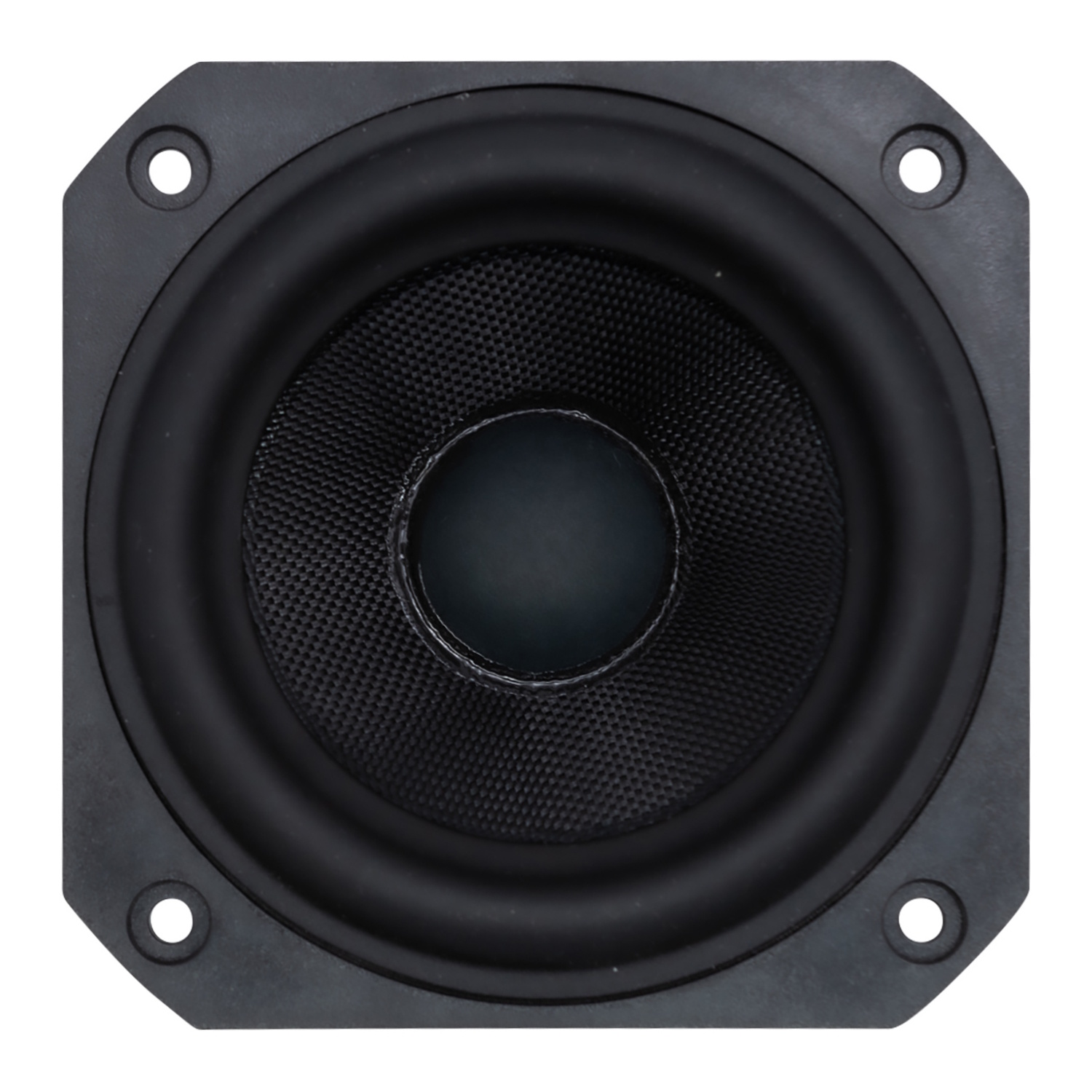

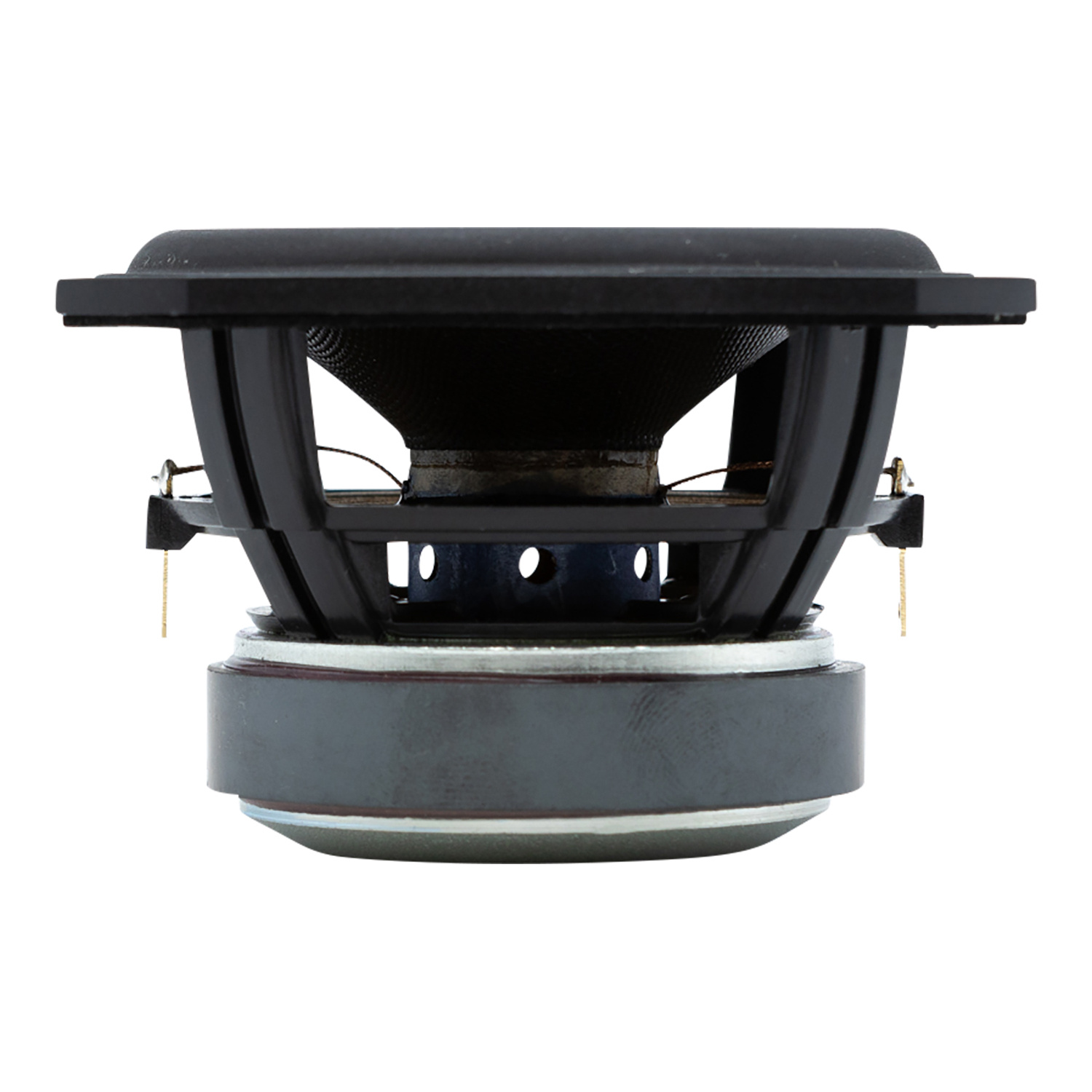

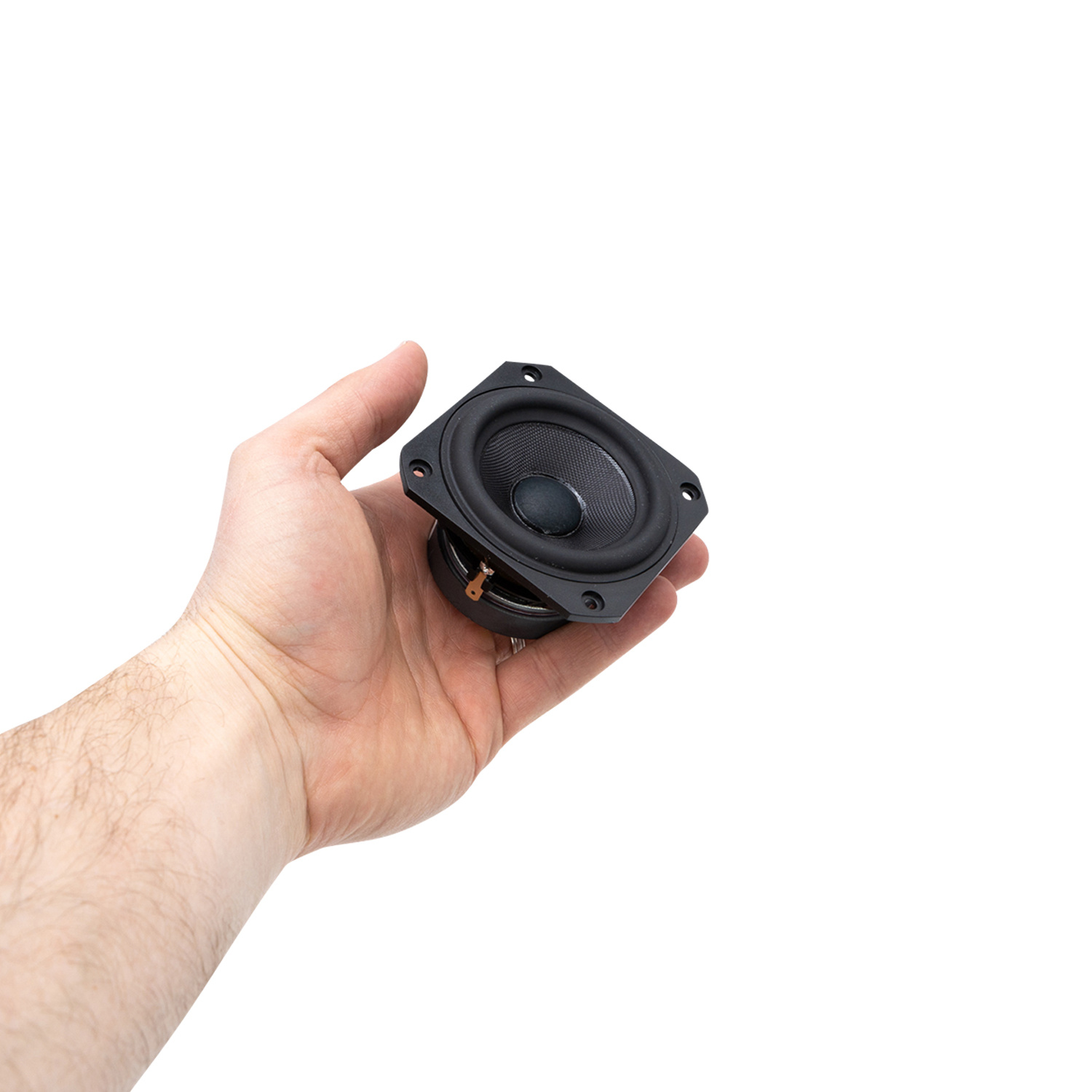

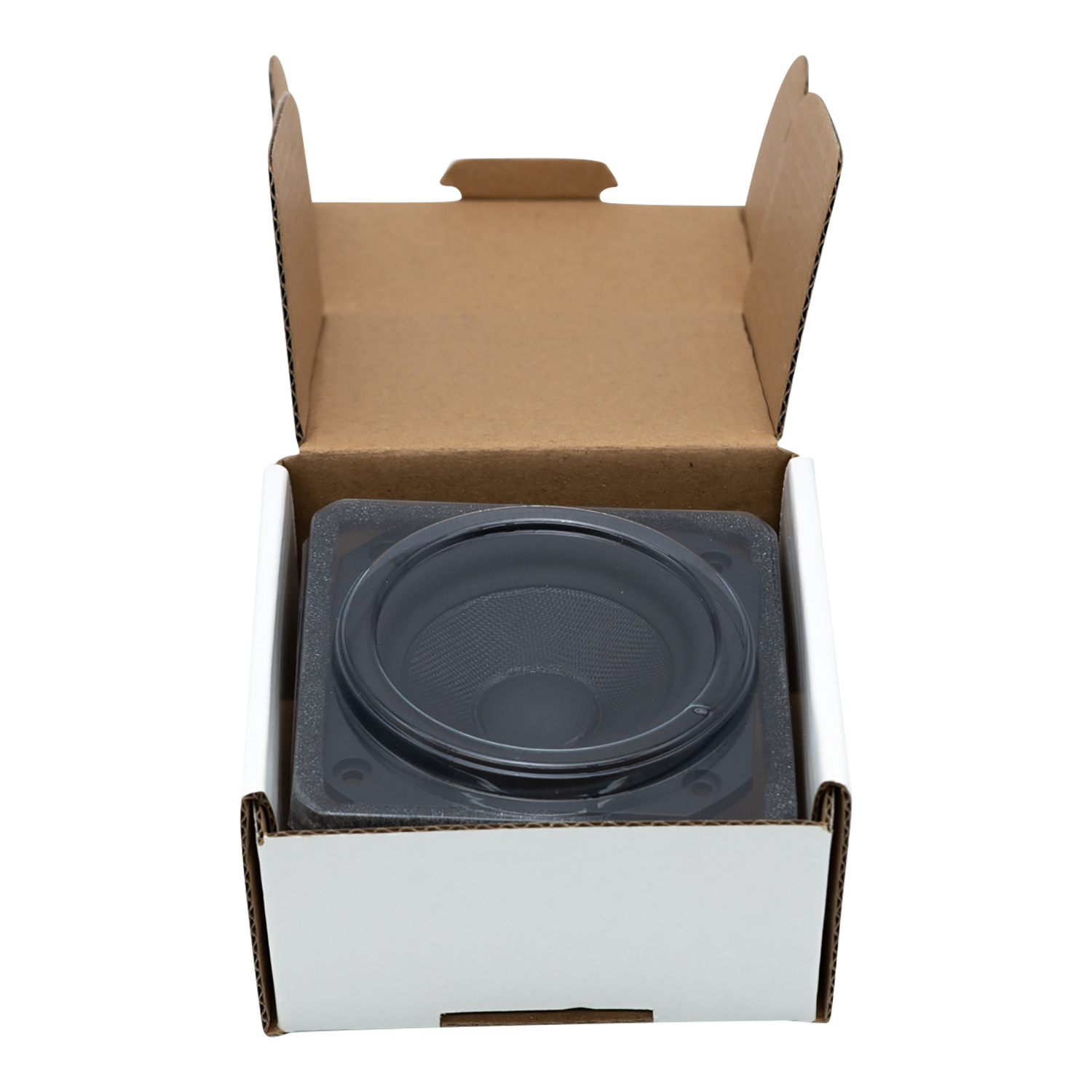

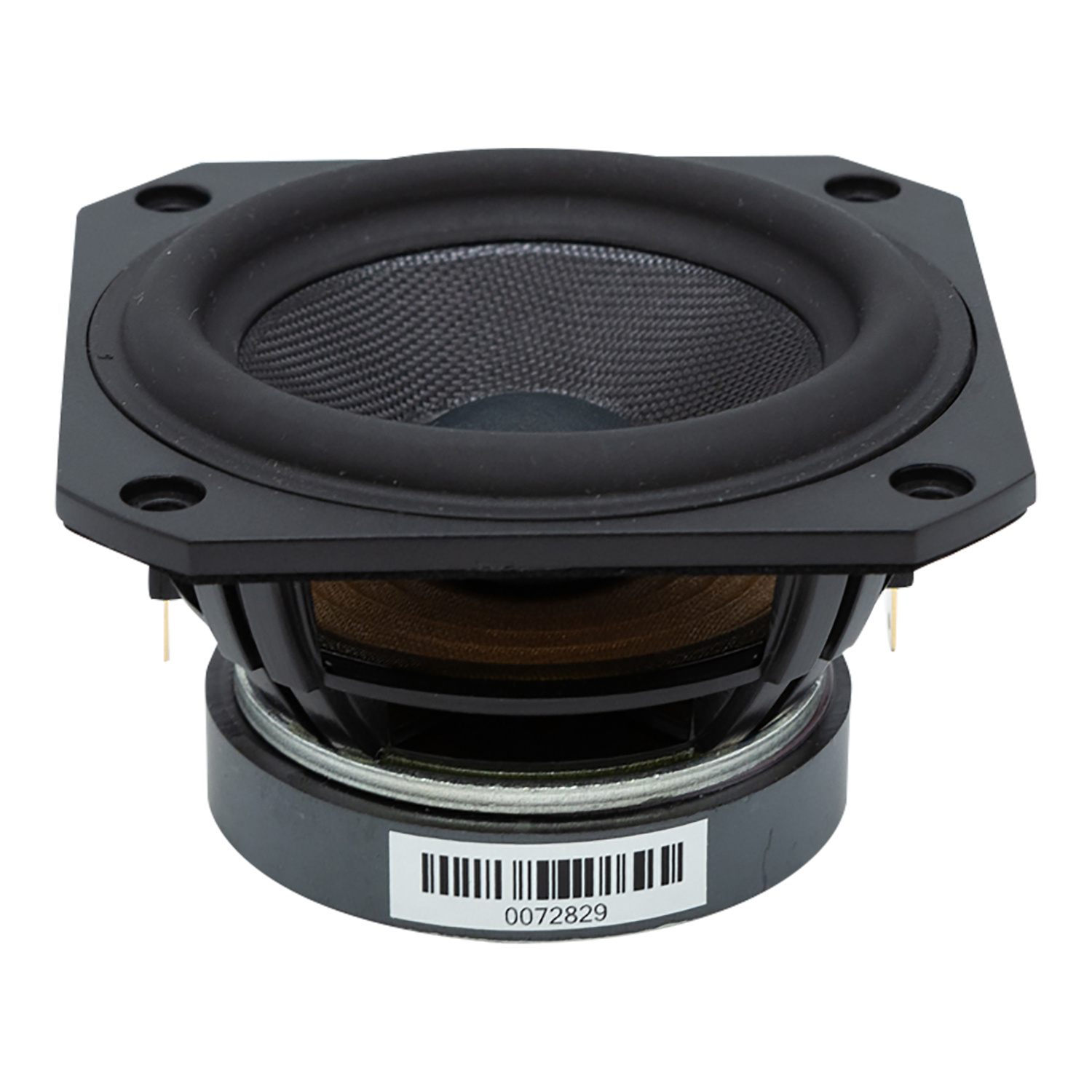

      SB Acoustics SB10PGC21-4 3" Full Range Driver

      Brand: SB Acoustics
      Show all Audio components
      3" | 4 Ω
      SB10PGC21-4 3" Full Range Driver
      SB10PGC21-4 3" Full Range Driver
      SB10PGC21-4 3" Full Range Driver
      SB10PGC21-4 3" Full Range Driver
      SB10PGC21-4 3" Full Range Driver
      SB10PGC21-4 3" Full Range Driver
      € 18,45 Out of stock: delivery time is 1 week
      The SB Acoustics SB10PGC21-4 is a nice contestant for your next FAST, portable speaker or tiny satellite build. It sports a highly optimized design with a stylish fiber glass cone, vented voice coil and low damping suspension ensuring good dynamics with l... Show more
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €17,53 per piece
      +-
      Add to cart
      • Shipping always fully insured and with track & trace
      • Low international shipping rates
      • Same day shipping*
      • In-house technical support
      SB10PGC21-4 3" Full Range Driver
      SB10PGC21-4 3" Full Range Driver
      SB10PGC21-4 3" Full Range Driver
      SB10PGC21-4 3" Full Range Driver
      SB10PGC21-4 3" Full Range Driver
      SB10PGC21-4 3" Full Range Driver

      Product description

      Highlights

      • Low damping surround and non-conductive voice coil former to ensure good dynamics and transparent sound character with fine detail.
      • Vented voice coil for heat exchange and reduced compression.
      • Light weight CCAW voice coil.
      • Optimized fiber glass cone for smooth response.
      • Compact square chassis for versatile integration.



      Product details

      SB Acoustics SB10PGC21-4 3" Full Range Driver



      The SB Acoustics SB10PGC21-4 is a nice contestant for your next FAST, portable speaker or tiny satellite build. It sports a highly optimized design with a stylish fiber glass cone, vented voice coil and low damping suspension ensuring good dynamics with lots of detail.

      Specifications

      Article number
      SB10PGC21-4
      Woofer Series
      Wideband Series
      Woofer Type
      Full-Range
      Nominal Diameter
      3"
      Power Handling (RMS)
      20 Watts
      Impedance
      4 ohms
      Sensitivity
      84 dB @ 2.83V/1m
      Frequency Response
      90 - 20,000 Hz
      Voice Coil Diameter
      20.4 mm
      Magnet Weight
      0.09 kg
      DC Resistance (Re)
      3.4 ohms
      Voice Coil Inductance (Le)
      0.15 mH
      Resonant Frequency (Fs)
      89 Hz
      Mechanical Q (Qms)
      11.2
      Electromagnetic Q (Qes)
      1.01
      Total Q (Qts)
      0.92
      Diaphragm Mass Inc. Airload (Mms)
      2.8g
      Mechanical Compliance of Suspension (Cms)
      1.14 mm/N
      Surface Area of Cone (Sd)
      27 cm2
      BL Product (BL)
      2.3 Tm
      Compliance Equivalent Volume (Vas)
      1.2 liters
      Maximum Linear Excursion (Xmax)
      2.25 mm
      Driver's Mechanical Losses (Rms)
      0.14 kg/s
      Cone / Diaphragm Material
      Fiberglass
      Voice Coil Wire Material
      Copper-clad aluminum
      Overall Outside Diameter
      95.5 mm
      Overall Depth
      50.8 mm
      Baffle Cutout Diameter
      75 mm
      Bolt Circle Diameter
      85 mm
      # Mounting Holes
      4
      Mounting Hole Diameter
      3.3 mm
