      SB Acoustics Satori MW16TX-4 6,5" TeXtreme Cone Woofer

      € 223,10€ 269,95 4 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €256,45 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Advanced TeXtreme cone
      • Vented aerodynamic cast aluminum chassis
      • Soft low damping rubber surround
      • Advanced BIMAX spider
      • Powerful optimized low distortion neodymium motor system
      • Extended copper sleeve on pole piece
      • Non-conducting fiberglass voice coil former
      • Vented pole piece and voice coil
      • Light weight CCAW voice coil
      • Long life silver lead wires



      Product details

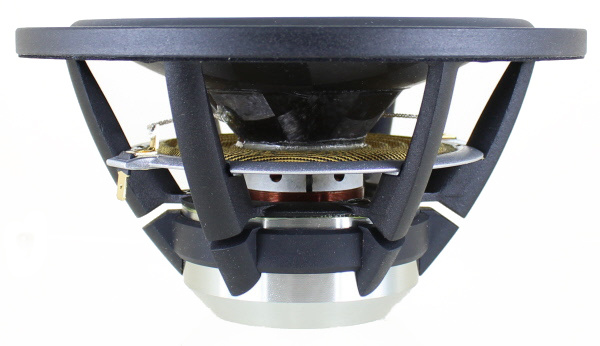

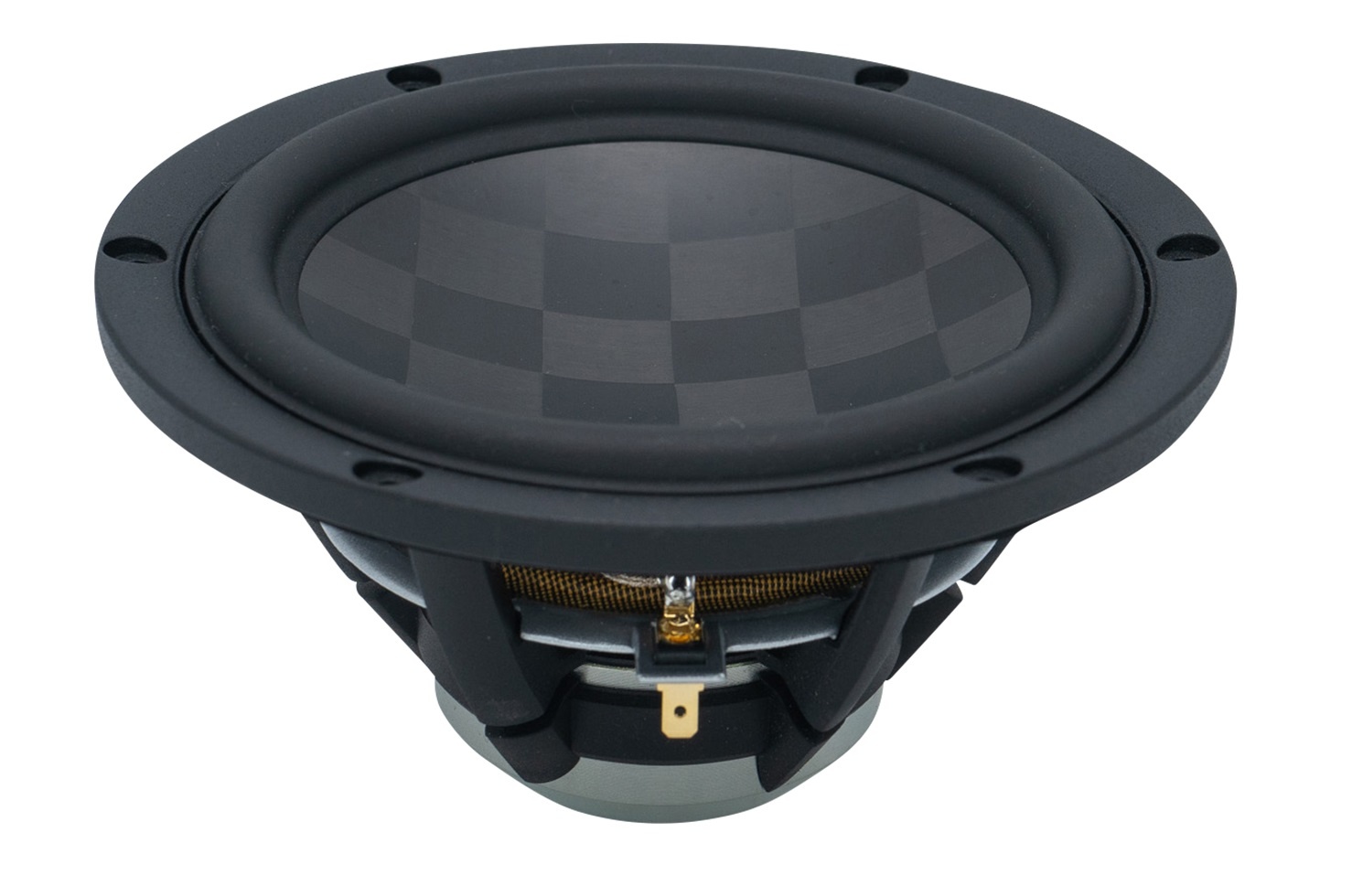

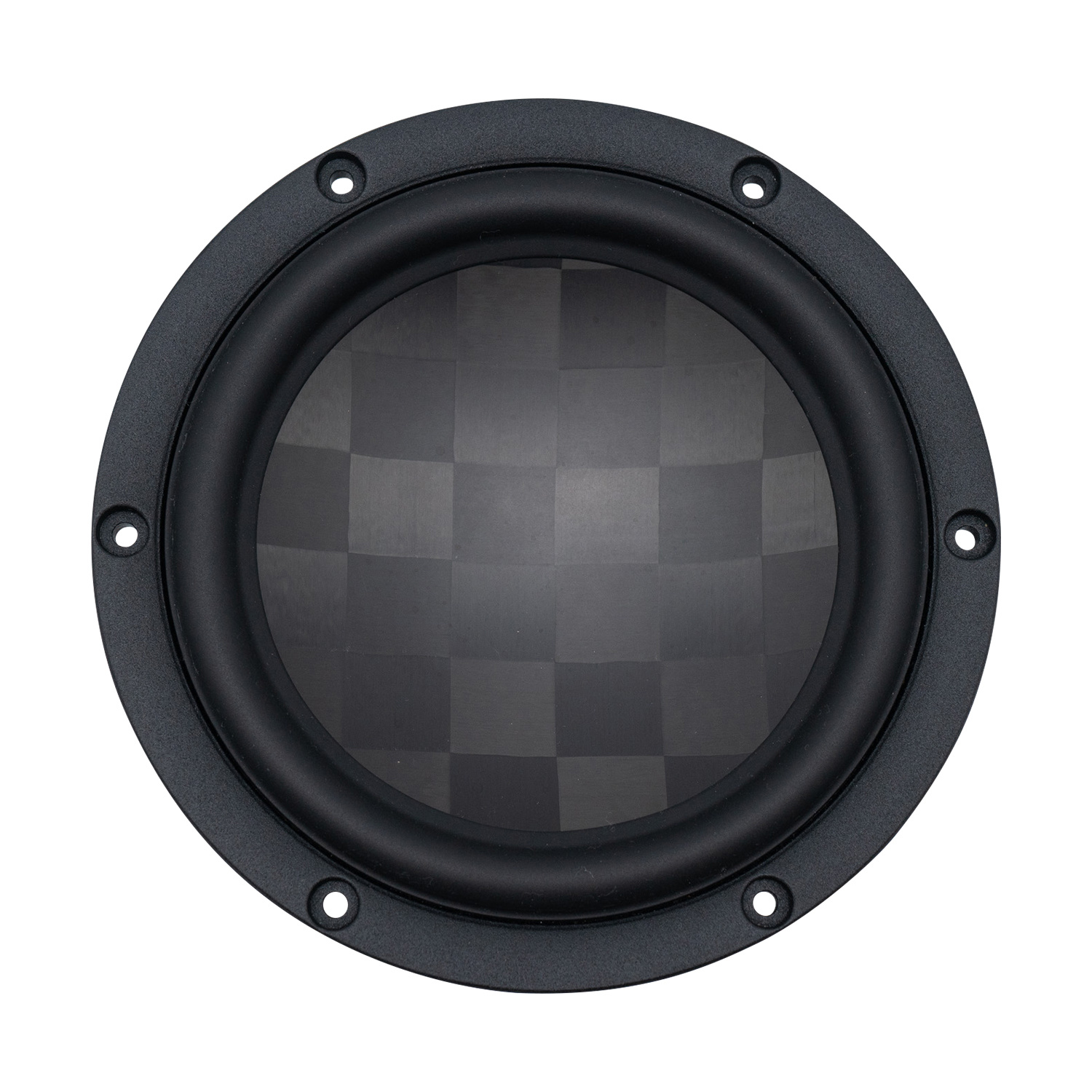

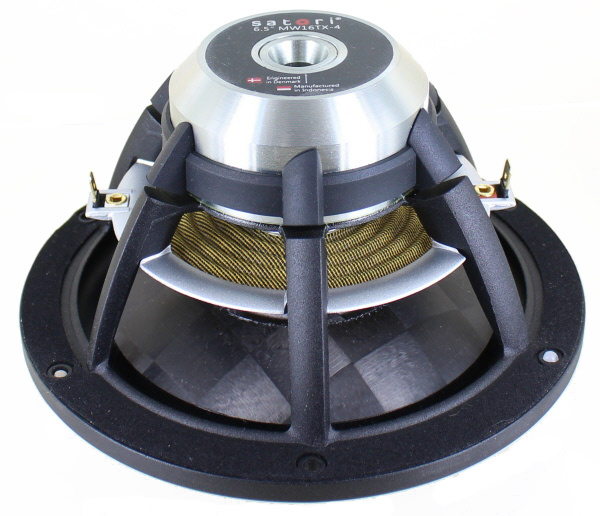

      SB Acoustics SATORI MW16TX-4 6.5” TeXtreme Cone Woofer



      The SB Acoustics MW16TX-4/TeXtreme uses unique materials and a vented aerodynamic cast aluminum chassis to create a premium speaker. TeXtreme is a special carbon fiber material, that uses Spread Tow technology to create extremely thin laminar carbon fiber tapes. This minimizes the weight of the material without sacrificing strength. The use of TeXtreme as a cone material allows for a very stiff and lightweight cone with controlled break-up behavior. The Dr. Kurt Muller BIMAX spider has less twist deviation for improved linear excursion. This combination makes the MW16TX-4/TeXtreme a very efficient and highly accurate speaker with good bass response.

      Specifications

      Article number
      MW16TX-4
      Woofer Series
      SATORI
      Woofer Type
      Bass-mid woofer
      Nominal Diameter
      6.5''
      Power Handling (RMS)
      60 Watts
      Impedance (Z)
      4 Ohms
      Sensitivity
      90.5 dB(2.83V/1m)
      Voice Coil Diameter
      36 mm
      Magnet Weight
      130 g
      DC Resistance (Re)
      3.4 Ohms
      Voice Coil Inductance (Le)
      0.15 mH
      Resonant Frequency (Fs)
      29 Hz
      Mechanical Q (Qms)
      5.0
      Electromagnetic Q (Qes)
      0.29
      Total Q (Qts)
      0.27
      Diaphragm Mass Inc. Airload (Mms)
      12.6 g
      Mechanical Compliance of Suspension (Cms)
      2.39 mm/N
      Surface Area of Cone (Sd)
      119 cm2
      BL Product (BL)
      5.2 Tm
      Compliance Equivalent Volume (Vas)
      48 Ltr
      Maximum Linear Excursion (Xmax)
      12 mm(p-p)
      Driver's Mechanical Losses (Rms)
      0.46 kg/s
      Cone / Diaphragm Material
      TeXtreme
      Surround Material
      Rubber
      Voice Coil Wire Material
      copper coated alumimium
      Voice Coil Former
      Fiber glass
      Basket / Frame Material
      Aluminium
      Magnet Material
      Neodynium
      Overall Outside Diameter
      165 mm
      Overall Depth
      86,1 mm
      Baffle Cutout Diameter
      140,3
      # Mounting Holes
      6

      Show more

      Reviews

      5 from 5Based on 1 reviews
      Review this product
      5 of 5
      Very fast delivery from abroad! Top quality!
      By Guenter on 3 April 2022
