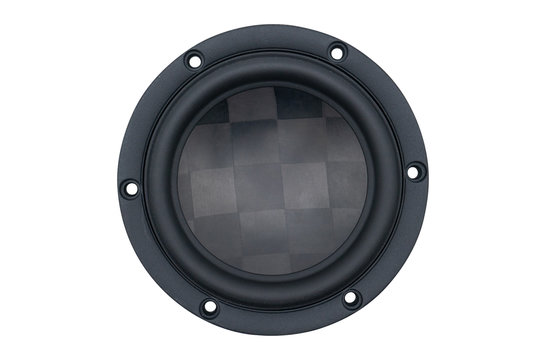

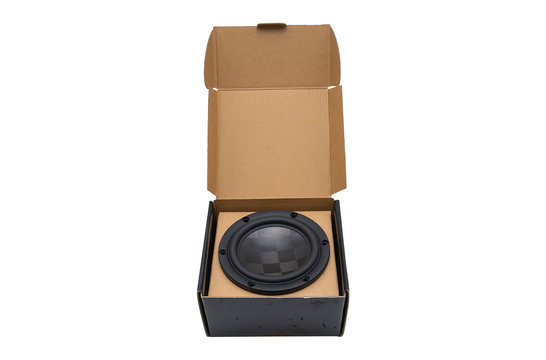

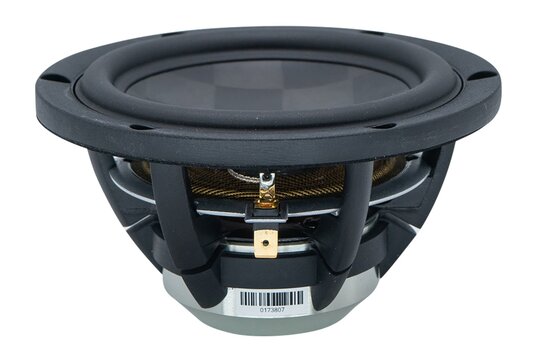

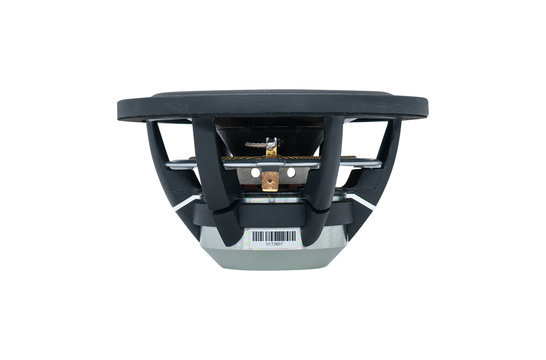

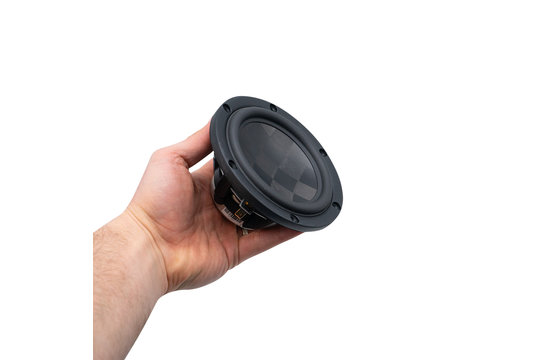

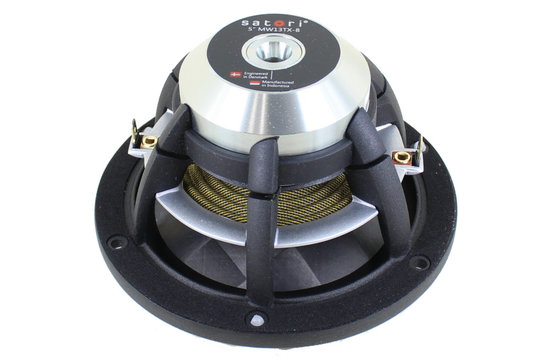

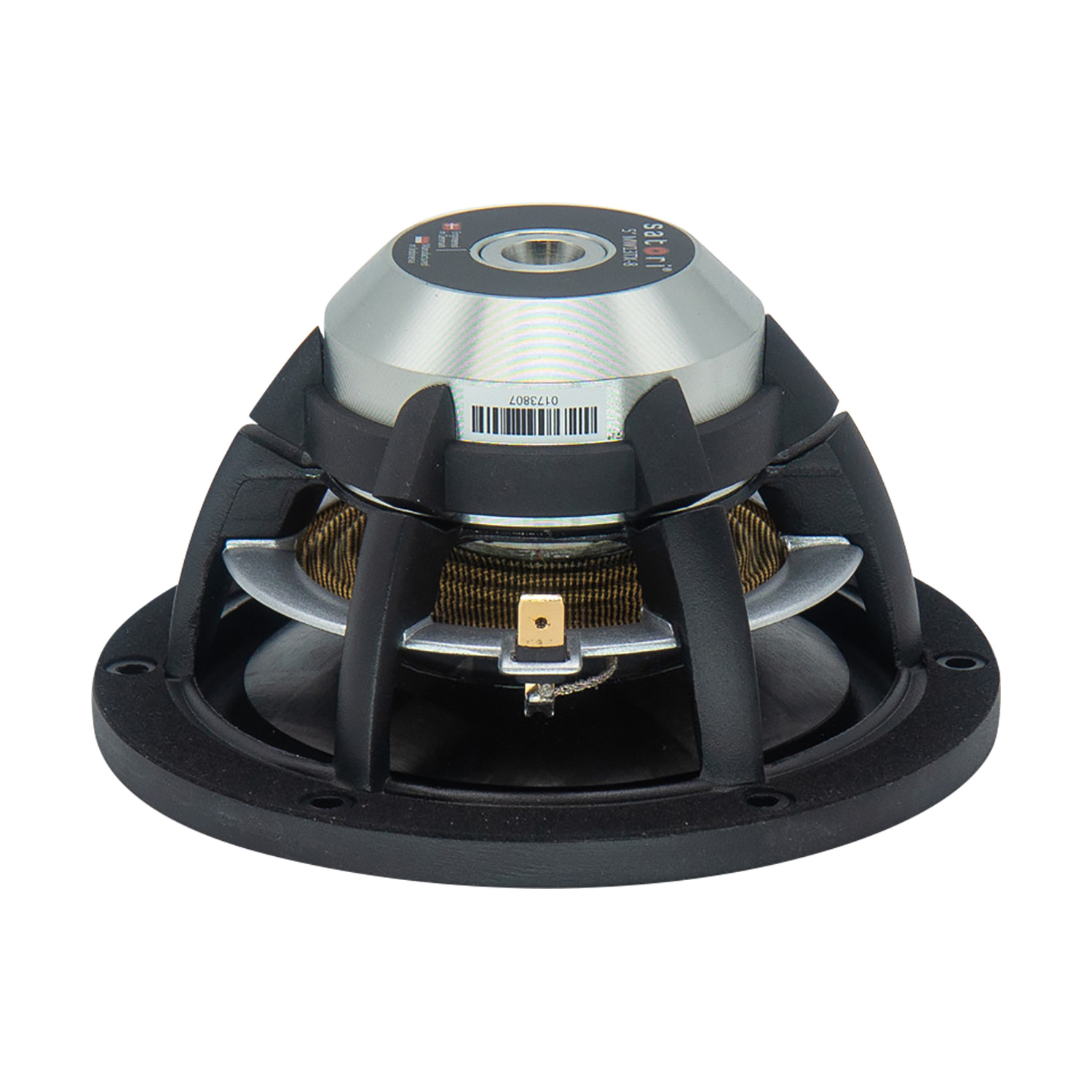

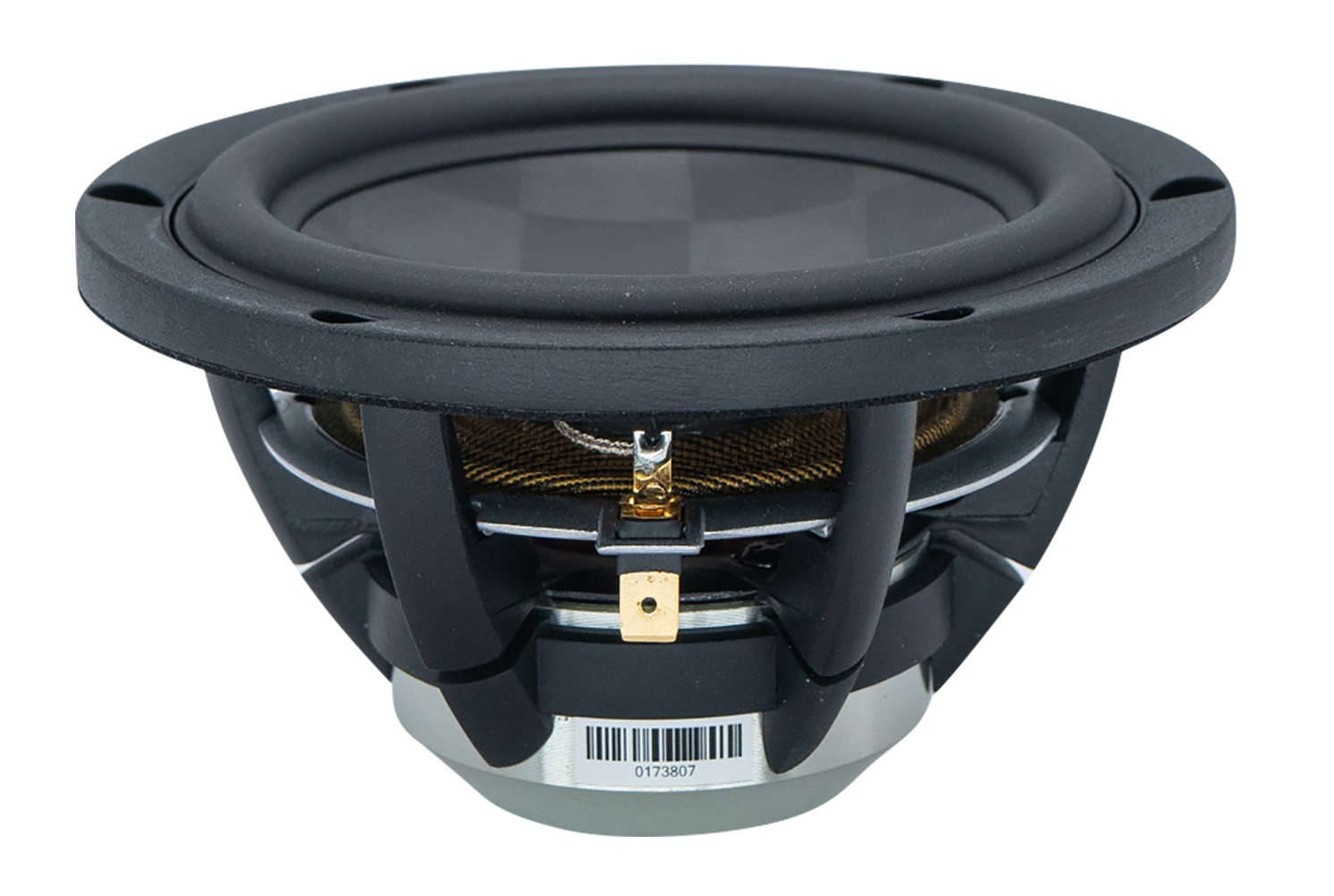

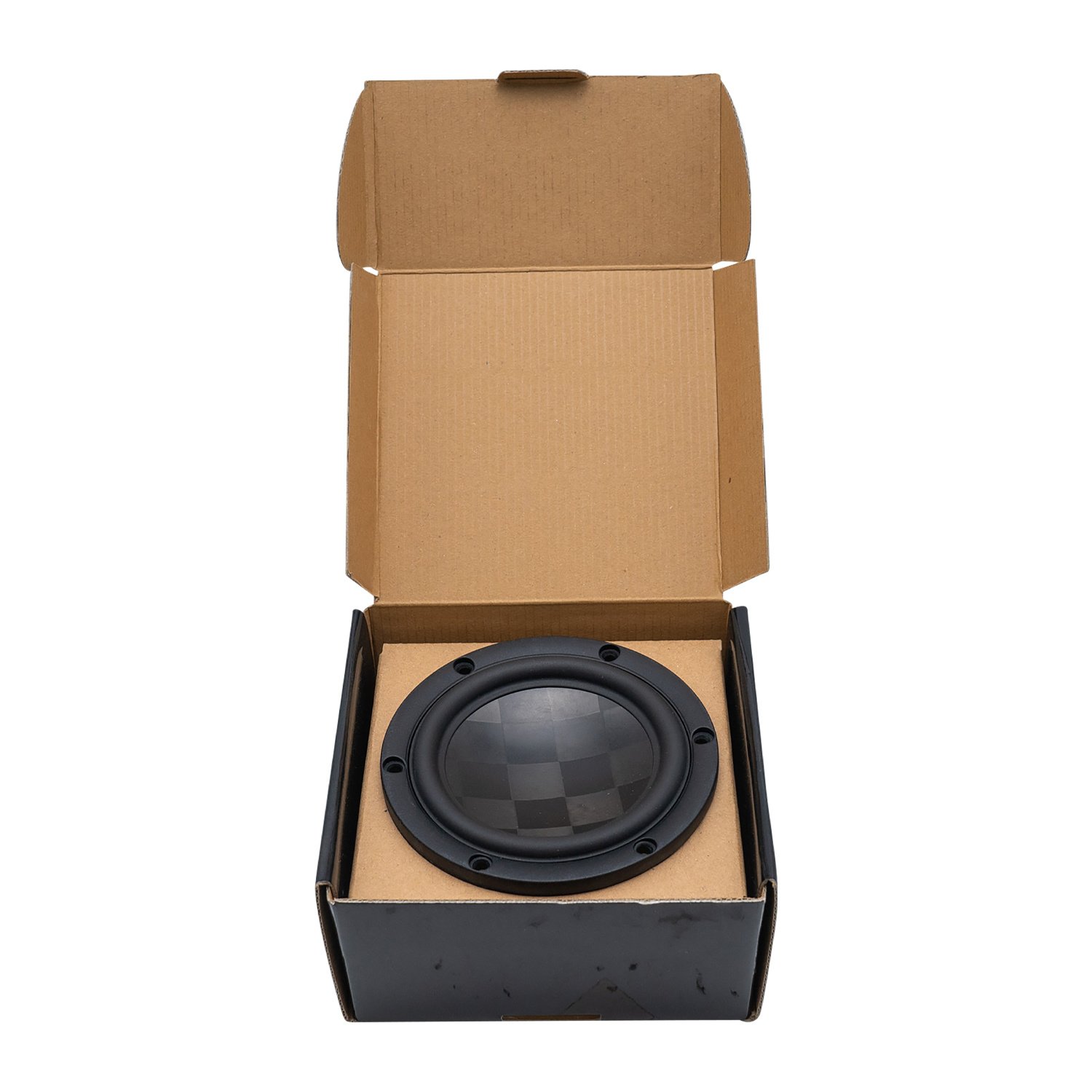

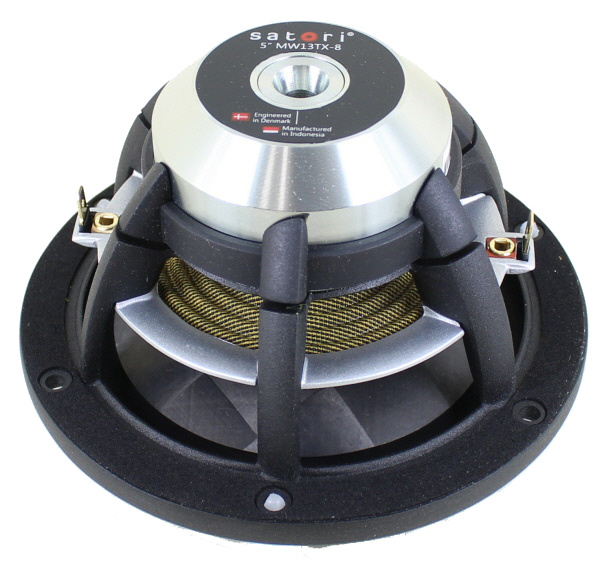

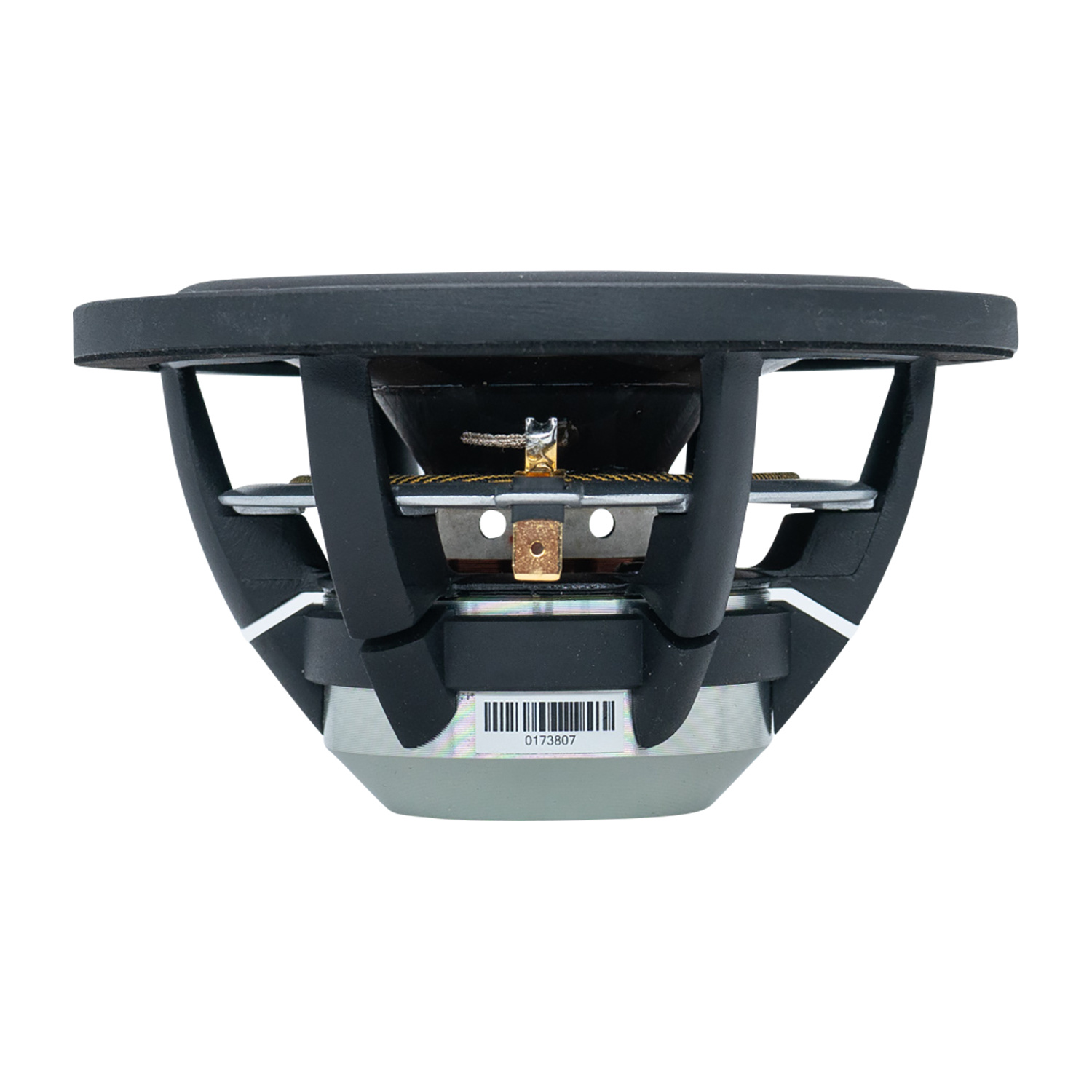

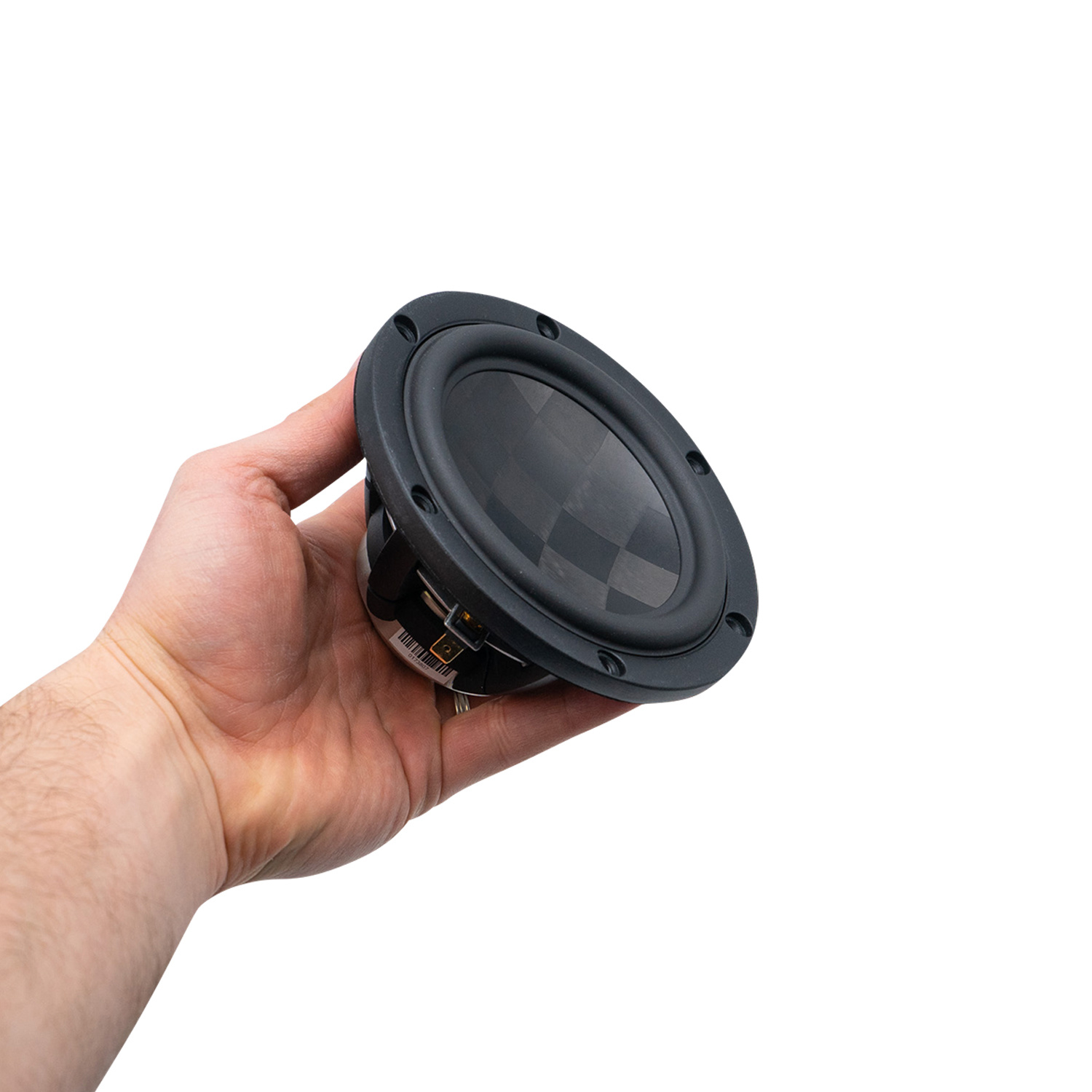

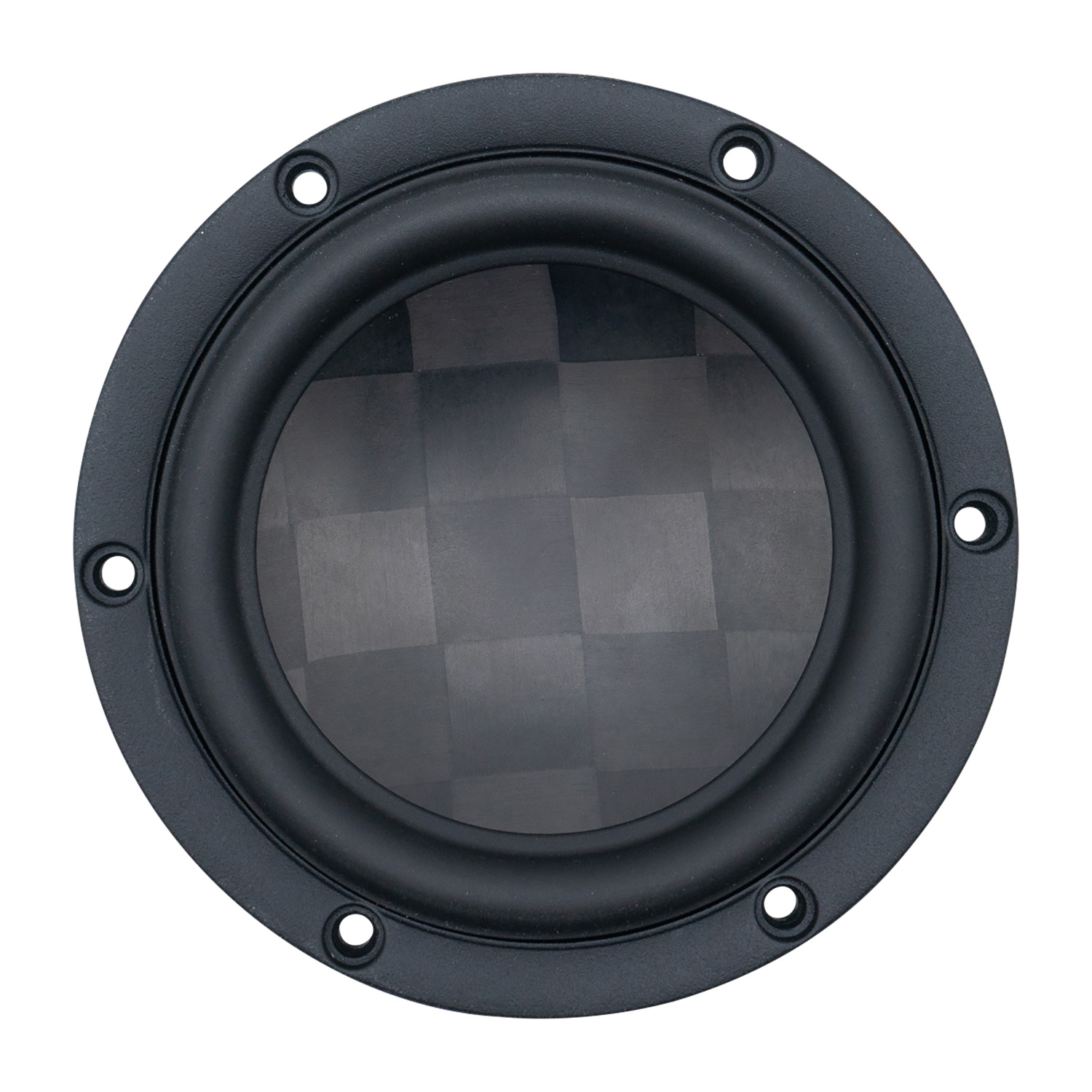

        Satori MW13TX-8 TeXtreme 5" Mid-woofer

        Satori MW13TX-8 TeXtreme 5" Mid-woofer

        €274,95

        SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 227,23€ 274,95 Out of stock6 expected on 28-06-2024
        • -5% Purchase 4 for only € 261,20 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Advanced TeXtreme® cone
        • Vented aerodynamic cast aluminium chassis
        • Soft low damping rubber surround
        • Advanced BIMAX spider
        • Powerful optimized low distortion neodymium motor



        Product Details

        SB Acoustics Satori MW13TX-8 TeXtreme 5" Cone Mid-Woofer - 8 Ohms



        Premium 5″ woofer with Neodymium magnet, aerodynamic chassis and woven TeXtreme cone. TeXtreme is an advanced, super-thin carbon fibre fabric that maximizes the strength-to-weight ratio. The spread tow technology offers several advantages over regular Spread tow fabrics, such as very low crimp, lower weight and improved cosmetics (cones are very flat and smooth). The laminated thin-ply TeXtreme® material has an excellent stiffness-to-weight ratio (though surpassed by beryllium, it is also significantly less expensive). Available in 4-ohms and 8-ohms models.

        Show more

        Specifications

        Article number
        MW13TX-8
        Woofer Series
        Satori
        Woofer Type
        Midwoofer
        Nominal Diameter
        5"
        Power Handling (RMS)
        50 Watt
        Continuous Program Power
        test
        Impedance (Z)
        8 Ohms
        Sensitivity (SPL at 1m / 2.83V)
        87 dB
        DC Resistance (Re)
        Voice Coil Inductance (Le)
        0.18mH
        Resonant Frequency (Fs)
        40 Hz
        Mechanical Q (Qms)
        4.99
        Electromagnetic Q (Qes)
        0.34
        Total Q (Qts)
        0.32
        Diaphragm Mass Inc. Airload (Mms)
        7.3g
        Surface Area of Cone (Sd)
        70cm²
        Compliance Equivalent Volume (Vas)
        14.8 liters
        Maximum Linear Excursion (Xmax)
        5 mm

        Show more

        5 of 5
        Super clean prachtige low/mid drivers die MW13tx-8. Ingezet in een 2,5 weg systeem in een gesloten behuizing van 7 liter, gedempt met Angel Hair. De lage vervorming merk je terug in de hoorbare details, topper deze driver!
        By Nick on 19 September 2022
