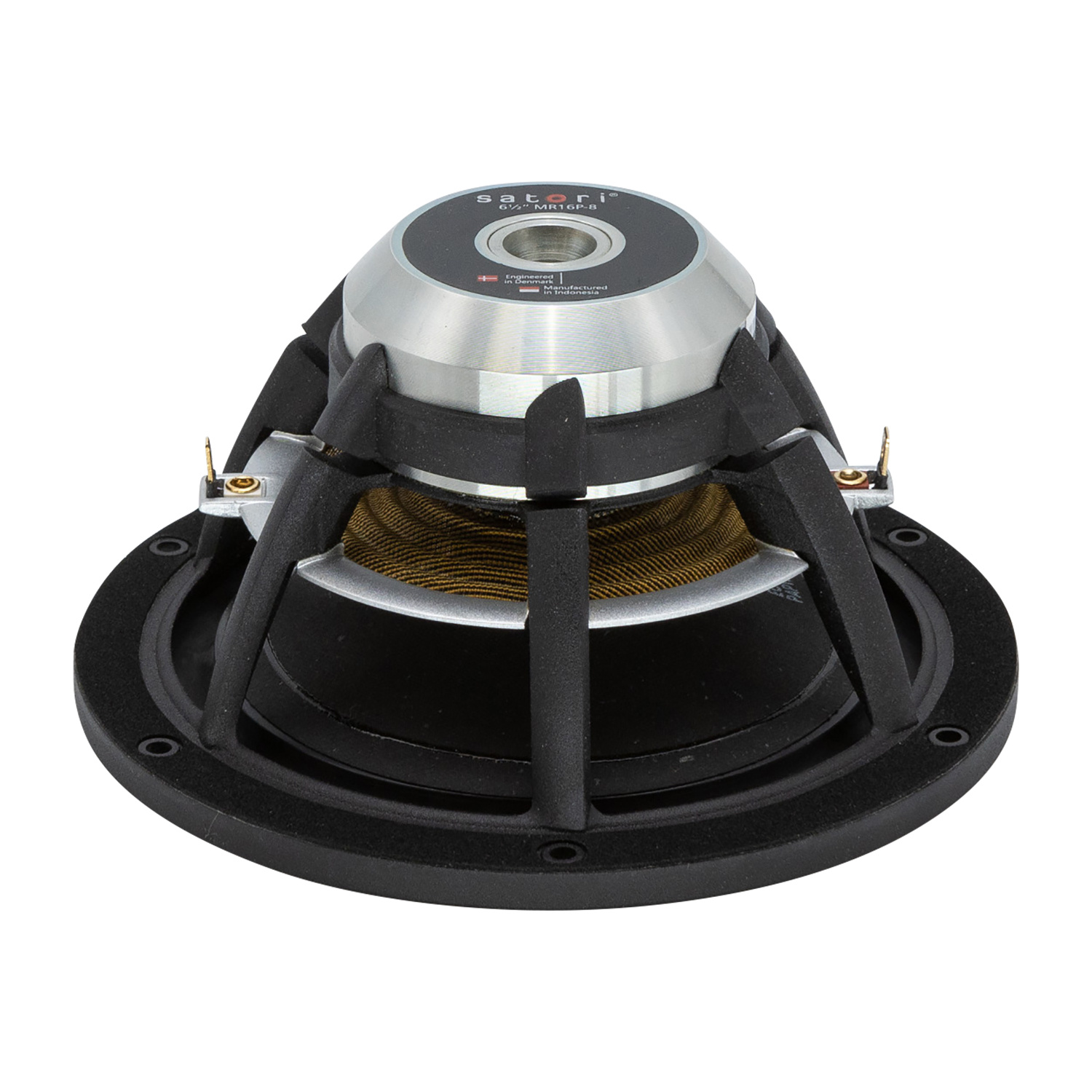

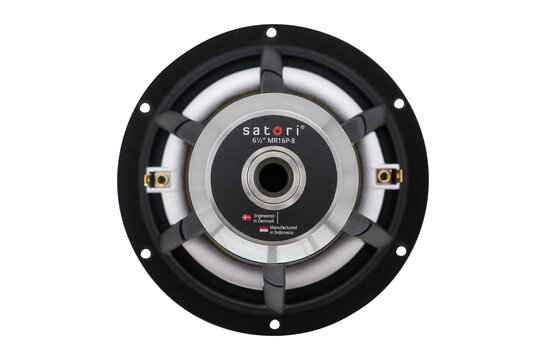

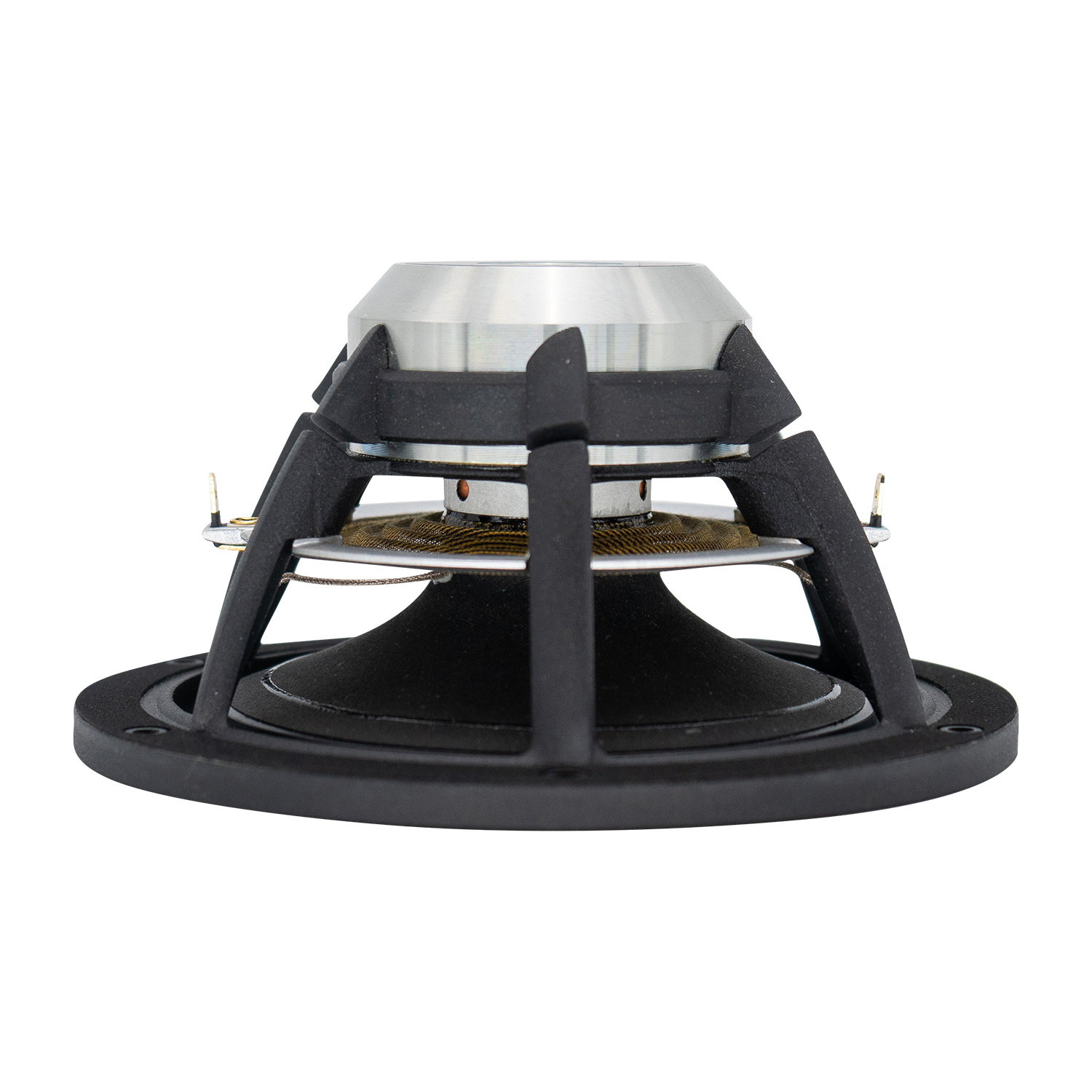

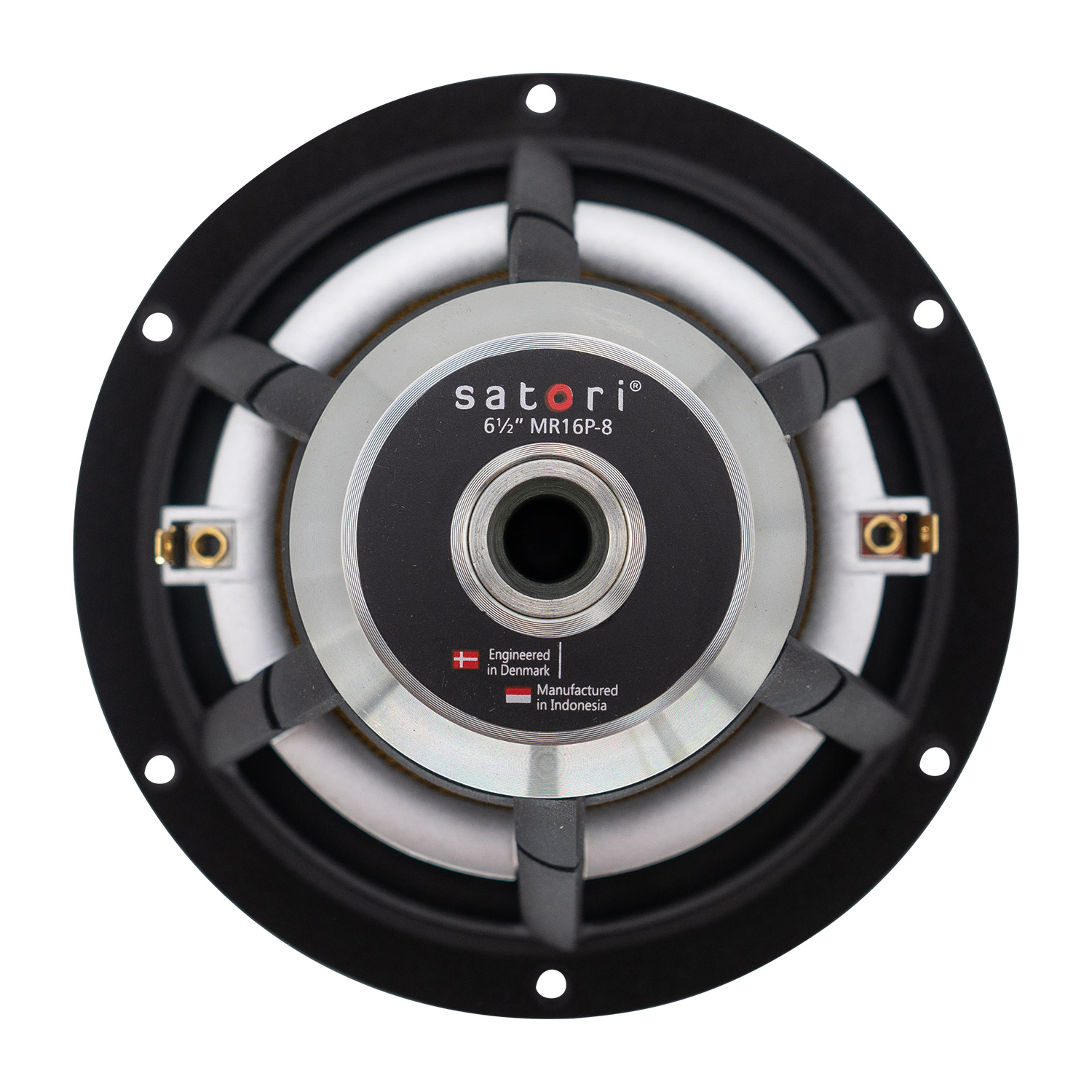

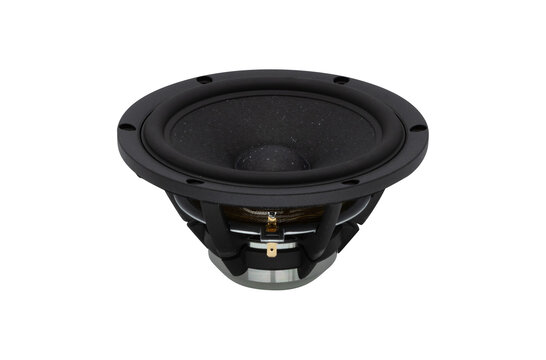

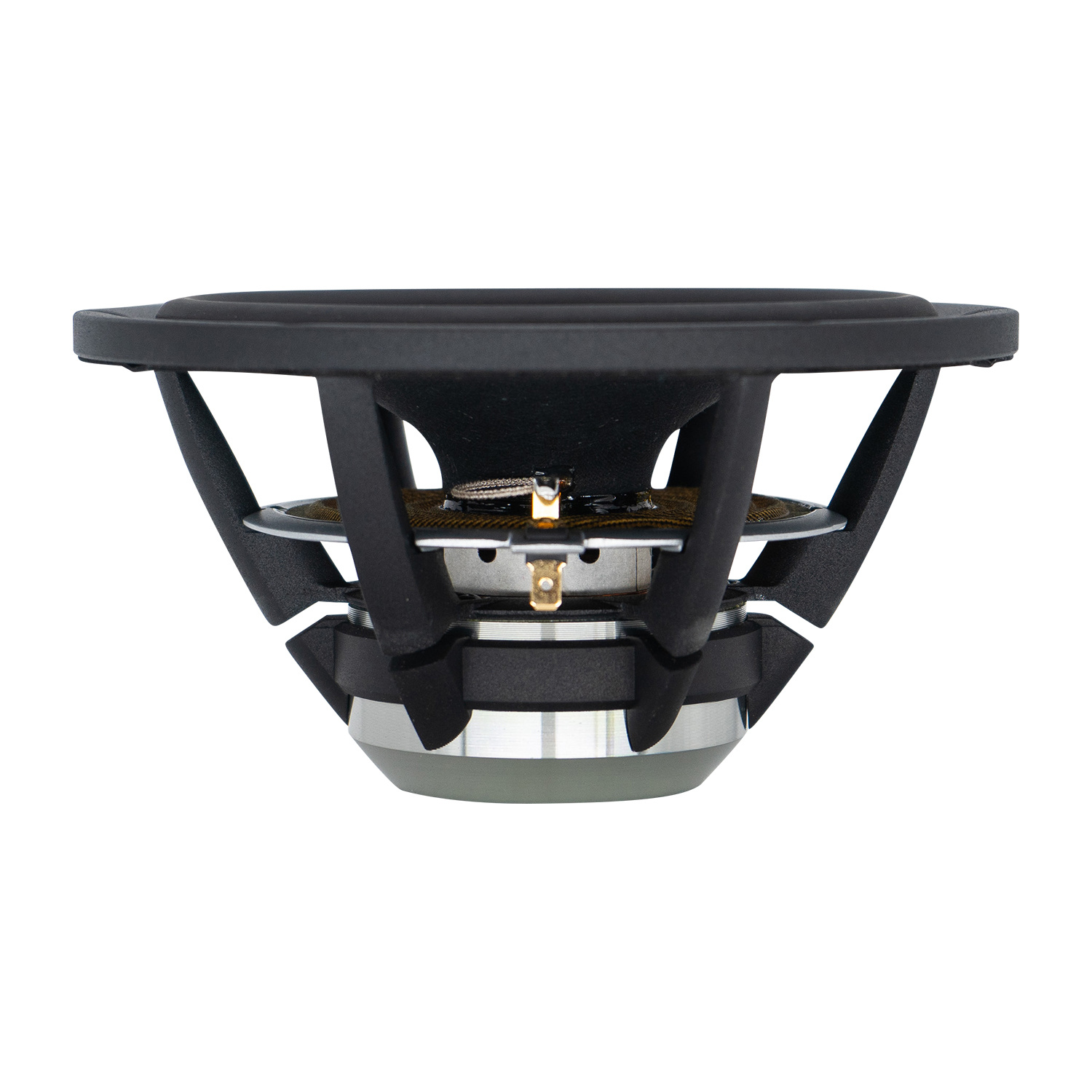

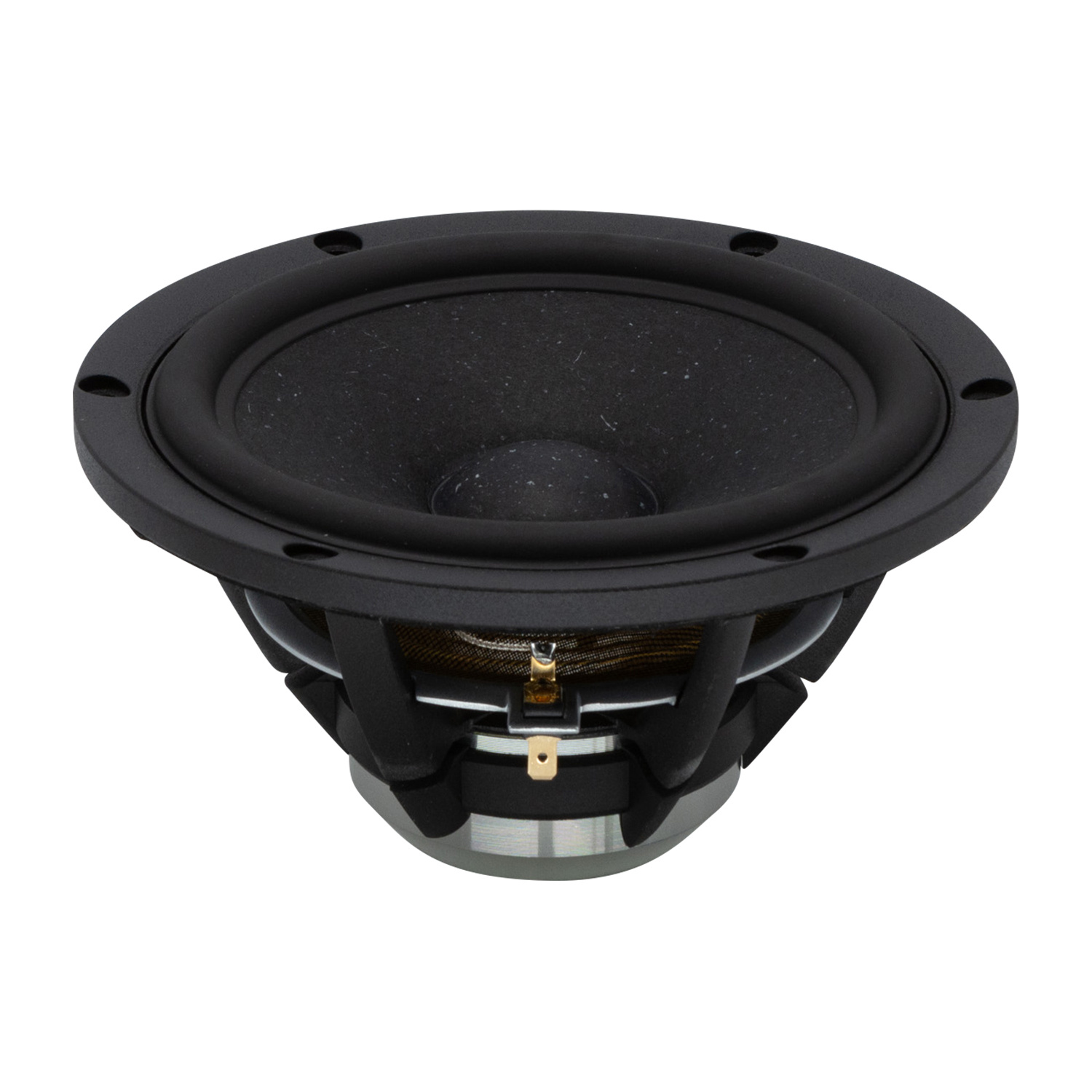

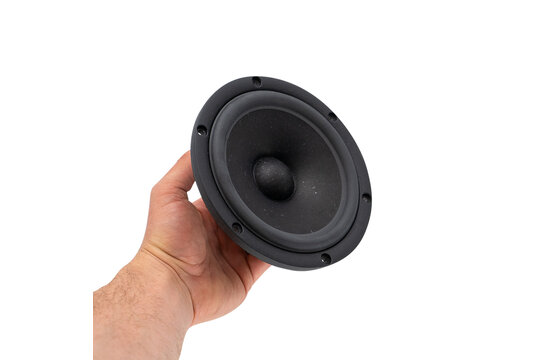

        Satori MR16P-8 6.5'' Midrange

        Satori MR16P-8 6.5'' Midrange

        €189,95

        SB Acoustics Satori MR16P-8 6.5'' Midrange

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 156,98€ 189,95 4 In stock
        • -5% Purchase 4 for only € 180,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
        • Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
        • Soft low damping rubber surround for optimum transient response
        • Advanced BIMAX spider for improved linearity
        • Powerful optimized low distortion neodymium motor system
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and reduced distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires attached 180° apart for improved stability
        • Vented pole piece and coil former for reduced compression
        • High piston to chassis diameter ratio
        • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
        • Mode balanced cone for reduced break-up



        Product details

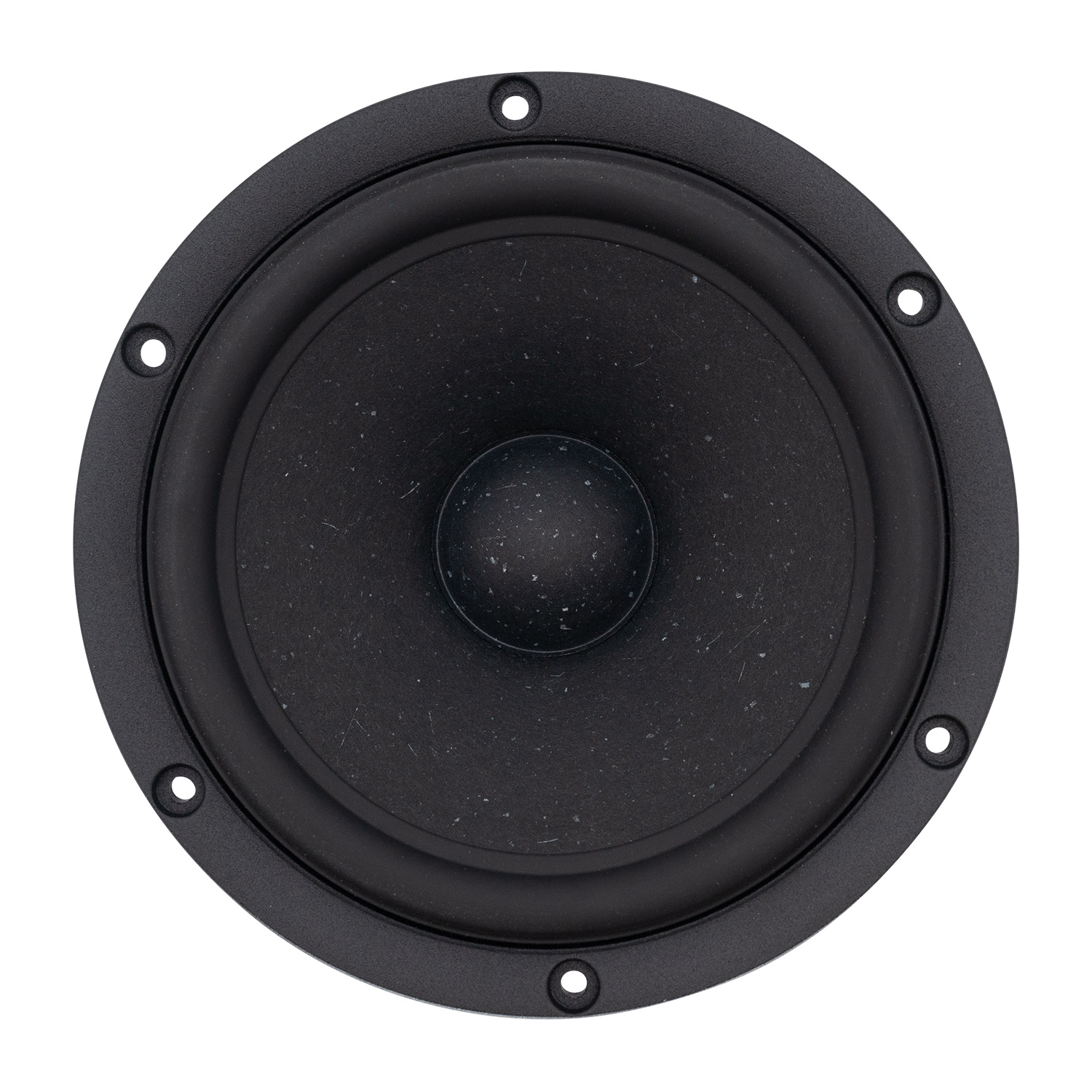

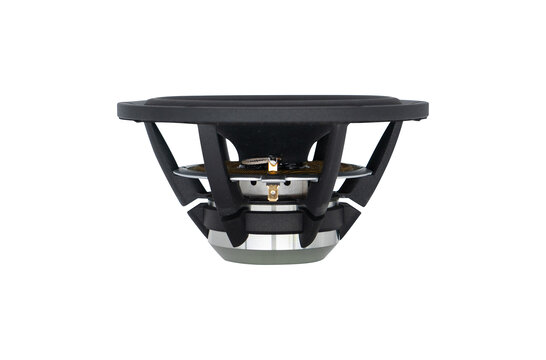

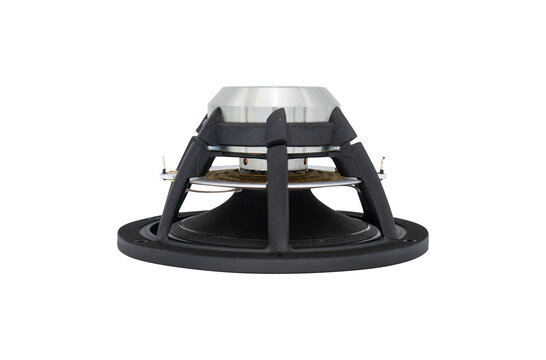

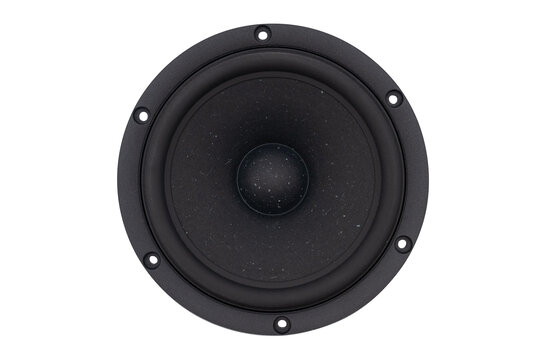

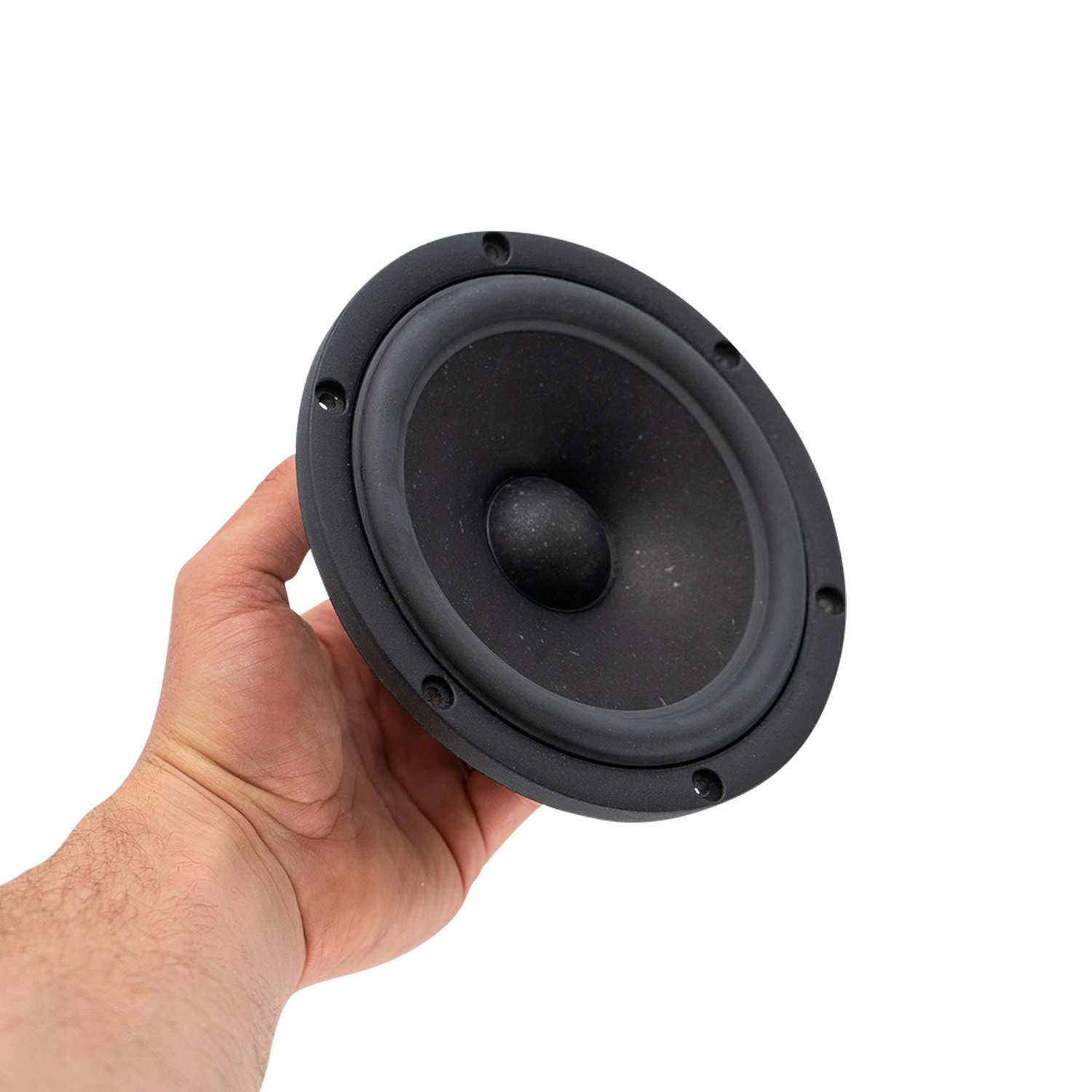

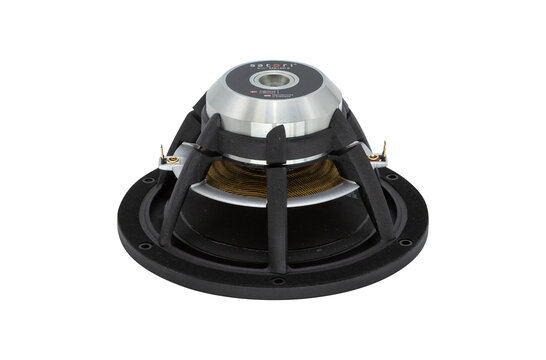

        SB Acoustics Satori MR16P-8 6.5'' Midrange



        The SB Acoustics Satori MR16P-8 Midwoofer is a State of The Art Neodymium magnet 6.5" 8 ohm midrange, featuring a proprietary Papyrus Paper cone, a soft low damping optimum response rubber surround, BiMax spider, and a glass fiber former with copper sleeve pole piece. Mode balanced cone to reduce break-up.



        Fitted with a 1.5" voice coil. Very open cast frame for minimal reflections. Extended copper clad pole piece for lower distortion. Fs 32Hz, and a fabulous level wide response curve level midrange response, this is a very flexible unit.

        Show more

        Specifications

        Article number
        MR16P-8
        Woofer Series
        Satori
        Woofer Type
        Midwoofer
        Nominal Diameter
        6.5"
        Power Handling (RMS)
        30 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Voice Coil Diameter
        1.39"
        DC Resistance (Re)
        6.2 ohms
        Voice Coil Inductance (Le)
        0.11 mH
        Resonant Frequency (Fs)
        32 Hz
        Mechanical Q (Qms)
        5.11
        Electromagnetic Q (Qes)
        0.32
        Total Q (Qts)
        0.3
        Diaphragm Mass Inc. Airload (Mms)
        10.6 g
        Mechanical Compliance of Suspension (Cms)
        2.3 mm/N
        Surface Area of Cone (Sd)
        119 cm2
        BL Product (BL)
        6.5 Tm
        Compliance Equivalent Volume (Vas)
        1.56 ft.³
        Maximum Linear Excursion (Xmax)
        3.1 mm

        Show more
