The RS Speakers TW 110.28 F/Ag Dome tweeter is the result of extensive laboratory testing and meticulous engineering, designed to deliver precise and natural high-frequency reproduction. With a 28 mm treated silk dome and advanced internal and external treatments, this 1.1” dome tweeter achieves remarkable clarity and stability. The unique combination of a rear damped chamber, ferrite magnet with a silver shorting ring, and a robust aluminium flange ensures both durability and exceptional audio performance. Whether for high-end home audio systems, custom tweeters upgrades, or refined speakers projects, the TW 110.28 F/Ag stands out as a versatile and premium choice.

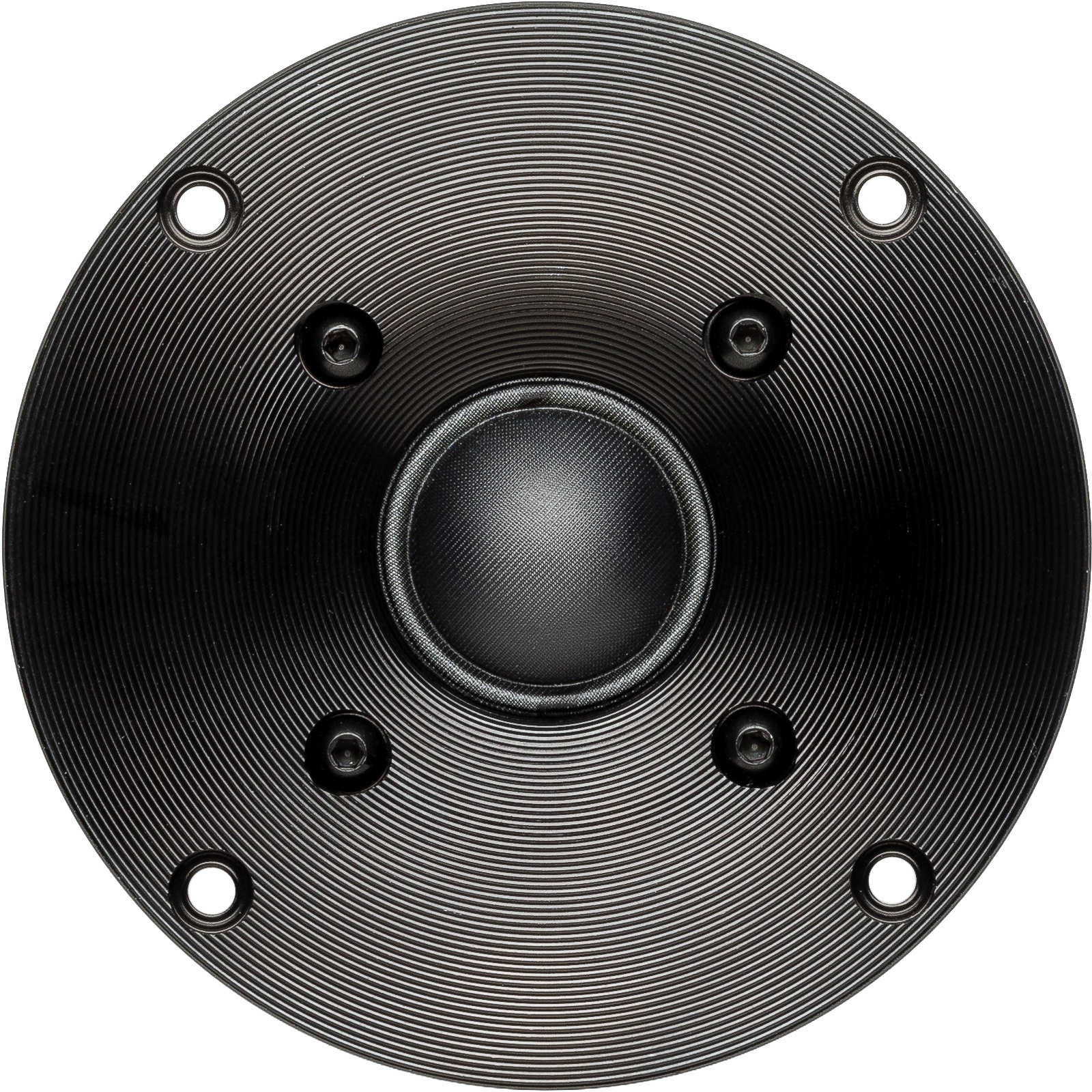

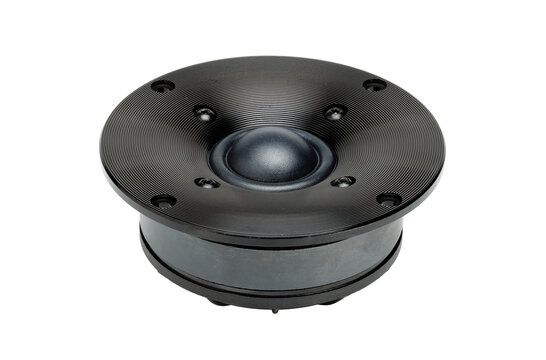

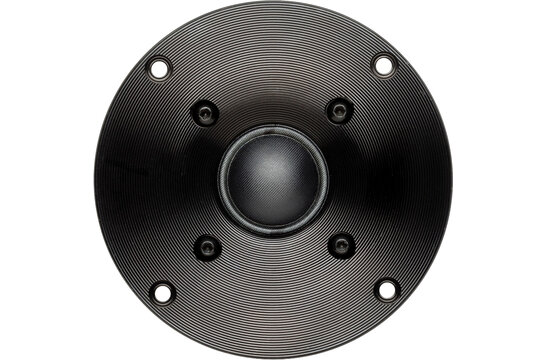

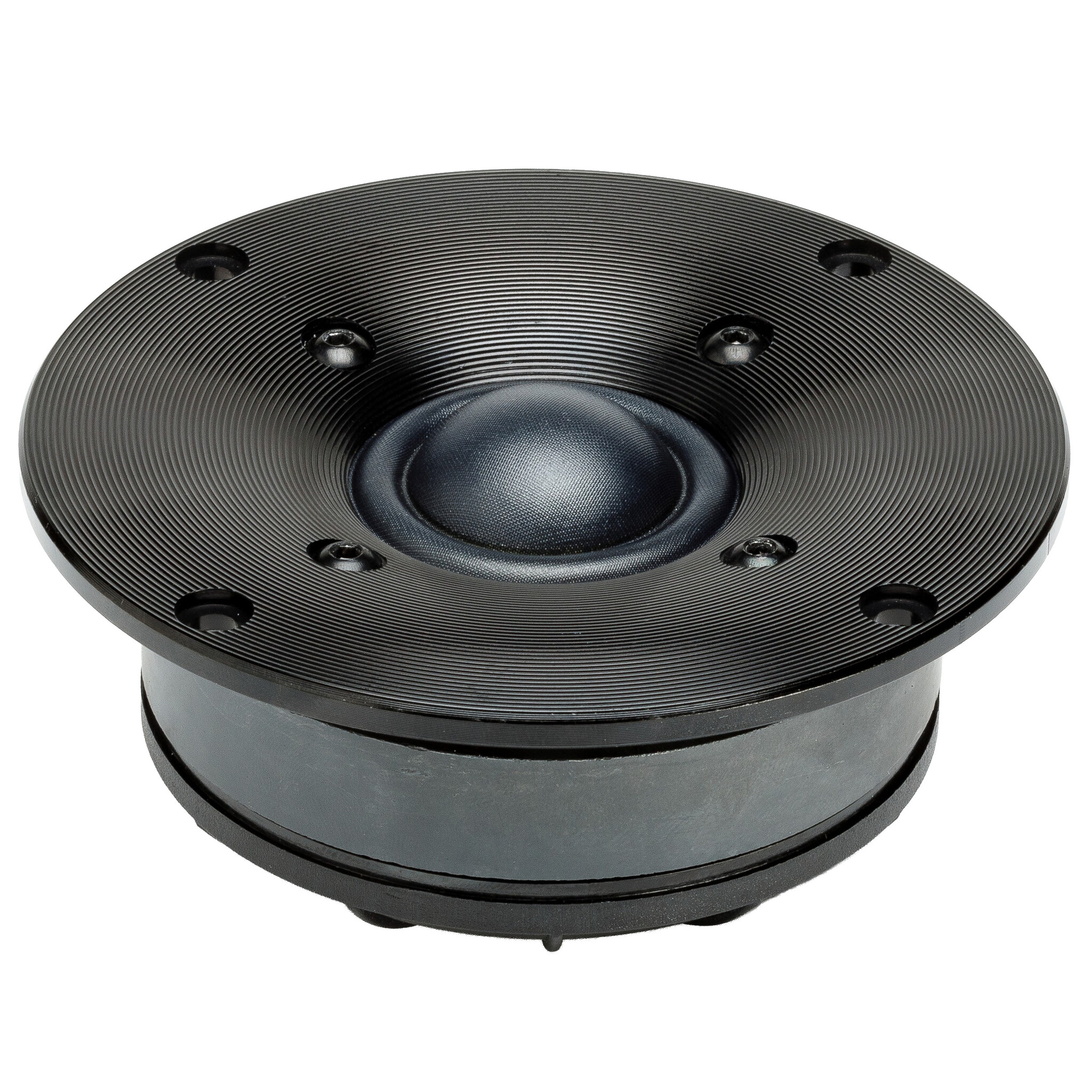

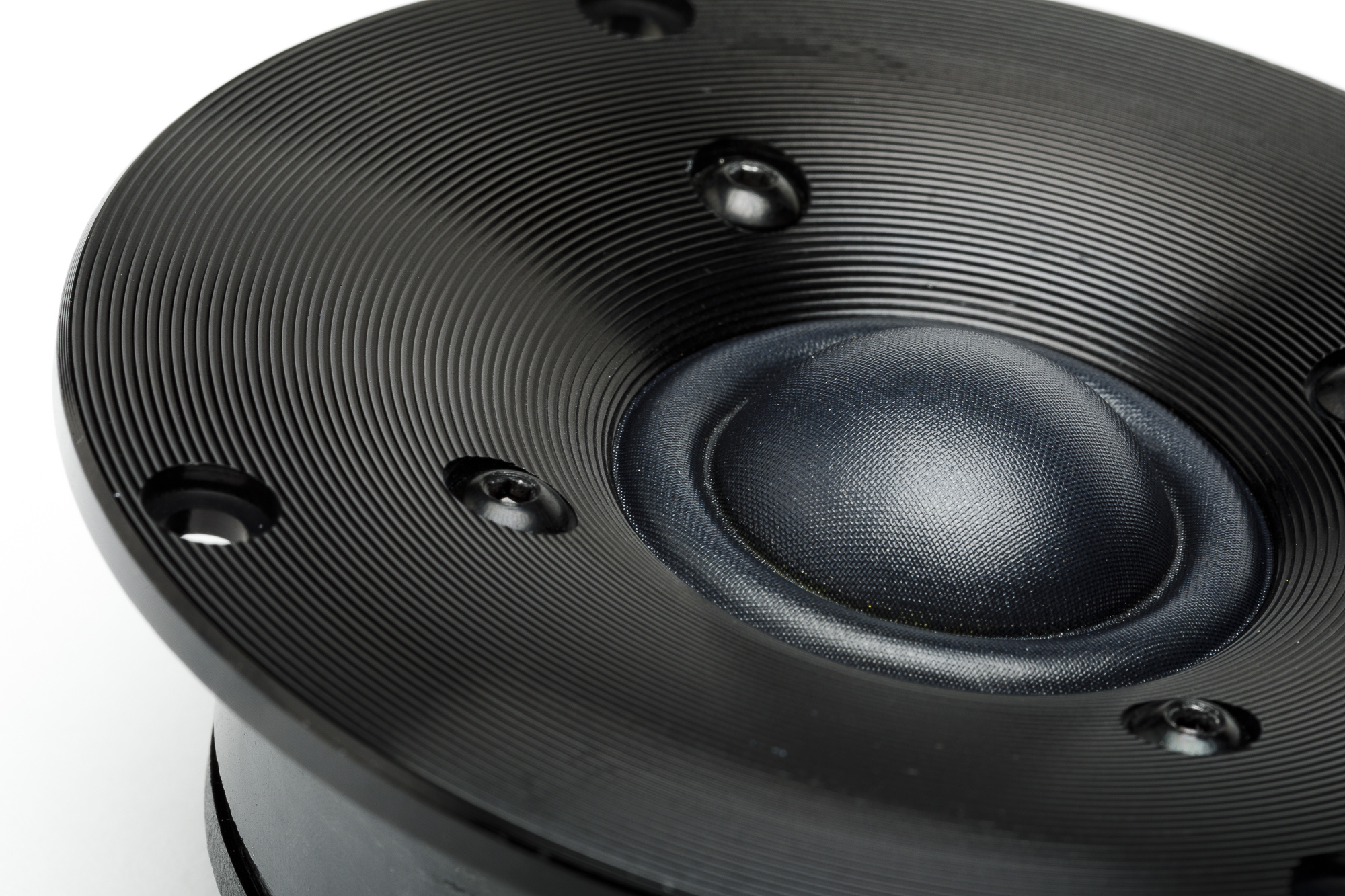

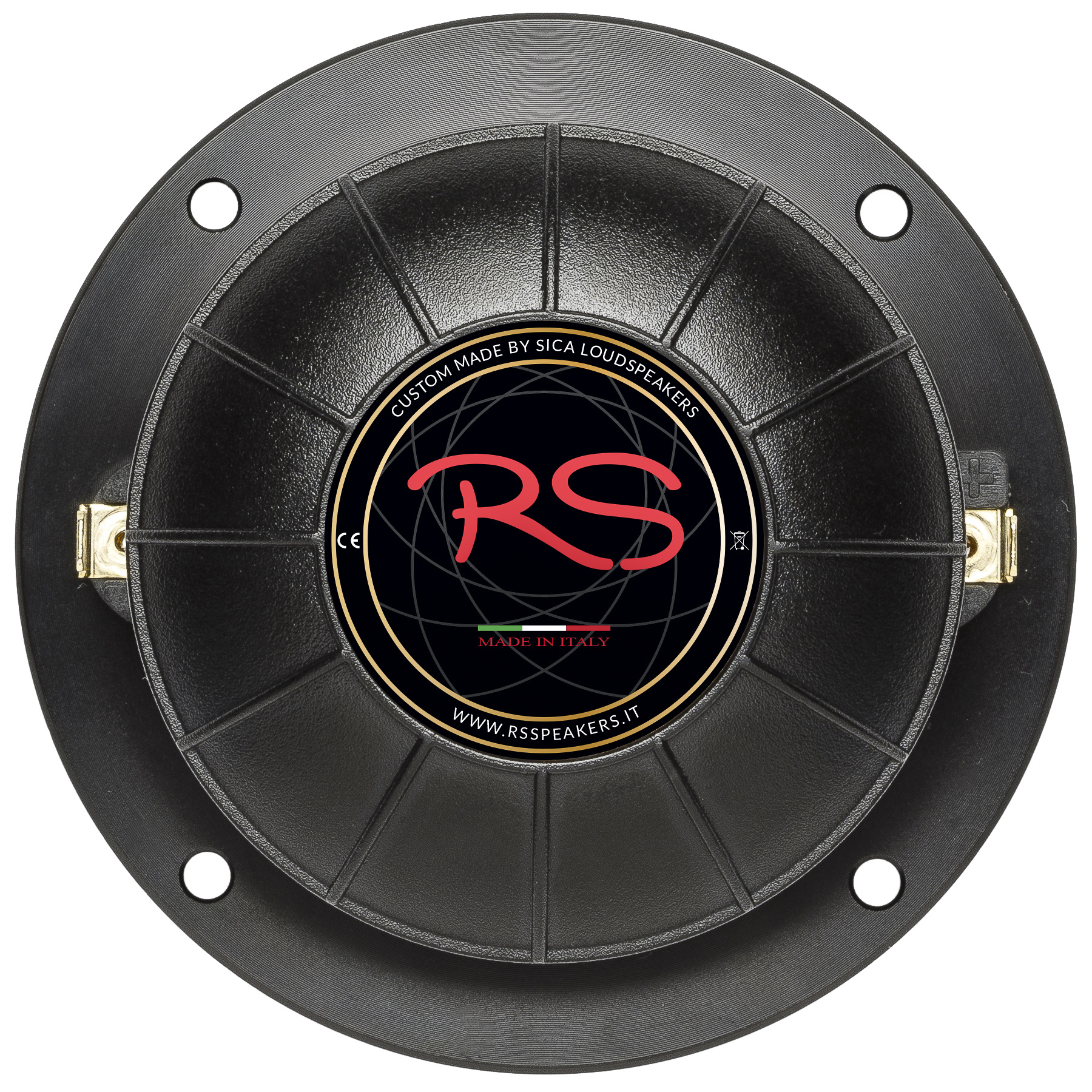

RS Speakers TW 110.28 F/Ag 1.1" Dome tweeter 8 Ohm

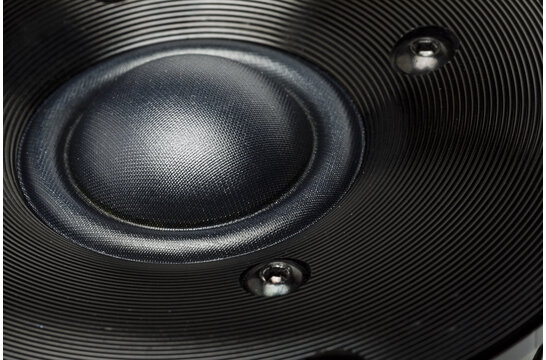

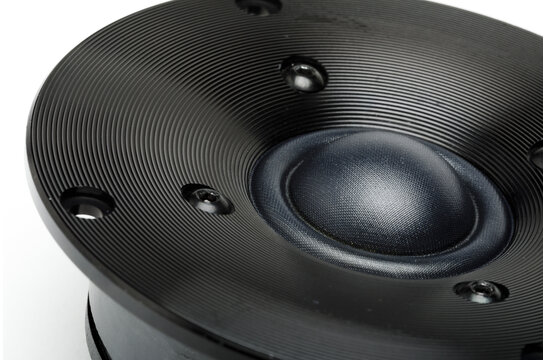

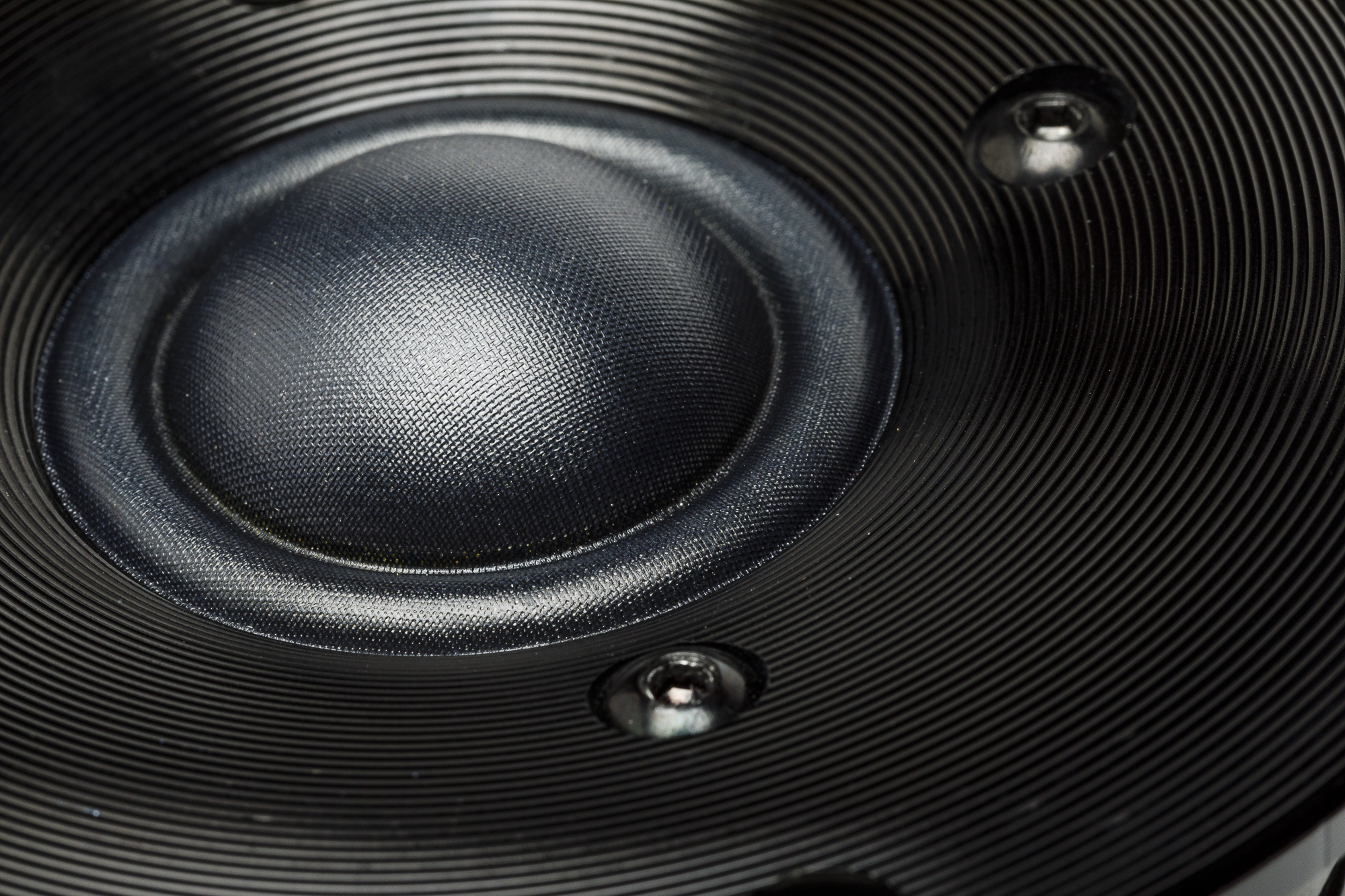

This dome tweeter combines a 110 mm overall diameter with a 1.1” (28 mm) voice coil, utilizing a silk diaphragm that has received both internal and external treatments for optimal rigidity and resistance to deformation. The dome is paired with a large roll rubber surround, further enhancing stability and elasticity, while the aluminium flange contributes to the unit’s structural integrity and precise mounting.
Performance is at the heart of the TW 110.28 F/Ag, with a rear damped chamber that lowers the resonance frequency to 520 Hz and minimizes the impedance peak. This innovation enables easier integration with assembled crossovers and simpler crossover designs, resulting in a more seamless and transparent audio experience. With a sensitivity of 90.7 dB at 1W/1m and a recommended crossover frequency of 1.5 kHz, this tweeter is engineered for audiophiles seeking both accuracy and musicality.

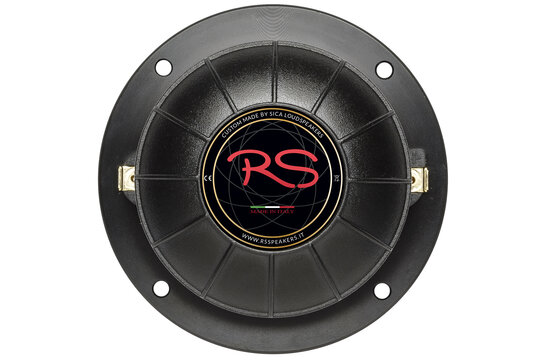

The magnetic assembly features a ferrite magnet covered with a silver cap, which ensures a consistent impedance curve, especially at higher frequencies. The voice coil utilizes flat copper-clad aluminium wire for maximum efficiency and minimal mass, wound on an aluminium former to achieve rapid response and excellent heat dissipation. This combination supports up to 25 W AES power handling and 50 W continuous program power, making it suitable for demanding home audio environments and custom loudspeaker builds.
For DIY enthusiasts and professionals alike, the TW 110.28 F/Ag includes essential mounting hardware such as sealing gaskets, fixing screws, and griff-nuts for easy installation. Its thoughtful construction and detailed engineering make it ideal for high-fidelity audio projects, upgrades, and component replacement in both commercial and DIY speaker kit applications. Experience uncompromising high-frequency detail and reliability with this premium dome tweeter from RS Speakers.
