        Product description Radian Audio LM10N Wide Band Planar Ribbon Tweeter

        The Radian LM10n Wide Band Planar Ribbon Driver is engineered for exceptional mid and high-frequency audio reproduction. Utilizing advanced thin-film diaphragm technology, this driver delivers remarkable sonic transparency and resolution, making it ideal for both professional and high-end DIY audio projects. With its robust design, the LM10n combines nearly four decades of Radian's expertise in planar ribbon driver development, ensuring both superior performance and long-term reliability in a wide range of demanding applications.



        Highlights of the Radian LM10n

        • Exceptional midrange band reproduction with outstanding clarity
        • Superior sonic transparency and high resolution
        • Symmetric push-pull, FEA-optimized magnetic structure with high-energy neodymium magnets
        • Structurally inert and thermally conductive polymer frame optimized for line array applications



        Product details Radian LM10n

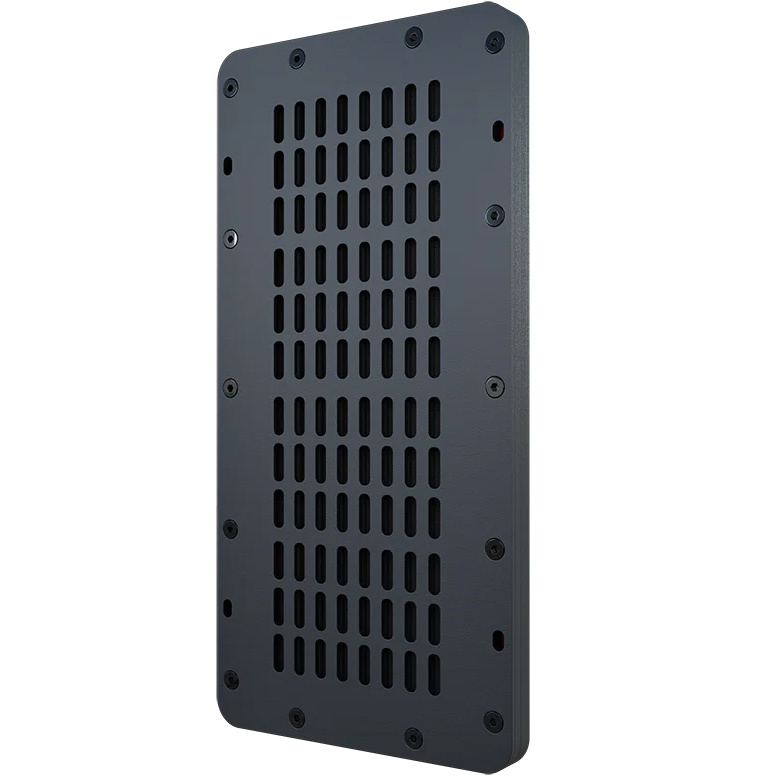

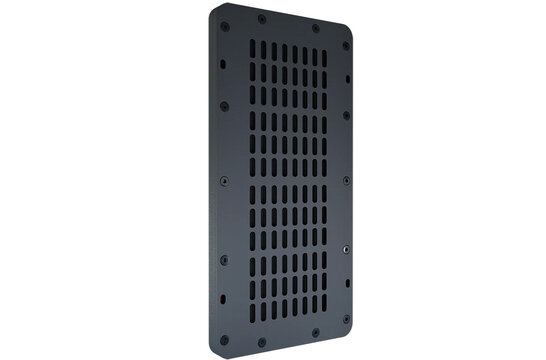

        Radian LM10n Wide Band Planar Ribbon Driver



        The Radian LM10n stands out with its innovative design featuring a symmetric push-pull magnetic structure, optimized using finite element analysis for maximum efficiency and minimal distortion. The use of high MGO neodymium magnets ensures an even magnetic flux distribution, while the advanced high-temperature stabilized polymer diaphragm delivers extremely linear operation over a broad dynamic range. This unique construction results in a predominantly resistive impedance with negligible inductive component, significantly minimizing intermodulation distortion and enhancing audio purity.

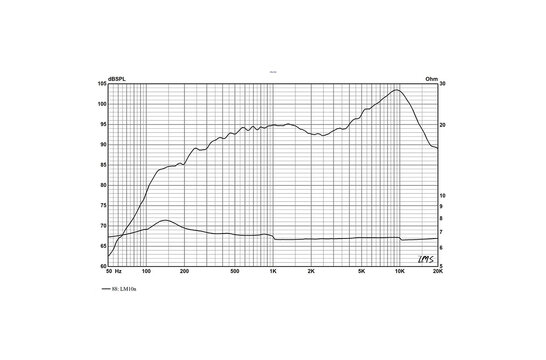

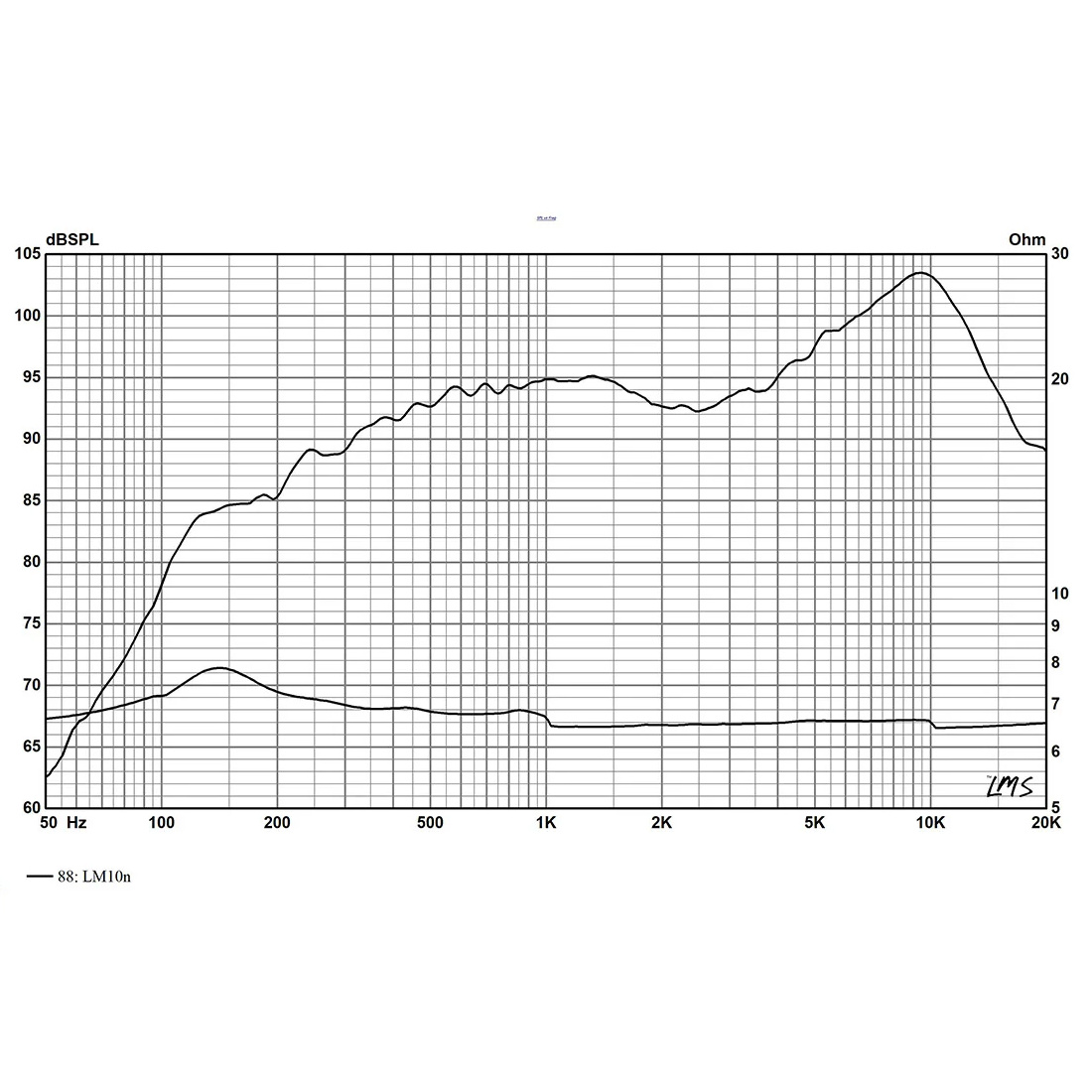

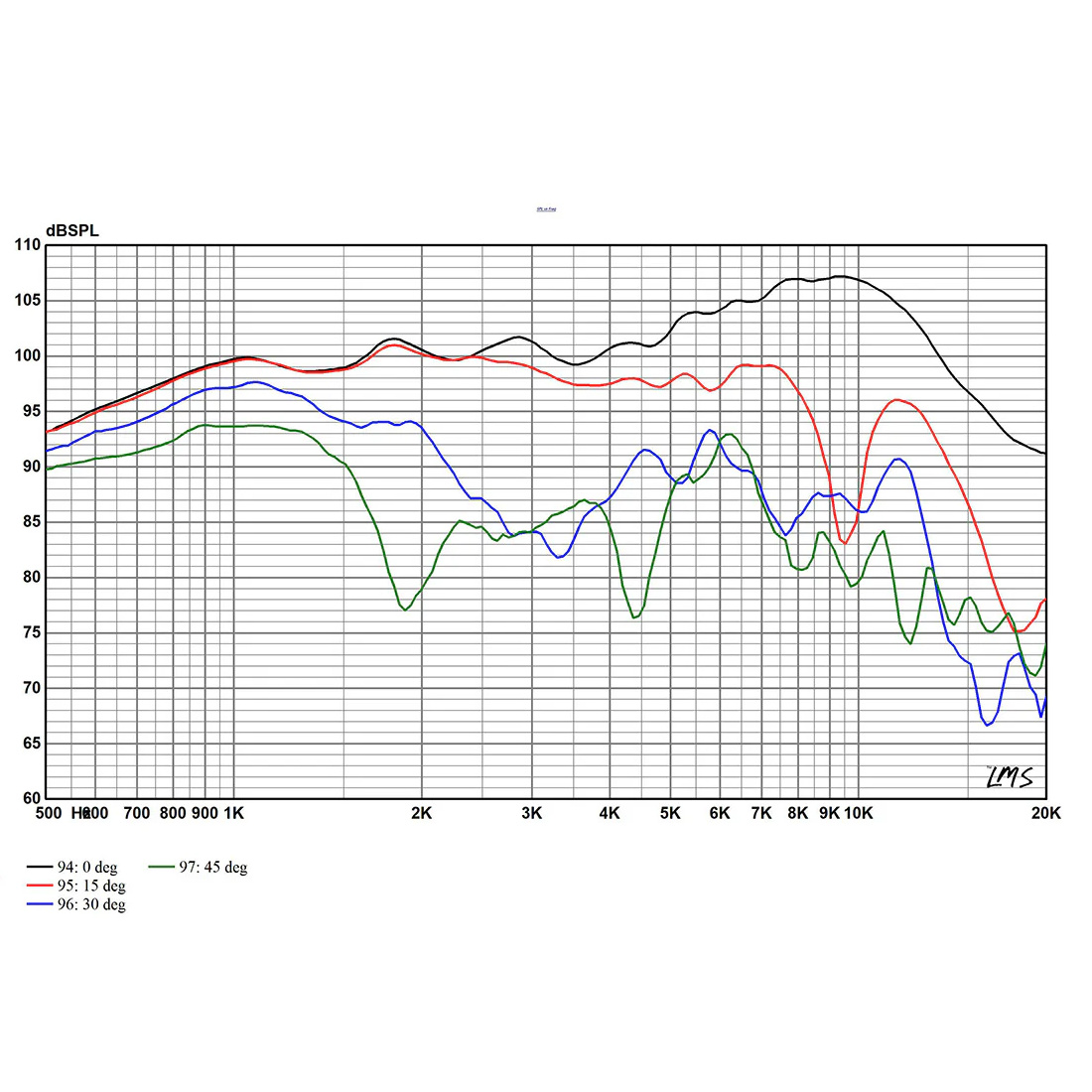

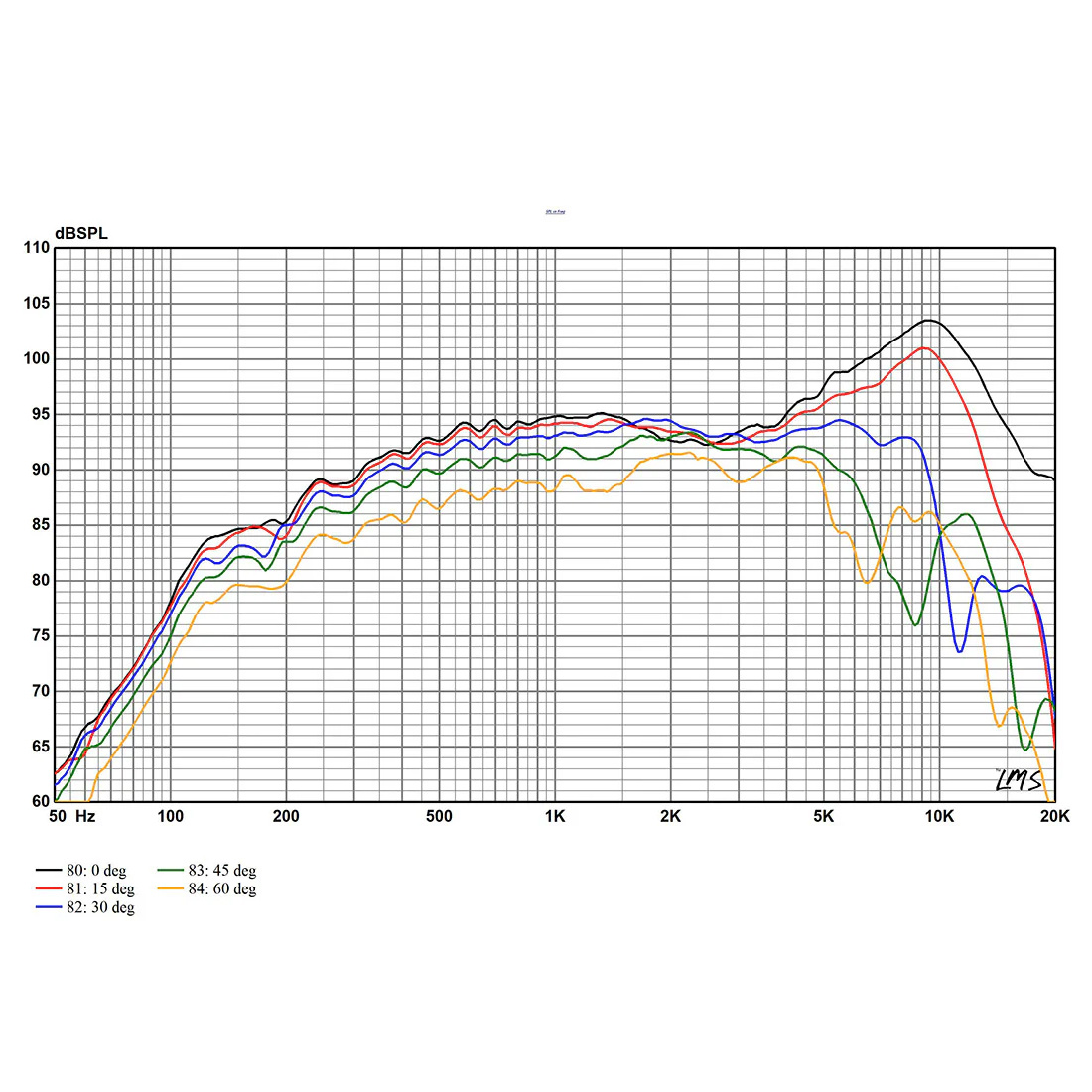

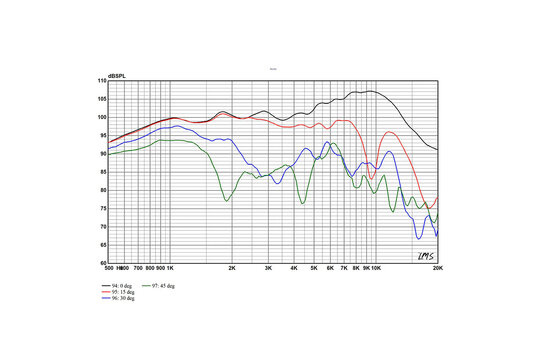

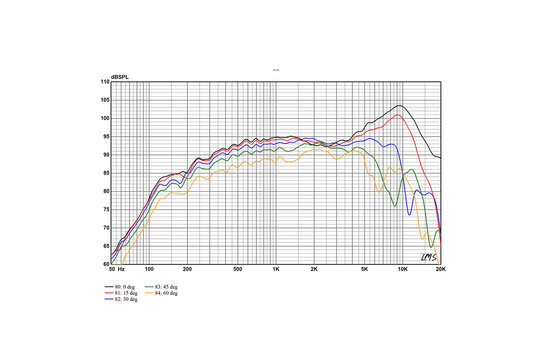

        Performance is at the core of the LM10n, with a sensitivity of 94 dB and an effective frequency range from 120 Hz to 20 kHz. The driver is capable of handling up to 70 W AES and 200 W short-term maximum power, making it suitable for both moderate and high-output systems. Its flat conductor pattern, evenly distributed across the diaphragm, provides textbook constant directivity in the horizontal plane, achieving a wide 120-degree horizontal and 30-degree vertical coverage. This makes the LM10n a compelling choice for speakers designed for both home and professional use.



        Compatibility and application flexibility are key advantages of the LM10n. It is optimized for line array setups, maximizing the active radiating area relative to driver height, and can be paired seamlessly with Radian LT3 or LT2 tweeters for extended high-frequency performance. The LM10n supports both open-back/dipole and closed-back configurations, delivering either a spacious, three-dimensional soundstage or a more focused, immediate presentation depending on enclosure design. For desktop or nearfield monitoring, augmenting the LM10n with a subwoofer creates an immersive, holographic listening experience.

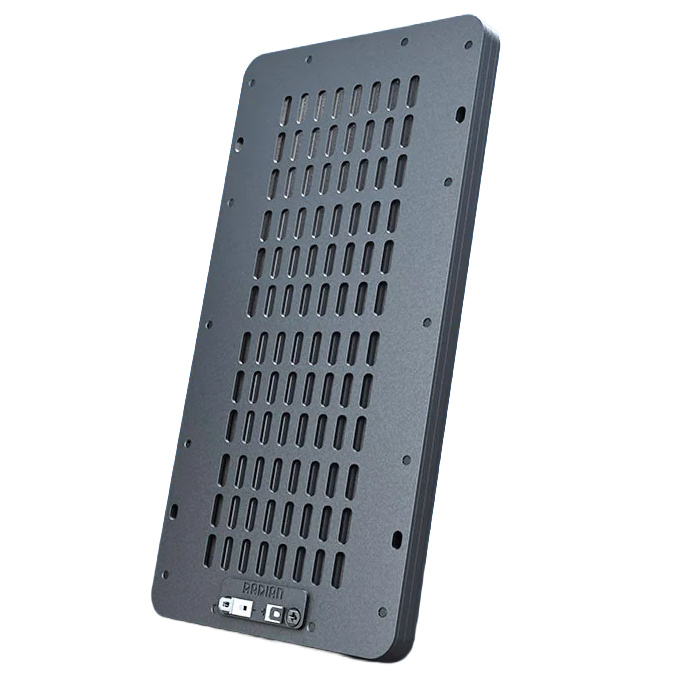

        Engineered for longevity, the LM10n features a structurally inert frame and thermally conductive polymer materials, ensuring operational stability even under demanding conditions. Its gold-plated terminals provide secure connections, while the powder-coated steel driver plates add further durability. As part of the Radian Planar Ribbon Series, the LM10n is an excellent addition to audio components for high-fidelity, line array, or nearfield systems, and fits naturally into DIY speaker kit and home audio projects that demand uncompromising sound quality.

        Show more

        Specifications

        Article number
        LM10N
        EAN
        9509727444476
        Tweeter Type
        Planar Ribbon
        Cone / Dome Diameter
        250 mm
        Power Handling (RMS)
        70 W
        Power Handling (max)
        200 W
        Impedance (Z)
        6.8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        94 dB
        Frequency Response
        120 Hz – 20 kHz
        DC Resistance (Re)
        6.8 Ω

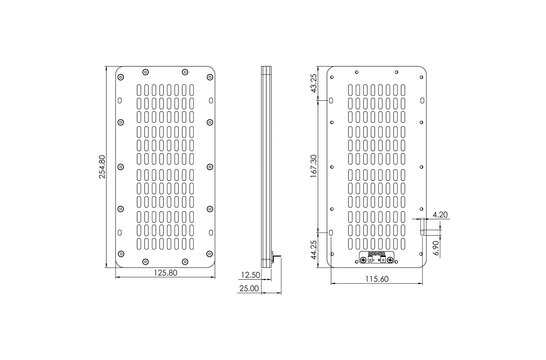

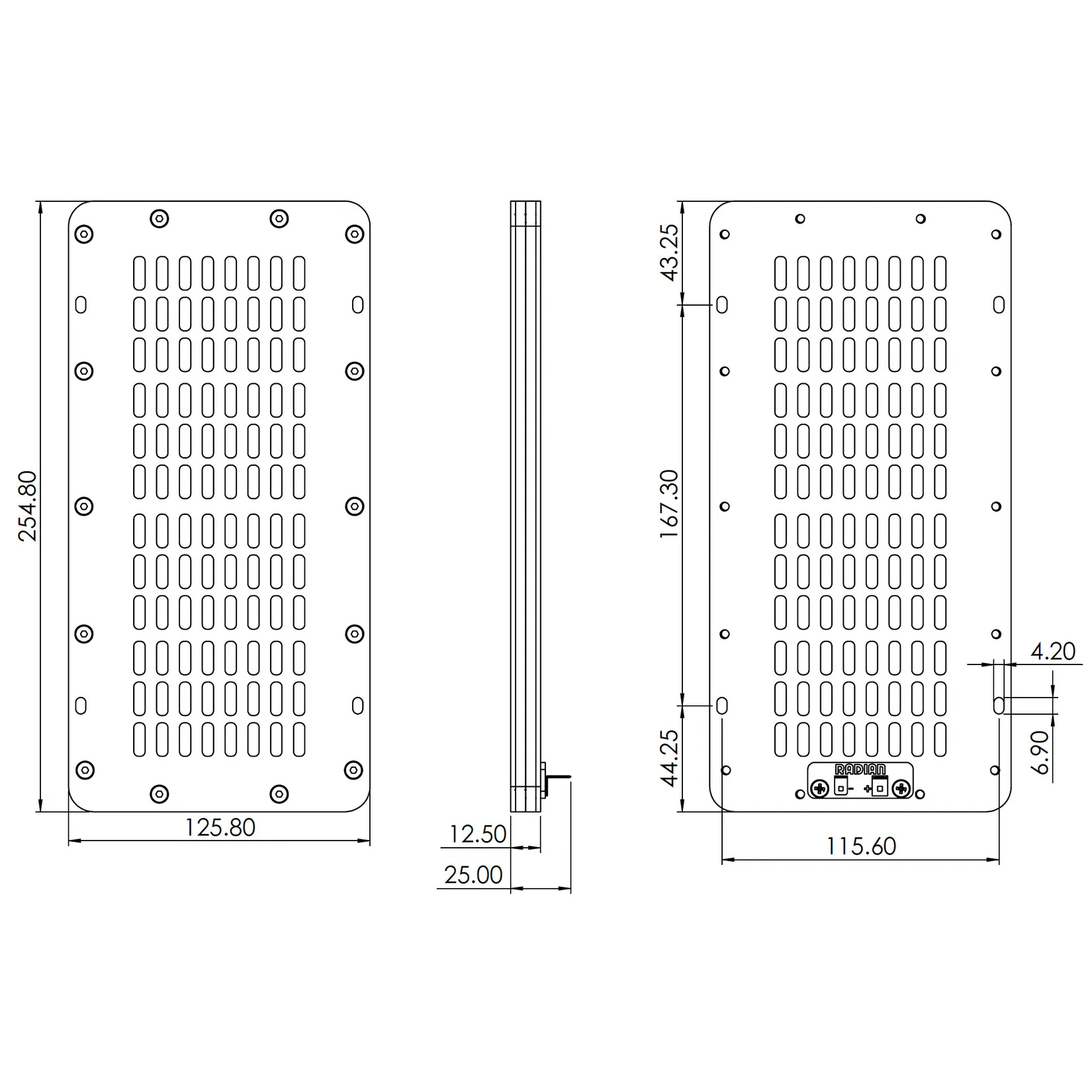

        Overall Outside Diameter
        125.80 mm x 254.80 mm
        Depth
        25.00 mm
        Mounting Type
        Dipole (open back)
        Diaphragm Material
        Polymer
        Recommended cut frequency
        150 Hz
