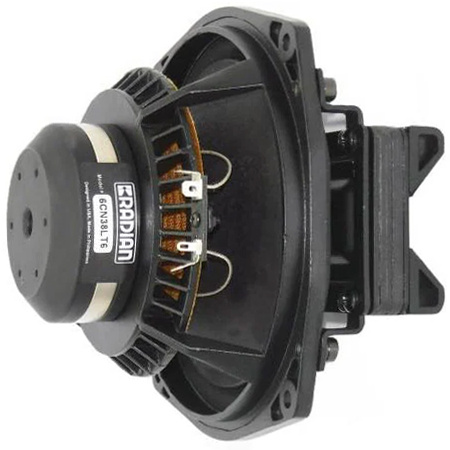

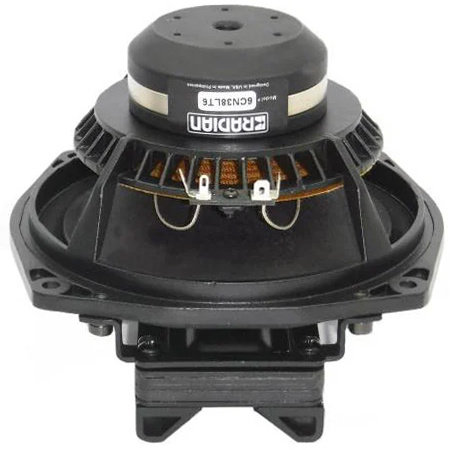

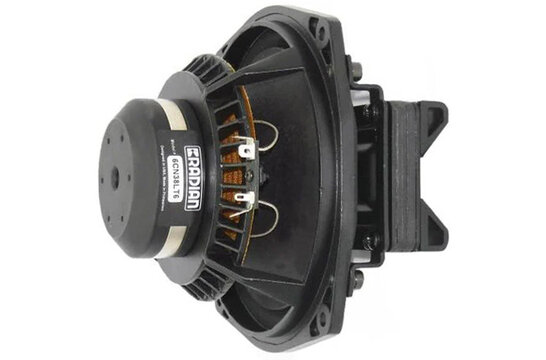

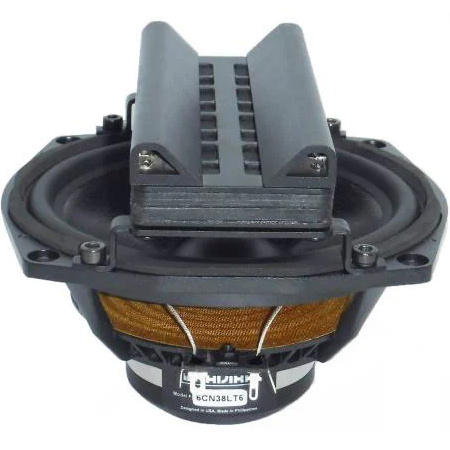

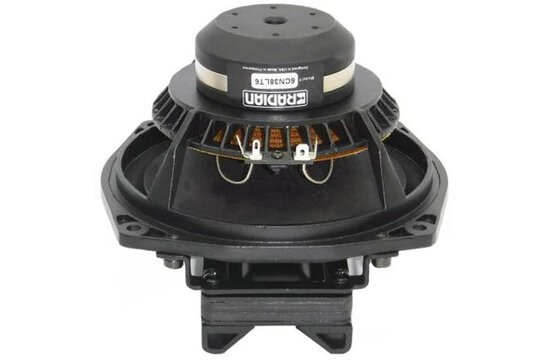

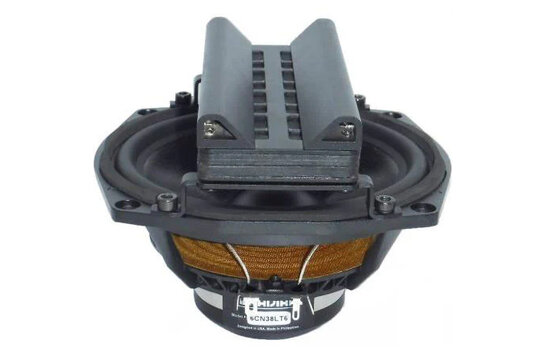

        6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF

        Radian Audio 6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF

        €469,95

        4 expected on 21-07-2026

        Add to cart

        Radian Audio 6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Radian Audio
        Show all New products
        6.5" | 8 Ω
        6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF
        6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF
        6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF
        6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF
        6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF
        6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF
        € 388,39€ 469,95 Out of stock4 expected on 21-07-2026
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF
        6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF
        6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF
        6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF
        6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF
        6CRN38LT6 6.5" Line Array Coaxial Woofer with Planar Ribbon HF

        Pros and cons

        According to our specialists
        • Neo magnets and Kapton diaphragm
        • Smooth response extended both in LF and HF range up to 25kHz
        • Superior sonic transparency and resolution

        Product description Radian Audio 6CRN38LT6 Line Array Woofer

        The Radian 6CN38LT6 is a coaxial transducer that combines a 165 mm low-frequency driver with a high-frequency planar ribbon driver, delivering exceptional sonic accuracy and extended frequency response up to 25 kHz. Engineered for both clarity and power, this advanced driver is optimized for line array systems and professional audio applications where transparency and low distortion are crucial. Its innovative design integrates neodymium magnets, a Kapton diaphragm, and unique acoustic filtering technology for outstanding performance in demanding environments.



        Highlights of the Radian 6CN38LT6

        • Neo magnets and Kapton diaphragm for lightweight strength and durability
        • Smooth and extended frequency response from 60 Hz to 25 kHz
        • Superior sonic transparency and high output, ideal for line arrays
        • Unique complimentary acoustic filtering technology and dual aluminum demodulation rings for low distortion



        Product details Radian 6CN38LT6

        Radian 6CN38LT6 Coaxial transducer with planar ribbon HF driver



        The Radian 6CN38LT6 stands out with its coaxial configuration, featuring a 6.5 inch paper/Kevlar composite cone for low frequencies and a 6 inch planar ribbon high-frequency driver. The use of neodymium magnets and a Kapton diaphragm ensures both drivers are lightweight yet robust, resulting in improved transient response and long-term reliability. The coaxial layout guarantees point-source sound dispersion, making it a top choice for applications where precise imaging and consistent coverage are essential, such as in speakers and advanced studio monitors.



        Performance is at the core of the 6CN38LT6's design. With a power handling capacity of up to 120 W AES (200 W long-term, 300 W short-term), and an effective frequency range from 60 Hz to 25 kHz, this driver delivers both deep lows and sparkling highs. Its high sensitivity of 94 dB for the LF and 102 dB for the HF makes it suitable for use in both passive and active amplifiers systems, ensuring high output levels with minimal distortion. The dual aluminum demodulation rings further reduce intermodulation distortion, achieving clarity even at elevated volume levels.



        Thanks to its wide 90° horizontal and 40° vertical coverage angles, the 6CN38LT6 provides expansive sound dispersion, making it highly effective in line arrays, PA systems, and high-fidelity audio components. The recommended crossover frequency between 1.7 kHz and 2 kHz allows seamless integration with other transducers or system components, while its compact mounting dimensions (172 mm bolt circle, 149 mm cut-out diameter, 124 mm depth) offer flexible installation in custom enclosures or retrofit systems.



        With robust mechanical construction and advanced acoustic engineering, the Radian 6CN38LT6 is an excellent solution for professional audio designers, DIY enthusiasts, and system integrators seeking premium DIY speaker kit performance. Whether used in high-end recording studios, concert venues, or bespoke home audio systems, this coaxial transducer is built to exceed expectations in clarity, output, and reliability.

        Show more

        Specifications

        Article number
        6CRN38LT6
        EAN
        9508583178211
        Woofer Type
        Coaxial
        Nominal Diameter
        6.5 " | 165 mm
        Power Handling (RMS)
        120 W
        Power Handling (max)
        300 W
        Impedance (Z)
        12 Ω
        Sensitivity (SPL at 1m / 2.83V)
        94 dB
        Frequency Response
        60 Hz - 25 kHz
        Voice Coil Diameter
        38 mm
        DC Resistance (Re)
        8.3 Ω
        Voice Coil Inductance (Le)
        0.6 mH
        Resonant Frequency (Fs)
        82 Hz
        Mechanical Q (Qms)
        11.0
        Electromagnetic Q (Qes)
        0.36
        Total Q (Qts)
        0.35
        Diaphragm Mass Inc. Airload (Mms)
        11.5 g
        Surface Area of Cone (Sd)
        138.0 cm²
        BL Product (BL)
        11.6 Tm
        Compliance Equivalent Volume (Vas)
        9.3 L
        Maximum Linear Excursion (Xmax)
        5.0 mm
        Cone / Diaphragm Material
        Paper/Kevlar composite
        Surround Material
        Poly-cotton
        Voice Coil Wire Material
        CCA
        Basket / Frame Material
        Neodymium
        Overall Outside Diameter
        187 mm
        Overall Depth
        124 mm
        Baffle Cutout Diameter
        149 mm
        Bolt Circle Diameter
        172 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        5.80 mm
