        12CRF6430 12" Coaxial Woofer with Planar Ribbon HF

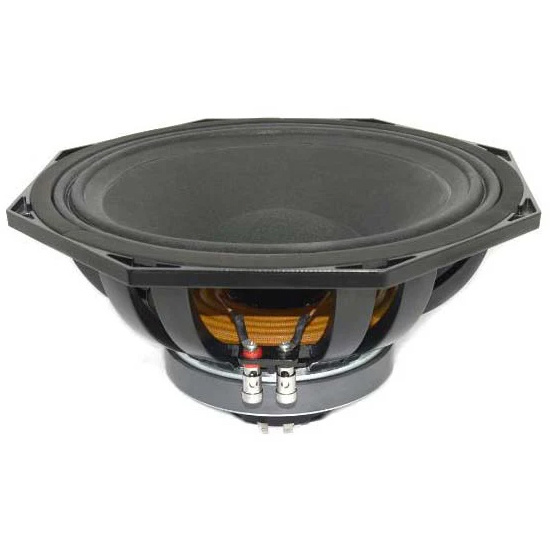

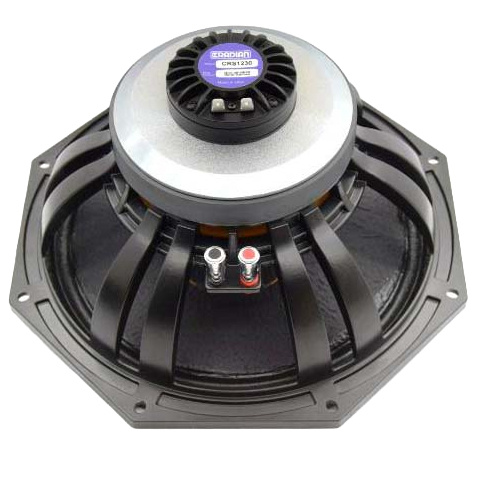

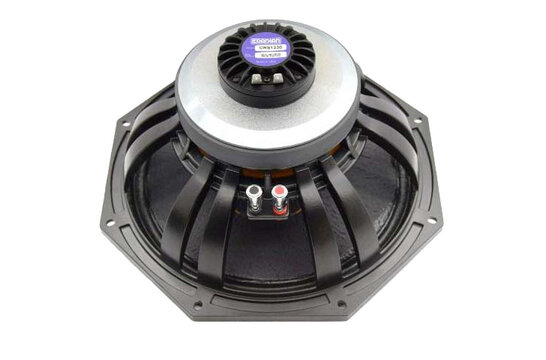

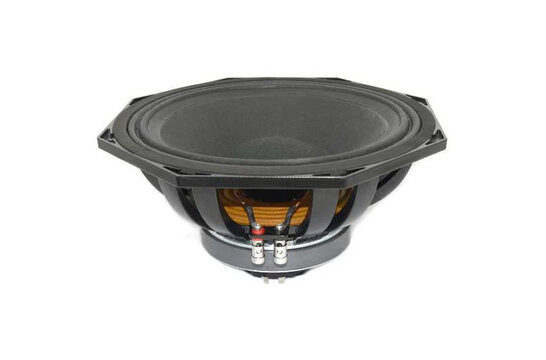

        Radian Audio 12CRF6430 12" Coaxial Woofer with Planar Ribbon HF

        €499,95

        4 expected on 21-07-2026

        Add to cart

        Radian Audio 12CRF6430 12" Coaxial Woofer with Planar Ribbon HF

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Radian Audio
        Show all New products
        12" | 8 Ω
        12CRF6430 12" Coaxial Woofer with Planar Ribbon HF
        12CRF6430 12" Coaxial Woofer with Planar Ribbon HF
        12CRF6430 12" Coaxial Woofer with Planar Ribbon HF
        12CRF6430 12" Coaxial Woofer with Planar Ribbon HF
        € 413,18€ 499,95 Out of stock4 expected on 21-07-2026
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        12CRF6430 12" Coaxial Woofer with Planar Ribbon HF
        12CRF6430 12" Coaxial Woofer with Planar Ribbon HF
        12CRF6430 12" Coaxial Woofer with Planar Ribbon HF
        12CRF6430 12" Coaxial Woofer with Planar Ribbon HF

        Pros and cons

        According to our specialists
        • Designed for high performance applications
        • Planar ribbon HF with Kapton diaphragm
        • Very balanced response extended both in LF and HF range up to 30kHz

        Product description Radian Audio 12CRF6430 Coaxial Woofer

        The Radian 12CRF6430 is a premium 12-inch coaxial loudspeaker featuring an advanced planar ribbon high-frequency driver for exceptional clarity and resolution. Engineered for high-performance applications, this coaxial system delivers outstanding sound quality with a balanced frequency response from deep bass to extended highs, making it ideal for demanding audio setups where accuracy and transparency are crucial.



        Highlights of the Radian 12CRF6430

        • Planar ribbon HF driver with Kapton diaphragm for superior high-frequency detail
        • Balanced frequency response from 40 Hz to 30 kHz for full-range clarity
        • 100° conical coverage ensures even sound dispersion
        • Dual independent magnetic systems minimize distortion and enhance transparency



        Product details Radian 12CRF6430

        Radian 12CRF6430 12” coaxial with planar ribbon HF



        Designed to provide ultimate sound quality, the Radian 12CRF6430 stands out for its highly coherent coaxial configuration and planar ribbon high-frequency driver. The HF section uses a robust Kapton diaphragm with a neodymium magnet, offering an impressive frequency range up to 30 kHz and a sensitivity of 103.5 dB. The low-frequency driver features a 305 mm paper/Kevlar composite cone and a 64 mm copper-clad aluminum voice coil, supporting continuous program power of 600 W. Together, these elements create a versatile transducer perfect for audiophile-grade speakers and professional monitoring systems.



        The Radian 12CRF6430 is engineered for low distortion and high fidelity. Dual aluminum demodulation rings in the LF/MF section reduce distortion, while completely separate LF and HF magnetic systems eliminate flux modulation and unwanted intermodulation effects. The 100° conical coverage pattern ensures even sound distribution throughout the listening area, with precise pattern control down to 800 Hz. This makes it suitable for both studio and high-end home audio applications, as well as demanding commercial sound reinforcement.



        This coaxial driver is built for reliability and performance, with high-temperature polyimide voice coil formers and a rugged cast aluminum octagonal frame. The recommended enclosure volume ranges from 35 to 70 liters, allowing for flexible integration in custom or OEM designs. Optional accessories include a premium assembled crossover, making it easy to pair with advanced assembled crossovers for seamless integration in sophisticated audio systems.



        With a balanced response, extended low-frequency performance, and the precision of planar ribbon technology, the Radian 12CRF6430 excels in systems requiring both accuracy and musicality. Its robust 600 W continuous program power handling, combined with low distortion and wide coverage, makes it a top choice for high-end audio installations and DIY speaker kit projects where exceptional sound is the priority. For those seeking an advanced solution in audio components, this driver offers a blend of innovation, durability, and superior sonic performance.

        Show more

        Specifications

        Article number
        12CRF6430
        EAN
        9502617335212
        Woofer Type
        Coaxial
        Nominal Diameter
        12 " | 305 mm
        Power Handling (RMS)
        300 W
        Continuous Program Power
        600 W
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        97 dB
        Frequency Response
        40 Hz - 30 kHz
        Voice Coil Diameter
        64 mm
        DC Resistance (Re)
        5.4 Ω
        Voice Coil Inductance (Le)
        0.85 mH
        Resonant Frequency (Fs)
        48 Hz
        Mechanical Q (Qms)
        4.34
        Electromagnetic Q (Qes)
        0.52
        Total Q (Qts)
        0.465
        Diaphragm Mass Inc. Airload (Mms)
        52 g
        Mechanical Compliance of Suspension (Cms)
        0.21 mm/N
        Surface Area of Cone (Sd)
        510 cm²
        BL Product (BL)
        12.8 Tm
        Compliance Equivalent Volume (Vas)
        76 L
        Maximum Linear Excursion (Xmax)
        5.5 mm
        Cone / Diaphragm Material
        Paper/Kevlar composite
        Surround Material
        Poly-cotton
        Voice Coil Wire Material
        CCA
        Voice Coil Former
        Polyimide
        Basket / Frame Material
        Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        338.8 mm
        Overall Depth
        165 mm
        Baffle Cutout Diameter
        279.0 mm
        Bolt Circle Diameter
        315.0 mm
        # Mounting Holes
        8
        Mounting Hole Diameter
        7 x 8.5 mm
