        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer

        PURIFI PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer

        €379,95

        Out of stock

        Add to cart

        PURIFI PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: PURIFI
        Show all New products
        5.25" | 8 Ω
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        € 314,01€ 379,95 Out of stock
        • -5% Purchase 4 for only € 360,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer
        PTT5.25M08-NAA-05 5.25" Ultra Low Distortion Mid-range Woofer

        Product description PURIFI PTT5.25M08-NAA-05 Mid-range Woofer

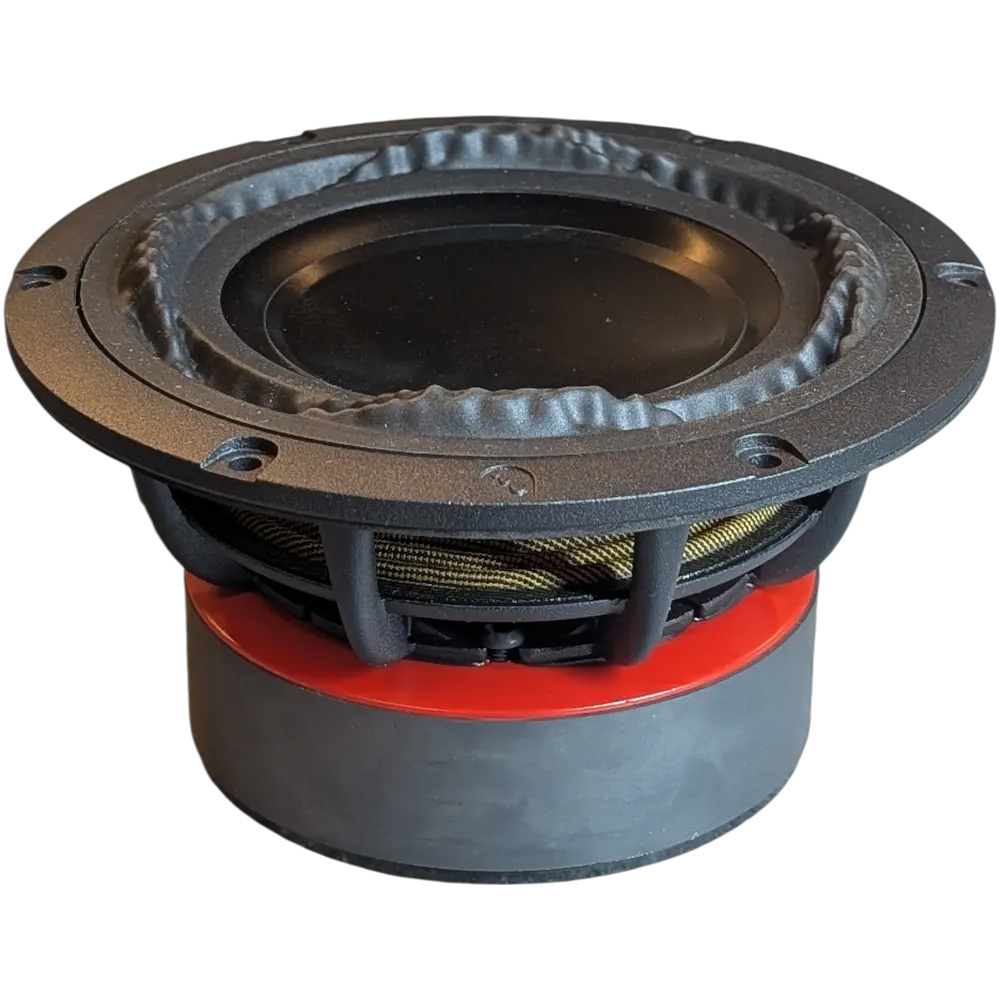

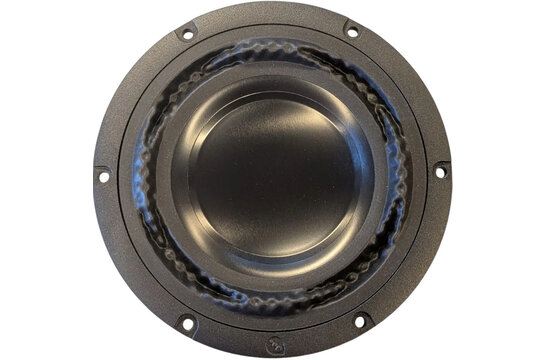

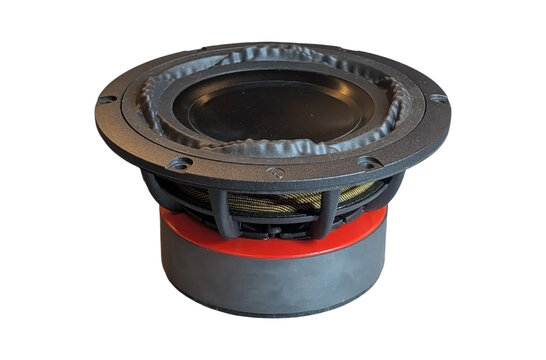

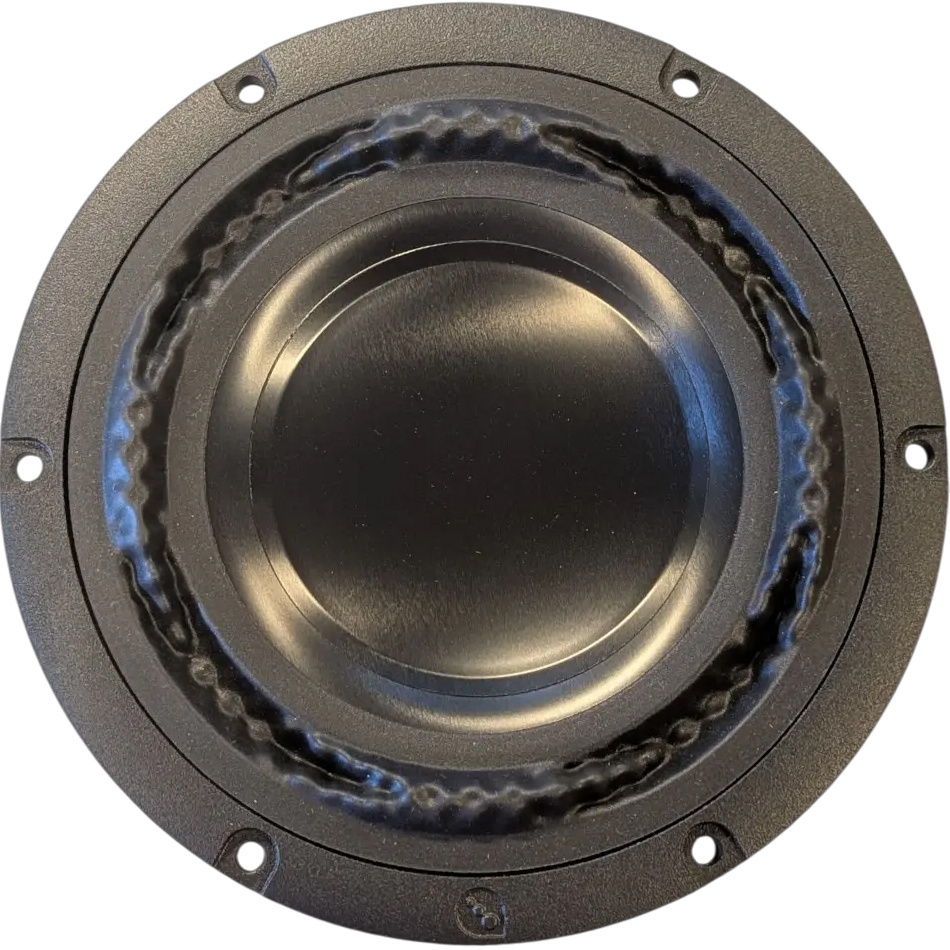

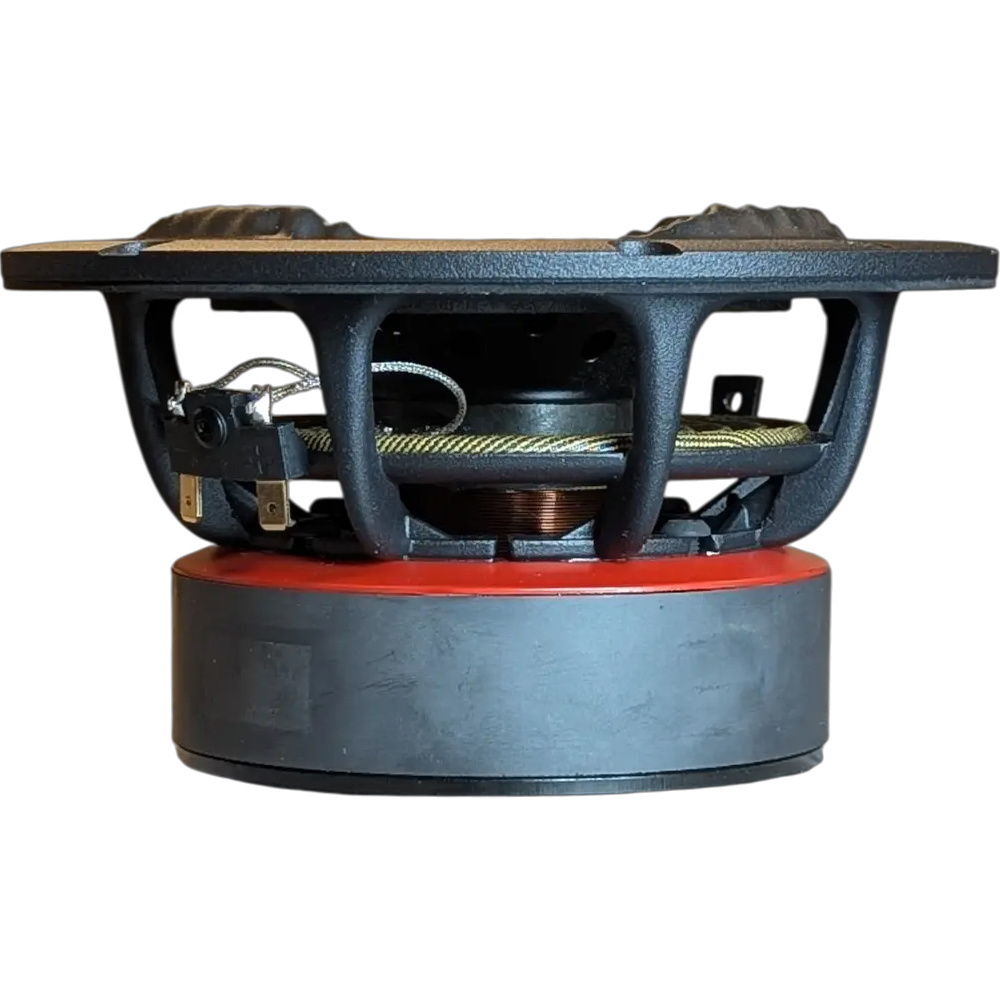

        The PURIFI PTT5.25M08-NAA-05 is a 5.25 inch high-performance midrange driver engineered for ultra-low distortion and exceptional clarity in demanding loudspeaker designs. Designed and manufactured in Denmark, it is optimized specifically for midrange reproduction in high-end audio systems.



        Highlights of the PURIFI PTT5.25M08-NAA-05

        • Optimized 5.25 inch midrange driver with ultra-low distortion characteristics.
        • Black anodized aluminum cone combined with PURIFI Neutral Surround Technology.
        • Negligible force factor modulation and ultra-low magnetic hysteresis distortion.
        • High power handling up to 200 W IEC for demanding audiophile and DIY applications.



        Product details PURIFI PTT5.25M08-NAA-05

        PURIFI PTT5.25M08-NAA-05 5.25 inch Midrange Driver



        The PURIFI PTT5.25M08-NAA-05 is a dedicated midrange driver featuring an 8 ohm nominal impedance and a resonance frequency of 41 Hz. With a total Q factor of 0.29 and an effective piston area of 84.9 cm², it is well suited for controlled and accurate midrange reproduction in multi-way loudspeaker systems.



        The driver utilizes a black anodized aluminum cone paired with PURIFI’s Neutral Surround Technology, minimizing non-linearities and ensuring consistent performance across the usable excursion range. The force factor of 9.5 N/A and ultra-low magnetic hysteresis contribute to extremely low harmonic and intermodulation distortion, even at higher output levels.



        Equipped with a 39 mm diameter, four-layer CCAW voice coil and a linear excursion of ±2.9 mm, the PTT5.25M08-NAA-05 offers precise control and thermal stability. The driver supports a long-term IEC power handling of 200 W and is optimized for use with a 2nd order high-pass Butterworth crossover at 200 Hz, making it an ideal choice for high-end audiophile loudspeakers and advanced DIY designs.

        Show more

        Specifications

        Article number
        PTT5.25M08-NAA-05
        EAN
        9504853587875
        Woofer Type
        Mid-range Woofer
        Nominal Diameter
        5.25"
        Power Handling (RMS)
        200 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        85.2 dB
        Voice Coil Diameter
        39 mm
        DC Resistance (Re)
        6.3 Ω
        Voice Coil Inductance (Le)
        0.35 mH
        Resonant Frequency (Fs)
        41 Hz
        Mechanical Q (Qms)
        6.3
        Electromagnetic Q (Qes)
        0.30
        Total Q (Qts)
        0.29
        Diaphragm Mass Inc. Airload (Mms)
        16.8 g
        Mechanical Compliance of Suspension (Cms)
        0.92 mm/N
        Surface Area of Cone (Sd)
        84.9 cm²
        BL Product (BL)
        9.5 N/A
        Compliance Equivalent Volume (Vas)
        9.4 Liters
        Maximum Linear Excursion (Xmax)
        +/- 2.9 mm
        Driver's Mechanical Losses (Rms)
        0.68 kg/s
        Cone / Diaphragm Material
        Black Anodized Aluminum
        Overall Outside Diameter
        147 mm
        Overall Depth
        75 mm
        Baffle Cutout Diameter
        121 mm
        Bolt Circle Diameter
        138 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        4.2 mm

        Show more
