        Punktkilde AUGWL0020-JN03 Woofer

        0 reviews
        Brand: Punktkilde
        Show all Woofer
        € 139,95
        € 118,95
        AUGWL0020-JN03 Woofer
        AUGWL0020-JN03 Woofer
        AUGWL0020-JN03 Woofer
        AUGWL0020-JN03 Woofer
        AUGWL0020-JN03 Woofer
        AUGWL0020-JN03 Woofer
        € 115,66
        € 139,95
        € 98,31€ 118,95 10+ In stock
        • -10% Order 4 for only € 107,06 per piece
        +-
        Add to cart

        Buy now, pay later

        • 24h express shipping available
        • Same day shipping
        • In-house technical support
        • 45 days worry-free returns
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        AUGWL0020-JN03 Woofer
        AUGWL0020-JN03 Woofer
        AUGWL0020-JN03 Woofer
        AUGWL0020-JN03 Woofer
        AUGWL0020-JN03 Woofer
        AUGWL0020-JN03 Woofer

        Product description

        Highlights

        • 8”, Aluminum Die-cast Frame
        • 2” CCAW Voice Coil, Aluminum Former
        • Pulp and Carbon Fiber Cone, Rubber Surround
        • Ferrite Magnet Motor System
        • Conex Spider



        Product details

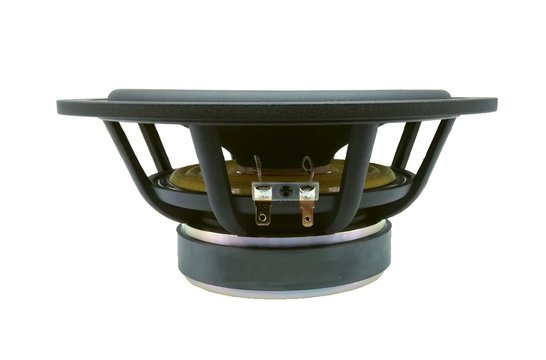

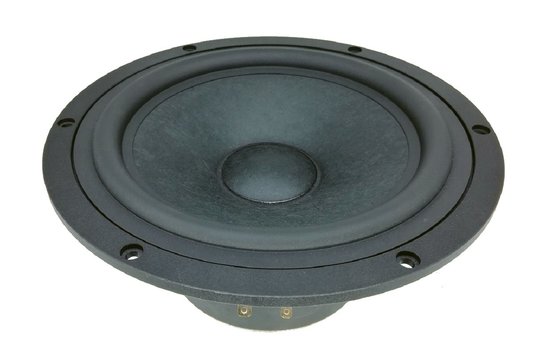

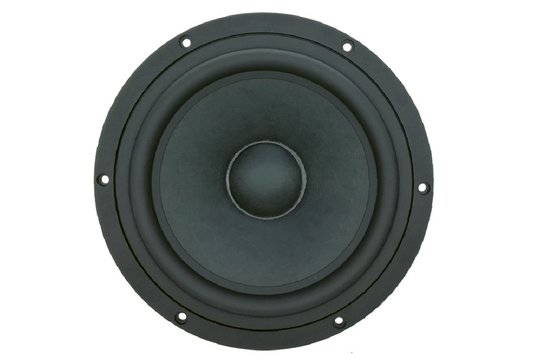

        Punktkilde AUGWL0020-JN03 8'' Carbon Pulp Woofer



        This 8 inch Woofer, features 2 inch voice coil, pulp with carbon fiber cone, and ferrite magnet motor system. As for the selection of material, this series of driver uses a new mixed material with pulp and 60% carbon fiber, it can greatly enhance the stiffness of the cone body and control range of the internal damping.

        Show more

        Specifications

        Article number
        AUGWL0020-JN03
        Nominal Diameter
        8"
        Power Handling (RMS)
        100 watts
        Impedance (Z)
        4 Ω
        Sensitivity
        90 dB (2.83V/1m)
        Voice Coil Diameter
        49.55 mm
        DC Resistance (Re)
        3.36 Ω
        Voice Coil Inductance (Le)
        0.201 mH
        Resonant Frequency (Fs)
        33 Hz
        Mechanical Q (Qms)
        2.5
        Electromagnetic Q (Qes)
        0.358
        Total Q (Qts)
        0.36
        Diaphragm Mass Inc. Airload (Mms)
        28.407 g
        Mechanical Compliance of Suspension (Cms)
        0.817 mm/N
        Surface Area of Cone (Sd)
        219.04 cm²
        Volume of Displacement (Vd)
        109.52 cm³
        BL Product (BL)
        6.887 Tm
        Compliance Equivalent Volume (Vas)
        55.5 liters
        Maximum Linear Excursion (Xmax)
        5 mm
        Driver's Mechanical Losses (Rms)
        2.116 kg/s
        Cone / Diaphragm Material
        Carbon Pulp
        Surround Material
        Rubber
        Voice Coil Wire Material
        CCAW
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Aluminum diecast
        Magnet Material
        Ferrite
        Overall Outside Diameter
        223.5 mm
        Overall Depth
        105.1 mm
        Bolt Circle Diameter
        210 mm
        Mounting Hole Diameter
        5.2 mm

        Show more
