        12W1600 Bass-midwoofer

        PRV Audio 12W1600 Bass-midwoofer

        €289,95

        10+ In stock

        Add to cart

        PRV Audio 12W1600 Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: PRV Audio
        Show all New products
        12" | 8 Ω
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        € 239,63€ 289,95 10+ In stock
        • -5% Purchase 4 for only € 275,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer
        12W1600 Bass-midwoofer

        Pros and cons

        According to our specialists
        • Ventilated voice coil gap to reduce power
        • Weather-resistant paper cone
        • 10.5 mm Xmax with 36 mm peak-to-peak excursion before damage
        • Relatively heavy

        Product description PRV Audio 12W1600 Bass-midwoofer

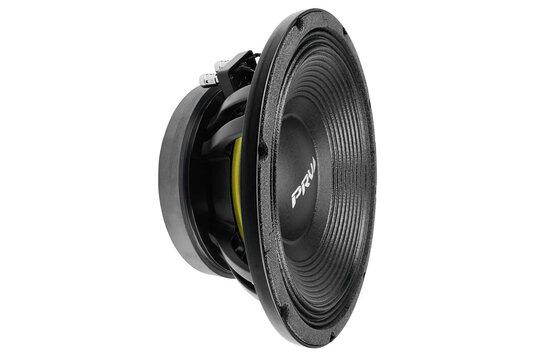

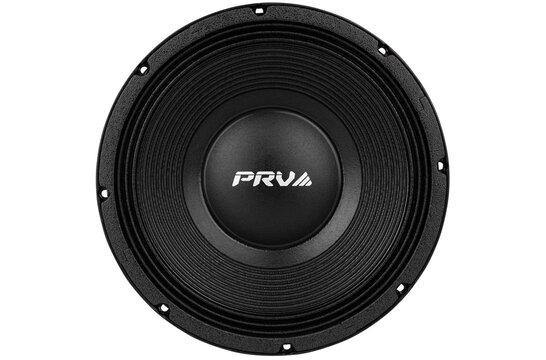

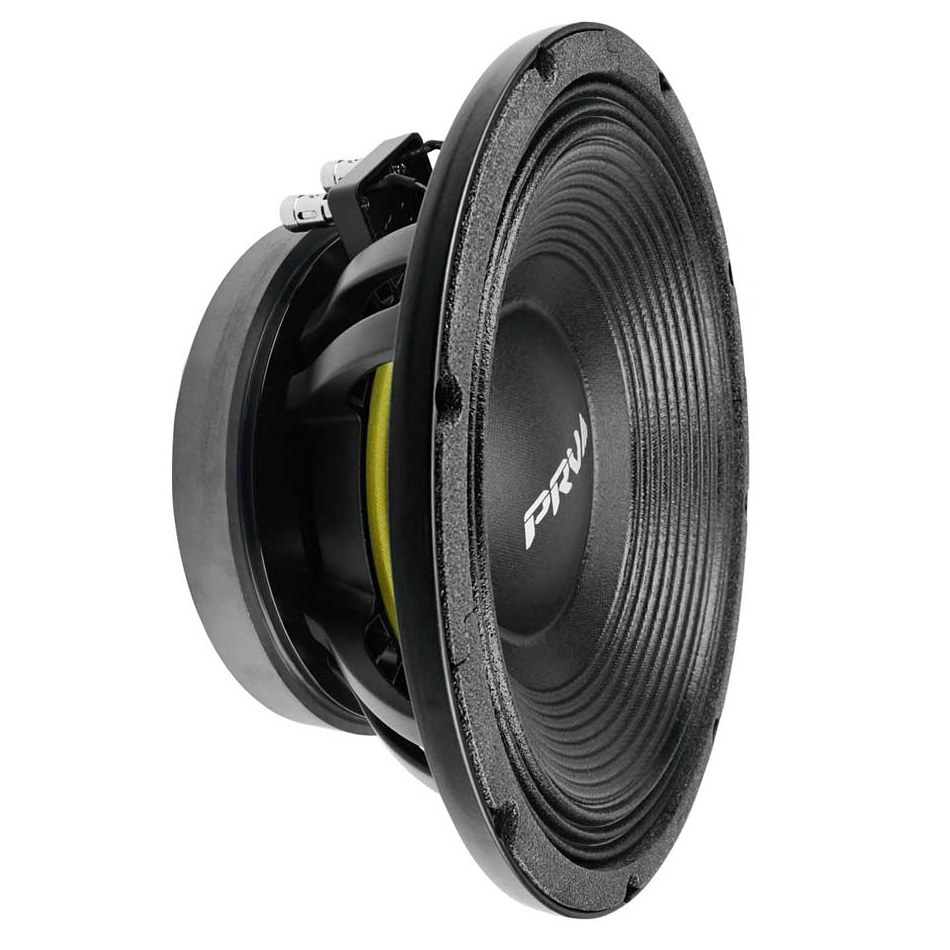

        The PRV Audio 12W1600 is a 12" professional woofer engineered for high-output low-frequency reproduction in compact vented enclosures. Designed with a robust 4" split copper voice coil and a die-cast aluminum frame, this driver delivers up to 1600 watts RMS power handling, making it ideal for demanding PA and bass reinforcement applications.



        Highlights of the PRV Audio 12W1600 12" Bass-midwoofer

        • 4″ split copper voice coil on a fiberglass former for high thermal stability
        • 1600W continuous program power handling and 94 dB sensitivity
        • Cast aluminum frame with side-forced ventilation for enhanced cooling
        • Rugged paper cone reinforced with glass fiber and weather-resistant coating



        Product details PRV Audio 12W1600 12" Bass-midwoofer

        PRV Audio 12W1600 Bass-midwoofer

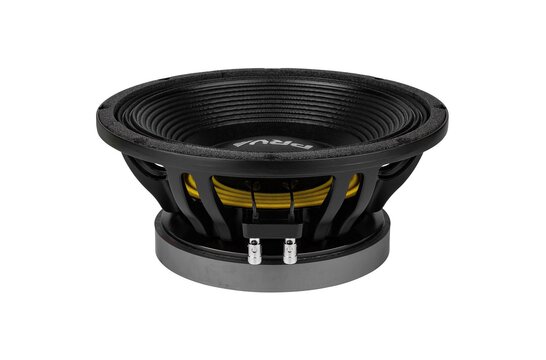

        The PRV Audio 12W1600 12" woofer is a powerful low-frequency transducer designed for high-performance sound reinforcement systems. Its 4″ split copper voice coil is wound on a fiberglass former using proprietary high-temperature adhesives, ensuring long-term reliability under high power. With a continuous program power rating of 1600 watts and a 10.5 mm Xmax, this driver delivers deep, controlled bass with minimal distortion, even during peak transients.

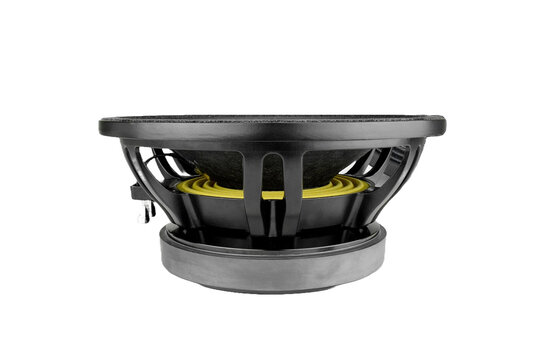

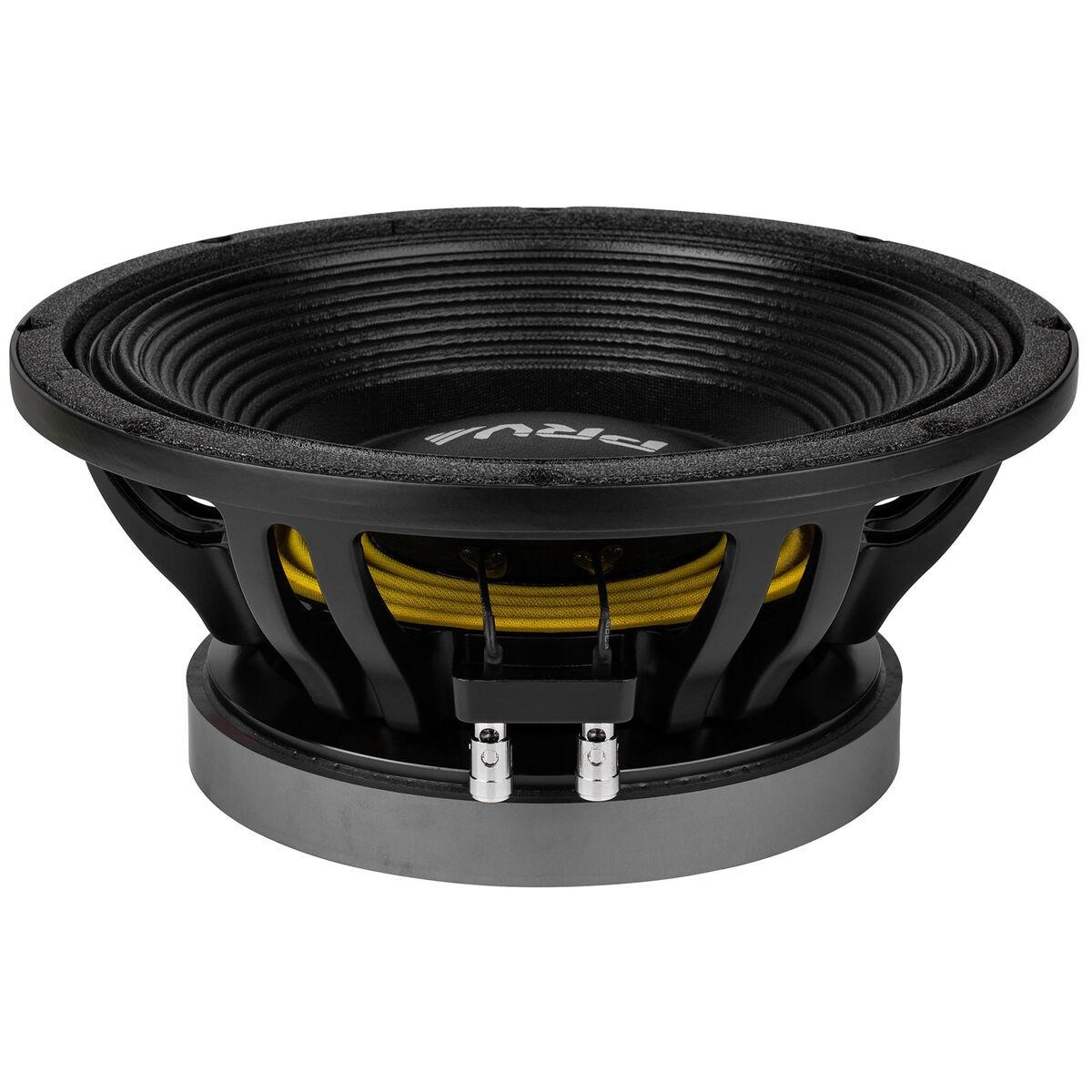

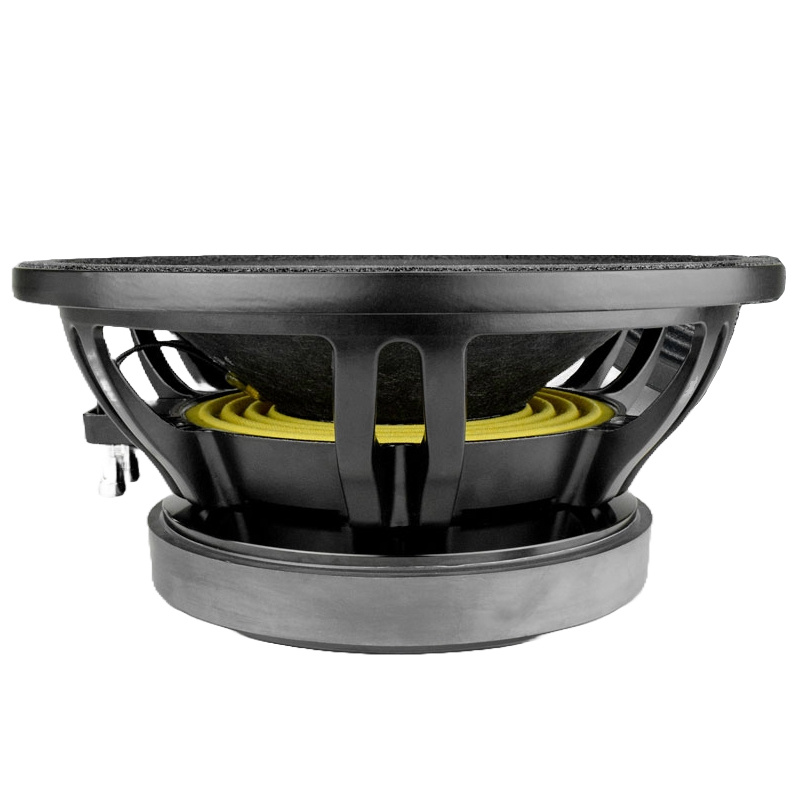

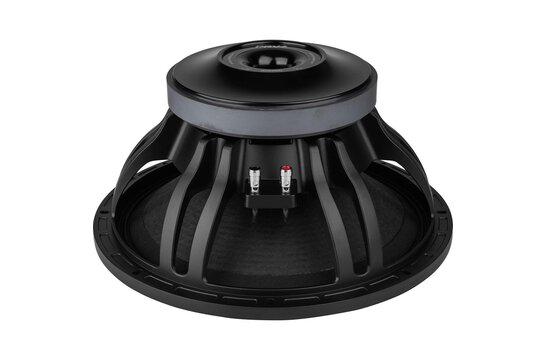

        The woofer's die-cast aluminum frame is engineered with side-forced cooling slots that channel airflow across the voice coil, reducing heat build-up and enhancing thermal performance. A weather-resistant paper cone reinforced with glass fiber ensures durability and consistent sound reproduction, while a double heavy-duty spider and triple roll treated cloth surround provide excellent cone control and mechanical stability at high excursions.

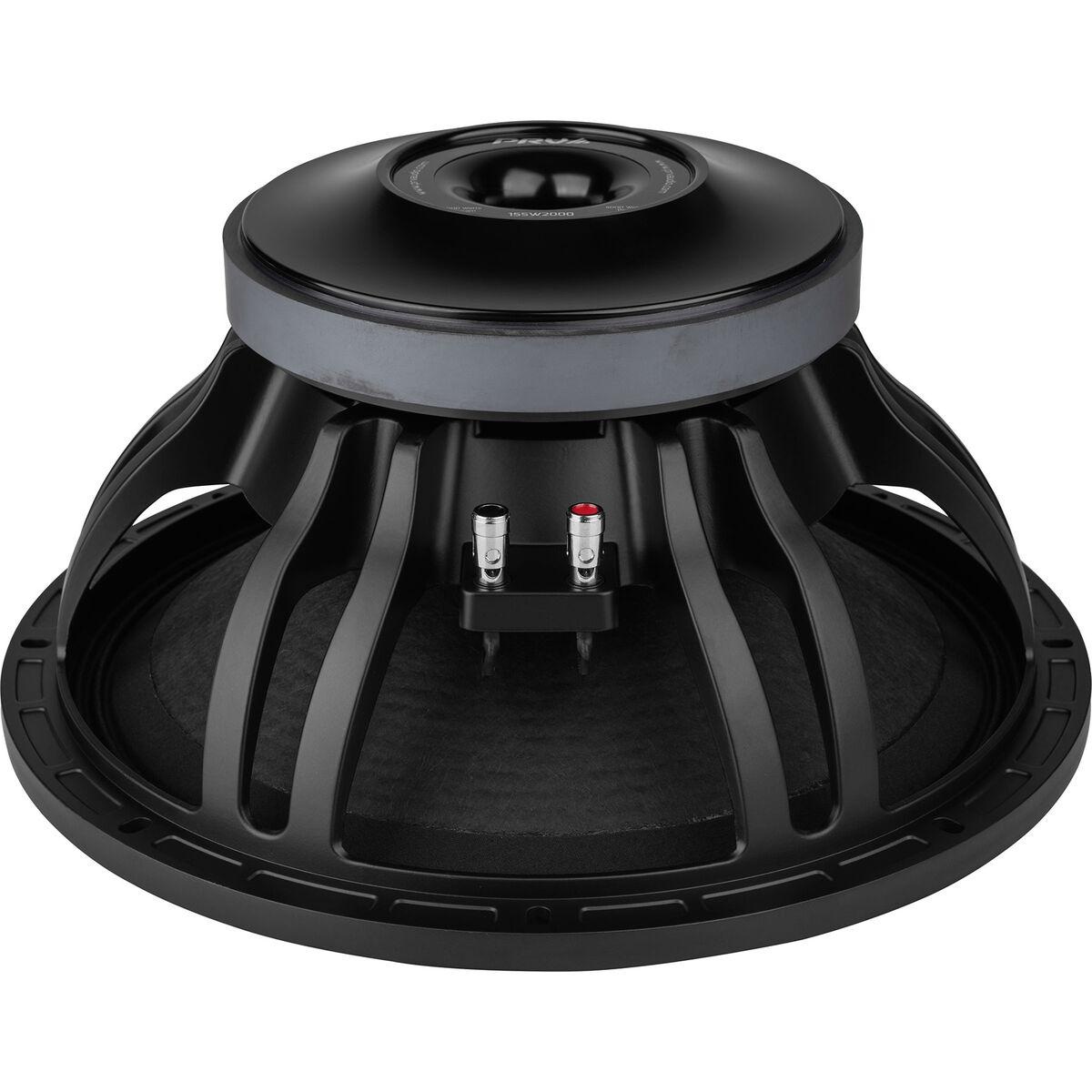

        Designed for use in small vented or sealed cabinets, the 12W1600 also excels in folded horn enclosures, thanks to its shallow 5.51" mounting depth and high EBP. The spring-loaded push terminals ensure a secure and fast connection, making it an excellent choice for professional audio installations and custom builds where reliability, power, and fidelity are essential.

        Show more

        Specifications

        Article number
        12W1600
        EAN
        602938022033
        Woofer Type
        Woofer
        Nominal Diameter
        12" | 305 mm
        Power Handling (RMS)
        1600 Watts
        Sensitivity (SPL at 1m / 2.83V)
        94 dB
        Frequency Response
        55 - 2500 Hz
        Voice Coil Diameter
        100 mm
        DC Resistance (Re)
        5.1 Ω
        Voice Coil Inductance (Le)
        1.26 mH
        Resonant Frequency (Fs)
        51.22 Hz
        Mechanical Q (Qms)
        14.98
        Electromagnetic Q (Qes)
        0.4
        Total Q (Qts)
        0.39
        Diaphragm Mass Inc. Airload (Mms)
        101.16 g
        Moving Mass Of Diaphragm (Mmd)
        92.97 g
        Surface Area of Cone (Sd)
        594 cm²
        BL Product (BL)
        20.35 Tm
        Compliance Equivalent Volume (Vas)
        46.99 L
        Maximum Linear Excursion (Xmax)
        10.50 mm
        Cone / Diaphragm Material
        Paper
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Glass fiber
        Basket / Frame Material
        Die Cast aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        315 mm
        Overall Depth
        153.5 mm
        Baffle Cutout Diameter
        283.4 mm
        # Mounting Holes
        8
