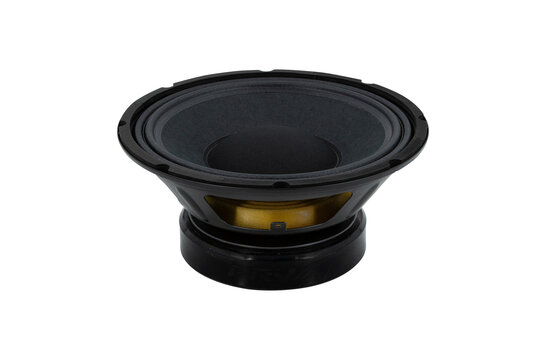

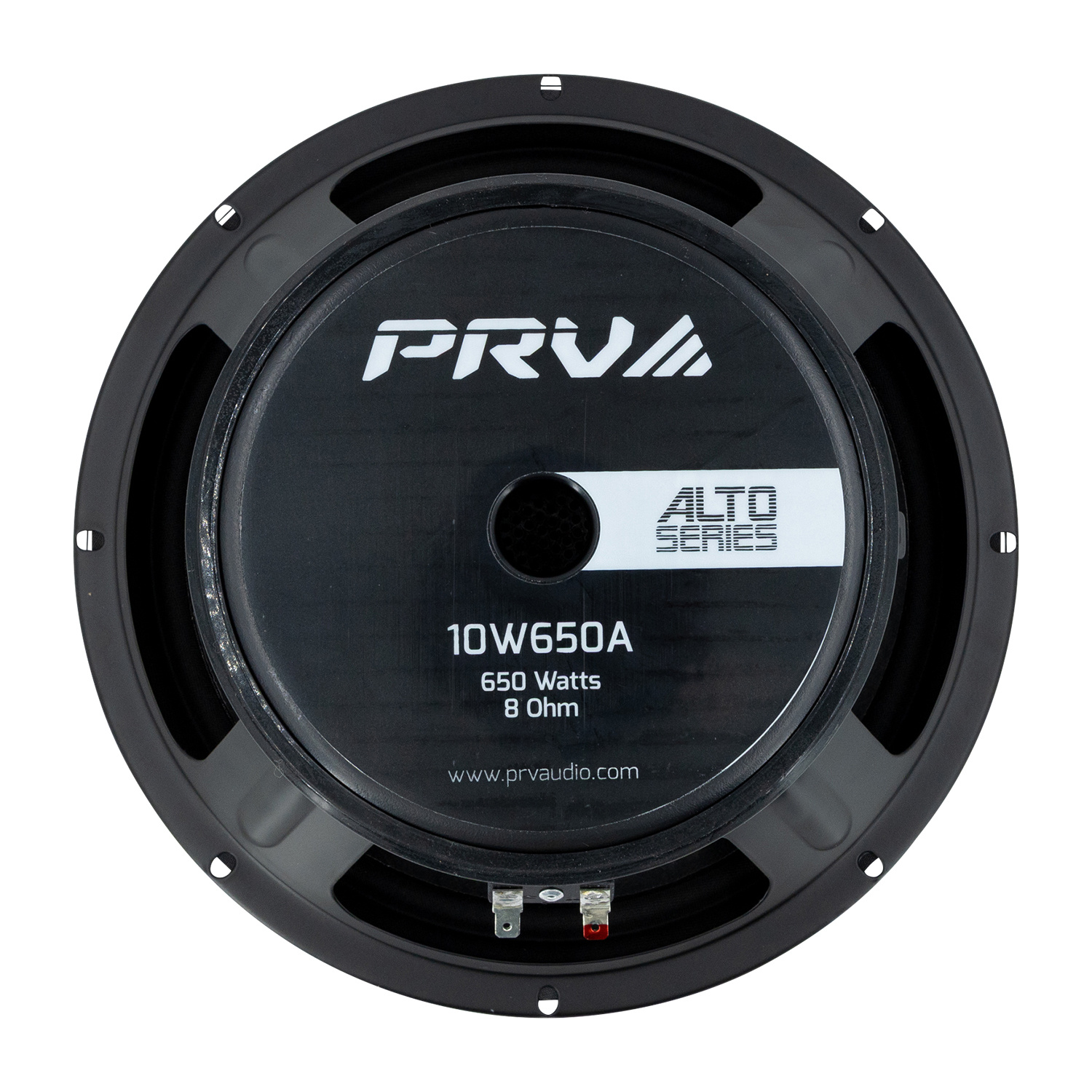

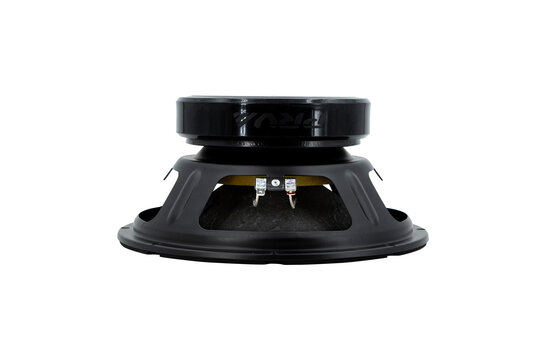

        10W650A Bass-midwoofer

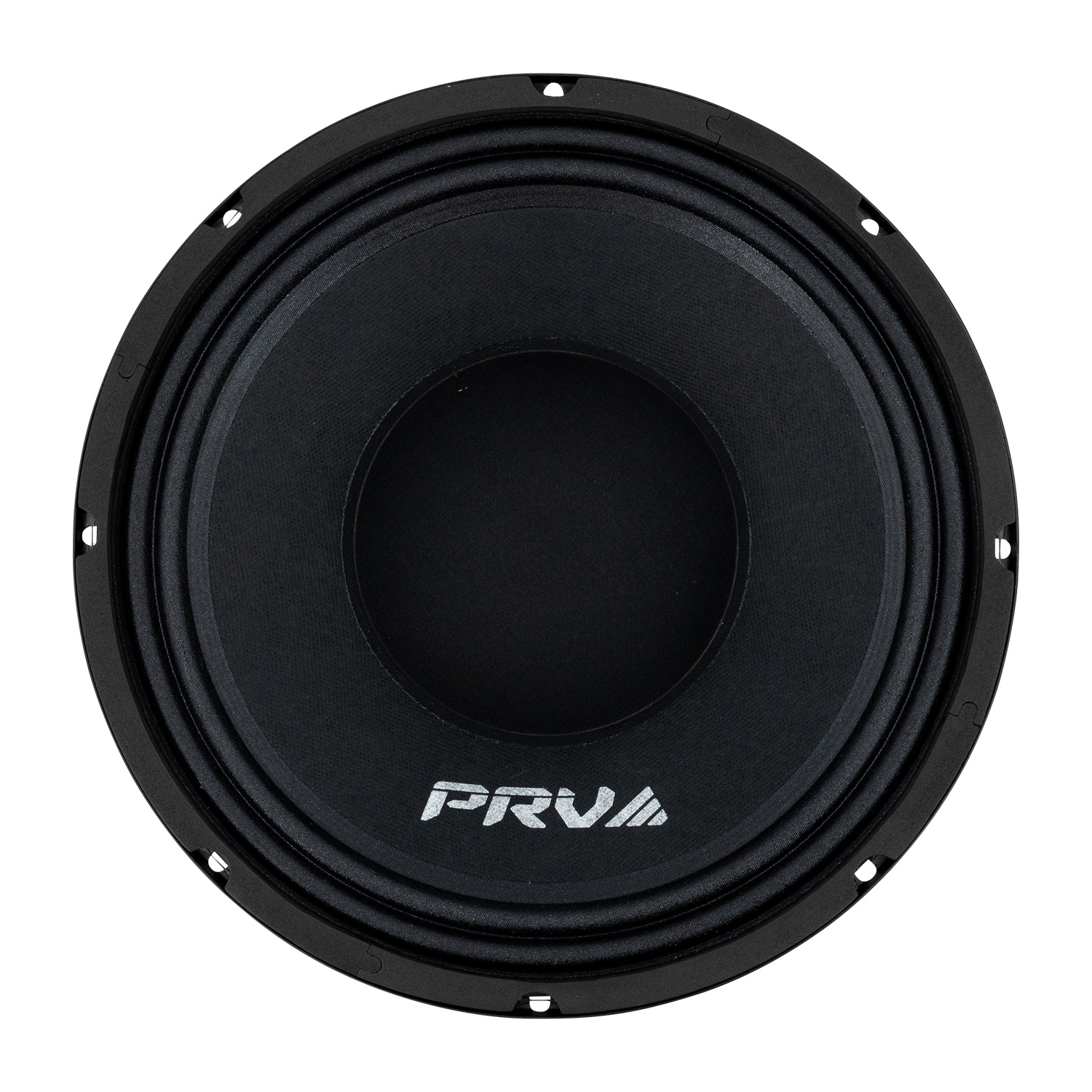

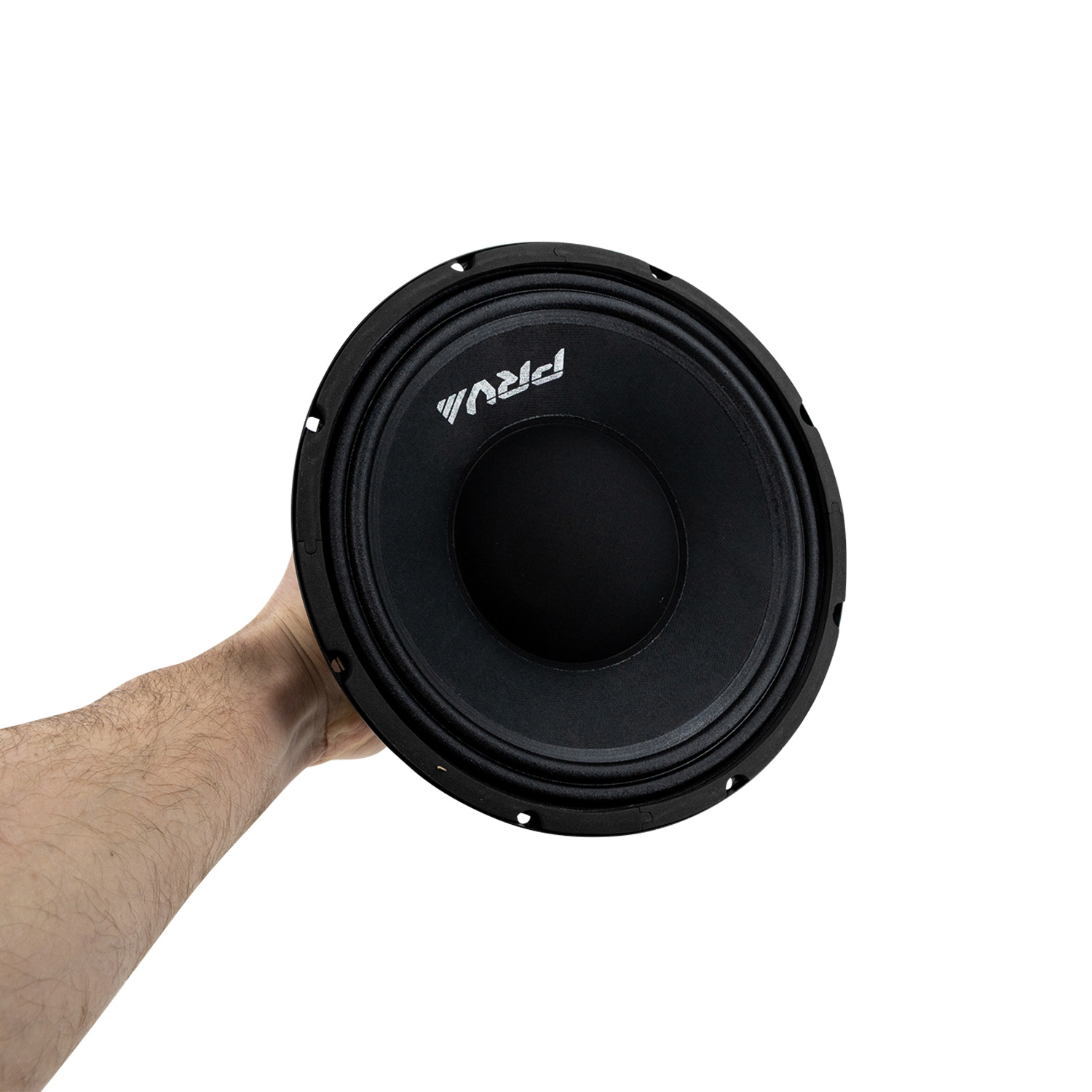

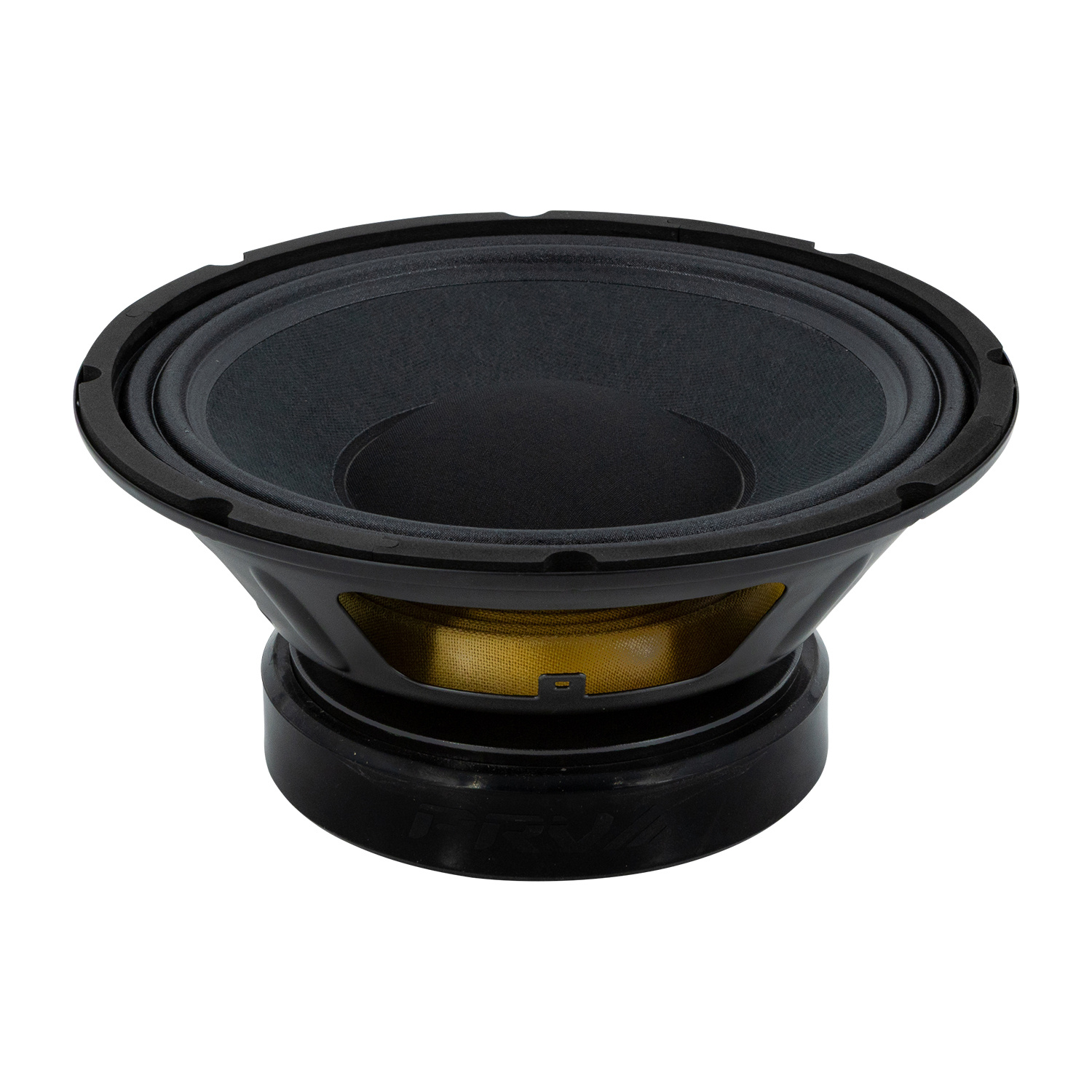

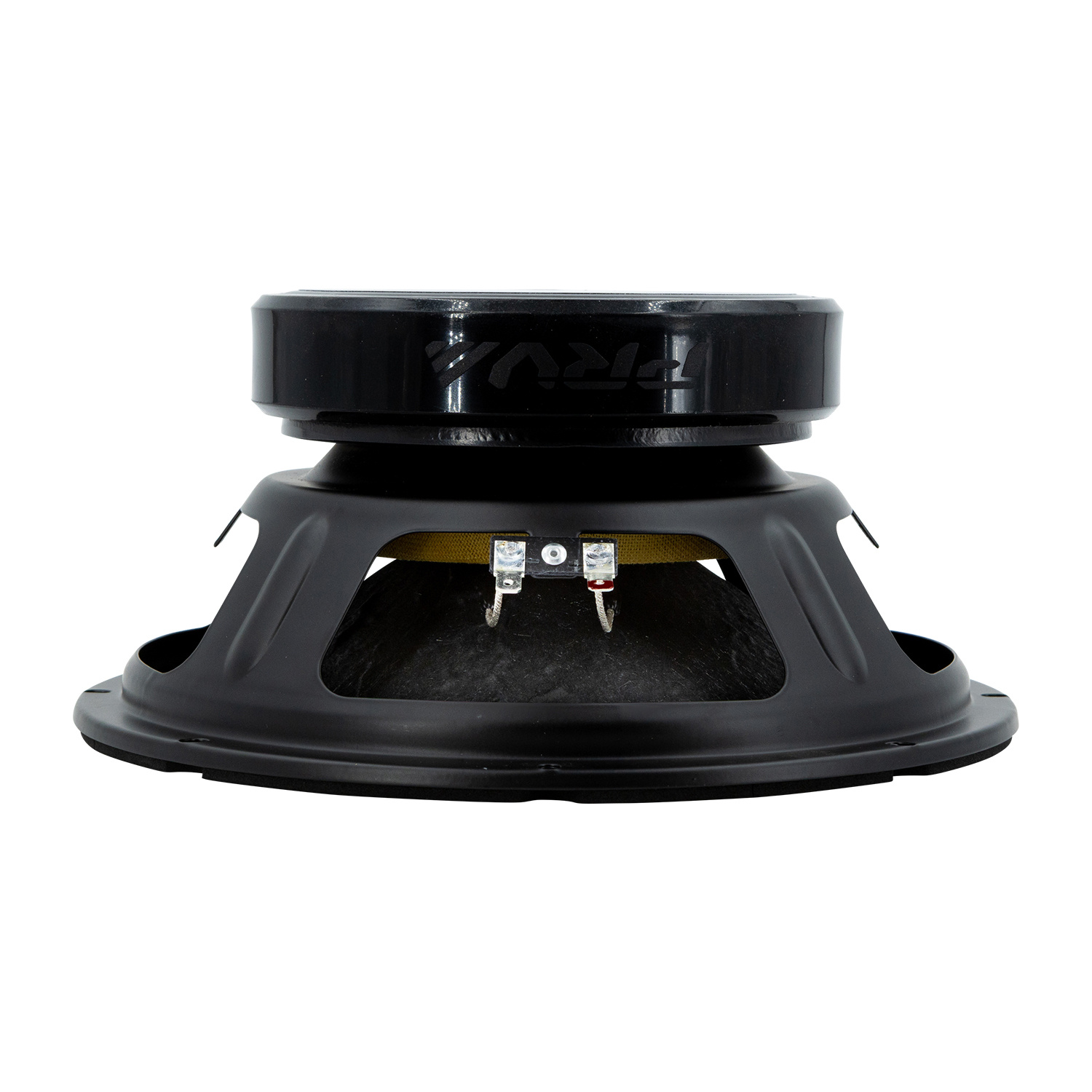

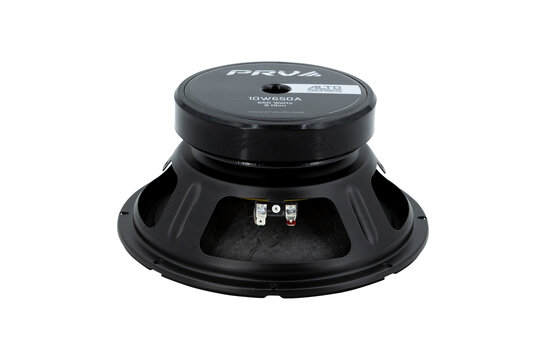

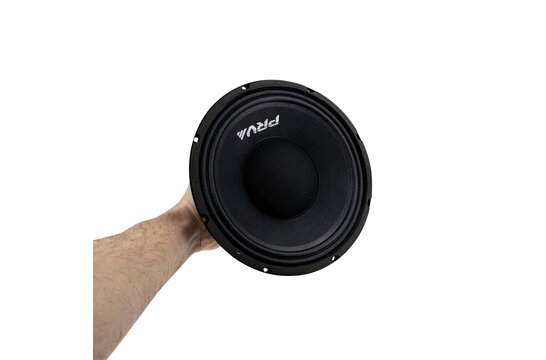

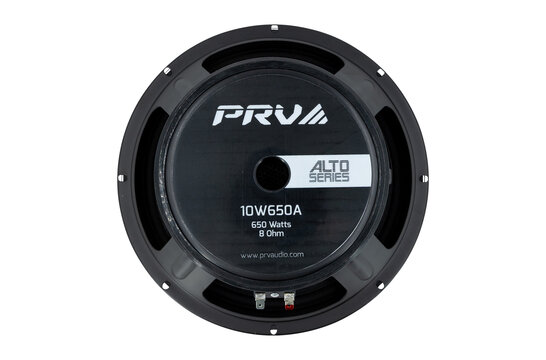

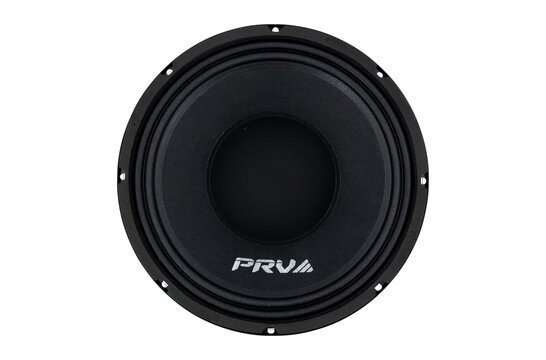

        PRV Audio 10W650A Bass-midwoofer

        €97,95

        8 In stock

        Add to cart

        PRV Audio 10W650A Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: PRV Audio
        Show all New products
        10" | 8 Ω
        10W650A Bass-midwoofer
        10W650A Bass-midwoofer
        10W650A Bass-midwoofer
        10W650A Bass-midwoofer
        10W650A Bass-midwoofer
        10W650A Bass-midwoofer
        € 80,95€ 97,95 8 In stock
        • -5% Purchase 4 for only € 93,05 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        10W650A Bass-midwoofer
        10W650A Bass-midwoofer
        10W650A Bass-midwoofer
        10W650A Bass-midwoofer
        10W650A Bass-midwoofer
        10W650A Bass-midwoofer

        Pros and cons

        According to our specialists
        • Suitable for demanding pro audio setups
        • Delivers high output even with moderate amplifier power
        • Not as rigid as drivers with cast aluminum frame

        Product description PRV Audio 10W650A Bass-midwoofer

        The PRV Audio 10W650A is a high-performance 10” professional low-frequency driver engineered for clean, punchy bass response in demanding sound reinforcement applications. With a robust 2.5" CCAW voice coil and 325 Watts continuous power handling, this speaker delivers impressive output and efficiency while maintaining clarity across its 75 to 5,500 Hz frequency range.



        Highlights of the PRV Audio 10W650A

        • 325 Watts RMS / 650 Watts program power for powerful low-end output
        • 97 dB sensitivity ensures efficient performance in multi-speaker setups
        • 2.5” Kapton voice coil on CCAW for improved heat dissipation
        • Sturdy stamped steel frame and ferrite magnet construction for durability



        Product details PRV Audio 10W650A

        PRV Audio 10W650A Bass-midwoofer



        The PRV Audio 10W650A is built for precision and endurance, featuring an 8-ohm impedance and a sensitivity rating of 97 dB at 1W/1m. Its lightweight yet rigid cone (415 cm²) is driven by a 2.5" diameter copper-clad aluminum wire (CCAW) voice coil wound on a high-temperature Kapton former, allowing it to handle up to 325W RMS and 650W program power without thermal breakdown.



        With a frequency response of 75–5,500 Hz and a high Qms of 16.34, the 10W650A excels in both tight bass reproduction and efficient transient response. The robust frame is stamped steel, coupled with a ferrite magnet system for long-term reliability. Mechanical excursion (Xmax) is rated at 4.5 mm, and the total depth of the unit is 120 mm, making it suitable for compact enclosure designs. This model is ideal for use in professional audio cabinets, stage monitors, or high-output DIY speaker projects where efficiency, performance, and reliability are key.

        Show more

        Specifications

        Article number
        10W650A
        EAN
        799928734820
        Woofer Series
        PRV Alto series
        Woofer Type
        Woofer
        Nominal Diameter
        10" | 254 mm
        Power Handling (RMS)
        650 Watts
        Sensitivity (SPL at 1m / 2.83V)
        97 dB
        Frequency Response
        75- 5500 Hz
        Voice Coil Diameter
        65.5 mm
        DC Resistance (Re)
        6.1 Ω
        Voice Coil Inductance (Le)
        0.79 mH
        Resonant Frequency (Fs)
        72.31 Hz
        Mechanical Q (Qms)
        16.34
        Electromagnetic Q (Qes)
        0.47
        Total Q (Qts)
        0.46
        Diaphragm Mass Inc. Airload (Mms)
        34.04 g
        Surface Area of Cone (Sd)
        415 cm²
        BL Product (BL)
        14.09 Tm
        Compliance Equivalent Volume (Vas)
        34.04 L
        Maximum Linear Excursion (Xmax)
        4.50 mm
        Cone / Diaphragm Material
        Paper
        Voice Coil Wire Material
        CCAW
        Voice Coil Former
        Kapton
        Basket / Frame Material
        Stamped Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        257 mm
        Overall Depth
        120 mm
        Baffle Cutout Diameter
        235 mm

        Show more
