        PCB-S03 Cloverleaf Pitches Crossover Board | 17 x 22 cm Circuit Boards

        PCB-S03 Cloverleaf Pitches Crossover Board | 17 x 22 cm Circuit Boards

        €12,95

        PCB-S03 Cloverleaf Pitches Crossover Board | 17 x 22 cm Circuit Boards

        4 reviews
        5 from 5
        4 reviews
        5 stars
        75%
        4 stars
        25%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 10,70€ 12,95 10+ In stock
        • -10% Purchase 4 for only € 11,66 per piece
        • -15% Purchase 8 for only € 11,01 per piece

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Designed with speaker builders in mind, these white cloverleaf pitches boards are perfect for passive crossover designs. The cloverleaf pitches allows for fast & easy connections.



        Highlights

        • Cloverleaf pitches are perfect for passive crossover designs
        • 17 x 22 cm board is ideal for most 2-way crossover designs, three-way bi-wiring or four-way mono-wiring

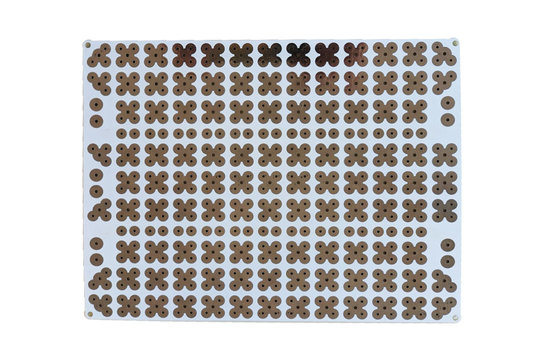

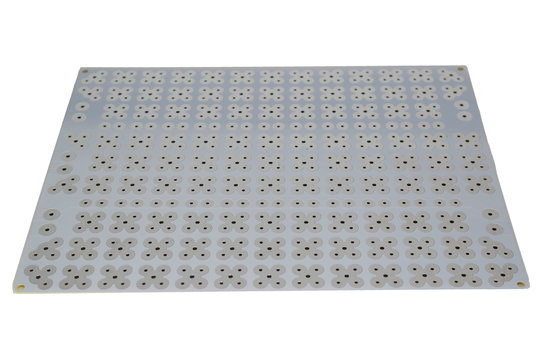

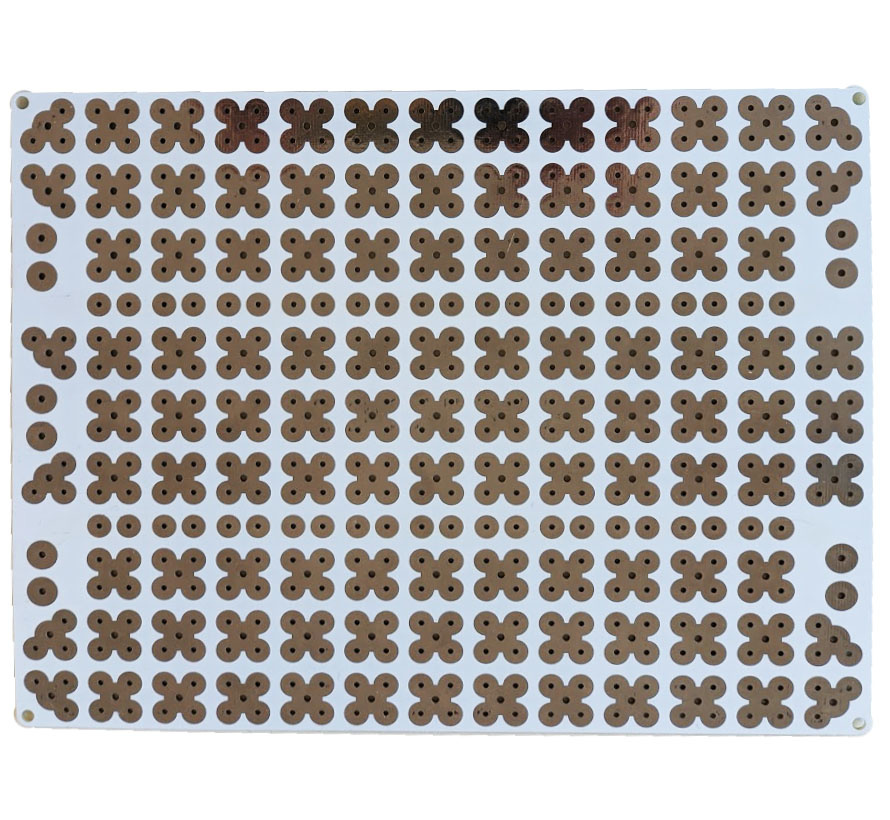

        • Cloverleaf design consists of four pitches with a 1.4mm hole and a central with a 1.9mm hole
        • Also available in 10x15cm and 12x20cm



        Product details

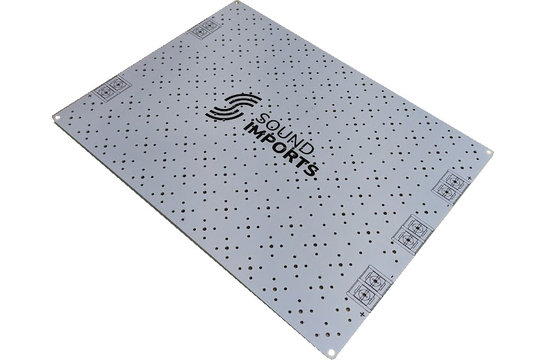

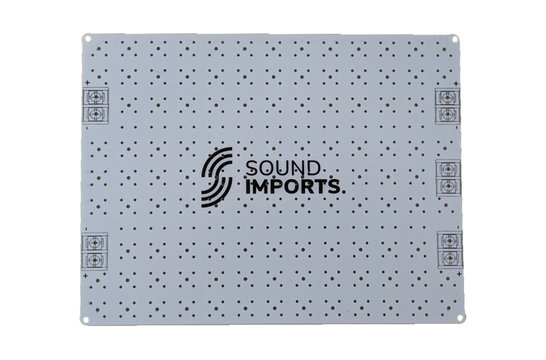

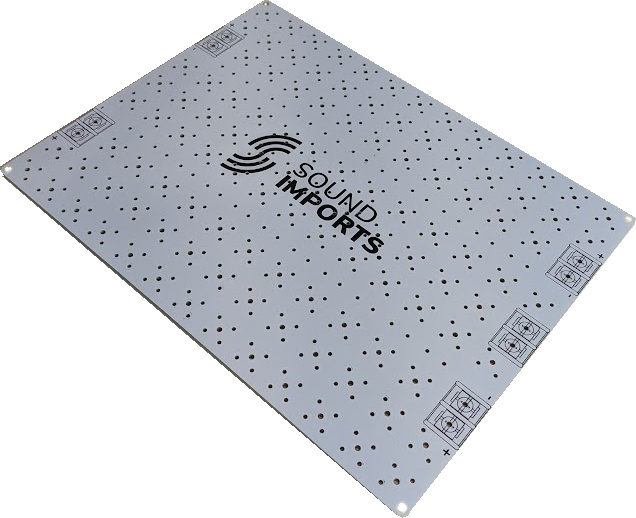

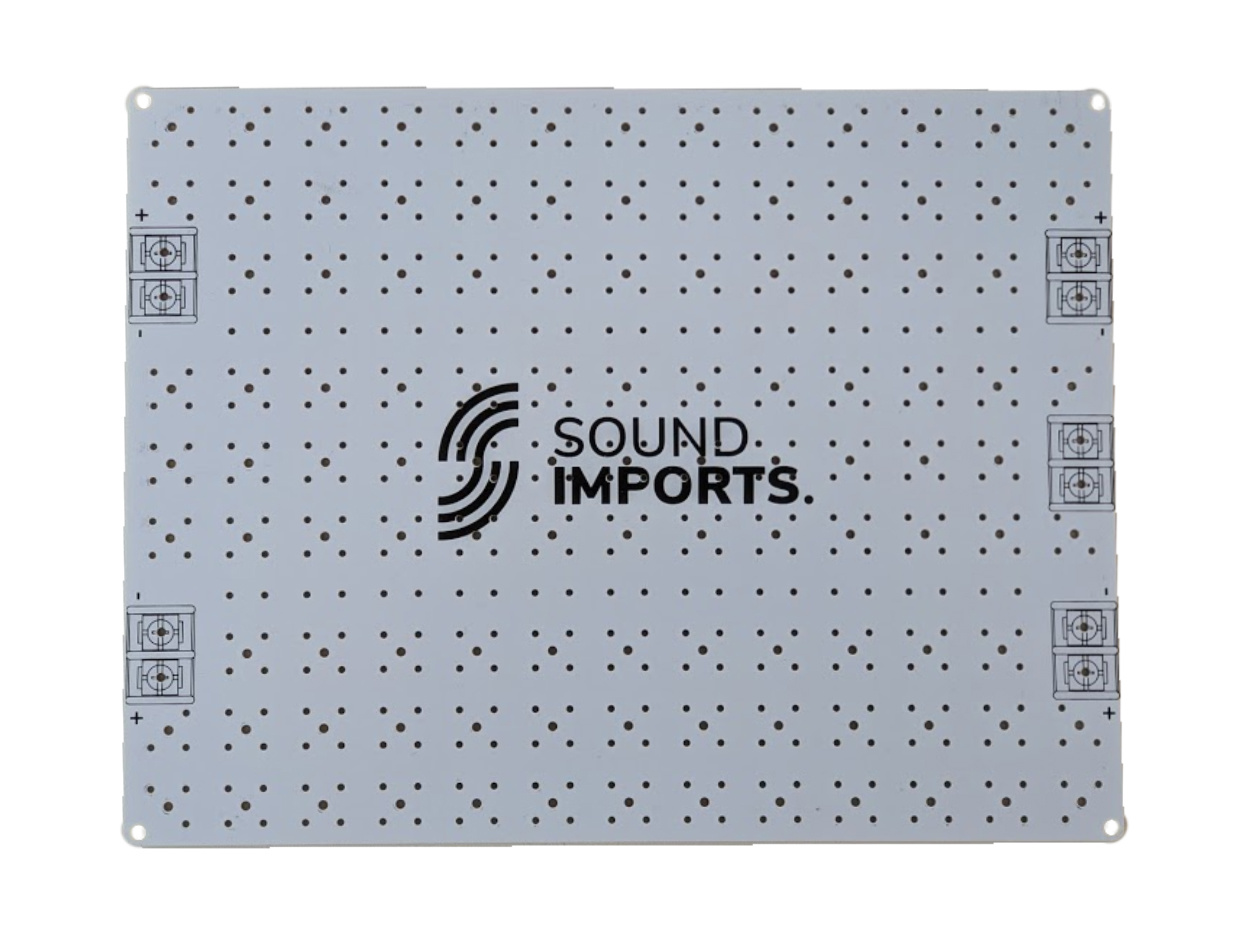

        SoundImports PCB-S03 Cloverleaf Pitches Crossover Board | 17 x 22 cm

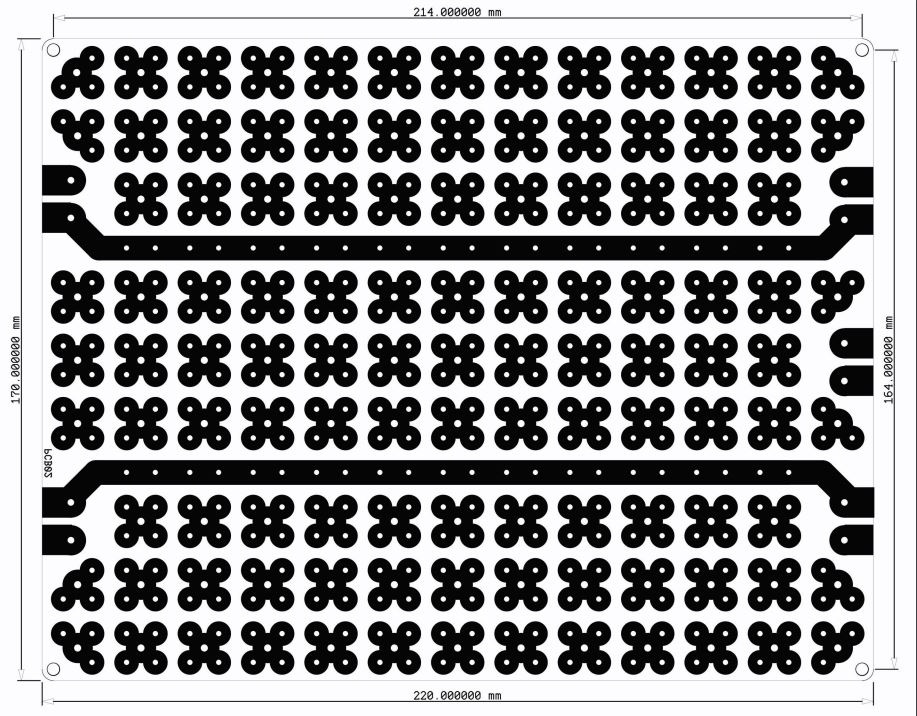

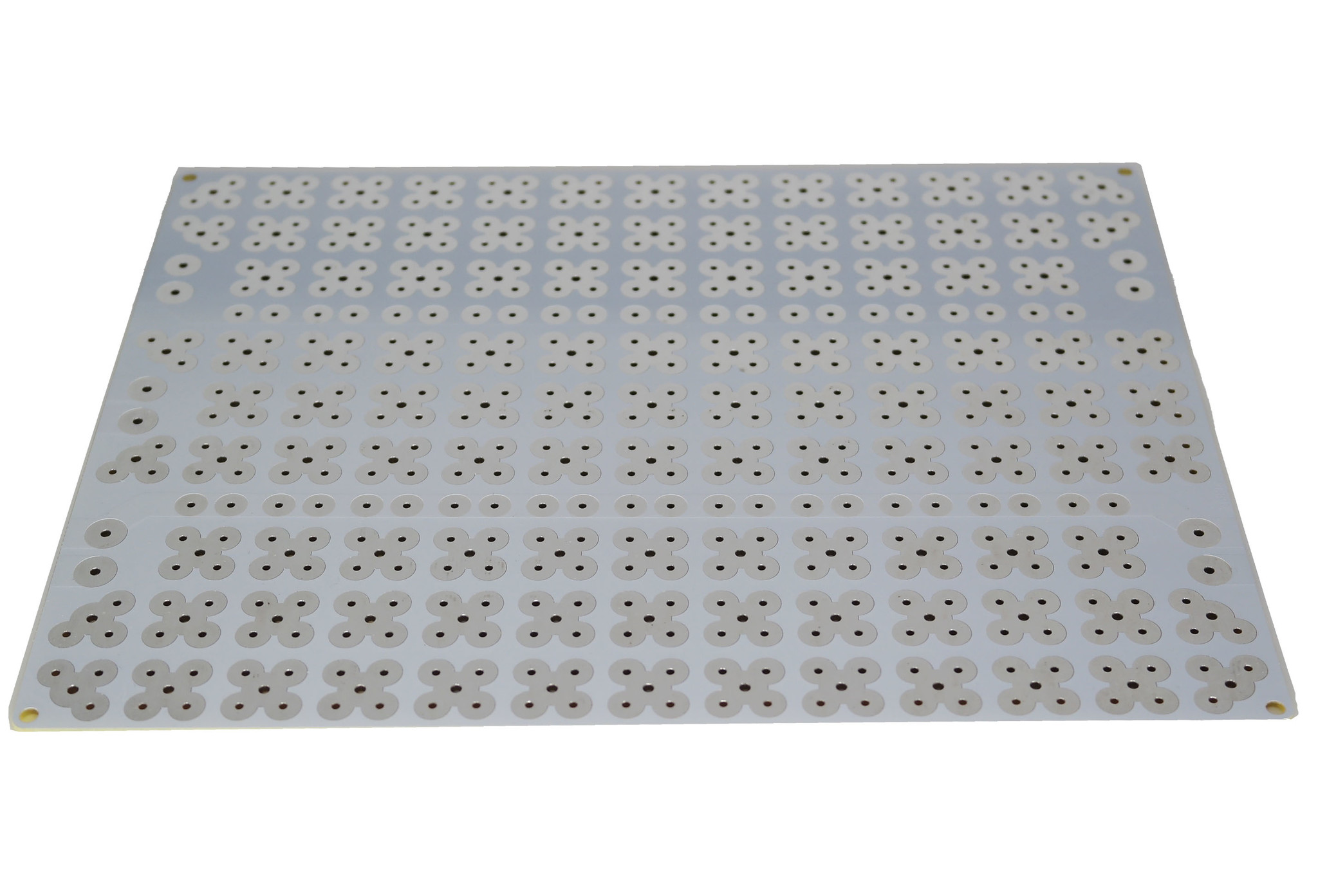

        PCB-S03 has been designed for prototyping and assembly of crossover filters. The board bases have been designed to greatly simplify the assembly of a crossover filter, since they are equipped with holes suitable for the considerable dimensions of the rheophores of inductors and capacitors, as well as cloverleaf pitches in order to be able to connect more components together without having to create "bridges".



        PCB-S03 has a size of 17x22cm and allows the assembly of a three-way bi-wiring or four-way mono-wiring good complexity filter. The PAD consists of 4 pitches with a 1.4mm hole and a central with a 1.9mm hole to allow the interconnection of several components without having to make jumpers. It is also possible to connect two or more components, if they are not in the same PAD, using the rheophores of the components themselves to short-circuit the various PADs.



        All PADs are pre-tinned with silver tin to ensure maximum ease in welding and maximum conductivity. The entry and exit pitches include the installation of a high quality clamp or the possibility of welding a cable. Price per single PCB.

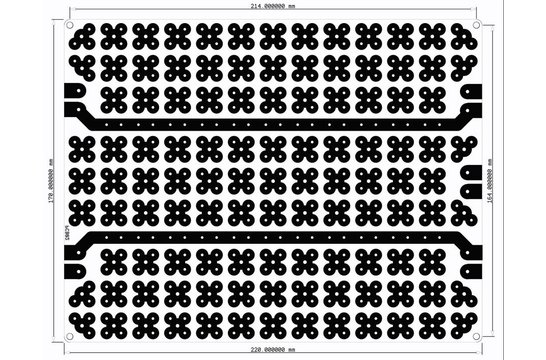

        Dimensions: 16,7 x 22 cm
