Build your own high-end near-field monitors with the highly regarded Overnight Sensations MT speaker pair kit designed by Paul Carmody. This kit includes nearly everything to build a pair of speakers, including: a pair of knock-down cabinets, drivers, ports, and crossover components.
- Quick, economical build that delivers surprisingly big sound from a small box
- 1.27cm MDF cabinets have been precisely CNC cut for perfect fit-and-finish
- Perfect size for use as small monitors and computer speakers
- This kit is an excellent choice for an amateur speaker building hobbyist
Overnight Sensations MT Speaker Kit Pair
When Paul Carmody first listened to the Overnight Sensations speakers that he designed he exclaimed, "I wish I had a time machine. I would go back to my bedroom when I was in Jr. High or High School and give these to myself. These are the little bookshelf speakers I imagined I had: huge soundstage, deep bass, and tiny box. In reality, back then all I had were some impish Minimus-7s."
The Overnight Sensations are designed to be a quick, economical build that can put out a surprisingly big sound in a small box. Could be a weekender project for an addict, a gift for a teenager (see above), or—in Paul's case—a set of small, full-bodied monitors that he could listen to while grading papers.
To start a do-it-yourself’er off right, this kit includes a pair of high-grade 1.27cm Baltic birch cabinets that have been precisely CNC cut and rabbeted for perfect fit-and-finish when assembling the cabinet, as well as perfect driver fit.
For the Overnight Sensations' driver arrangement, Paul selected the versatile Dayton Audio ND20FA-6 1.91cm neodymium silk dome tweeter and mated it to the attractive HiVi B4N 10cm aluminum midbass woofer. To extract as much bass as possible, Paul decided upon a cabinet size of roughly 0.16 cubic feet (4.5 liters) which is tuned to 53 Hz using a 3.5cm diameter port that is 15.2cm long.

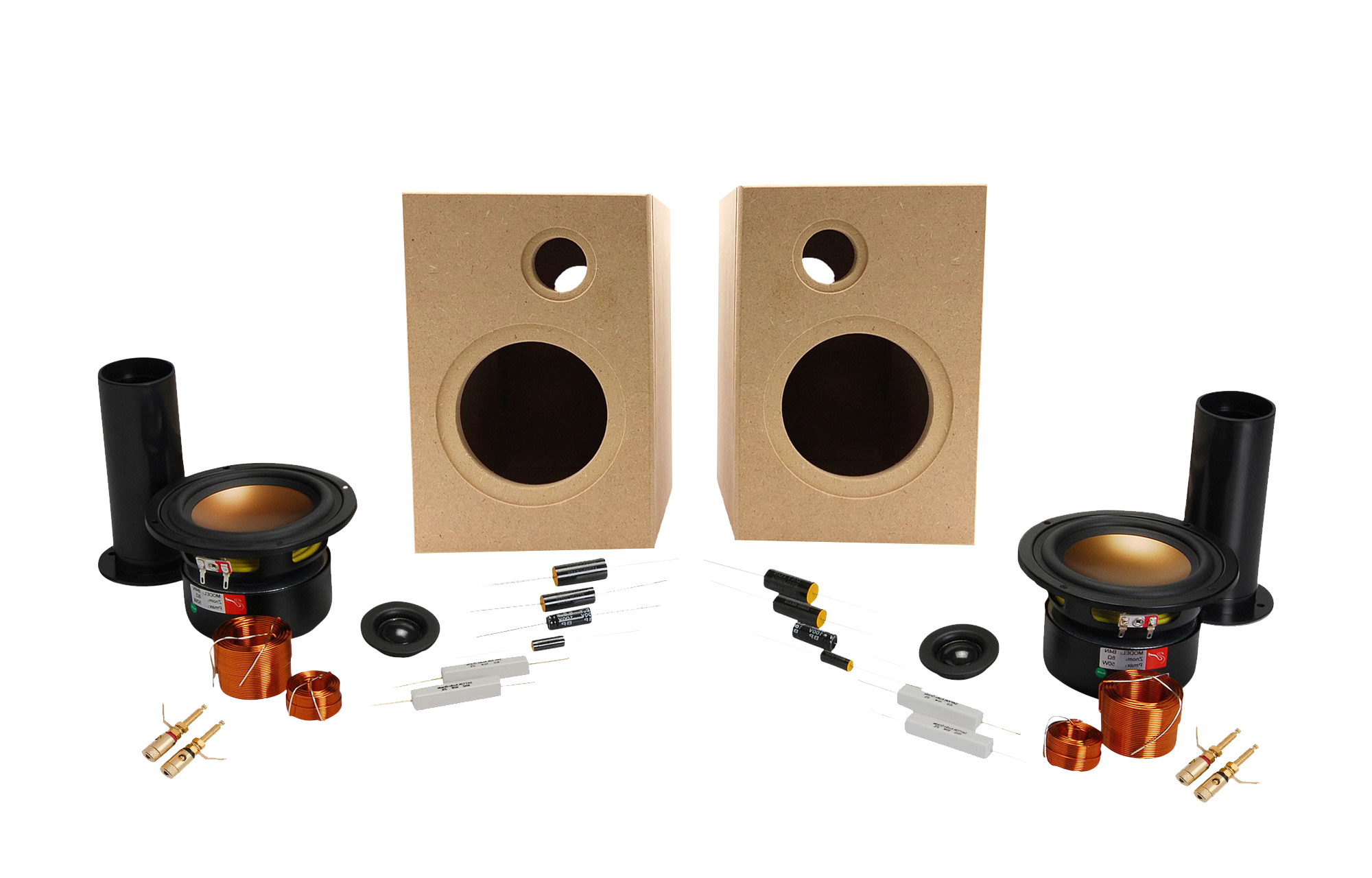

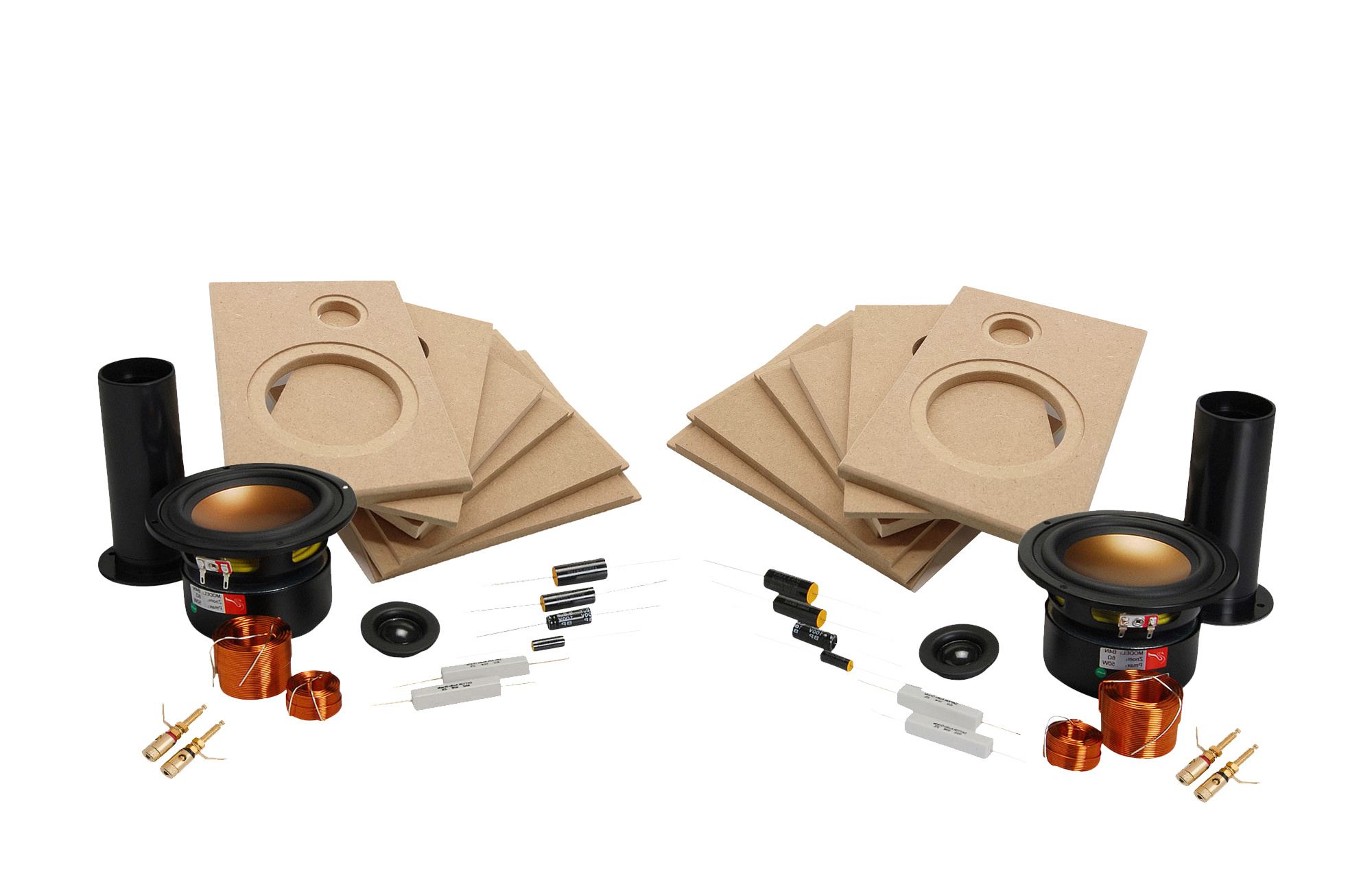

This kit includes nearly everything you need to build a top-notch pair of speakers in no time flat, including: a pair of knock-down cabinets, drivers, ports, and crossover components.
|2||004-10||Dayton Audio DNR-10 10 Ohm 10W Precision Audio Grade Resistor|
|2||004-6||Dayton Audio DNR-6.0 6 Ohm 10W Precision Audio Grade Resistor|
|2||027-402||Dayton Audio DMPC-0.22 0.22uF 250V Polypropylene Capacitor|
|2||027-412||Dayton Audio DMPC-1.5 1.5uF 250V Polypropylene Capacitor|
|2||027-415||Dayton Audio DMPC-2.2 2.2uF 250V Polypropylene Capacitor|
|2||027-424||Dayton Audio DMPC-6.8 6.8uF 250V Polypropylene Capacitor|
|2||255-030||Jantzen 1204 0.35mH 20 AWG Air Core Inductor|
|2||255-252||Jantzen 1078 1.1mH 18 AWG Air Core Inductor|
|2||260-388||Port Tube 3.5cm ID Adjustable|
|2||275-030||Dayton Audio ND20FA-6 1.91cm Neodymium Dome Tweeter|
|2||297-429||HiVi B4N 10cm Aluminum Midbass Round Frame|
|2||091-340||Binding Post Banana Jack Pair w/Tab|
|1||081-435||25-Pack #6 x 1.91cm Pan Head Deep Thread Black Screws|
|1|| ||Red/Black 16 AWG 2-conductor Power Speaker Wire 2 meters|
|2|| ||Overnight Sensations Audio Cabinet|
Specifications: Power handling: 25 watts RMS/50 watts max • Frequency response: 45-20,000 Hz (-3 dB) • Impedance: 8 ohms • Sensitivity: 83 dB 1W/1m • Dimensions: 23cm H x 15.2cm W x 21.3cm D.
