      Morel TSCM 634 Titanium Supreme Series 6" Midrange 4 Ohm

      € 330,54€ 399,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €379,95 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

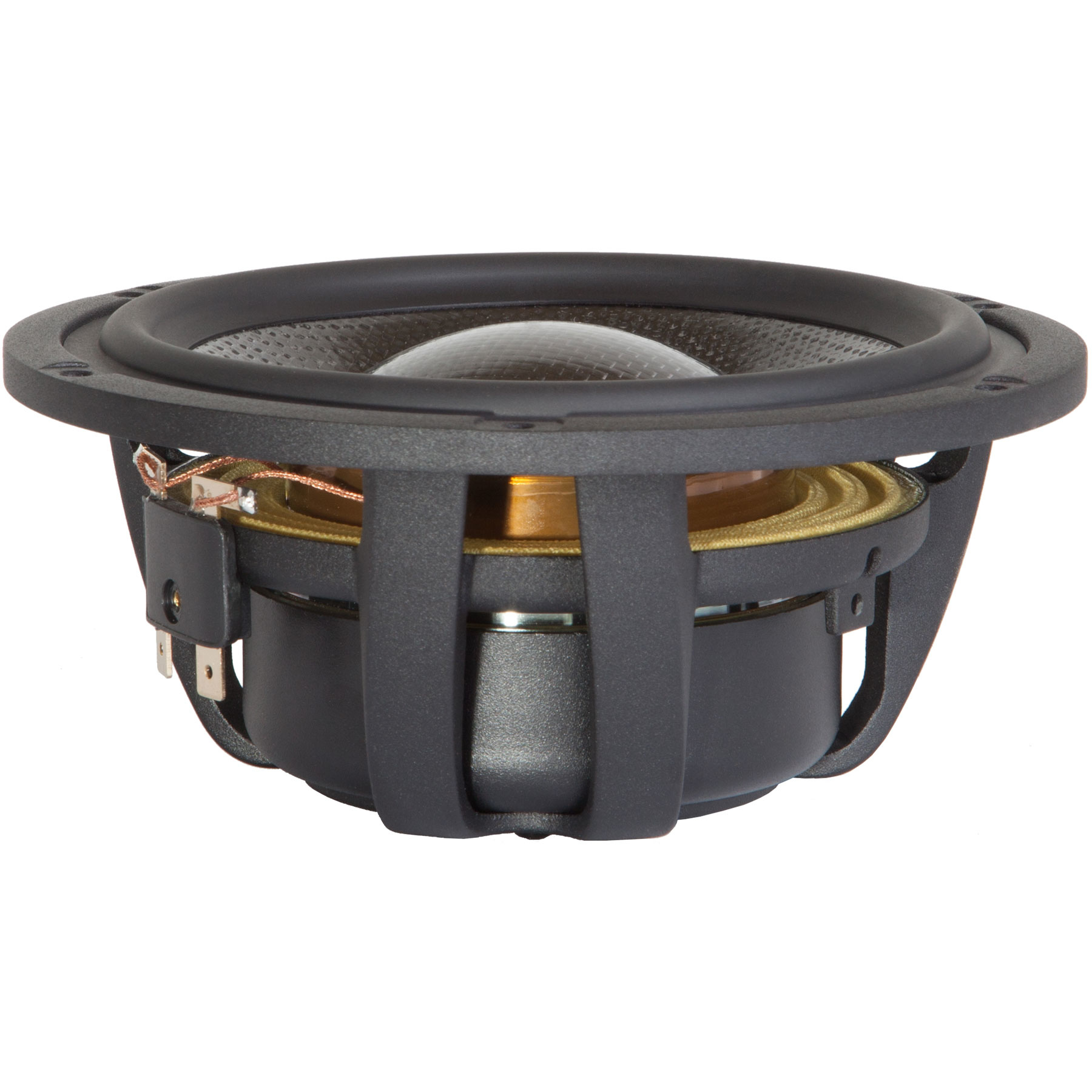

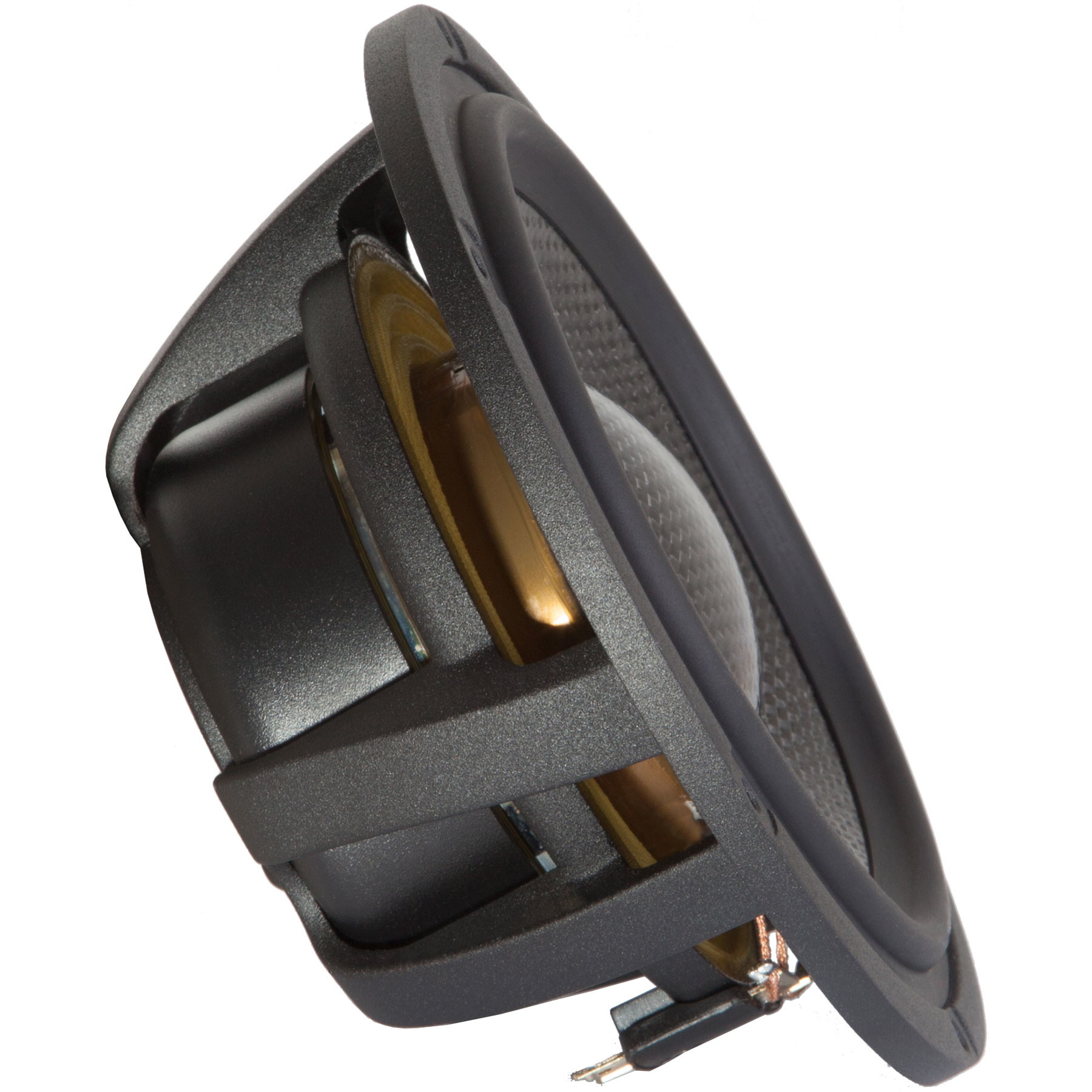

      For serious speaker builders that demand the world's best drivers, look no further than Morel's Titanium Supreme series midrange. The 6" TSCM 634 features an underhung 3" Hexatech voice coil on a titanium bobbin for ultra-quick transient response, a Uniflow chassis for reduced power compression, and a copper-sleeved pole piece for reduced inductance.



      Highlights

      • Hybrid neodymium-ferrite motor with 3" Hexatech underhunge voice coil
      • Copper sleeve pole piece and titanium coil bobbin for low energy storage
      • High 1,000 Watt instantaneous power handling
      • Open Uniflow aluminum diecast chassis for reduced reflections
      • Unique carbon fiber-Rohacell cone



      Product details

      Morel TSCM 634 Titanium Supreme Series 6" Midrange 4 Ohm



      Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.



      Morel Titanium Supreme Series

      The Titanium Supreme midrange drivers from Morel are the latest leap forward in design. Huge 3" Hexatech™ aluminum underhung voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients. Qms is also raised and allows for a wider range of enclosure options. A Hybrid™ neodymium/ferrite Coppersleeve motor imparts high BL onto the voice coil while the copper-sleeved pole piece further reduces inductance.



      Uniflow­™ Aluminum Diecast Chassis

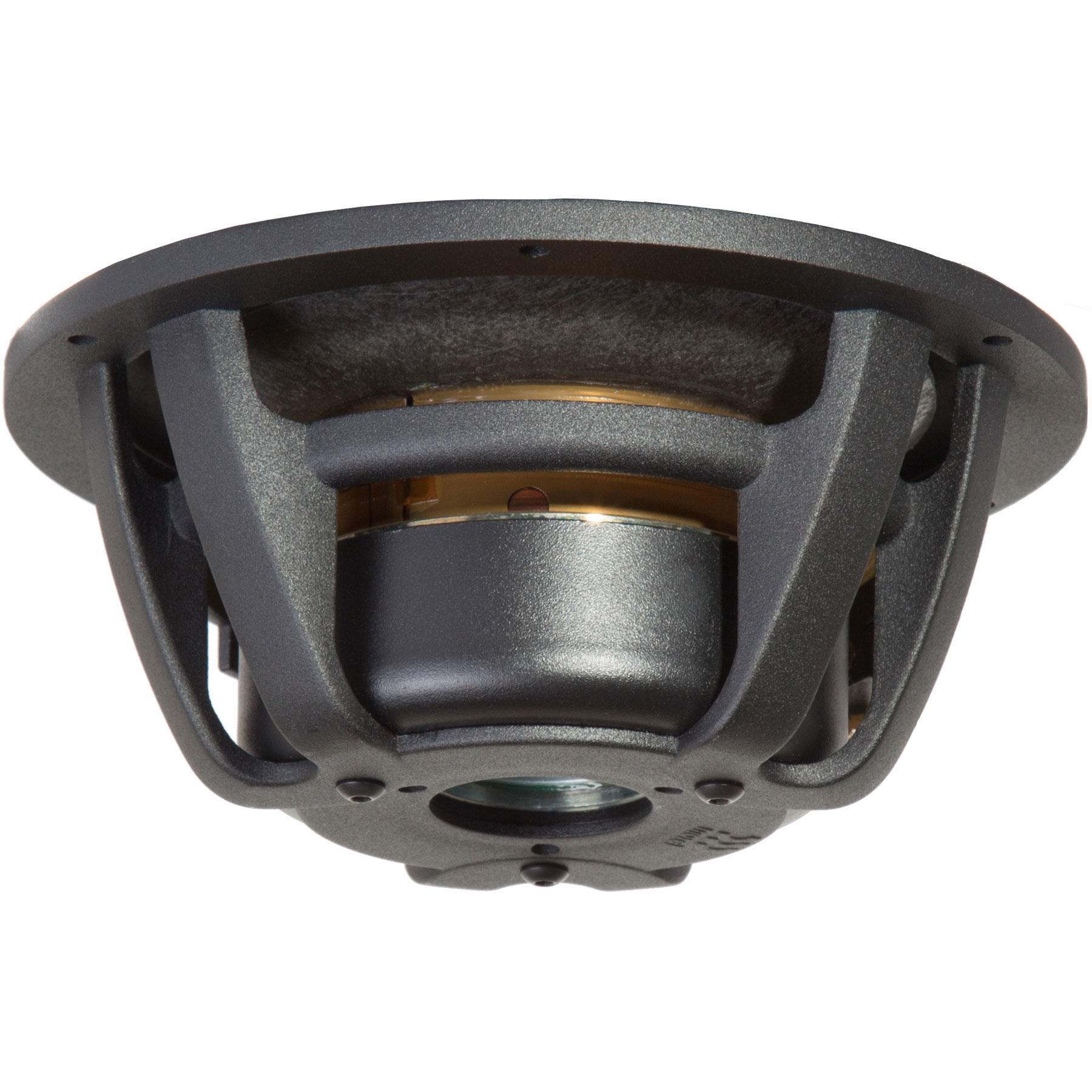

      All of this wouldn't mean anything if the air swept by the driver got trapped in the motor or frame. Morel designed the Uniflow chassis to be as open and sonically transparent as possible. An over-sized vent on the pole piece, a frame-suspended spider, and exposed voice coil combine to virtually eliminate reflections and output-robbing power compression. The Uniflow chassis also allows for the use of an over-sized spider for complete control of the over-sized voice coil.

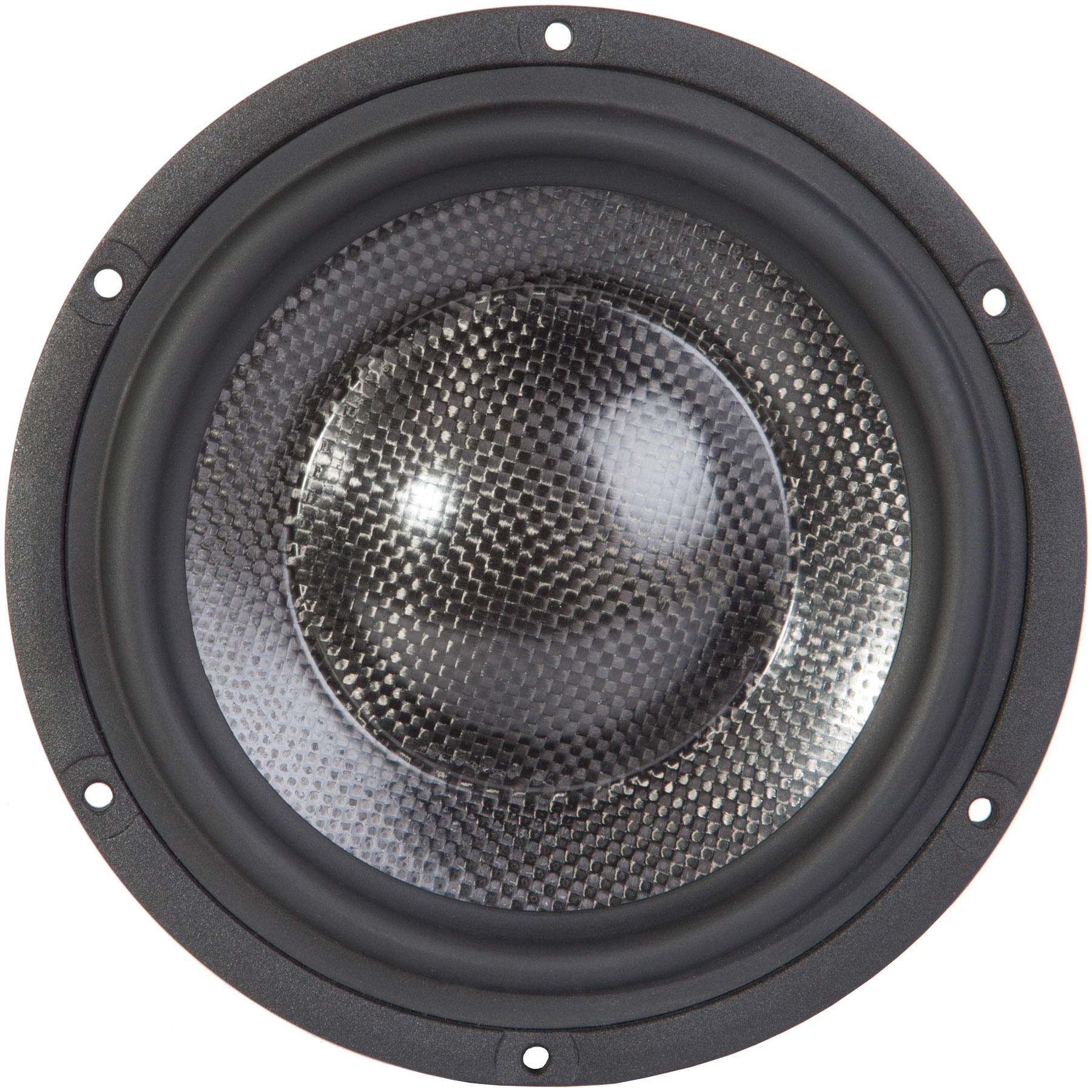

      The 6" TSCM 634 midrange features a 4-ohm impedance, and a unique, carbon fiber-Rohacell® composite cone offers flat frequency response from 49 Hz to 8,000 Hz on-axis. Its large voice coil allows it to handle 10 ms peak power transients of up to 1,000 watts when used correctly.

      Specifications

      Article number
      TSCM 634
      Woofer Series
      Titanium Supreme Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      6"
      Power Handling (RMS)
      150 Watts
      Power Handling (max)
      1000 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      89 dB 2.83V/1m
      Frequency Response
      49 to 12,000 Hz
      Voice Coil Diameter
      3"
      DC Resistance (Re)
      3.3 ohms
      Voice Coil Inductance (Le)
      0.11 mH
      Resonant Frequency (Fs)
      49 Hz
      Mechanical Q (Qms)
      4.25
      Electromagnetic Q (Qes)
      0.56
      Total Q (Qts)
      0.53
      Diaphragm Mass Inc. Airload (Mms)
      15.3g
      Mechanical Compliance of Suspension (Cms)
      0.86 mm/N
      Surface Area of Cone (Sd)
      119 cm²
      BL Product (BL)
      5.09 Tm
      Compliance Equivalent Volume (Vas)
      0.47 ft.³
      Maximum Linear Excursion (Xmax)
      5.25 mm
      Cone / Diaphragm Material
      Carbon Fiber Composite
      Surround Material
      Rubber
      Voice Coil Wire Material
      Aluminum
      Voice Coil Former
      Titanium
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Neodymium
      Overall Outside Diameter
      6.3"
      Overall Depth
      2.72"
      Baffle Cutout Diameter
      5.51"
      # Mounting Holes
      6
      Sealed Volume
      0.38 ft.³
      Sealed F3
      73 Hz
      Vented Volume
      0.88 ft.³
      Vented F3
      35 Hz
