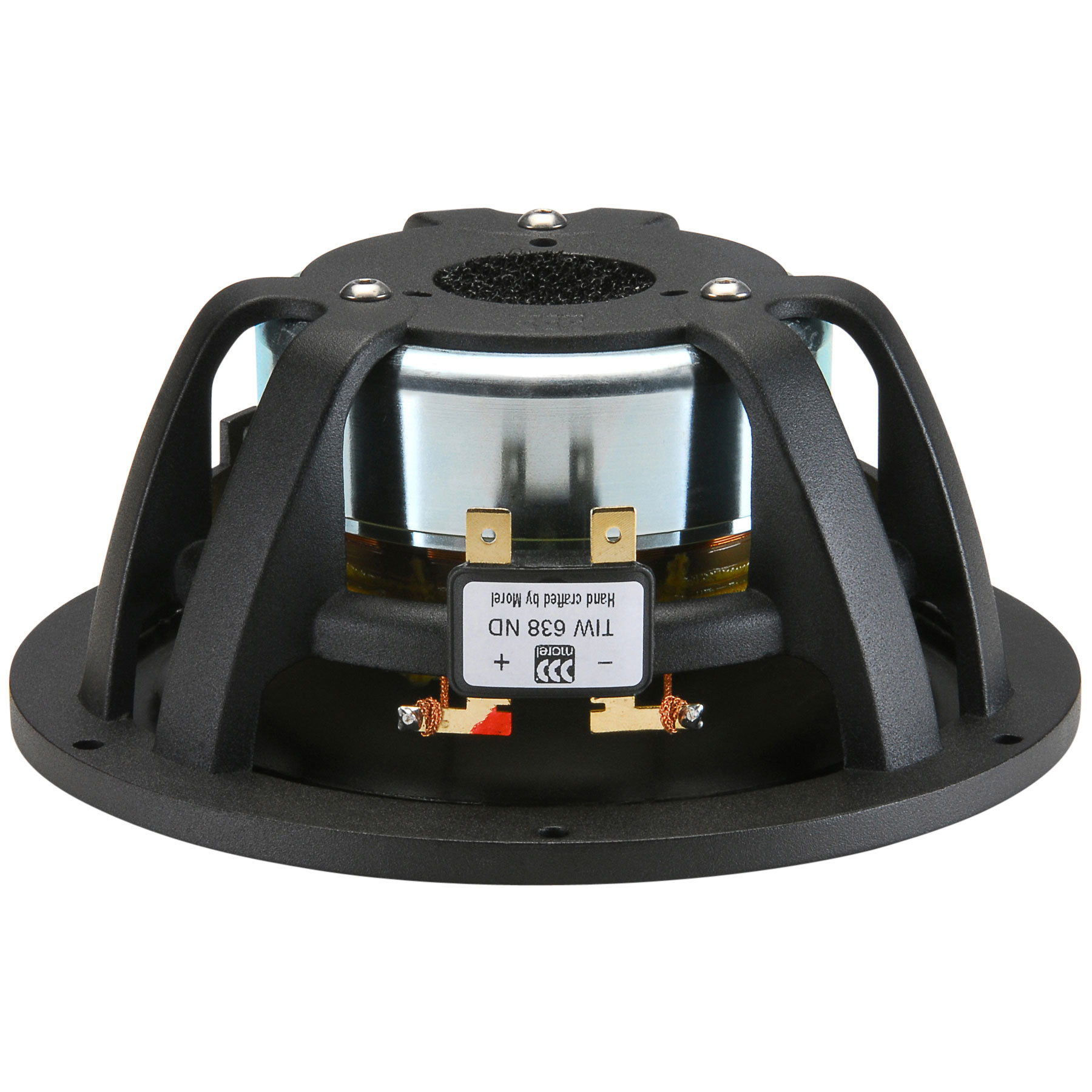

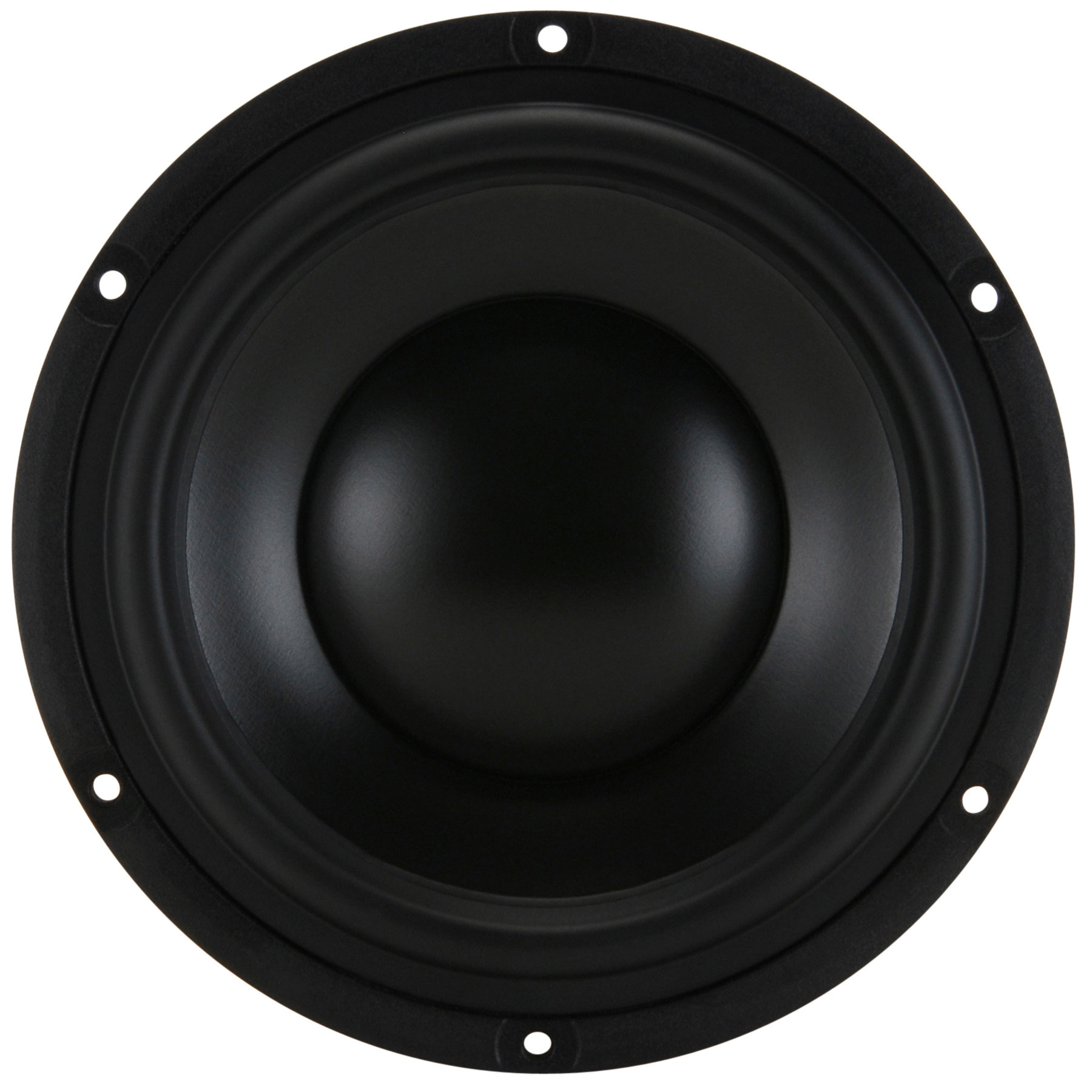

      Morel TiW 638Nd Titanium Series Hybrid 6" Woofer 8 Ohm

      € 206,57€ 249,95 2 In stock
      • -5% Order 4 for only € 237,45 per piece

      Buy now, pay later

      • 24h express shipping available
      • Same day shipping
      • In-house technical support
      • 45-day cooling-off period to return
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      For serious speaker builders that demand the world's best drivers, look no further than Morel's Titanium Advanced woofer series. The 6" TiW 638Nd features a 3" Hexatech voice coil on a titanium bobbin for ultra-quick transient response and a Uniflow chassis for reduced power compression.



      • Open Uniflow aluminum diecast chassis for reduced reflections
      • Hybrid neodymium/ferrite magnet ferrite system
      • Titanium coil bobbin for low energy storage
      • 3" Hexatech aluminum voice coil
      • High 1,000W instantaneous power handling


      Product details

      Morel TiW 638Nd Titanium Series Hybrid 6" Woofer 8 Ohm


      Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.


      Morel Titanium Advanced Series

      The Titanium Advanced woofer series from Morel is the latest leap forward in woofer design. Huge 3" Hexatech™ aluminum voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients. Qms is also raised and allows for a wider range of enclosure options. Three magnetic systems are available: dual ferrite, Hybrid™ neodymium/ferrite, and Hybrid™ neodymium/ferrite with a Coppersleeve Neolin™ motor. Each is available in 4 and 8 ohm impedance.


      Uniflow­™ Aluminum Diecast Chassis

      All of this wouldn't mean anything if the air swept by the driver got trapped in the motor or frame. Morel designed the Uniflow chassis to be as open and sonically transparent as possible. An over-sized vent on the pole piece, a frame-suspended spider, and exposed voice coil combine to virtually eliminate reflections and output-robbing power compression. The Uniflow chassis also allows for the use of an over-sized spider for complete control of the over-sized voice coil.


      The 6" TiW 638Nd woofer features a Hybrid neodymium/ferrite magnet system, 8-ohm impedance, and a unique, one-piece DPC (Damped Polymer Composite) cone that offers flat frequency response from 40 Hz to 4,500 Hz on-axis, and from 40 Hz to 4,000 Hz off-axis. Its large voice coil allows it to handle 10 ms peak power transients of up to 1,000 watts when used correctly.

      Show more


      Article number
      TiW 638Nd
      Woofer Series
      Titanium Advanced Series
      Woofer Type
      Nominal Diameter
      Power Handling (RMS)
      150 Watts
      Power Handling (max)
      1000 Watts
      Impedance (Z)
      8 ohms
      87 dB 2.83V/1m
      Frequency Response
      40 to 4,500 Hz
      Voice Coil Diameter
      DC Resistance (Re)
      5.4 ohms
      Voice Coil Inductance (Le)
      0.53 mH
      Resonant Frequency (Fs)
      36 Hz
      Mechanical Q (Qms)
      Electromagnetic Q (Qes)
      Total Q (Qts)
      Diaphragm Mass Inc. Airload (Mms)
      17 gr
      Mechanical Compliance of Suspension (Cms)
      1.07 mm/N
      Surface Area of Cone (Sd)
      119 cm²
      BL Product (BL)
      7.70 Tm
      Compliance Equivalent Volume (Vas)
      0.74 ft.³
      Maximum Linear Excursion (Xmax)
      5.25 mm
      Cone / Diaphragm Material
      Poly Composite
      Surround Material
      Voice Coil Wire Material
      Voice Coil Former
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Overall Outside Diameter
      Overall Depth
      Baffle Cutout Diameter
      # Mounting Holes
      Sealed Volume
      0.17 ft.³
      Sealed F3
      82 Hz
      Vented Volume
      0.37 ft.³
      Vented F3
      48 Hz

      Show more


      0 from 5Based on 0 reviews
      Review this product

      There are no reviews written yet about this product..
