        Product description Morel TiCW 1058Ft Subwoofer

        Morel applied their years of experience and creative genius to produce a world-beating sub-bass driver…the Titanium Ultimate 10" subwoofer. Get a free knock-down subwoofer cabinet for a limited time with the purchase of a Morel Titanium Ultimate 10" subwoofer.



        Highlights

        • Copper-sleeved pole piece and titanium former reduce speed-depleting inductance
        • 8 ohm impedance for a high damping factor and more amplifier control
        • 5.1" Hexatech voice coil for 600 watts RMS power handling
        • Accucenter self-centering, one-piece paper cone assembly



        Product details

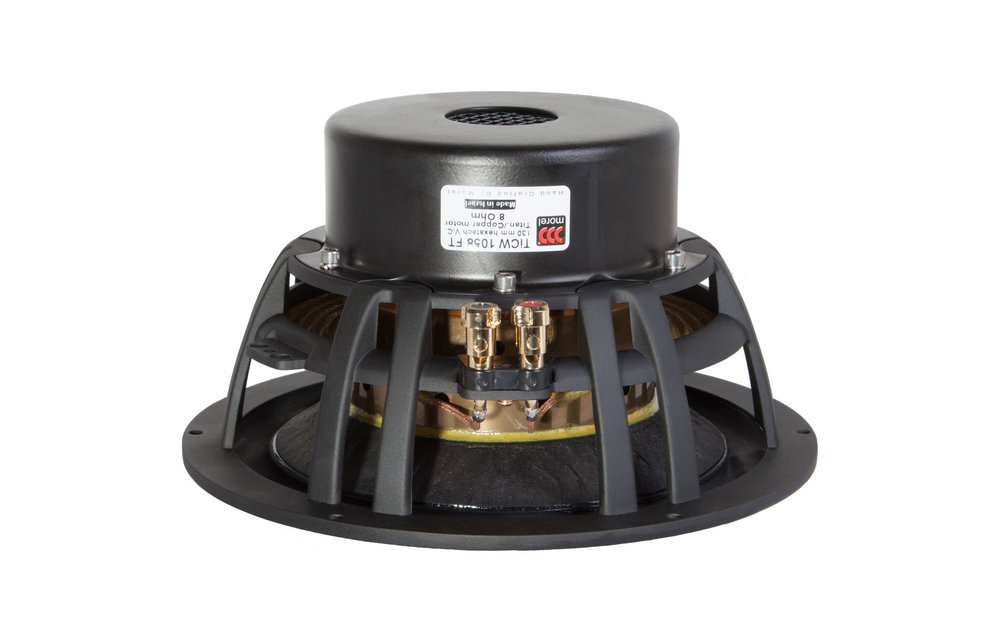

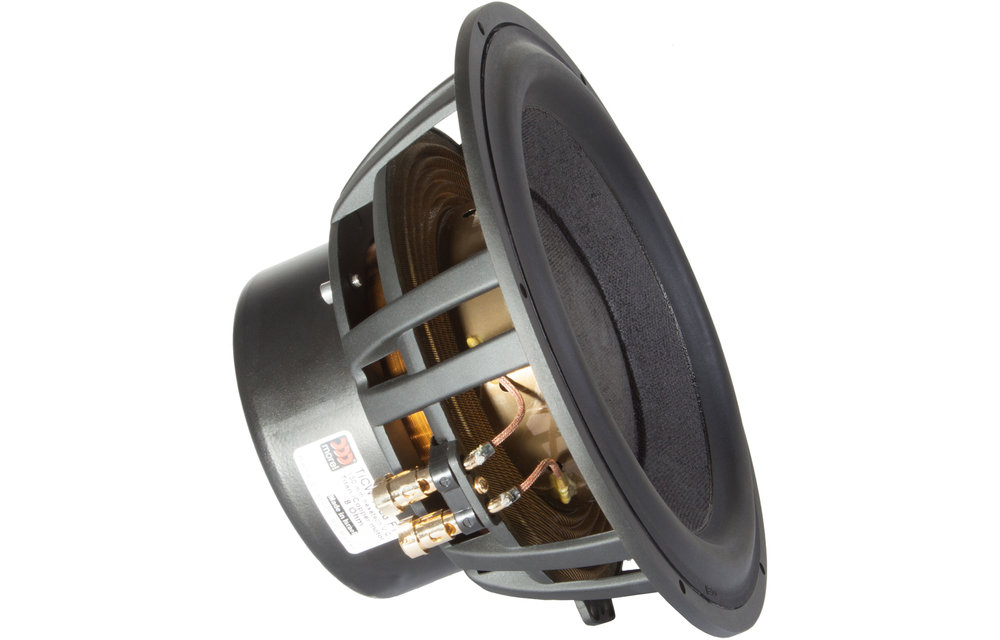

        Morel TiCW 1058Ft Titanium Series 10" Subwoofer 8 Ohm



        To create their Titanium Ultimate high fidelity 10" subwoofer, Morel began with an extra-large, 5.1" diameter, Hexatech™ aluminum voice coil wound on a vented titanium former. Moving this beast requires huge amounts of magnetic force, so to do so Morel uses a high flux double magnet system.



        Speed-robbing energy storage is reduced to an insanely low 0.52 mH through the combination of the titanium former and a copper-sleeved pole piece. Trapped air within the subwoofer is virtually inexistent due to the Uniflow™ cast aluminum chassis, which works with the Accucenter™ self-centering cone assembly to reduce distortion and the effects of power compression.



        A 1.25 cubic foot knock-down subwoofer cabinet would suite this subwoofer very well. This cabinet creates a critically damped system when used with the Morel Titanium Ultimate 10" subwoofer and 1 lb. of Acousta-Stuf, for a Qtc of 0.61 and an f6 of 38 Hz, for refined sub-bass playback that excels with classical, jazz, and high-fidelity recordings.

        Show more

        Specifications

        Article number
        TiCW1058Ft
        EAN
        0848864016290
        Woofer Series
        Morel Titanium Former series
        Woofer Type
        Subwoofer
        Nominal Diameter
        10"
        Power Handling (RMS)
        600 Watts
        Power Handling (max)
        3,000 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        86 dB
        Frequency Response
        24 to 2,000 Hz
        Voice Coil Diameter
        5.1"
        DC Resistance (Re)
        6.3 ohms
        Voice Coil Inductance (Le)
        0.52 mH
        Resonant Frequency (Fs)
        24 Hz
        Mechanical Q (Qms)
        4.95
        Electromagnetic Q (Qes)
        0.40
        Total Q (Qts)
        0.37
        Diaphragm Mass Inc. Airload (Mms)
        106 g
        Mechanical Compliance of Suspension (Cms)
        0.48 mm/N
        Surface Area of Cone (Sd)
        346 cm²
        BL Product (BL)
        15.86 Tm
        Compliance Equivalent Volume (Vas)
        3.74 ft.³
        Maximum Linear Excursion (Xmax)
        10.5 mm
        Cone / Diaphragm Material
        Paper
        Surround Material
        Rubber
        Voice Coil Wire Material
        Aluminum
        Voice Coil Former
        Titanium
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        10.35"
        Overall Depth
        5.85"
        Baffle Cutout Diameter
        9.49"
        # Mounting Holes
        6
        Mounting Hole Diameter
        5 mm
        Sealed Volume
        1.04 ft.³
        Sealed F3
        51 Hz
        Vented Volume
        2.38 ft.³
        Vented F3
        29 Hz
