Morel Supreme ST 1108 Dome Tweeter Matched Pair

1 reviews

Brand: Morel

Show all Dome tweeter

Compare

1" | 8 Ω

Supreme ST 1108 Dome Tweeter Matched Pair

€ 479,30€ 579,95 1 In stock

24h express shipping available
Ordered now, shipped today
In-house technical support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance.

Highlights

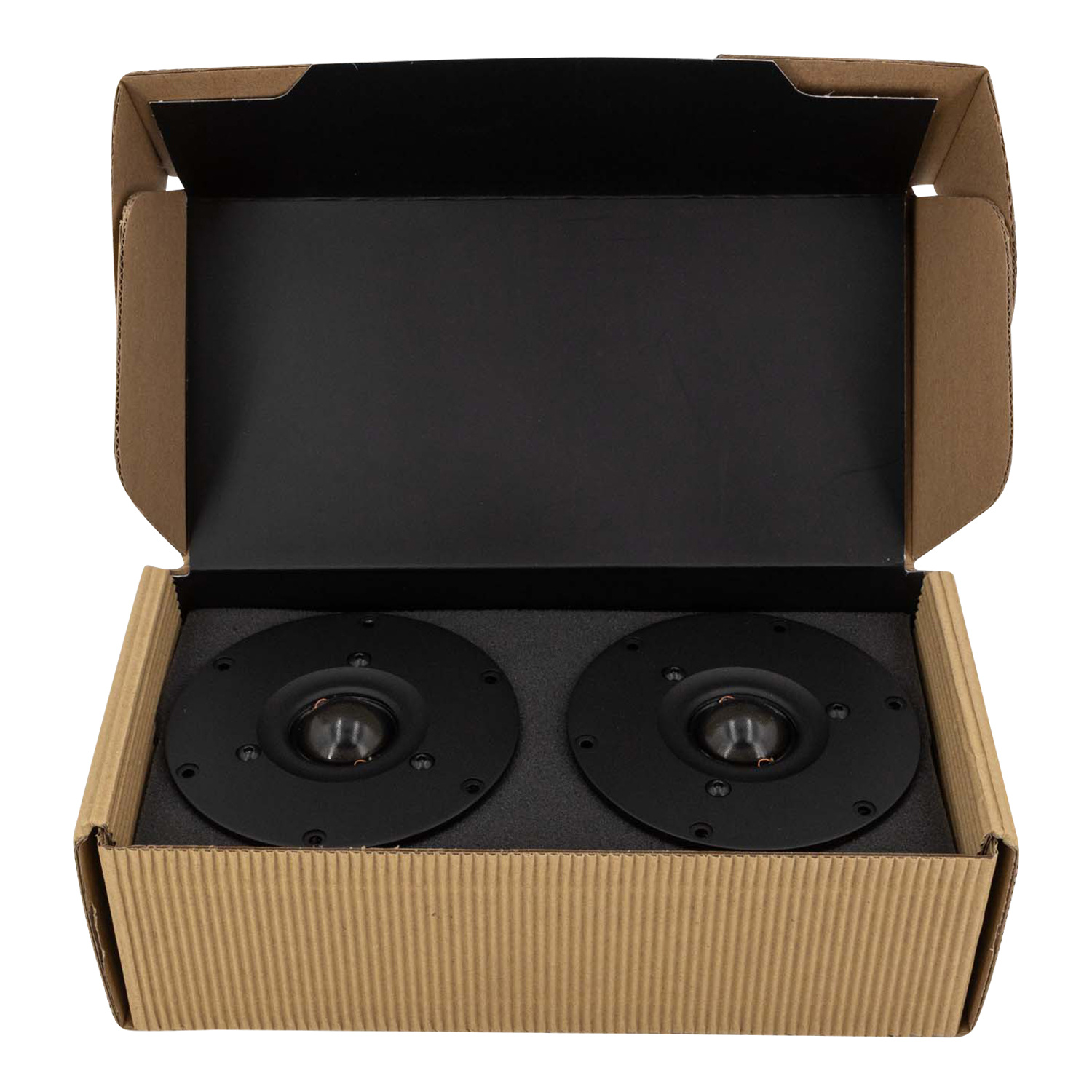

Sold in factory matched pairs
110 mm IDR™ Improved Dispersion Recess aluminum faceplate
Flat neodymium motor structure provides maximum flux
Hexatech™ voice coil for maximum BL product and power handling
Acuflex™ coated dome with the perfect blend of internal damping and rigidity
Precisely matched acoustic loading between the dome cavity and rear chamber

Product details

Morel Supreme ST 1108 1" Dome Tweeter Matched Pair

Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance. Their underhung voice coils move in a significantly higher magnetic field and remain there always during operation. As a result, the Morel Supreme tweeters provide more linear excursion, eliminate intermodulation distortion, reduce power compression at high levels, and considerably improve low frequency reproduction.

Specifications

Article number: ST 1108
Tweeter Type: Soft Dome
Tweeter Series: Morel Supreme
Cone / Dome Diameter: 25 mm | 1"
Power Handling (RMS): 220 Watts
Impedance (Z): 8 Ω
Sensitivity: 91.5 dB 1W/1m
Frequency Response: 1,400 to 22,000 Hz
Resonant Frequency (Fs): 680 Hz
DC Resistance (Re): 5.2 ohms
Voice Coil Inductance (Le): 0.09 mH
Overall Outside Diameter: 4.33"
Cutout Diameter: 2.95"
Depth: 1.46"

Reviews

1 reviews

5 from 5Based on 1 reviews

Review this product

5 of 5

High quality product. Sound signature is high end. I had a Monacor 8 inch woofer en these tweeters in a 2-way configuration. Crossover at 2000 hertz. Amazing sound. I could put up the volume to quite LOUD and still had high quality sound. GOOD !

By Richard Flanderhijn on 19 December 2022
