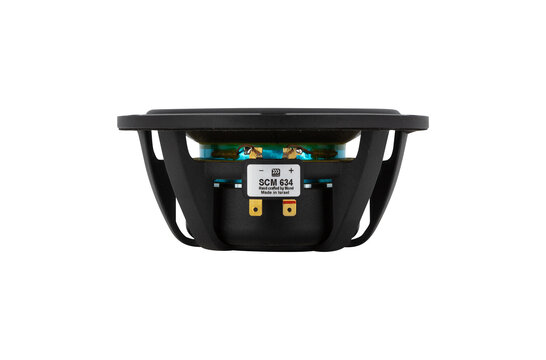

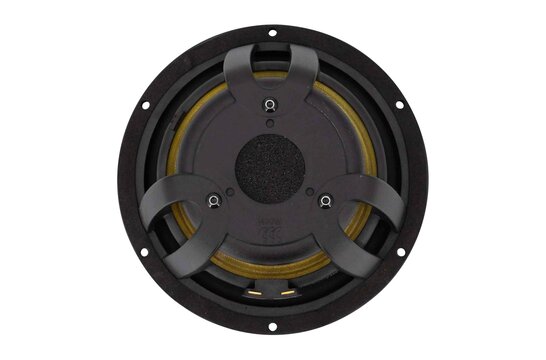

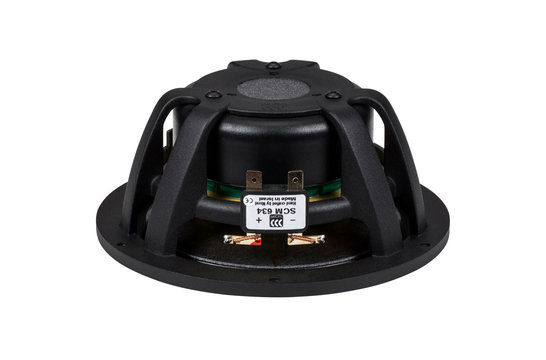

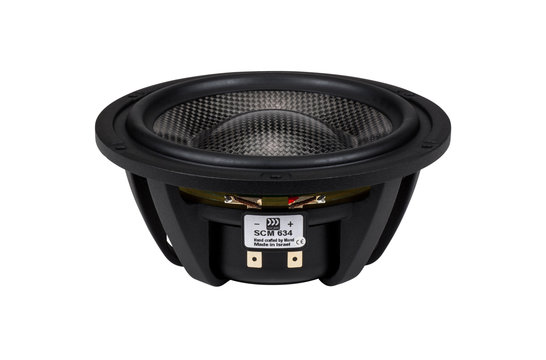

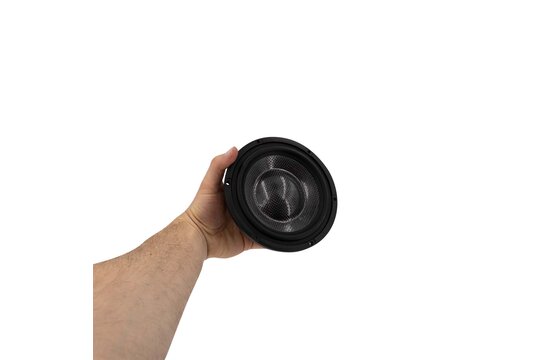

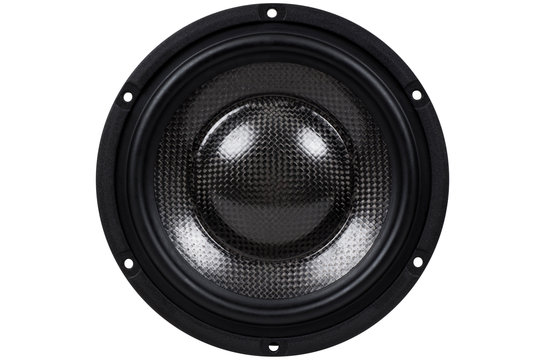

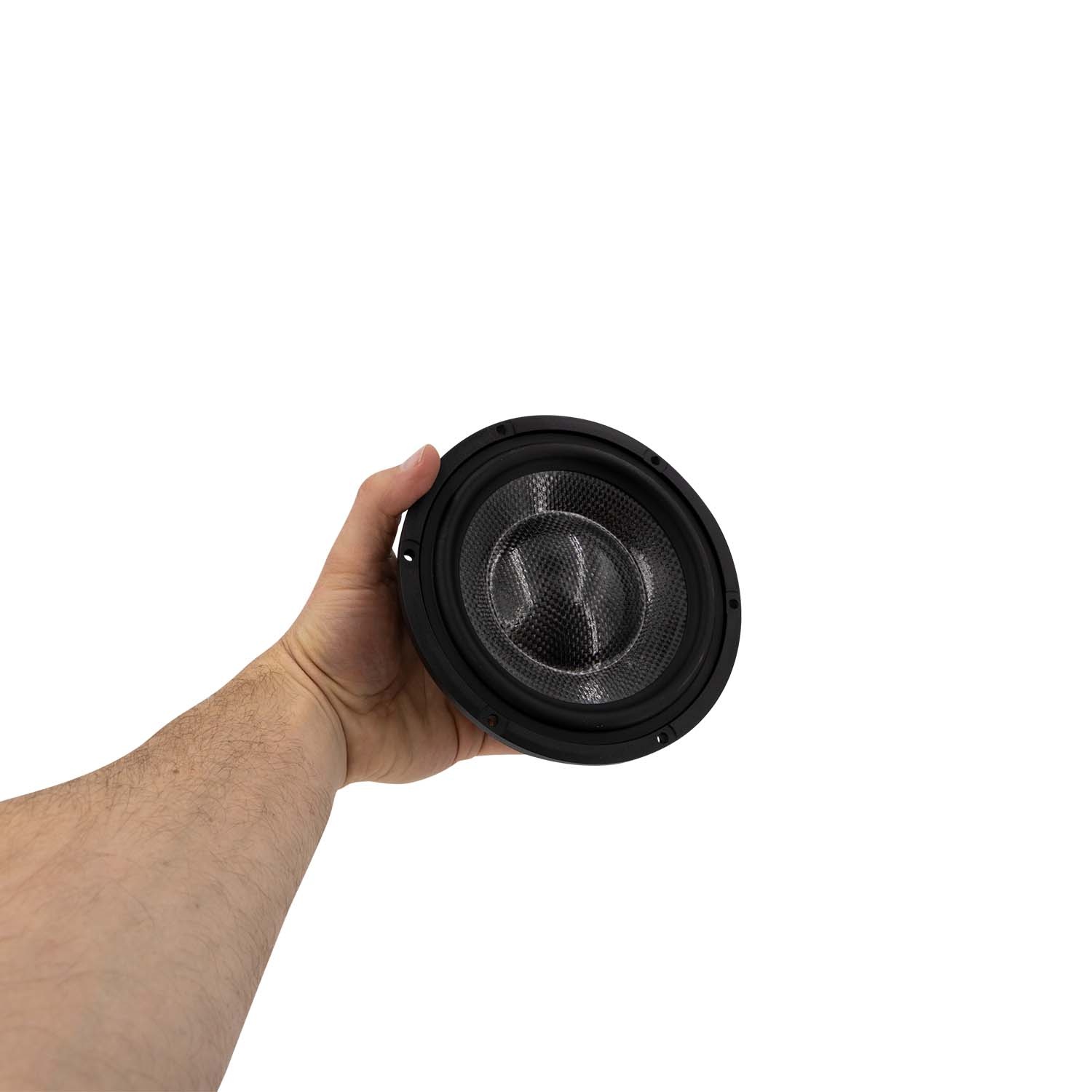

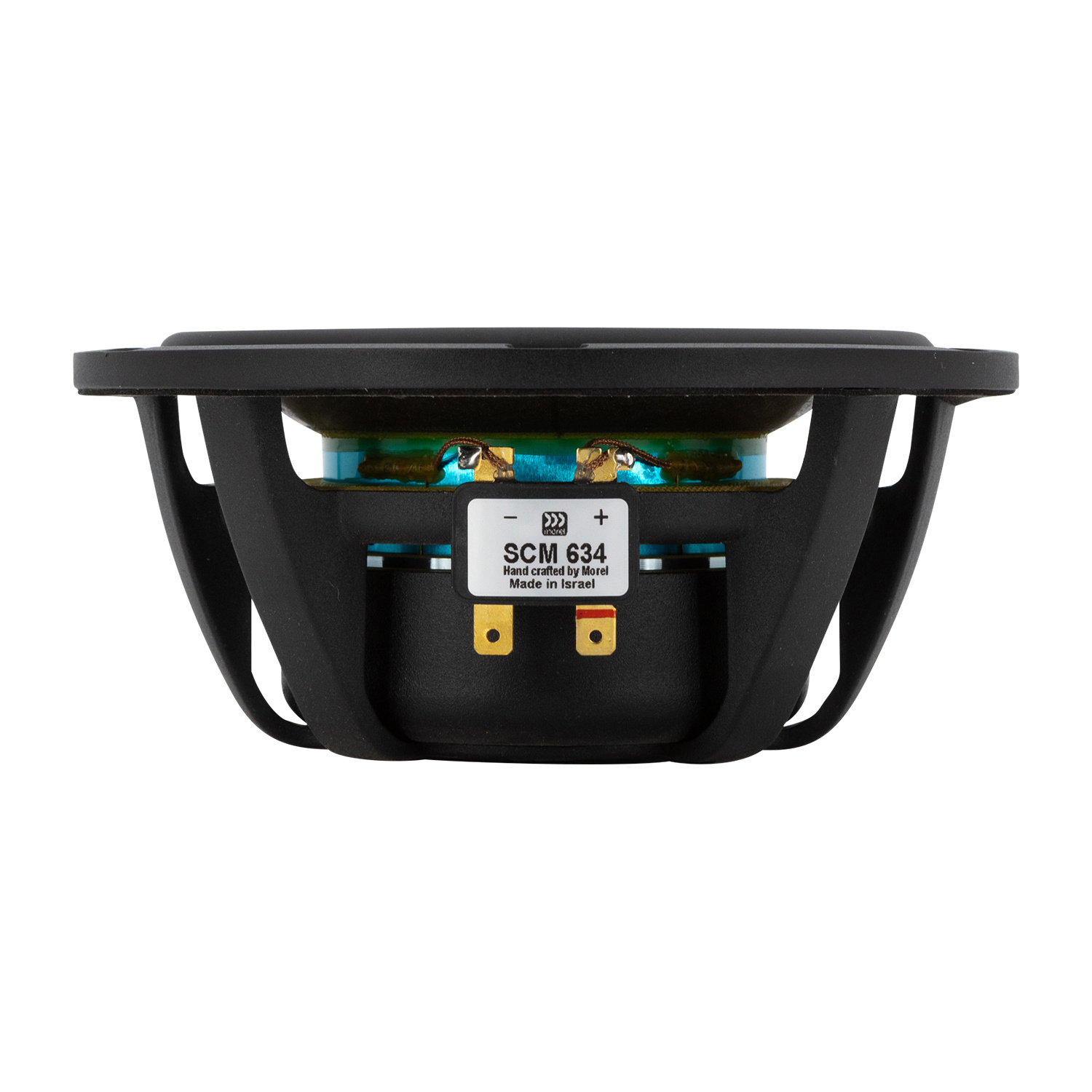

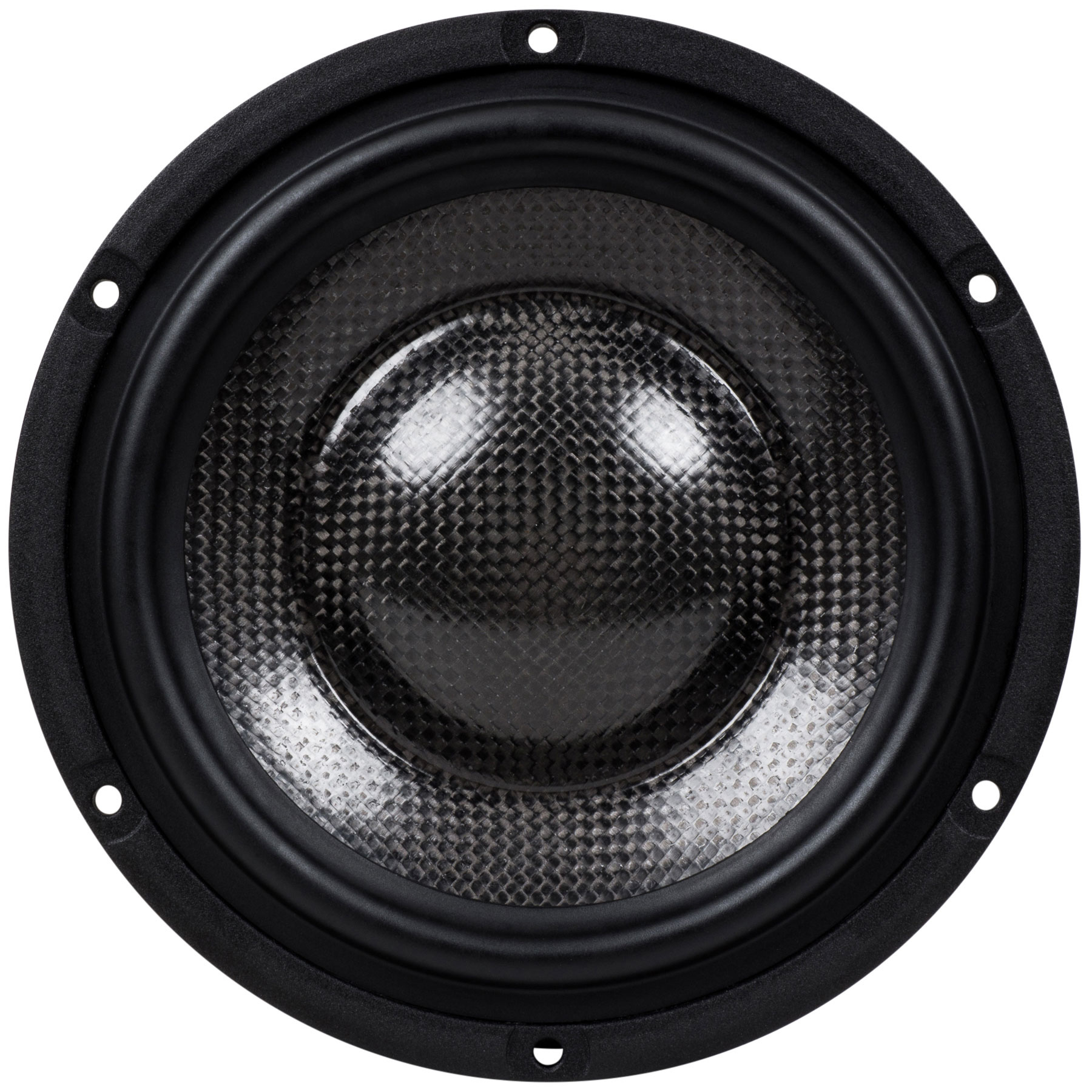

      Morel Supreme SCM 634 6" Woofer

      € 380,12€ 459,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 436,95 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Morel's SCM634 Supreme Coppersleeve Midrange neodymium/ferrite hybrid motor structure is combined with a cutting-edge cast alloy chassis for maximum performance.



      Highlights

      • Carbon fiber/Rohacell/carbon fiber composite sandwich cone
      • 3" Hexatech™ aluminum underhung voice coil
      • Copper pole piece sleeve reduces inductance
      • Hybrid™ neodymium/ferrite magnet
      • Uniflow™ aluminum diecast chassis
      • High power handling



      Product details

      Morel Supreme SCM 634 6" Woofer



      Morel's SCM634 Supreme Coppersleeve Midrange neodymium/ferrite hybrid motor structure is combined with a cutting-edge cast alloy chassis for maximum performance. This Uniflow frame provides a reflection-free backwave, while virtually eliminating any excursion noise. The composite sandwich cone facilitates smooth, accurate frequency response.

      Specifications

      Article number
      SCM 634
      Woofer Series
      Supreme Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      6"
      Power Handling (RMS)
      150 Watts
      Power Handling (max)
      300 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      89 dB 2.83V/1m
      Frequency Response
      40 to 5,000 Hz
      Voice Coil Diameter
      3"
      DC Resistance (Re)
      3.3 ohms
      Voice Coil Inductance (Le)
      0.12 mH
      Resonant Frequency (Fs)
      49 Hz
      Mechanical Q (Qms)
      1.32
      Electromagnetic Q (Qes)
      0.59
      Total Q (Qts)
      0.4
      Diaphragm Mass Inc. Airload (Mms)
      14.5g
      Mechanical Compliance of Suspension (Cms)
      0.73 mm/N
      Surface Area of Cone (Sd)
      119 cm²
      BL Product (BL)
      5.09 Tm
      Compliance Equivalent Volume (Vas)
      0.49 ft.³
      Maximum Linear Excursion (Xmax)
      5.25 mm
      Cone / Diaphragm Material
      Carbon Fiber Composite
      Surround Material
      Rubber
      Voice Coil Wire Material
      Aluminum
      Voice Coil Former
      Aluminum
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      6.3"
      Overall Depth
      2.71"
      Baffle Cutout Diameter
      5.51"
      # Mounting Holes
      6
      Mounting Hole Diameter
      3 mm
      Sealed Volume
      0.17 ft.³
      Sealed F3
      96 Hz
      Vented Volume
      0.42 ft.³
      Vented F3
      51 Hz
