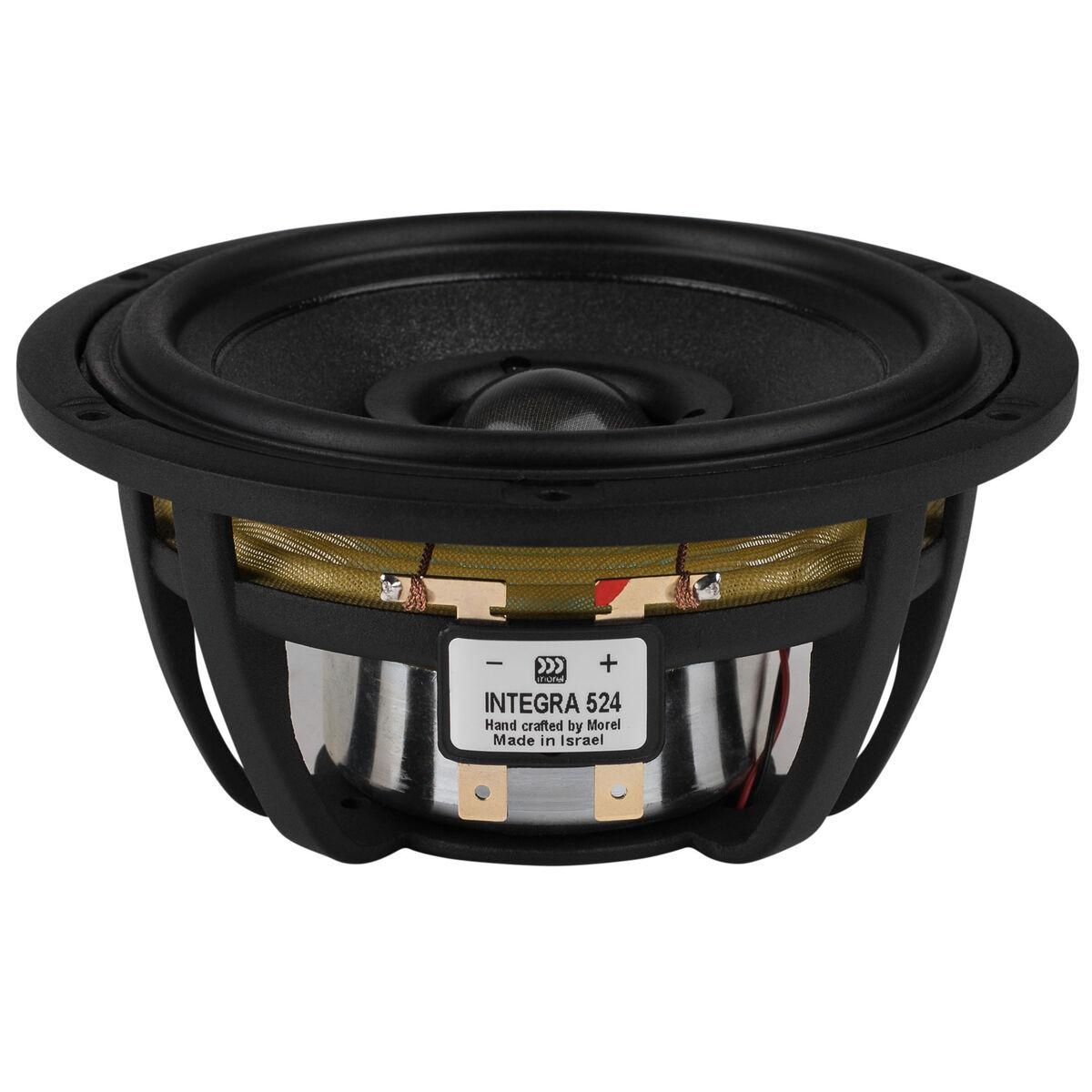

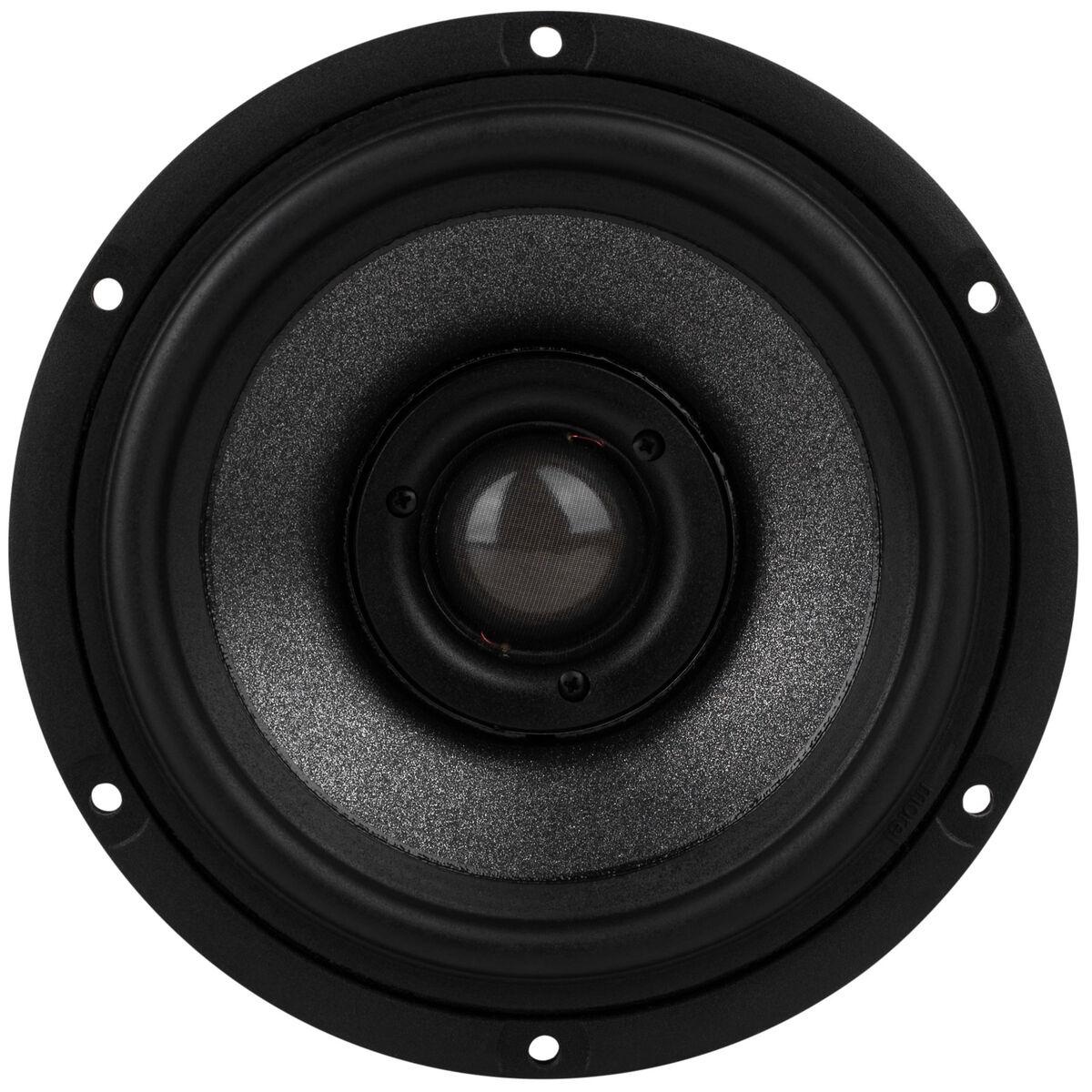

        Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range

        Morel Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range

        €199,95 €259,95

        5 In stock

        Add to cart

        Morel Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Morel
        5" | 4 Ω
        Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range
        Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range
        Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range
        Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range
        Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range
        Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range
        € 214,83
        € 259,95
        € 165,25€ 199,95 5 In stock
        • -5% Purchase 4 for only € 189,95 per piece
        € 199,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range
        Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range
        Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range
        Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range
        Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range
        Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range

        Pros and cons

        According to our specialists
        • AcuflexTM Hand Coated Soft Dome. Hybrid™ Neodymium/Ferrite magnet
        • Time-aligned coaxial design gives consistent off-axis sound
        • Large soft-dome tweeter keeps distortion low at high output

        Product description Morel Integra 524 Coaxial Woofer

        Morel designed the Integra 524 5" driver from the ground up to push the limits of what is possible with coaxial drivers. By using a huge 2.1" voice coil on the woofer, Morel concentrically mounted the 1.1" soft dome tweeter allowing for near perfect time-alignment with amazing off axis consistency.



        Highlights

        • Time aligned woofer and tweeter configuration minimizes off axis anomalies
        • 1.1" Accuflex™ soft dome tweeter produces little distortion even at high output
        • Massive 2.1" Hexatech™ voice coil is driven by a powerful hybrid neodymium/ferrite motor
        • Uniflow™ frame allows ample airflow to minimize compression and cool the voice coils



        Product details

        Morel Integra 524 Hybrid Series 5" Point Source Coaxial Full-Range



        Morel's Integra 524 5" coaxial driver is unlike any other coaxial driver. By using a large voice coil on the woofer, Morel was able to mount the 1.1" Accuflex™ soft dome tweeter concentrically within the woofer cone. This results in minimal phase errors compared to conventional coaxial designs and allows the combined response to be ideal in all directions resulting from the near perfect time-alignment.



        The Integra 524 features a large 28 mm Acuflex™ soft dome tweeter. Morel's innovative Acuflex™ is a specially engineered damping compound that allows for controlled accurate flexing, meaning each break-up mode is counteracted by another in the opposite direction. This action allows for the natural pure sound that has made Morel tweeters famous. The woofer uses a large 2.1" Hexatech™ aluminum voice coil to drive the low profile composite paper cone that excels in both on and off axis response.



        The motor designed for the Integra 524 driver is an unconventional, innovative and highly effective Hybrid™ magnet system that uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size.



        Show more

        Specifications

        Article number
        Integra 524
        EAN
        0848864043647
        Woofer Series
        Hybrid Series
        Woofer Type
        Point Source Coaxial Full-Range
        Nominal Diameter
        5.6"
        Power Handling (RMS)
        80 Watt
        Power Handling (max)
        500 W
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        90.4 dB
        Frequency Response
        60 - 20.000 Hz
        Voice Coil Diameter
        Woofer 54 mm + Tweeter 28 mm
        DC Resistance (Re)
        Woofer 3.63 Ω and Tweeter 3.59 Ω
        Voice Coil Inductance (Le)
        Woofer 0.49 mH and Tweeter 0.24 mH
        Resonant Frequency (Fs)
        62 Hz
        Mechanical Q (Qms)
        1.65
        Electromagnetic Q (Qes)
        W: 0.36; T: 2.69
        Total Q (Qts)
        0.29
        Diaphragm Mass Inc. Airload (Mms)
        6.59 g
        Moving Mass Of Diaphragm (Mmd)
        6.59 g
        Mechanical Compliance of Suspension (Cms)
        0.98 mm/N
        Surface Area of Cone (Sd)
        97 cm²
        BL Product (BL)
        5.05 Tm
        Compliance Equivalent Volume (Vas)
        12.93 L
        Maximum Linear Excursion (Xmax)
        3 mm
        Driver's Mechanical Losses (Rms)
        1.55 Kg/s
        Cone / Diaphragm Material
        Composite paper cone; Acuflex soft dome
        Voice Coil Wire Material
        Aluminum
        Voice Coil Former
        Aluminum
        Magnet Material
        Neodymium/Ferrite
        Overall Outside Diameter
        143.2 mm
        Overall Depth
        66.3 mm
        Baffle Cutout Diameter
        120 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        4.2 mm
