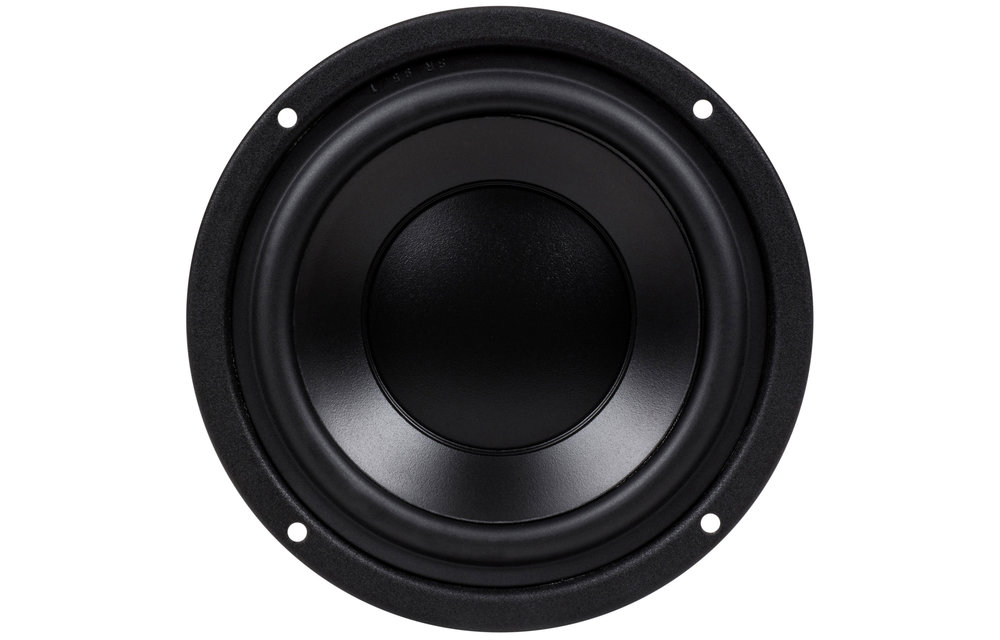

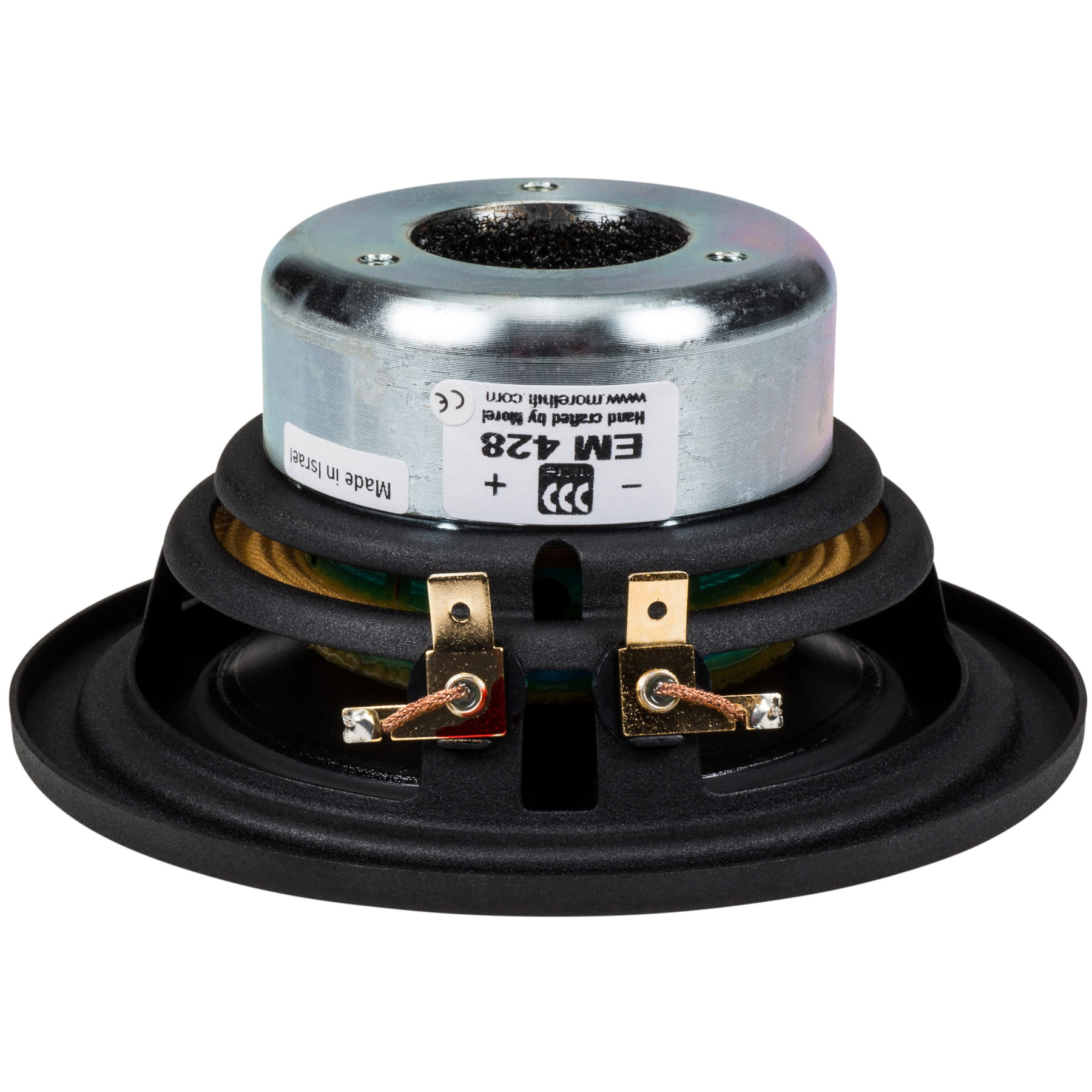

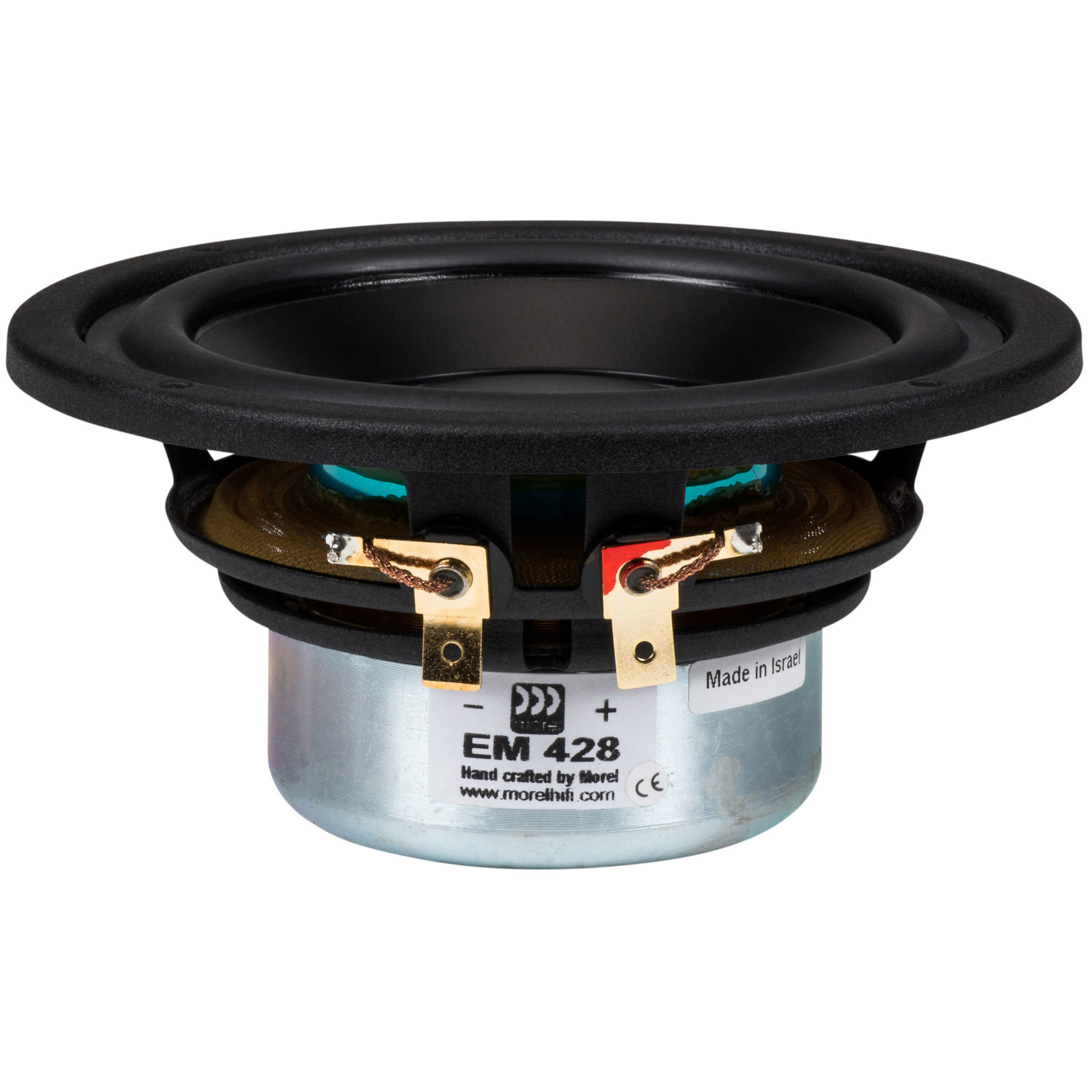

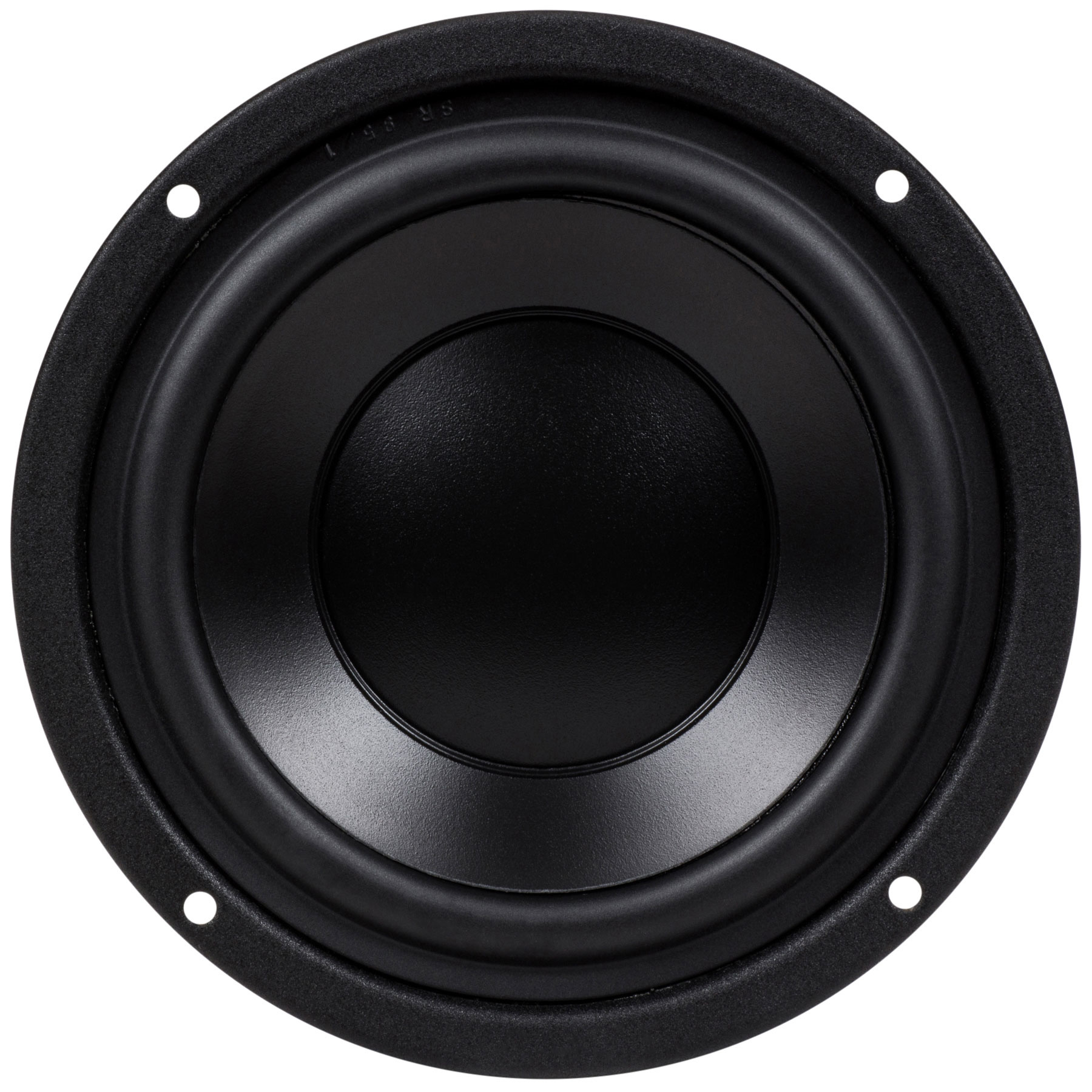

      Morel Elite EM 428 4" Woofer

      € 115,66€ 139,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €132,95 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      A unique 4" unit that incorporates a damped polymer composite cone, 2-1/8" Hexatech™ aluminum voice coil, neodymium magnet system, high power handling, and a smooth response up to 5kHz.



      Highlights

      • Uniflow™ steel chassis
      • Neodymium magnet system
      • Shallow profile DPC (Damped Polymer Composite) cone
      • 2-1/8" large Hexatech™ aluminum voice coil



      Product details

      Morel Elite EM 428 4" Woofer



      A unique 4" unit that incorporates a damped polymer composite cone, 2-1/8" Hexatech™ aluminum voice coil, neodymium magnet system, high power handling, and a smooth response up to 5kHz. These features combine to produce a very impressive midrange driver. Improved version of Morel's famous MW 114S.

      Specifications

      Article number
      EM 428
      Woofer Series
      Elite Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      4"
      Power Handling (RMS)
      150 Watts
      Power Handling (max)
      210 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      87 dB 2.83V/1m
      Frequency Response
      50 to 5,000 Hz
      Voice Coil Diameter
      2.125"
      DC Resistance (Re)
      5.4 ohms
      Voice Coil Inductance (Le)
      0.36 mH
      Resonant Frequency (Fs)
      68 Hz
      Mechanical Q (Qms)
      3.03
      Electromagnetic Q (Qes)
      0.48
      Total Q (Qts)
      0.41
      Diaphragm Mass Inc. Airload (Mms)
      6.55 g
      Mechanical Compliance of Suspension (Cms)
      0.88 mm/N
      Surface Area of Cone (Sd)
      57 cm²
      BL Product (BL)
      5.4 Tm
      Compliance Equivalent Volume (Vas)
      0.12 ft.³
      Maximum Linear Excursion (Xmax)
      3 mm
      Driver's Mechanical Losses (Rms)
      0.86 N·s/m
      Cone / Diaphragm Material
      Poly Composite
      Surround Material
      Rubber
      Voice Coil Wire Material
      Aluminum
      Voice Coil Former
      Aluminum
      Basket / Frame Material
      Steel
      Magnet Material
      Neodymium
      Overall Outside Diameter
      4.67"
      Overall Depth
      2.2"
      Baffle Cutout Diameter
      3.7"
      # Mounting Holes
      4
      Mounting Hole Diameter
      3 mm
      Sealed Volume
      0.04 ft.³
      Sealed F3
      131 Hz
      Vented Volume
      0.11 ft.³
      Vented F3
      69 Hz
