        Elite Coppersleeve ECW 638 6" Woofer

        Elite Coppersleeve ECW 638 6" Woofer

        €319,95

        Morel Elite Coppersleeve ECW 638 6" Woofer

        1 reviews
        4 from 5
        1 reviews
        5 stars
        0%
        4 stars
        100%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Morel
        € 264,42€ 319,95 7 In stock
        • -5% Purchase 4 for only € 303,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Morel Elite Coppersleeve Series woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits.



        Highlights

        • DPC (Damped Polymer Composite) cone material
        • Large diameter Hexatech™ aluminum voice coil
        • Copper insulated pole piece reduces inductance
        • Hybrid™ neodymium/ferrite magnet
        • Uniflow™ chassis removes air restrictions
        • High power handling
        • High xmax, low Qts, low Fs



        Product details

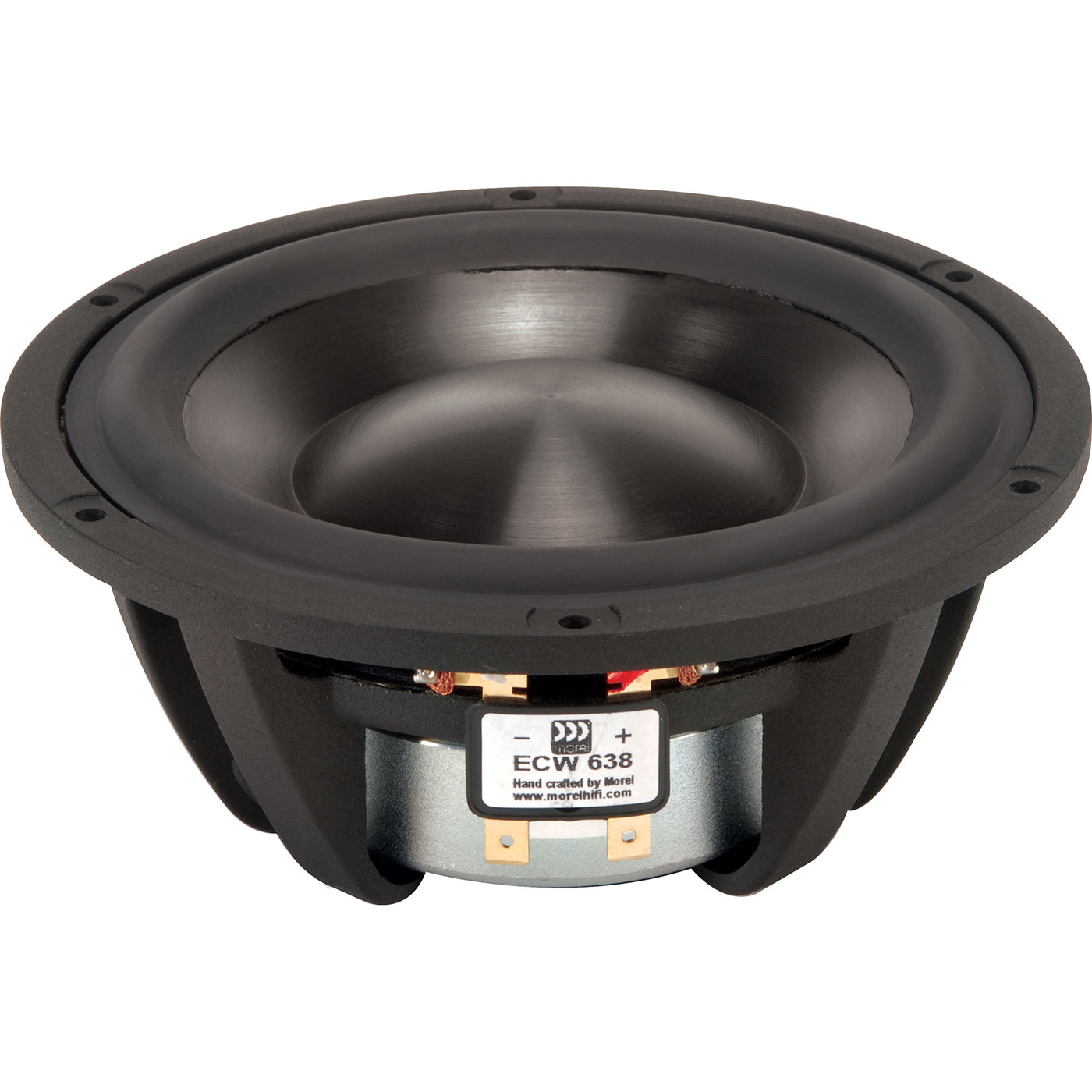

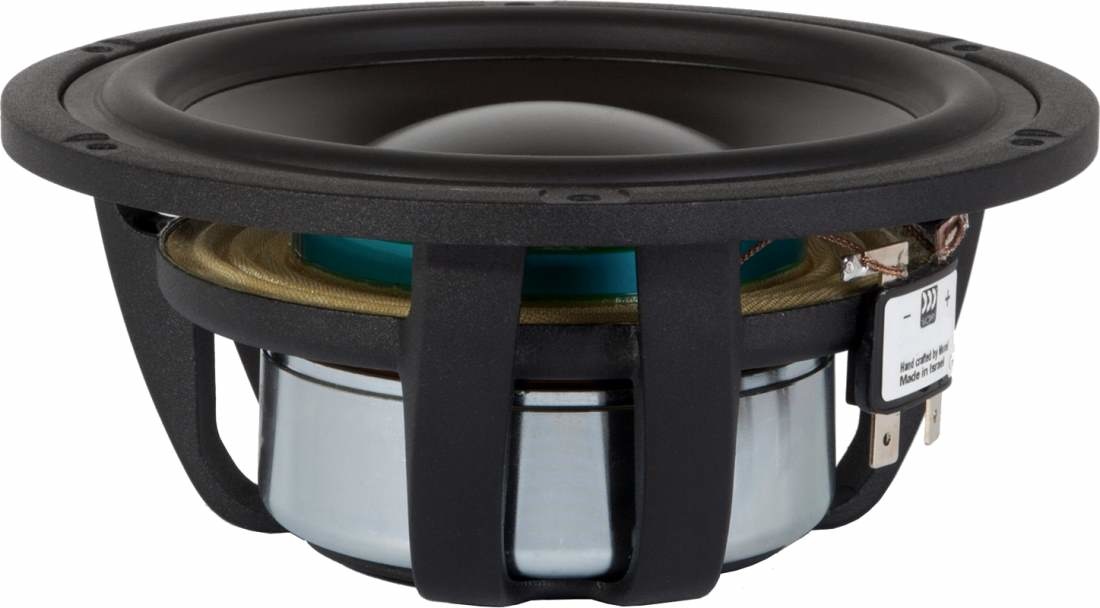

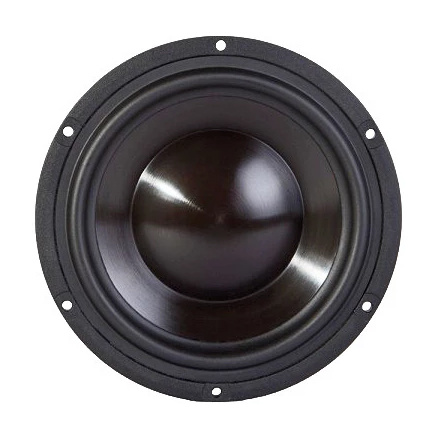

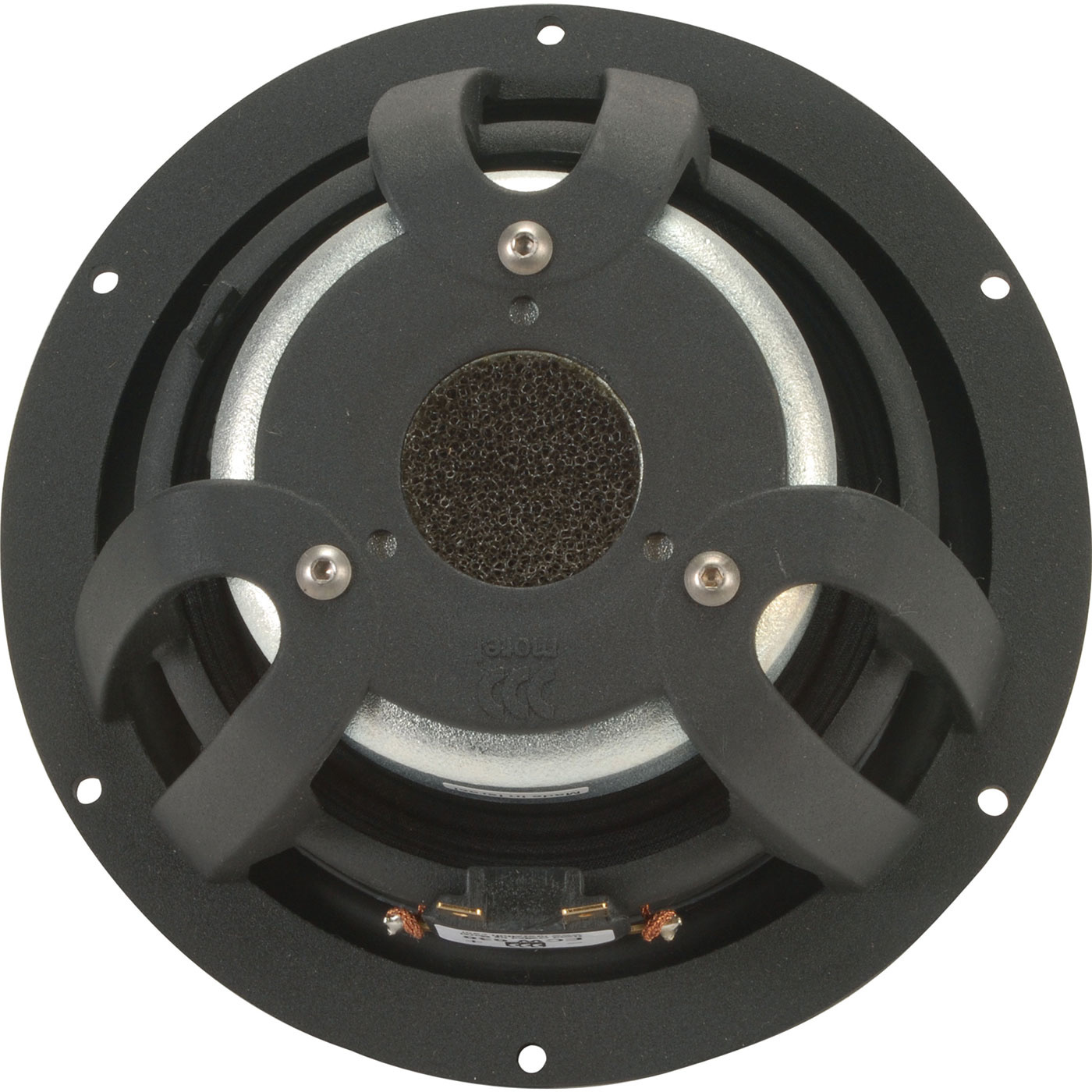

        Morel Elite Coppersleeve ECW 638 6" Woofer



        Morel Elite Coppersleeve Series woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits. A copper sleeve over the pole piece reduces inductance and extends high frequency response. Suitable for the most demanding audio reproduction systems.

        Show more

        Specifications

        Article number
        ECW638
        Woofer Series
        Elite Coppersleeve Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        6"
        Power Handling (RMS)
        150 Watts
        Power Handling (max)
        1,000 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Frequency Response
        40 to 4,000 Hz
        Voice Coil Diameter
        3"
        DC Resistance (Re)
        5 ohms
        Voice Coil Inductance (Le)
        0.26 mH
        Resonant Frequency (Fs)
        39 Hz
        Mechanical Q (Qms)
        1.42
        Electromagnetic Q (Qes)
        0.36
        Total Q (Qts)
        0.29
        Diaphragm Mass Inc. Airload (Mms)
        16g
        Mechanical Compliance of Suspension (Cms)
        0.99 mm/N
        Surface Area of Cone (Sd)
        119 cm²
        BL Product (BL)
        7.45 Tm
        Compliance Equivalent Volume (Vas)
        0.67 ft.³
        Maximum Linear Excursion (Xmax)
        6 mm
        Driver's Mechanical Losses (Rms)
        2.82 N·s/m
        Cone / Diaphragm Material
        Poly Composite
        Voice Coil Wire Material
        Aluminum
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Neodymium
        Overall Outside Diameter
        6.3"
        Overall Depth
        2.72"
        Baffle Cutout Diameter
        5.512"
        # Mounting Holes
        6
        Mounting Hole Diameter
        4.2 mm
        Sealed Volume
        0.08 ft.³
        Sealed F3
        115 Hz
        Vented Volume
        0.19 ft.³
        Vented F3
        73 Hz

        Show more

        4 of 5
        Die Lautsprecher sind super, wie erwartet. Aber die Versandverpackung war dem Inhalt nicht angemessen. Die Lautsprecher wurden relativ ungeschützt verpackt. Es war Glück, dass nicht beschätigt wurde.
        By Stefan N. on 14 February 2020
