        CAW938 9" Cast Frame Woofer

        Morel CAW938 9" Cast Frame Woofer

        €214,95

        6 In stock

        Add to cart

        Morel CAW938 9" Cast Frame Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Morel
        9" | 8 Ω
        CAW938 9" Cast Frame Woofer
        CAW938 9" Cast Frame Woofer
        CAW938 9" Cast Frame Woofer
        CAW938 9" Cast Frame Woofer
        CAW938 9" Cast Frame Woofer
        CAW938 9" Cast Frame Woofer
        € 177,64€ 214,95 6 In stock
        • -5% Purchase 4 for only € 204,20 per piece
        € 214,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        CAW938 9" Cast Frame Woofer
        CAW938 9" Cast Frame Woofer
        CAW938 9" Cast Frame Woofer
        CAW938 9" Cast Frame Woofer
        CAW938 9" Cast Frame Woofer
        CAW938 9" Cast Frame Woofer

        Product description Morel CAW938 Woofer

        The Classic Advanced line of woofers is based on Morel's classic line - the renowned MW series. These products have high power handling due to the aerodynamic Uniflow™ open chassis and large diameter spiders. This woofer has reinforced ferrite magnets for the double magnet system delivering higher magnetic flux motor, resulting in a low resonance frequency and Qts points. This is the latest version of Morel's MW-265 and MW-266 woofers.



        Highlights

        • Uniflow™ aluminum diecast chassis
        • Large 3" Hexatech™ aluminum voice coil
        • Shallow profile DPC cone
        • High flux ferrite double magnet system
        • High power handling



        Product details

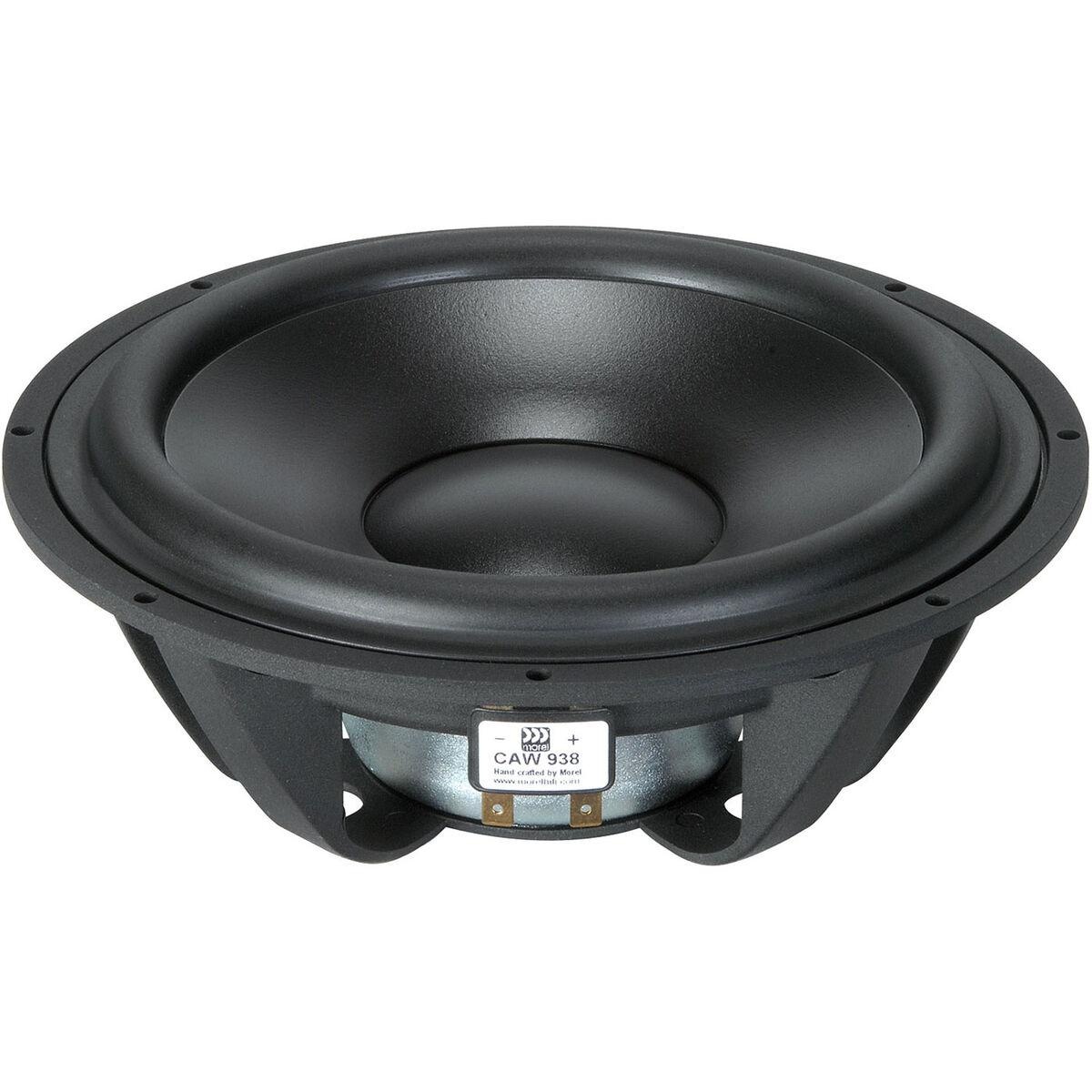

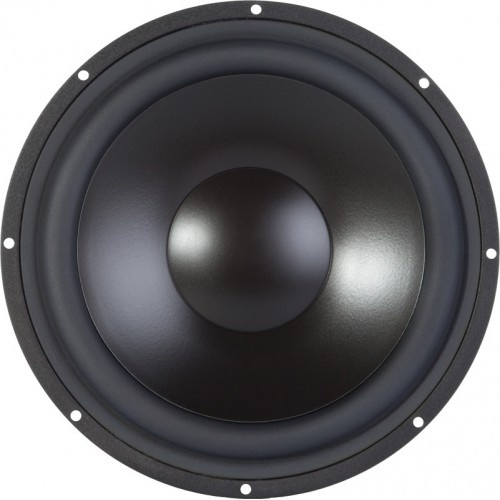

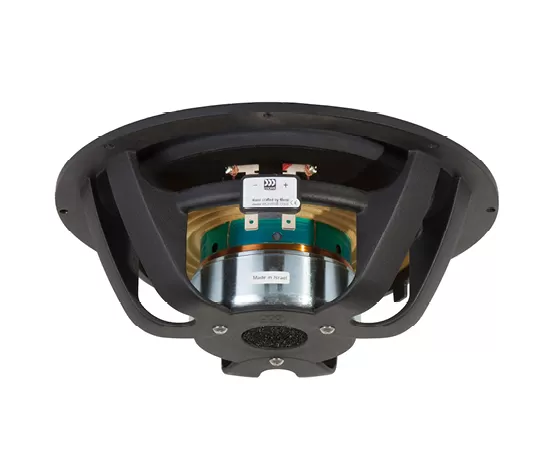

        Morel CAW938 9" Cast Frame Woofer



        The Morel CAW938 is a 9 inch woofer from the Classic Advanced range featuring the Morel Uniflow aluminum diecast chassis, high flux double ferrite magnet system, 3 inch Hexatech aluminum voice coil and a shallow DPC (damped composite polymer) cone. It is a modern, much improved version of the classic MW 266. The CAW938 has a nominal impedance of 8 ohms, a resonant frequency of 45 Hz, and a sensitivity of 86.5 dB SPL. It is rated for a maximum power handling of 250 watts RMS and 500 watts peak.



        The CAW938 is designed to deliver accurate and extended bass response. It is well-suited for use in a variety of applications, including home audio, car audio, and professional sound reinforcement.

        Show more

        Specifications

        Article number
        CAW938
        EAN
        0844632066023
        Woofer Series
        Morel Classic Advanced series
        Nominal Diameter
        9"
        Power Handling (RMS)
        150 Watt
        Power Handling (max)
        1000 Watt
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        86 dB
        Frequency Response
        20 - 3000 Hz
        Voice Coil Diameter
        76 mm
        DC Resistance (Re)
        6.3 Ω
        Voice Coil Inductance (Le)
        0.62 mH
        Resonant Frequency (Fs)
        29 Hz
        Mechanical Q (Qms)
        2.32
        Electromagnetic Q (Qes)
        0.67
        Total Q (Qts)
        0.52
        Diaphragm Mass Inc. Airload (Mms)
        27.5 g
        Mechanical Compliance of Suspension (Cms)
        1.07 mm/N
        Surface Area of Cone (Sd)
        219 cm²
        BL Product (BL)
        6.88 Tm
        Compliance Equivalent Volume (Vas)
        69.9 L
        Maximum Linear Excursion (Xmax)
        4.25 mm
        Cone / Diaphragm Material
        Poly Composite
        Surround Material
        Rubber
        Voice Coil Wire Material
        Aluminum
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        222 mm
        Overall Depth
        76.2 mm
        Baffle Cutout Diameter
        198.12 mm
        Bolt Circle Diameter
        8.43
        # Mounting Holes
        8
        Sealed Volume
        33.98 L
        Sealed F3
        45.7 Hz
        Vented Volume
        42.48 L
        Vented F3
        33.9 Hz

        Show more
