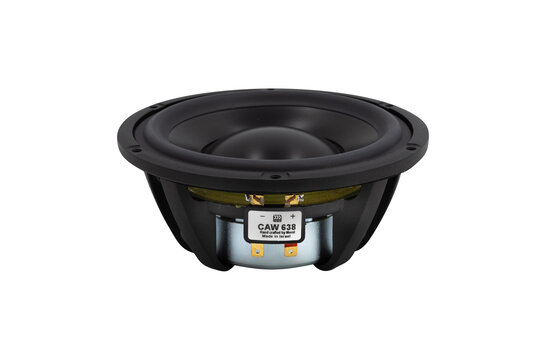

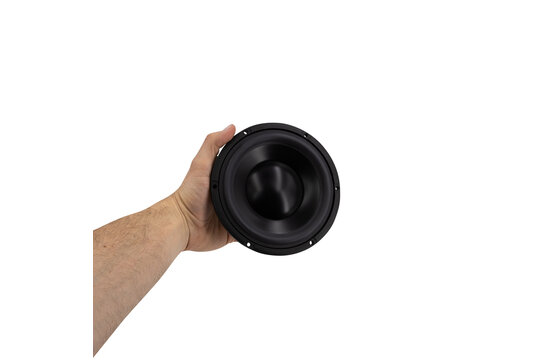

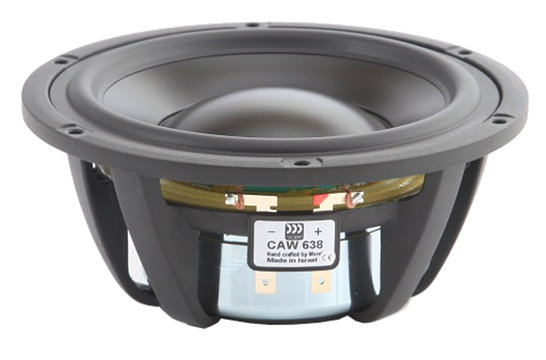

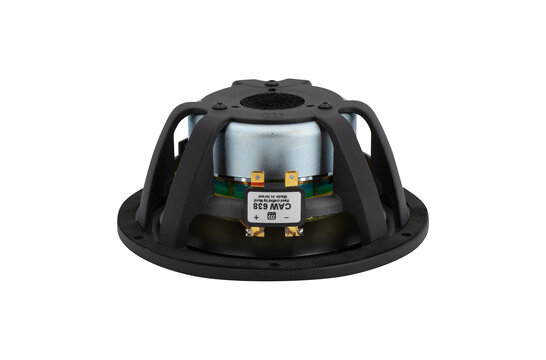

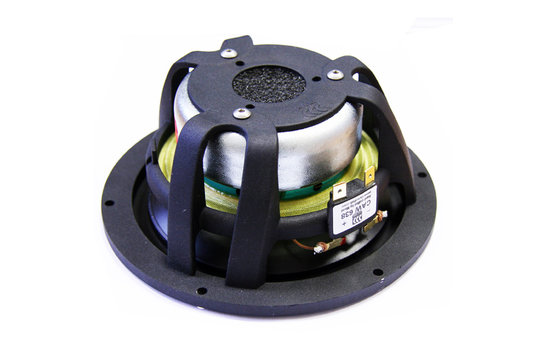

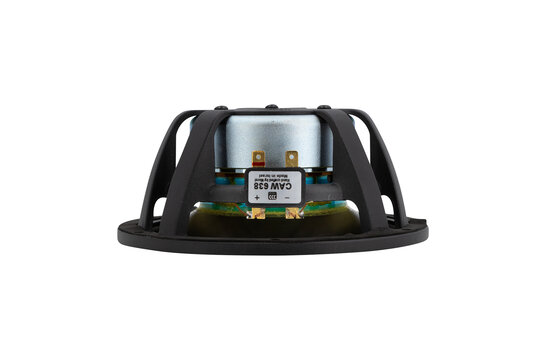

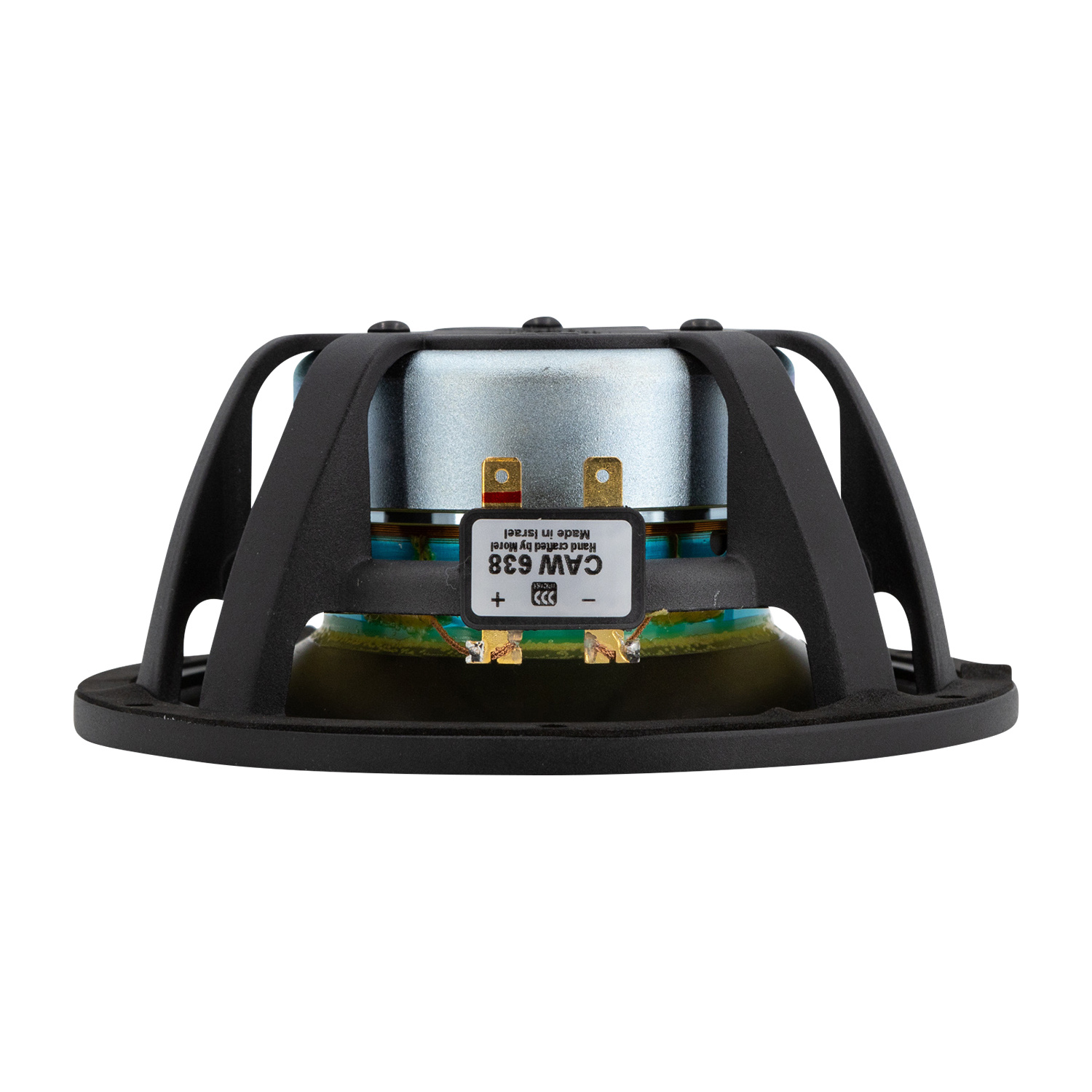

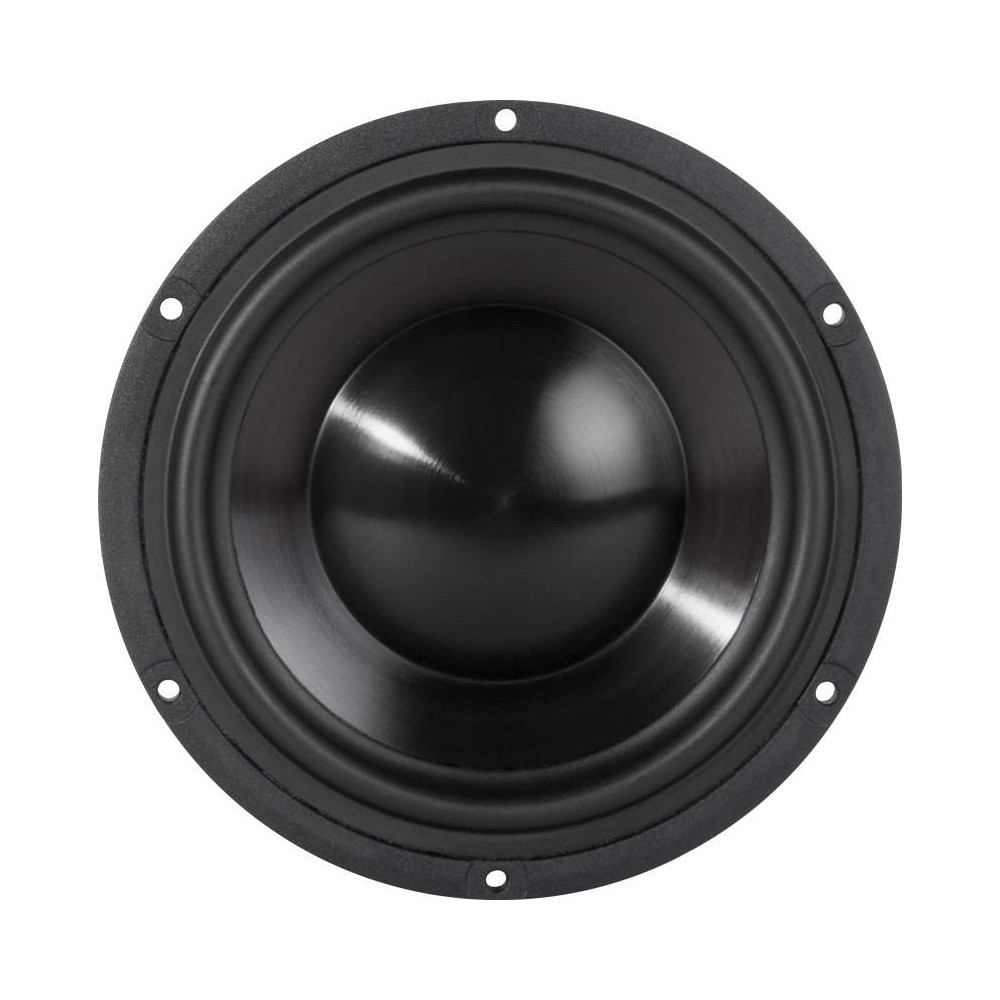

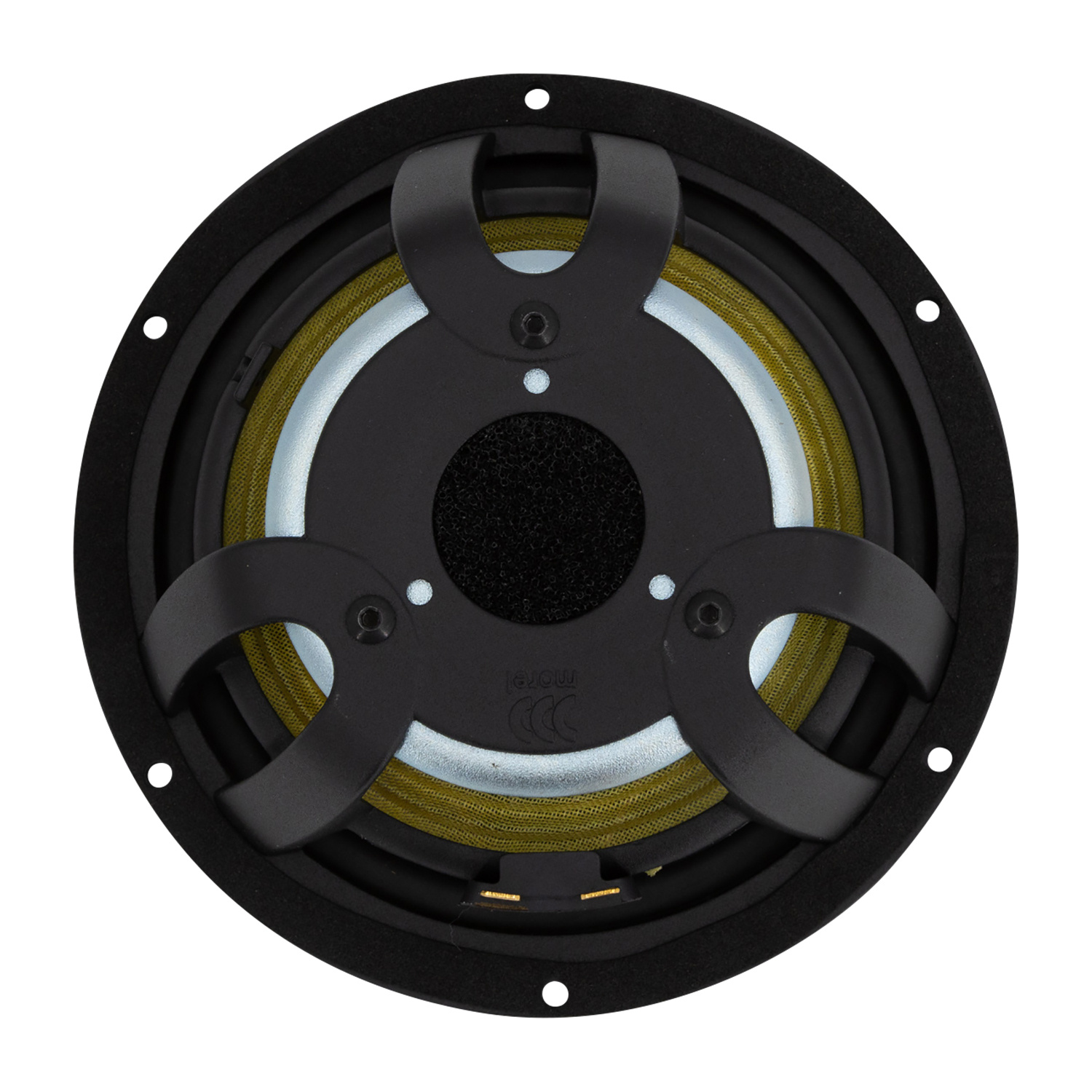

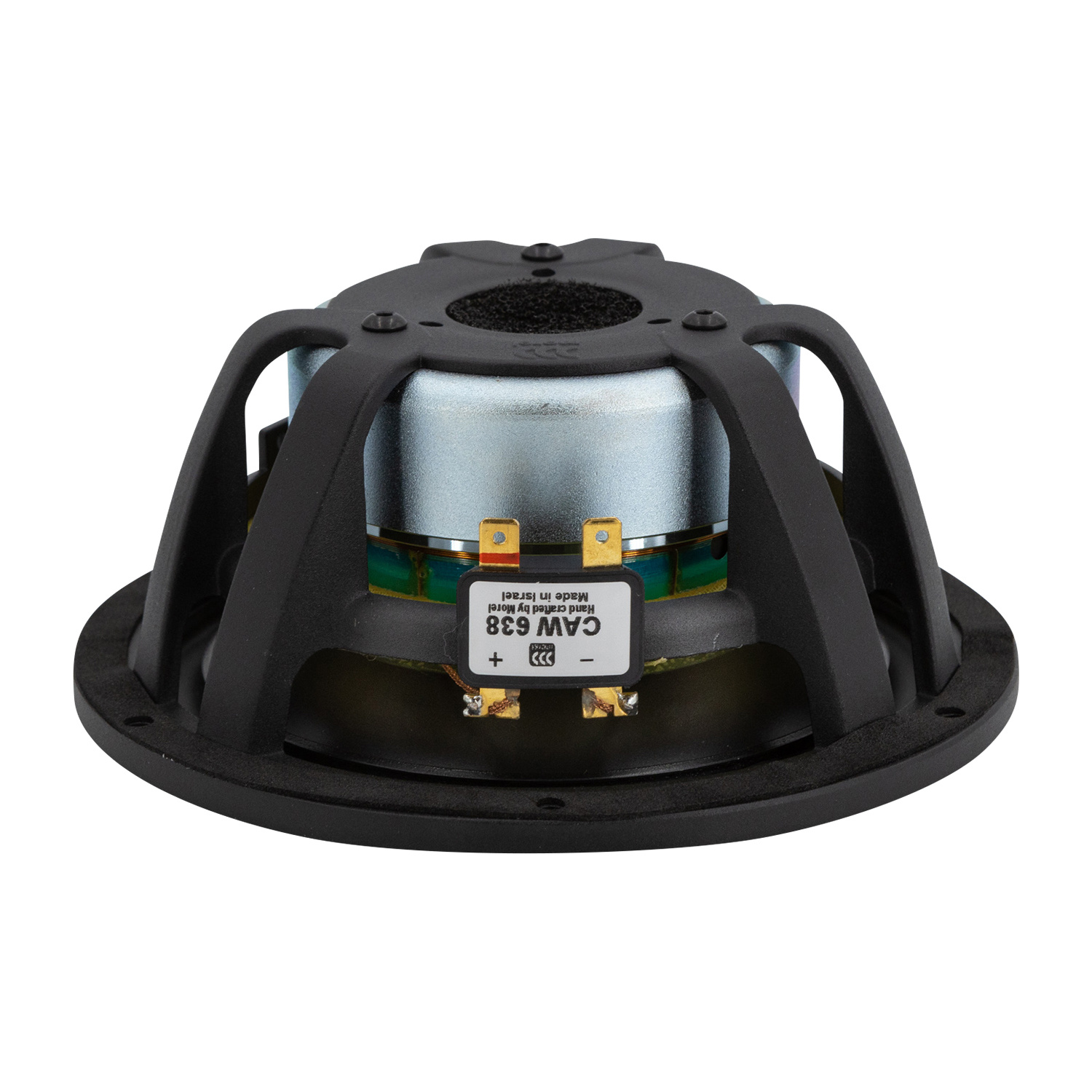

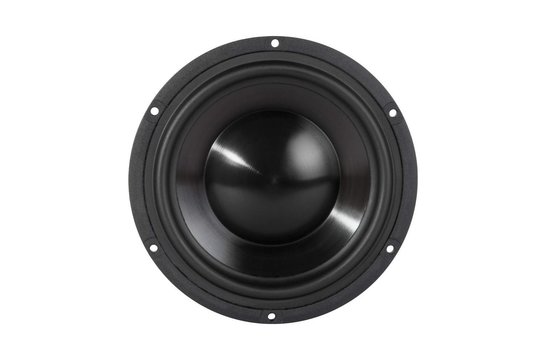

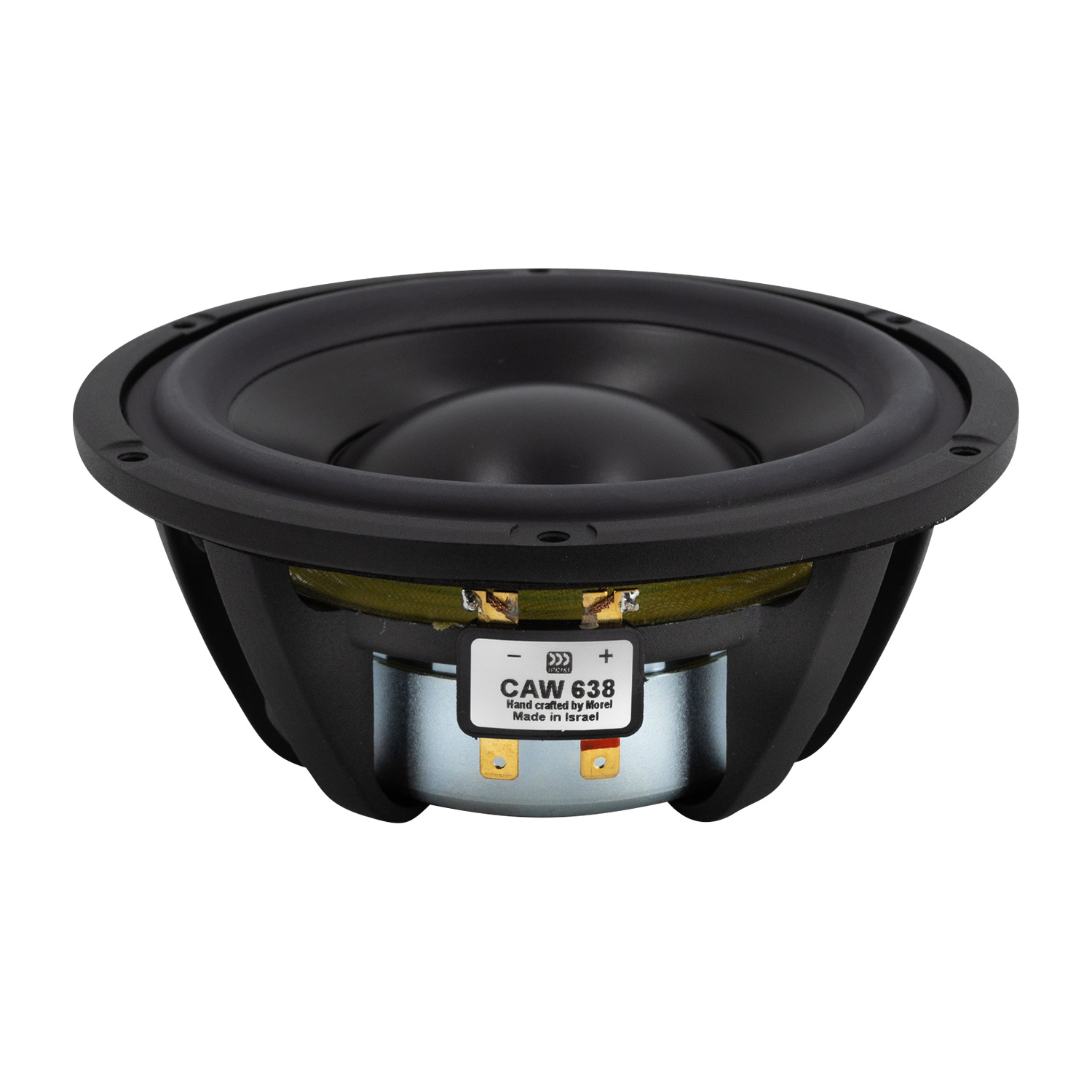

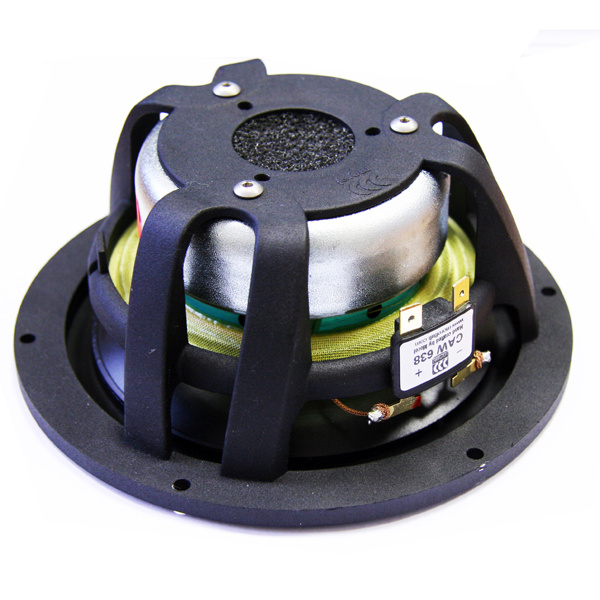

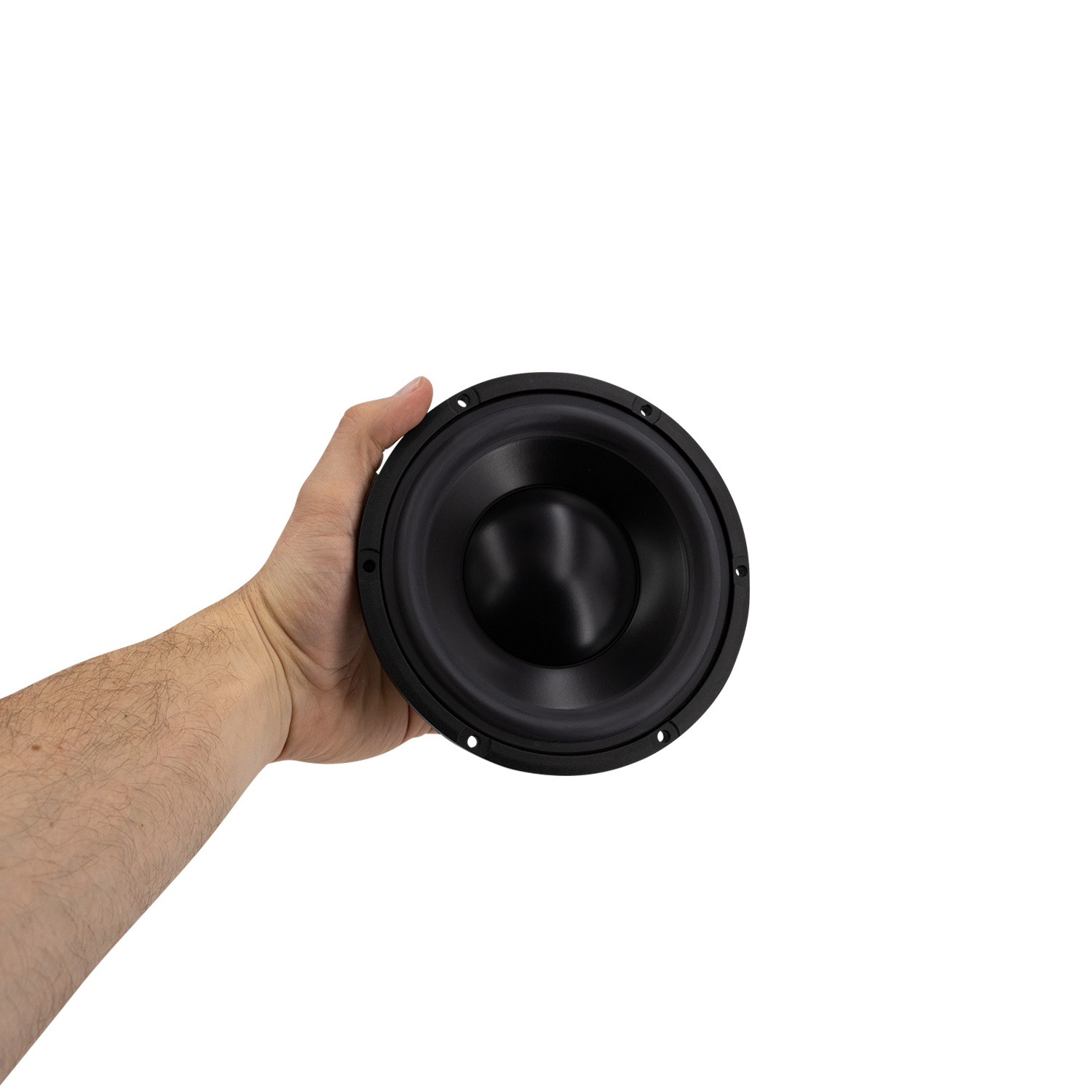

    Morel Classic Advanced CAW 638 6" Woofer

    € 109,46€ 132,45 2 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €125,83 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    The Classic Advanced line of woofers is based on Morel’s classic line - the renowned MW series. This woofer features an aerodynamic Uniflow™ open chassis, large diameter spider, reinforced ferrite magnets resulting in higher power handling, and low resonance frequency and Qts points.



    Highlights

    • Uniflow™ aluminum diecast chassis
    • Large 3" Hexatech™ aluminum voice coil
    • High flux ferrite double magnet system
    • Shallow profile DPC cone
    • High power handling



    Product details

    Morel Classic Advanced CAW 638 6" Woofer



    The Classic Advanced line of woofers is based on Morel’s classic line - the renowned MW series. These products have high power handling due to the aerodynamic Uniflow™ open chassis and large diameter spiders. This woofer has reinforced ferrite magnets for the double magnet system delivering higher magnetic flux motor, resulting in a low resonance frequency and Qts points. Latest evolution of Morel's MW-164, MW-166, and MW-168 woofers.

    Specifications

    Article number
    CAW 638
    Woofer Series
    Classic Advanced Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    6"
    Power Handling (RMS)
    150 Watts
    Power Handling (max)
    1,000 Watts
    Impedance (Z)
    8 ohms
    Sensitivity
    86 dB 2.83V/1m
    Frequency Response
    30 to 5,000 Hz
    Voice Coil Diameter
    3"
    DC Resistance (Re)
    6.4 ohms
    Voice Coil Inductance (Le)
    0.63 mH
    Resonant Frequency (Fs)
    43 Hz
    Mechanical Q (Qms)
    2.2
    Electromagnetic Q (Qes)
    0.58
    Total Q (Qts)
    0.46
    Diaphragm Mass Inc. Airload (Mms)
    16g
    Mechanical Compliance of Suspension (Cms)
    0.79 mm/N
    Surface Area of Cone (Sd)
    119 cm²
    Volume of Displacement (Vd)
    0.0506 L
    BL Product (BL)
    7.3 Tm
    Compliance Equivalent Volume (Vas)
    0.55 ft.³
    Maximum Linear Excursion (Xmax)
    4.25 mm
    Cone / Diaphragm Material
    Poly Composite
    Surround Material
    Rubber
    Voice Coil Wire Material
    Aluminum
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    6.3"
    Overall Depth
    2.72"
    Baffle Cutout Diameter
    5.512"
    # Mounting Holes
    6
    Mounting Hole Diameter
    3 mm
    Sealed Volume
    0.26 ft.³
    Sealed F3
    74 Hz
    Vented Volume
    0.7 ft.³
    Vented F3
    37 Hz
