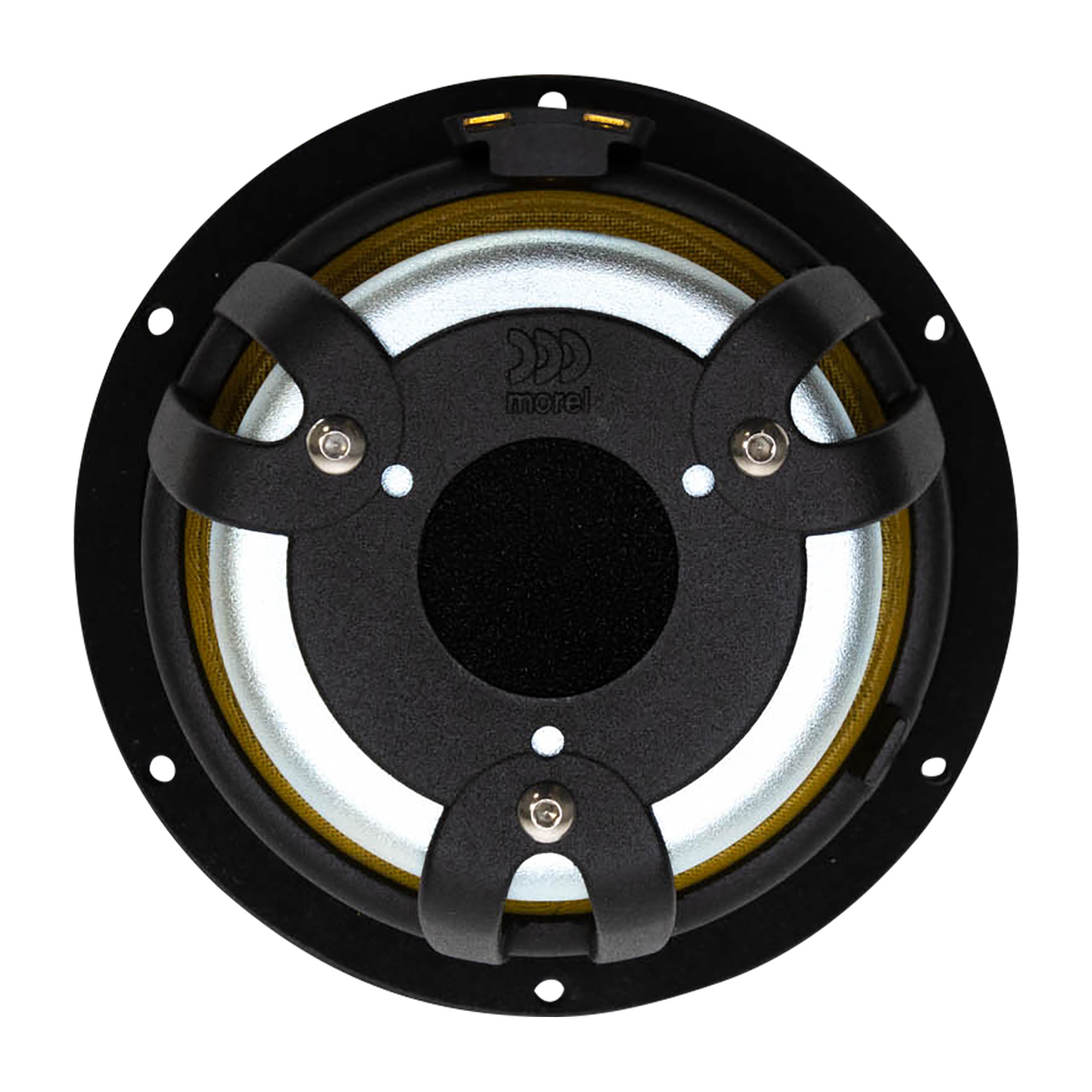

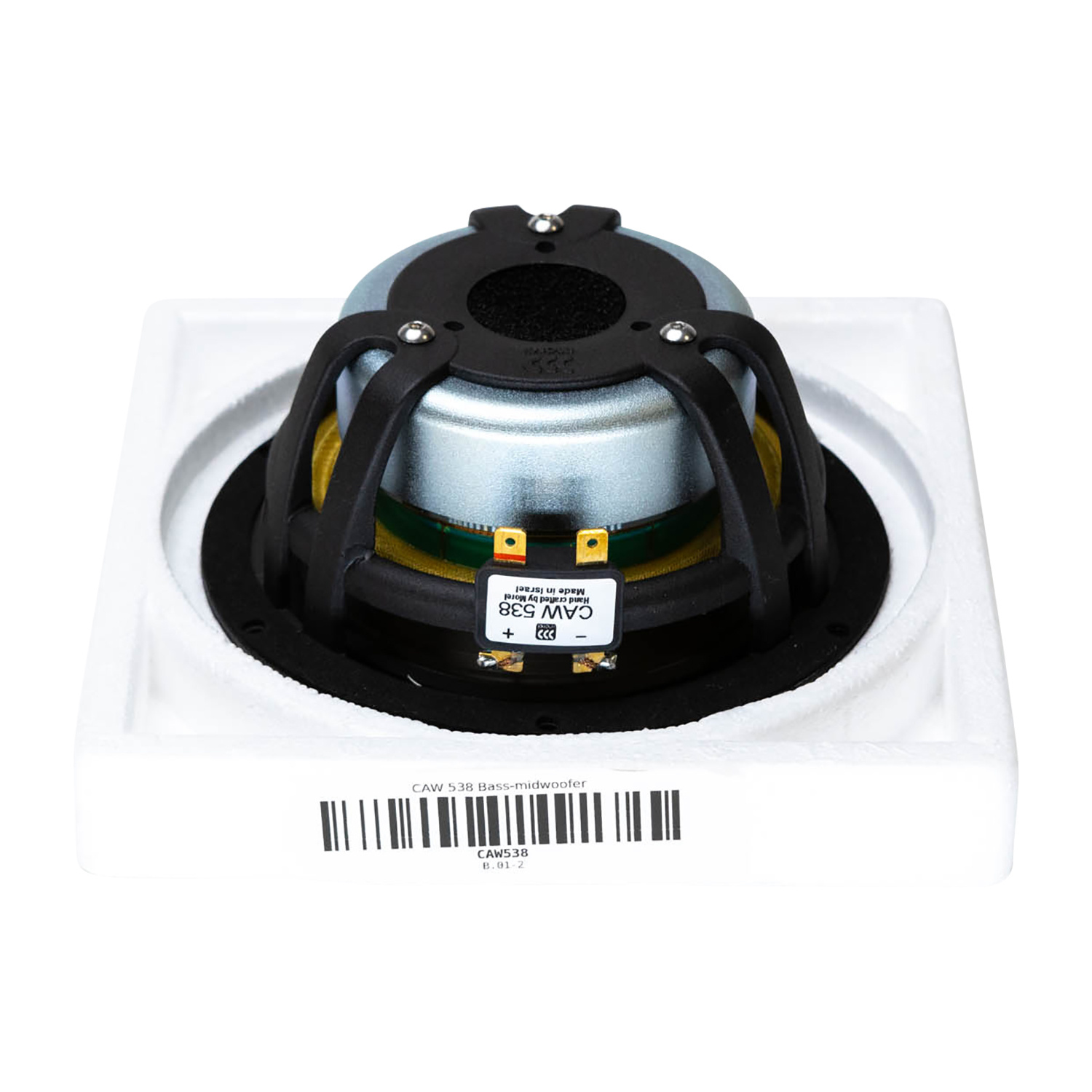

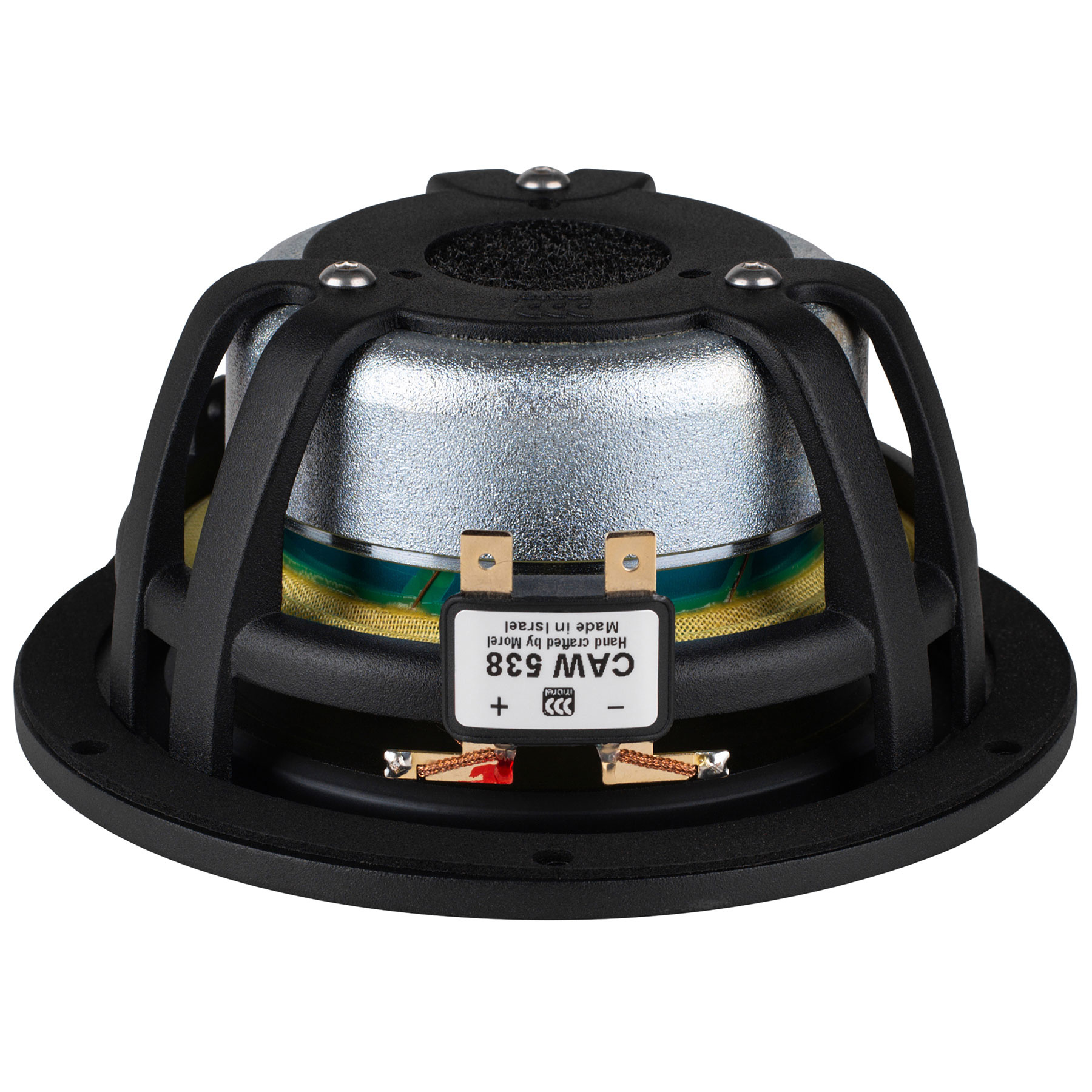

        Morel Classic Advanced CAW 538 5" Woofer

        2 reviews
        Brand: Morel
        Show all Bass-mid woofer
        5" | 8 Ω
        Classic Advanced CAW 538 5" Woofer
        Classic Advanced CAW 538 5" Woofer
        Classic Advanced CAW 538 5" Woofer
        Classic Advanced CAW 538 5" Woofer
        Classic Advanced CAW 538 5" Woofer
        Classic Advanced CAW 538 5" Woofer
        € 123,93€ 149,95 2 In stock
        • -5% Order 4 for only € 142,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • 24h express shipping available
        • Ordered now, shipped today
        • In-house technical support
        • 45 days worry-free returns
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Classic Advanced CAW 538 5" Woofer
        Classic Advanced CAW 538 5" Woofer
        Classic Advanced CAW 538 5" Woofer
        Classic Advanced CAW 538 5" Woofer
        Classic Advanced CAW 538 5" Woofer
        Classic Advanced CAW 538 5" Woofer

        Product description

        The Classic Advanced line of woofers is based on Morel's classic line - the renowned MW series. This woofer features an aerodynamic Uniflow™ open chassis, large diameter spider, reinforced ferrite magnets resulting in higher power handling, and low resonance frequency and Qts points.



        Highlights

        • Uniflow™ aluminum diecast chassis
        • Large 3" Hexatech™ aluminum voice coil
        • High flux ferrite double magnet system
        • Shallow profile DPC cone
        • High power handling



        Product details

        Morel Classic Advanced CAW 538 5" Woofer



        The Classic Advanced line of woofers is based on Morel's classic line - the renowned MW series. These products have high power handling due to the aerodynamic Uniflow™ open chassis and large diameter spiders. This woofer has reinforced ferrite magnets for the double magnet system delivering higher magnetic flux motor, resulting in a low resonance frequency and Qts points. Latest evolution of Morel's MW-144.

        Show more

        Specifications

        Article number
        CAW 538
        Woofer Series
        Classic Advanced
        Woofer Type
        Midwoofer
        Nominal Diameter
        5"
        Power Handling (RMS)
        150 Watts
        Power Handling (max)
        1,000 Watts
        Impedance (Z)
        8 ohms
        Sensitivity
        86 dB 2.83V/1m
        Frequency Response
        35 to 3,500 Hz
        Voice Coil Diameter
        3"
        DC Resistance (Re)
        5.2 ohms
        Voice Coil Inductance (Le)
        0.47 mH
        Resonant Frequency (Fs)
        49 Hz
        Mechanical Q (Qms)
        1.83
        Electromagnetic Q (Qes)
        0.48
        Total Q (Qts)
        0.38
        Diaphragm Mass Inc. Airload (Mms)
        14g
        Mechanical Compliance of Suspension (Cms)
        0.72 mm/N
        Surface Area of Cone (Sd)
        90 cm²
        Volume of Displacement (Vd)
        0.027 L
        BL Product (BL)
        6.9 Tm
        Compliance Equivalent Volume (Vas)
        0.29 ft.³
        Maximum Linear Excursion (Xmax)
        3 mm
        Driver's Mechanical Losses (Rms)
        2.39 N·s/m
        Cone / Diaphragm Material
        Poly Composite
        Surround Material
        Rubber
        Voice Coil Wire Material
        Aluminum
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        5.3"
        Overall Depth
        2.56"
        Baffle Cutout Diameter
        4.76"
        # Mounting Holes
        6
        Mounting Hole Diameter
        3 mm
        Sealed Volume
        0.08 ft.³
        Sealed F3
        103 Hz
        Vented Volume
        0.19 ft.³
        Vented F3
        57 Hz
