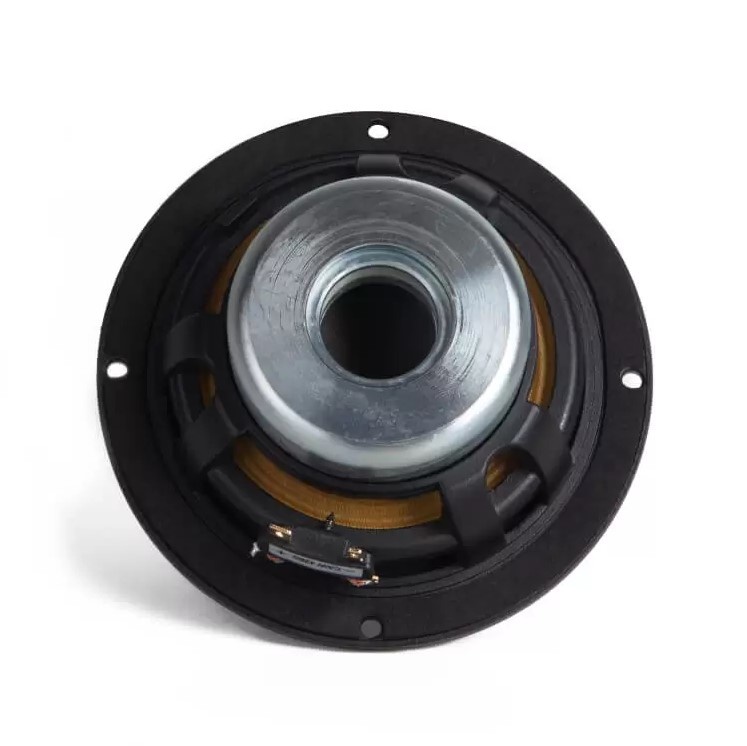

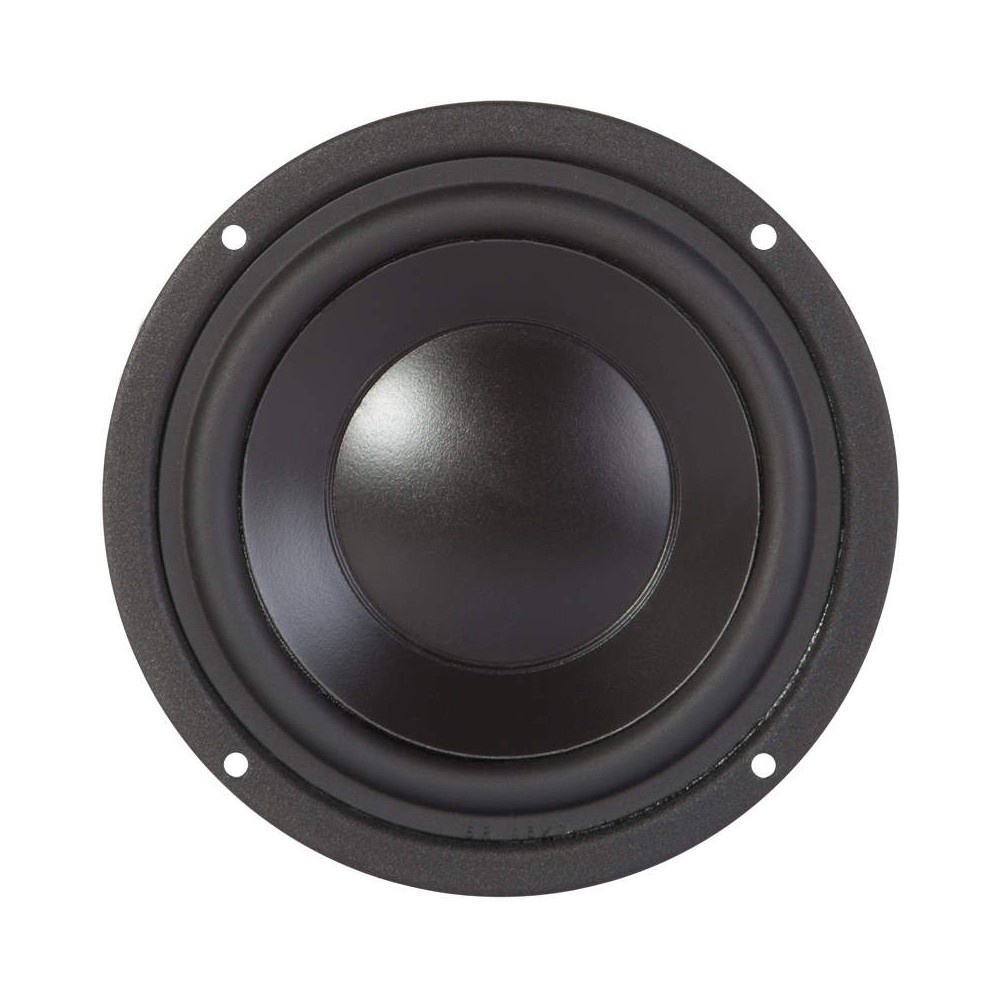

Morel Classic Advanced CAW 428D 4" Woofer

Brand: Morel

Show all Bass-mid woofer

Compare

4" | 8 Ω

Classic Advanced CAW 428D 4" Woofer

Classic Advanced CAW 428D 4" Woofer

Classic Advanced CAW 428D 4" Woofer

Classic Advanced CAW 428D 4" Woofer

Classic Advanced CAW 428D 4" Woofer

Classic Advanced CAW 428D 4" Woofer

Classic Advanced CAW 428D 4" Woofer

Classic Advanced CAW 428D 4" Woofer

€ 132,19€ 159,95 2 In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

The Classic Advanced woofers are based on Morel's renowned MW series. This woofer features an aerodynamic Uniflow™ open chassis, large diameter spider, powerful neodymium magnets, and low resonance frequency and Qts point.

Highlights

2.1″ Large Hexatech™ Aluminum voice coil
Uniflow™ Aluminium diecast chassis
Neodymium magnet system
Shallow profile D.P.C cone
High excursion
High power handling
Improved parameters

Product details

Morel Classic Advanced CAW 428D 4" Woofer

The Classic Advanced woofers is based on Morel's renowned MW series. These products have high power handling due to the aerodynamic Uniflow™ open chassis and large diameter spider. This woofer uses a powerful neodymium magnet system, delivering higher magnetic flux and resulting in a low resonance frequency and Qts point.

Specifications

Article number: CAW 428D
Woofer Series: Classic Advanced Serie
Woofer Type: Midwoofer
Nominal Diameter: 4"
Power Handling (RMS): 150 Watts
Power Handling (max): 800 Watts
Impedance (Z): 8 ohms
Sensitivity: 88 dB 2.83V/1m
Frequency Response: 100 to 5000 Hz
Voice Coil Diameter: 54 mm
DC Resistance (Re): 5.5 ohms
Voice Coil Inductance (Le): 0.33 mH @ 1KHz
Resonant Frequency (Fs): 65 Hz
Mechanical Q (Qms): 1.5515
Electromagnetic Q (Qes): 0.427
Total Q (Qts): 0.33
Diaphragm Mass Inc. Airload (Mms): 5.2 g
Mechanical Compliance of Suspension (Cms): 0.9115 mm/N
Surface Area of Cone (Sd): 57 cm²
BL Product (BL): 5.24 N.A
Compliance Equivalent Volume (Vas): 5.1 Lt
Maximum Linear Excursion (Xmax): ±4 mm
Driver's Mechanical Losses (Rms): 1.37 Kg/s
Cone / Diaphragm Material: Damped Polymer Composite
Surround Material: Rubber
Voice Coil Wire Material: Hexatech™ Aluminum
Voice Coil Former: Aluminum
Basket / Frame Material: Uniflow™ Aluminium diecast chassis
Magnet Material: Neodymium
Overall Outside Diameter: 118.5mm (4.66") x 45mm (1.77") (DxH)
# Mounting Holes: 4
Mounting Hole Diameter: 3 mm

Data sheet
