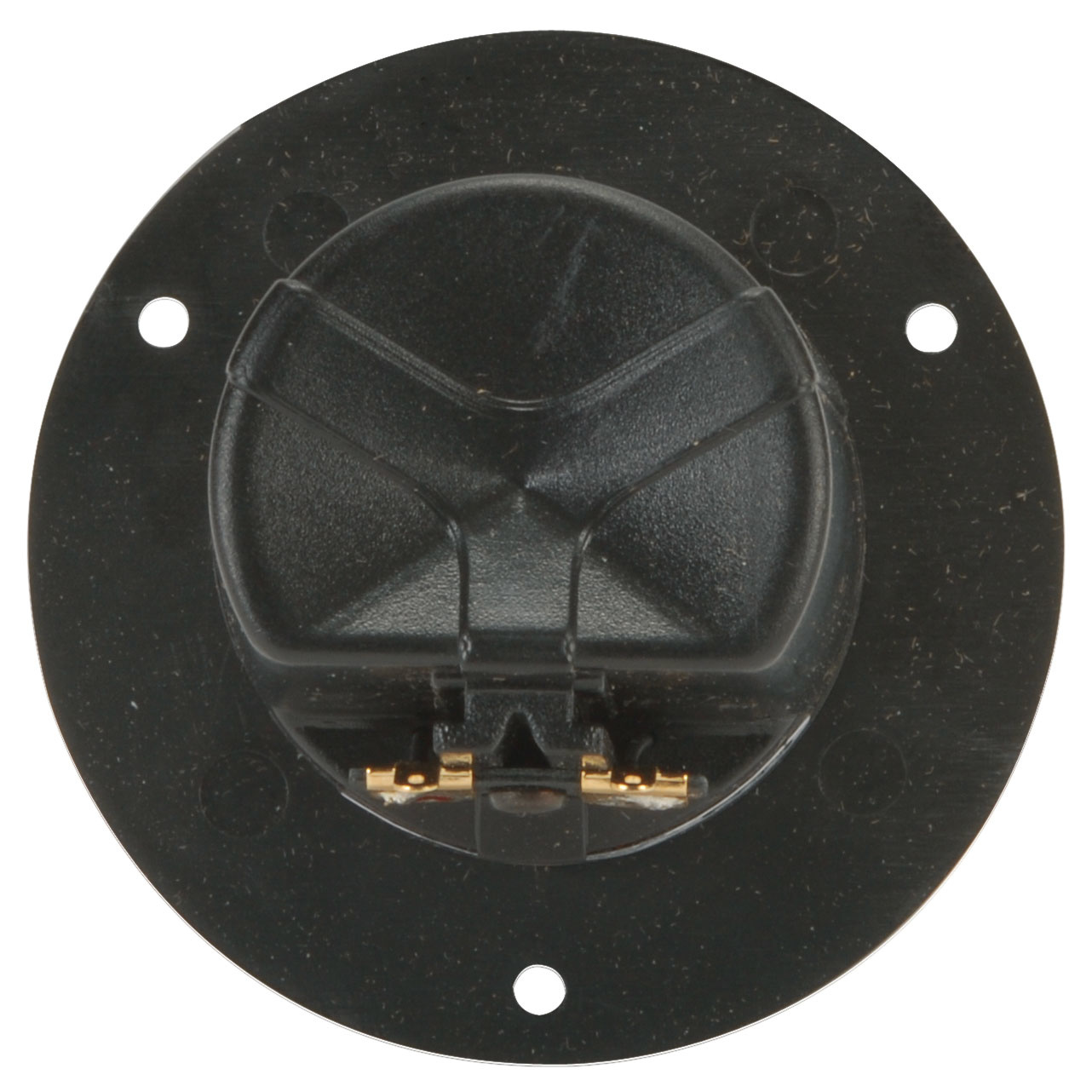

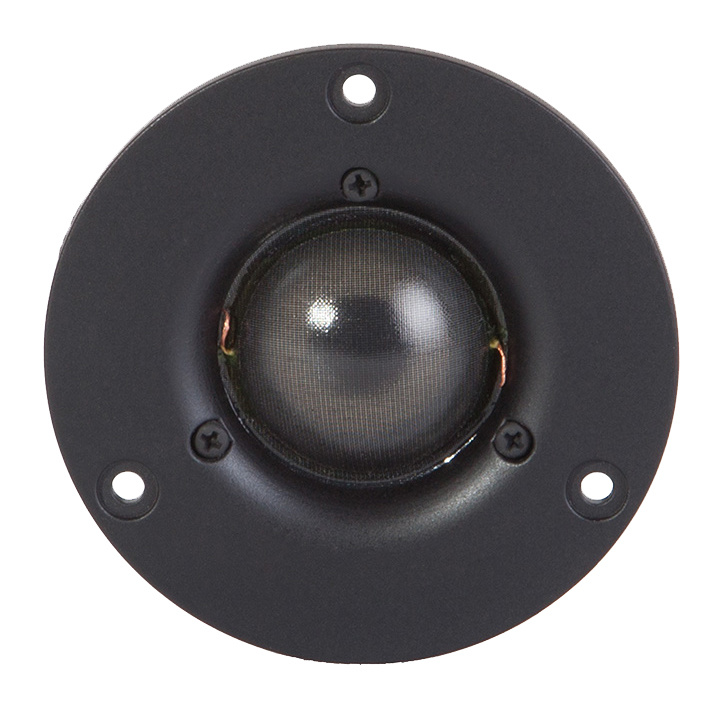

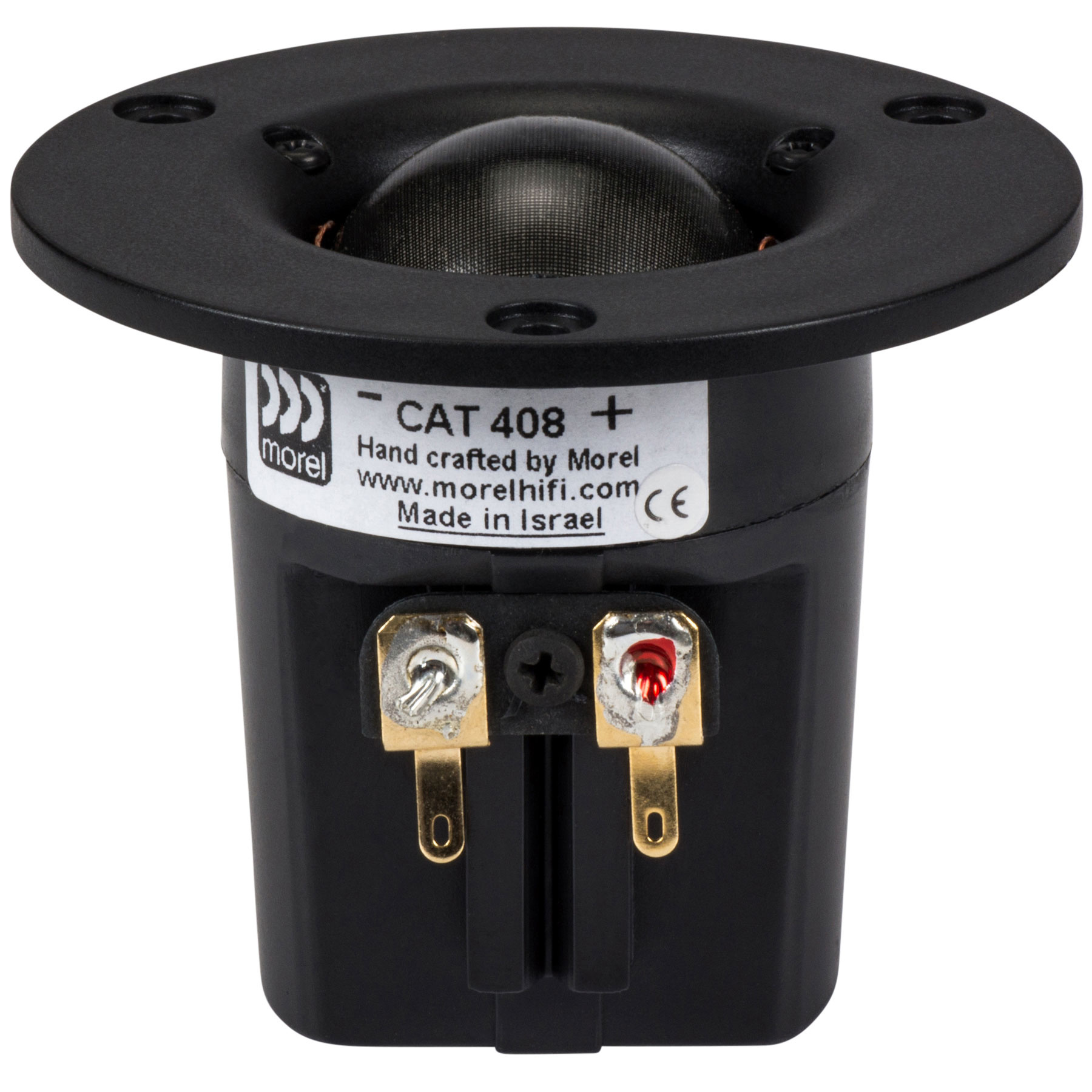

Morel Classic Advanced CAT 408 1" Dome Tweeter

In stock

  • Article code: CAT 408
  • Stock: 2 In stock

The CAT408 is virtually identical to the superb MDT-39 but with one very important difference: it employs Morel's Hexatech aluminum voice coil technology to improve efficiency and greatly improve power handling (to 120 watts RMS!).

€ 72,45 Incl. 21% VAT

  • Buy 4 for €68,83 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Morel Classic Advanced CAT 408 1" Dome Tweeter

The CAT408 is virtually identical to the superb MDT-39 but with one very important difference: it employs Morel's Hexatech aluminum voice coil technology to improve efficiency and greatly improve power handling (to 120 watts RMS!).



Highlights

  • 72 mm compact faceplate
  • Large Hexatech™ aluminum voice coil
  • Neodymium magnet system
  • Ferrofluid cooled
  • High power handling



Product details

Morel Classic Advanced CAT 408 1" Dome Tweeter



The CAT408 is virtually identical to the superb MDT-39 but with one very important difference: it employs Morel's Hexatech aluminum voice coil technology to improve efficiency and greatly improve power handling (to 120 watts RMS!). Its small faceplate allows very close placement to a woofer or midrange for improved sound integration. Fully shielded for A/V use.

Specifications

Specifications for: Classic Advanced CAT 408 1" Dome Tweeter

  • Tweeter Type Driver type for example: soft domes piezo, ribbon, AMT or bullet tweeter etc. Soft Dome
  • Tweeter Series Specific tweeter production line of the manufacturer. Classic Advanced Series
  • Cone / Dome Diameter Nominal diameter of the dome/cone, measured in inches. 1"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 120 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged.
  • View all specifications
  • Impedance 8 ohms
  • Sensitivity 89 dB 1W/1m
  • Frequency Response 2,200 to 20,000 Hz
  • Resonant Frequency (Fs) 750 Hz
  • DC Resistance (Re) 5.2 ohms
  • Voice Coil Inductance (Le) 0.09 mH
  • Mechanical Q (Qms) 0.87
  • Electromagnetic Q (Qes) 1.3
  • Total Q (Qts) 0.52
  • Overall Outside Diameter 2.83" x 2.83"
  • Cutout Diameter 1.73"
  • Depth 2.36"
  • Angle
  • Mounting Type
  • Exit Diameter
  • Diaphragm Material
  • Recommended cut frequency
