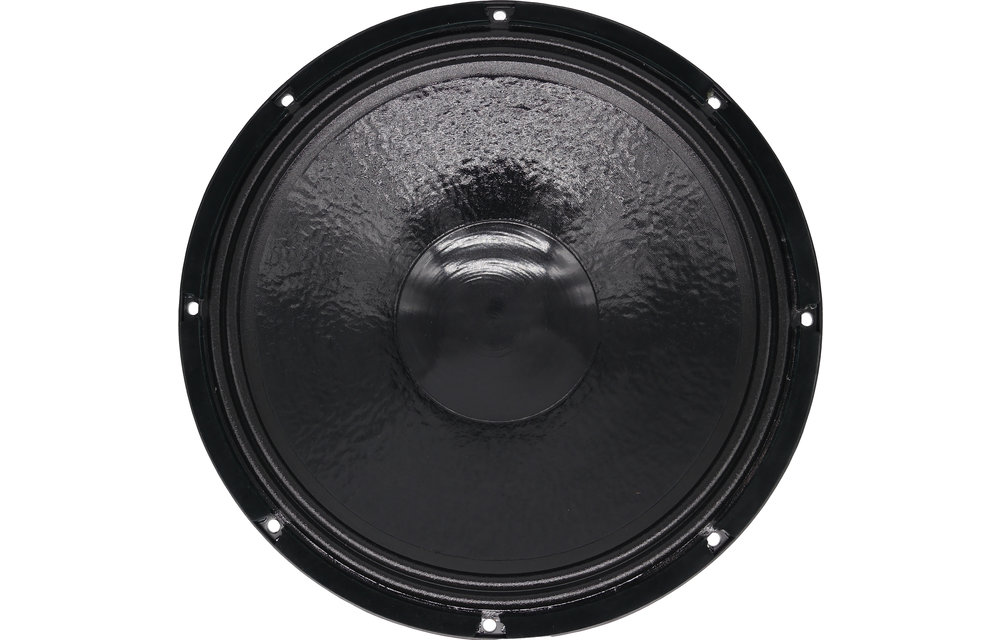

      Monacor SPH-450TC 18'' DVC Subwoofer

      € 698,31€ 844,95 1 In stock
      • -5% Order 4 for only € 802,70 per piece

      Buy now, pay later

      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      An extremely powerful dual voice coil subwoofer that is capable of incredible bass reproduction in a relatively small cabinet making it suitable for both PA and home theater use.



      Highlights

      • Dual voice coil
      • Relatively small volume requirements
      • excellent dynamic response
      • Extra long excursion



      Product details

      Monacor SPH-450TC 18'' DVC Subwoofer



      The SPH-450TC has a non-pressed paper cone manufactured with a new approach to cone geometry for highest rigidity and excellent dynamic response. The powerful motor structure is extensively ventilated and thanks to its large magnetic field and double centering spider it can handle extra-long excursion without audible distortion.



      The subwoofer was designed with massive output in mind, resulting in a woofer that is capable of incredible sound pressure levels at the lowest of frequencies in relatively small cabinets.

      Show more

      Specifications

      Article number
      SPH-450TC
      Woofer Type
      Subwoofer
      Nominal Diameter
      18''
      Power Handling (RMS)
      2 x 350 Watts
      Power Handling (max)
      2 x 500 Watts
      Impedance (Z)
      4+4 Ohm
      Sensitivity
      93 dB 1W/m
      Frequency Response
      20-500 Hz
      Voice Coil Diameter
      99.3 mm
      Magnet Weight
      5.7 kg
      DC Resistance (Re)
      2 x 3.7 Ohms / 1 x 7.4 Ohms
      Voice Coil Inductance (Le)
      2 x 1.1 mH/1 x 4.6 mH
      Resonant Frequency (Fs)
      20 Hz
      Mechanical Q (Qms)
      2.97
      Electromagnetic Q (Qes)
      0.27
      Total Q (Qts)
      0.25
      Diaphragm Mass Inc. Airload (Mms)
      305 g
      Mechanical Compliance of Suspension (Cms)
      0.22 mm/N
      Surface Area of Cone (Sd)
      1,250 cm2
      BL Product (BL)
      32.40 Tm
      Compliance Equivalent Volume (Vas)
      480 l
      Maximum Linear Excursion (Xmax)
      12.9 mm
      Cone / Diaphragm Material
      Paper
      Surround Material
      Cloth
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Aluminum
      Dual Voice Coil
      Yes
      Basket / Frame Material
      Aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      460 mm
      Overall Depth
      220 mm
      Baffle Cutout Diameter
      425 mm
      # Mounting Holes
      8
      Mounting Hole Diameter
      8.5 mm
