      Monacor SPH-300KE 12" Kevlar Cone Woofer 8 Ohm

      € 181,78€ 219,95 2 In stock
      • -5% Order 4 for only € 208,95 per piece

      Buy now, pay later

      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      High-end woofer with modern looks thanks to the kevlar cone. Designed for woofer application in large multi-way designs or subwoofer applications in both vented and sealed enclosures



      Highlights

      • Kevlar cone
      • Low loss T/S parameters
      • High excursion capabilities



      Product details

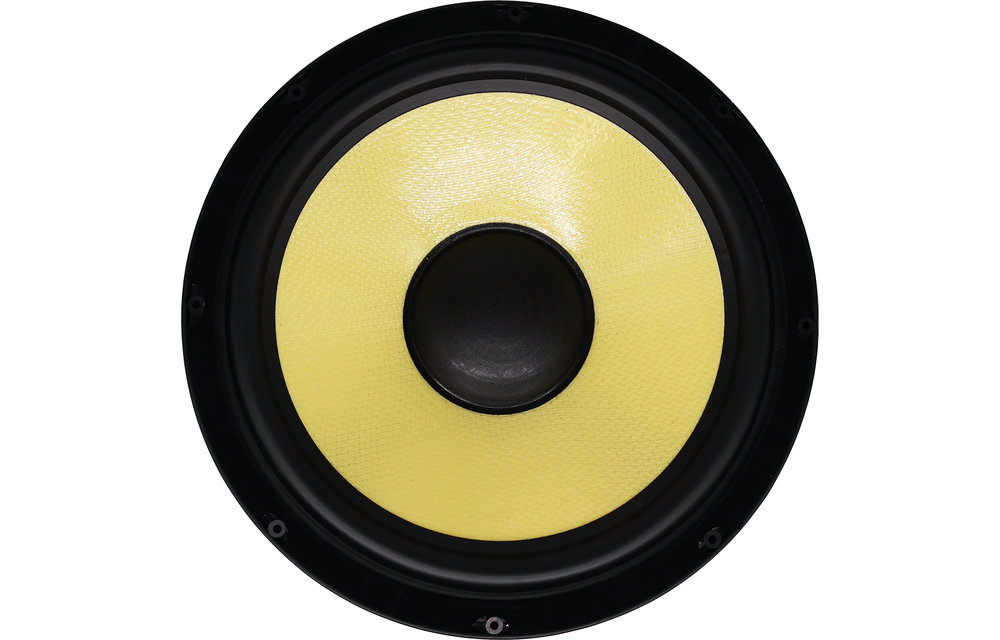

      Monacor SPH-300KE 12" Kevlar Cone Woofer 8 Ohm



      The Monacor SPH-300KE is a very competent woofer with modern engineering and looks thus making it very suitable as the woofer in high-end multi-way speakers or a compact subwoofer. The beautiful finely woven kevlar cone draws plenty of attention and its performance won’t disappoint the listener either. The low loss T/S parameters are tailored towards bass-reflex designs, meaning that deep bass reproduction is possible from vented enclosures but a simple sealed enclosure will still reproduce impressive low-end.

      Show more

      Specifications

      Article number
      SPH-300KE
      Woofer Type
      Woofer
      Nominal Diameter
      12''
      Power Handling (RMS)
      120 Watts
      Power Handling (max)
      200 Watts
      Impedance (Z)
      8 Ohms
      Sensitivity
      90 dB 1W/m
      Frequency Response
      22-2,000 Hz
      Voice Coil Diameter
      65.5 mm
      Magnet Weight
      1.2 kg + 79 g
      DC Resistance (Re)
      6.2 mH
      Resonant Frequency (Fs)
      22 Hz
      Mechanical Q (Qms)
      4.15
      Electromagnetic Q (Qes)
      0.36
      Total Q (Qts)
      0.33
      Diaphragm Mass Inc. Airload (Mms)
      65 g
      Mechanical Compliance of Suspension (Cms)
      0.81 mm/N
      Surface Area of Cone (Sd)
      496 cm2
      BL Product (BL)
      12.50 Tm
      Compliance Equivalent Volume (Vas)
      250 l
      Maximum Linear Excursion (Xmax)
      6.5 mm
      Cone / Diaphragm Material
      Kevlar
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      glass fiber
      Basket / Frame Material
      Aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      309 mm
      Overall Depth
      130 mm
      Baffle Cutout Diameter
      272 mm
      # Mounting Holes
      8
      Mounting Hole Diameter
      5.5 mm

      Show more
