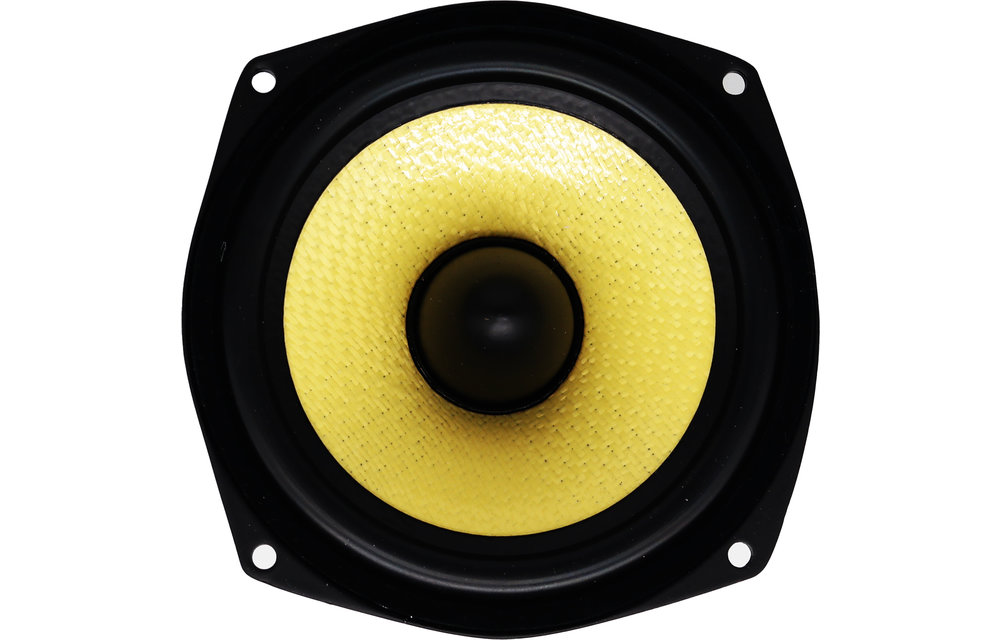

      Monacor SPH-135KEP 5-1/4" Kevlar Cone Midwoofer 8 Ohm

      € 107,40€ 129,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €123,45 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      A high-tech kevlar cone woofer ideally suited as a midwoofer in two-way speakers or midrange driver in high-end multi-way speakers.



      Highlights

      • Kevlar cone
      • Phase plug for optimizing radiation pattern
      • Designed for maximum vocal clarity



      Product details

      Monacor SPH-135KEP 5-1/4" Kevlar Cone Midwoofer 8 Ohm



      The Monacor SPH-135KEP is optimized for maximum vocal clarity between 200 Hz and 4,000 Hz. This is done by the beautiful kevlar cone with a phase plug in the middle. This way the radiation pattern is optimized, controlled and tailored in such a way that it is easy to cross this woofer over to a tweeter.

      Specifications

      Article number
      SPH-135KEP
      Woofer Type
      Midwoofer
      Nominal Diameter
      5.25''
      Power Handling (RMS)
      50 Watts
      Power Handling (max)
      80 Watts
      Impedance (Z)
      8 Ohms
      Sensitivity
      89 dB 1W/m
      Frequency Response
      45-4,000 Hz
      Voice Coil Diameter
      35.5 mm
      Magnet Weight
      550 g + 17 g
      DC Resistance (Re)
      6 Ohms
      Voice Coil Inductance (Le)
      0.75 mH
      Resonant Frequency (Fs)
      45 Hz
      Mechanical Q (Qms)
      5.54
      Electromagnetic Q (Qes)
      0.32
      Total Q (Qts)
      0.30
      Diaphragm Mass Inc. Airload (Mms)
      10 g
      Mechanical Compliance of Suspension (Cms)
      1.23 mm/N
      BL Product (BL)
      7.50 Tm
      Compliance Equivalent Volume (Vas)
      15.5 l
      Maximum Linear Excursion (Xmax)
      3.25 mm
      Cone / Diaphragm Material
      Kevlar
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Kapton
      Basket / Frame Material
      Aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      133 x 133 mm
      Overall Depth
      75 mm
      Baffle Cutout Diameter
      122 mm
      # Mounting Holes
      4
      Mounting Hole Diameter
      4.5 mm
