Monacor MRH-83 242 x 198mm constant directivity horn 1-3/8"- 18 TPI

Name: Monacor MRH-83 242 x 198mm constant directivity horn 1-3/8"- 18 TPI
Brand: Monacor
Price: 15.95 EUR
Availability: InStock

0 reviews

Brand: Monacor

Show all Accessories

Compare

MRH-83 242 x 198mm constant directivity horn 1-3/8"- 18 TPI

€ 13,18€ 15,95 4 In stock: delivery time 1-4 business days

Shipping always fully insured and with track & trace
Low international shipping rates
Same day shipping*
In-house technical support

Product description

242x198mm lightweight plastic constant directivity horn. With the standard 35mm thread and 25mm throat.

Highlights

1’’ throat diameter
35 mm (1⅜") standard thread
CD design (constant directivity)

Product details

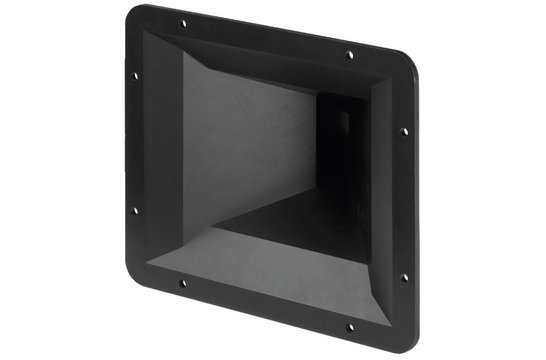

Monacor MRH-83 242x198mm constant directivity horn 1-3/8"- 18 TPI

The Monacor MRH-83 is a constant directivity horn made out of plastic, thus keeping the weight down. It has an effective throat diameter of 25mm and uses the standard 35mm thread to attach to most of the available compression drivers out there. Measuring 242x198mm, it provides useful acoustical loading down to 1,800Hz.

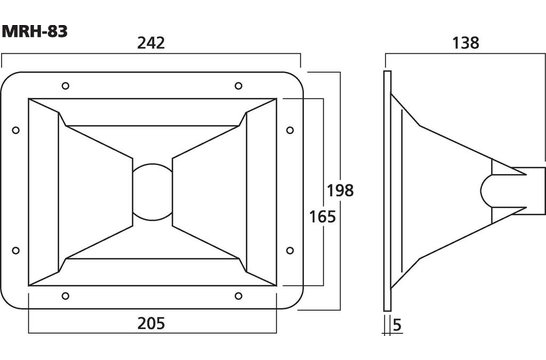

Dimensions: 242 x 198 x 138 (W x H x D)

Cutoutdimensions: 205 x 165 (W x H)

Radiationangle: 60°/90° (vert./hor.)
