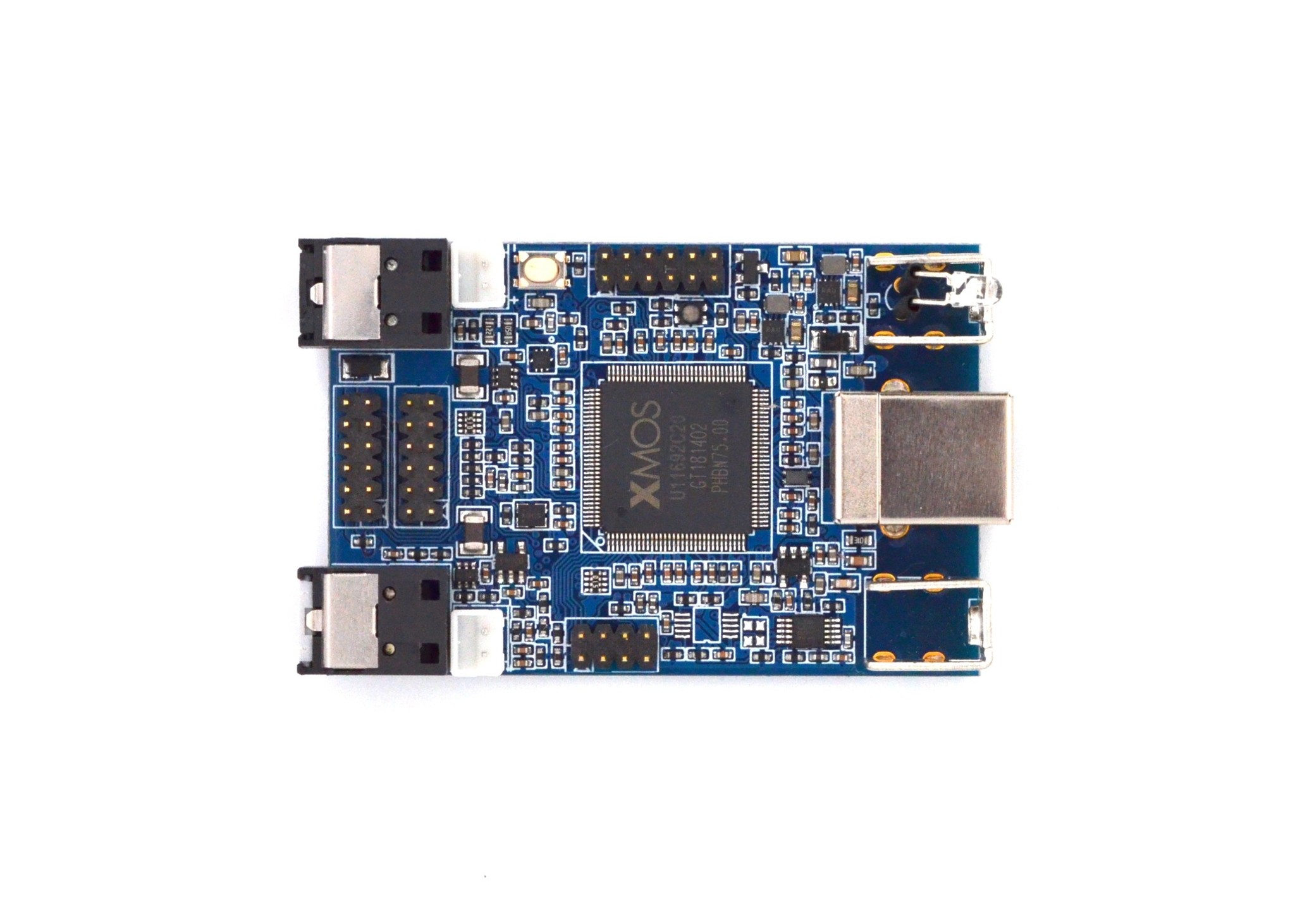

    miniDSP MCHStreamer Multi-Channel USB Interface Kit

    € 179,95 >10 In stock: delivery time 1-4 business days
    The MCH-Streamer is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages miniDSP's XMOS expertise. Packaged on a tiny 40x62mm PCB, the MCHStreamer is a perfect fit for OEM/DIY integration or for Research &... Show more
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    The MCH-Streamer is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages miniDSP's XMOS expertise. Packaged on a tiny 40x62mm PCB, the MCHStreamer is a perfect fit for OEM/DIY integration or for Research & Development applications.



    Hightlights

    • Multi-channel USB audio interface (up to 24x24)
    • Wide range of digital IO format depending on the loaded firmware: TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats
    • Native support up to 32bit / 384kHz
    • PDM to I2S converter for up to 16 MEMS microphones
    • USB 2.0 High speed and Audio class 2.0 device / Asynchronous USB synchronization
    • OS compatible: Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle)
    • Toslink (optical) and SPDIF (coax) transmitter and receiver
    • Flexible board powering option: USB powered or External DC input power



    Product Specifications

    MCHStreamer Multi-Channel USB Interface Kit



    The MCH-Streamer is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages miniDSP's XMOS expertise. Packaged on a tiny 40x62mm PCB, the MCHStreamer is a perfect fit for OEM/DIY integration or for Research & Development applications.



    By loading one of the miniDSP-provided firmware packages, MCHStreamer supports optical TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats. This USB Audio Class 2 (UAC2) compliant interface truly is the swiss-army knife for audio developers looking to provide an audio interface to PC/MAC/Linux, iOS and Android. It even supports format conversion from 16x PDM MEMS microphone to I2S  which makes it a powerful tool for beamforming/voice  algorithm development.



    Product Downloads



    What's in the box?

    • 1 x MCHStreamer board
    • 1 x 1m long USB audio cable
    • 2 x Toslink audio cables
    • 2 x 2x6pin (2mm pitch) header cable harness for I2S In/Out interfacing
    • 1 x Coupon code for access to the Windows ASIO



    Item

    Description

    USB Streaming engine

    XMOS XCore 200 / USB 2.0 full speed - USB Audio class 2.0 compliant

    Drivers

    Driverless interface for Mac OS X v10.6.4 and up

    Free Windows ASIO driver (XP/Vista/7/8/Win10)

    Linux Alsa compliant driver

    Apple IoS (ipad/iphone) using Camera kit - multichannel audio streaming

    Logic Level formats

    SPDIF: Stereo in/out - 24bit up to 192kHz

    I2S: Up to 8ch bidirectional audio - 24/32bit up to 384kHz
    TDM8: Up to 24ch bidirection audio - 44.1/48/88.2/96k
    PDM: Up to 16ch audio recording - 24bit up to 48kHz
    DSD: Up to 8ch DSD64/128/256

    Consult user manual for more details

    Optical input & Output

    Toslink: Stereo support up to 44.1/48/88.2/96/176.4 kHz

    ADAT : 8ch ADAT mode @ 48/44.1k and 4ch ADAT mode @ 96kHz

    Expansion connector

    2 x 12pin, 2mm pitch expansion connector for connectivity to hardware.

    Mounting

    2 x Right Angle brackets allow easy chassis mounting with M3 threaded hole.

    Power supply

    USB powered OR 5Vdc external supply via header - 300mA requirement

    Dimensions (H x W x D) mm

    13 x 40 x 62 mm



    Specifications

    Article number
    MCHStreamer Kit
