        2x4 HD Boxed USB DAC Digital Signal Processor

        2x4 HD Boxed USB DAC Digital Signal Processor

        €259,95

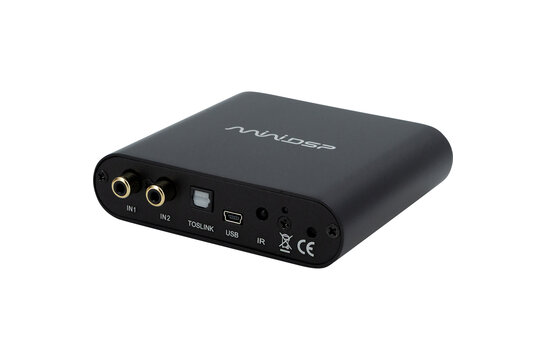

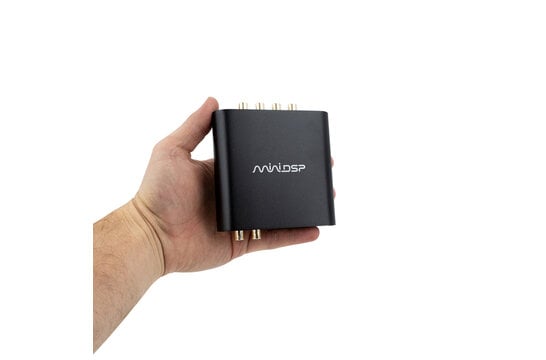

        miniDSP 2x4 HD Boxed USB DAC Digital Signal Processor

        72 reviews
        5 from 5
        72 reviews
        5 stars
        88%
        4 stars
        6%
        3 stars
        3%
        2 stars
        3%
        1 star
        0%
        View all reviews
        Brand: miniDSP
        € 214,83€ 259,95 Out of stock10+ expected on 05-04-2024

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Introducing the upgrade of miniDSP’s best-selling 2x4 digital audio processor: the miniDSP 2x4 HD! This compact powerhouse is fully loaded with miniDSP's well-tested and established audio processing capabilities: adaptable parametric EQ, Butterworth and Linkwitz-Riley crossovers, sophisticated biquad programming, and individual output channel delay. The innovative "one hardware many plugins" concept by miniDSP opens the door to numerous captivating possibilities for future applications! This product comes with a coupon for one free miniDSP plugin download.



        Highlights miniDSP 2x4 HD boxed

        • ADSP21489 400MHz SHARC DSP floating point engine
        • XMOS Xcore200 for USB control and bidirectional audio streaming
        • 24 bit ADC/DAC resolution
        • Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms
        • TOSLINK digital input
        • Unbalanced outputs: Max 2Vrms
        • USB Audio Class 2 Bidirectional streaming with ASIO drivers, driverless under MAC OSx
        • 4 preset configuration, recallable via IR, Software
        • Plug&Play USB driver and real time Software configuration using miniDSP plug-ins
        • Device does not required a PC once configured
        • External single 12V supply



        Product details miniDSP 2x4 HD boxed

        miniDSP 2x4 HD Boxed USB DAC Digital Signal Processor



        400Mhz SHARC-processor: higher precision, dynamic range

        The upgraded onboard 400 MHz Analog Devices SHARC processor also enables substantial processing upgrades previously available only on more expensive platforms. One example is 96 kHz internal processing for true high-resolution audio capability and assignable FIR filter taps for sophisticated equalization, crossover, and room correction capabilities. All to be accessed and programmed with miniDSP’s easy-to-use interface software. The SHARC processor can perform fixed-point as well as floating-point calculations. This makes the miniDSP 2x4 HD Boxed perfect for for a wide range of applications.

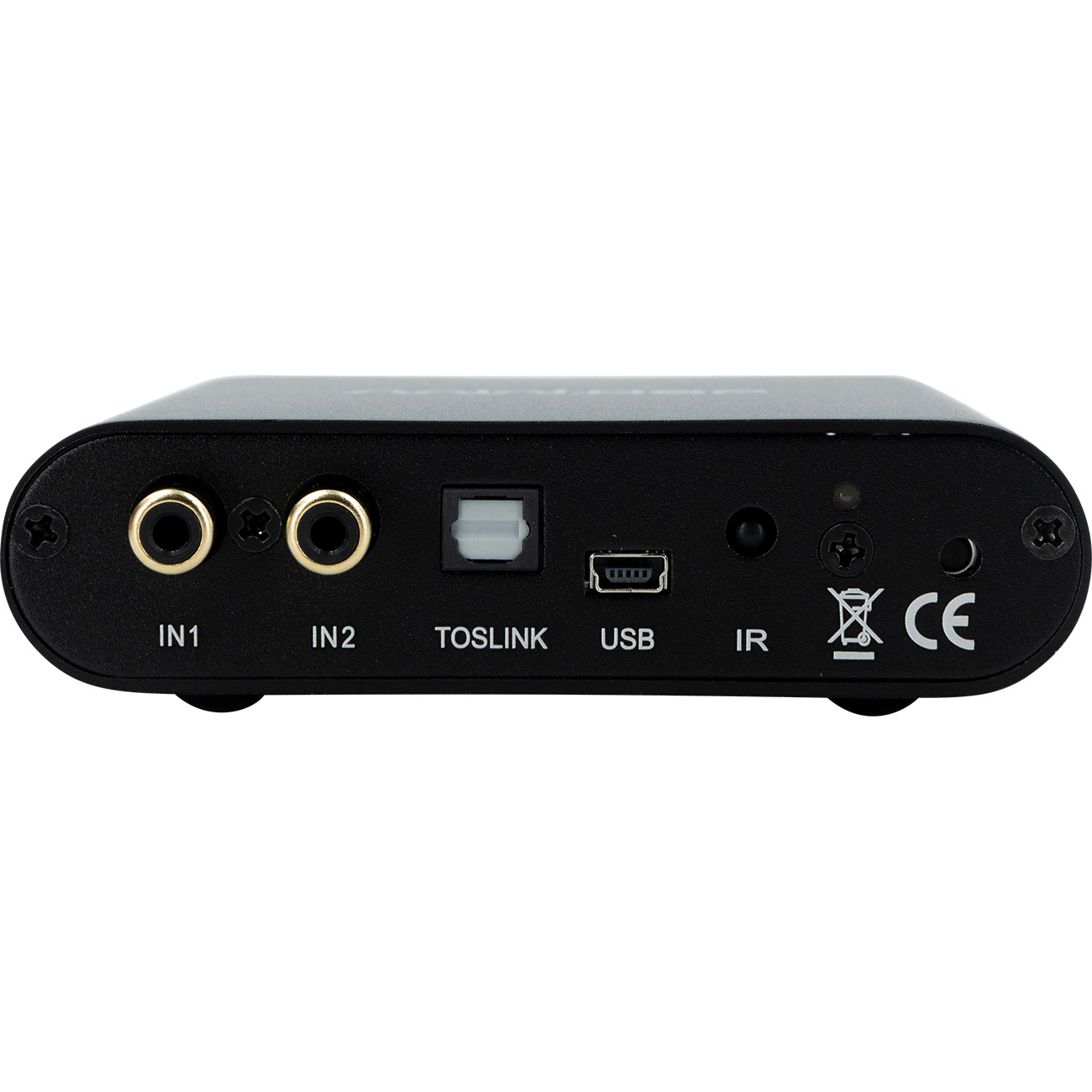

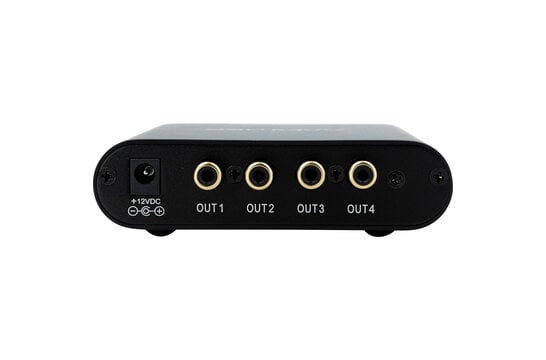

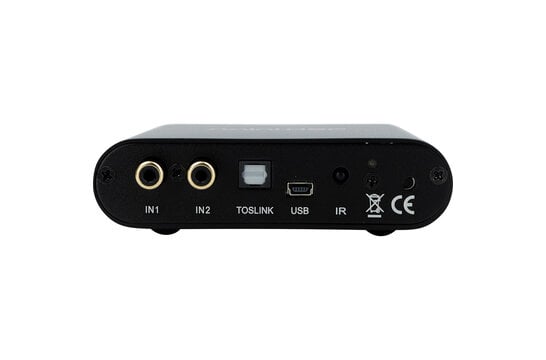

        Next level I/O capabilities

        I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP 2x4 HD boxed will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios — anywhere a compact, simple, yet surprisingly powerful DSP audio processor is needed.



        System Diagram of the 2x4 HD boxed

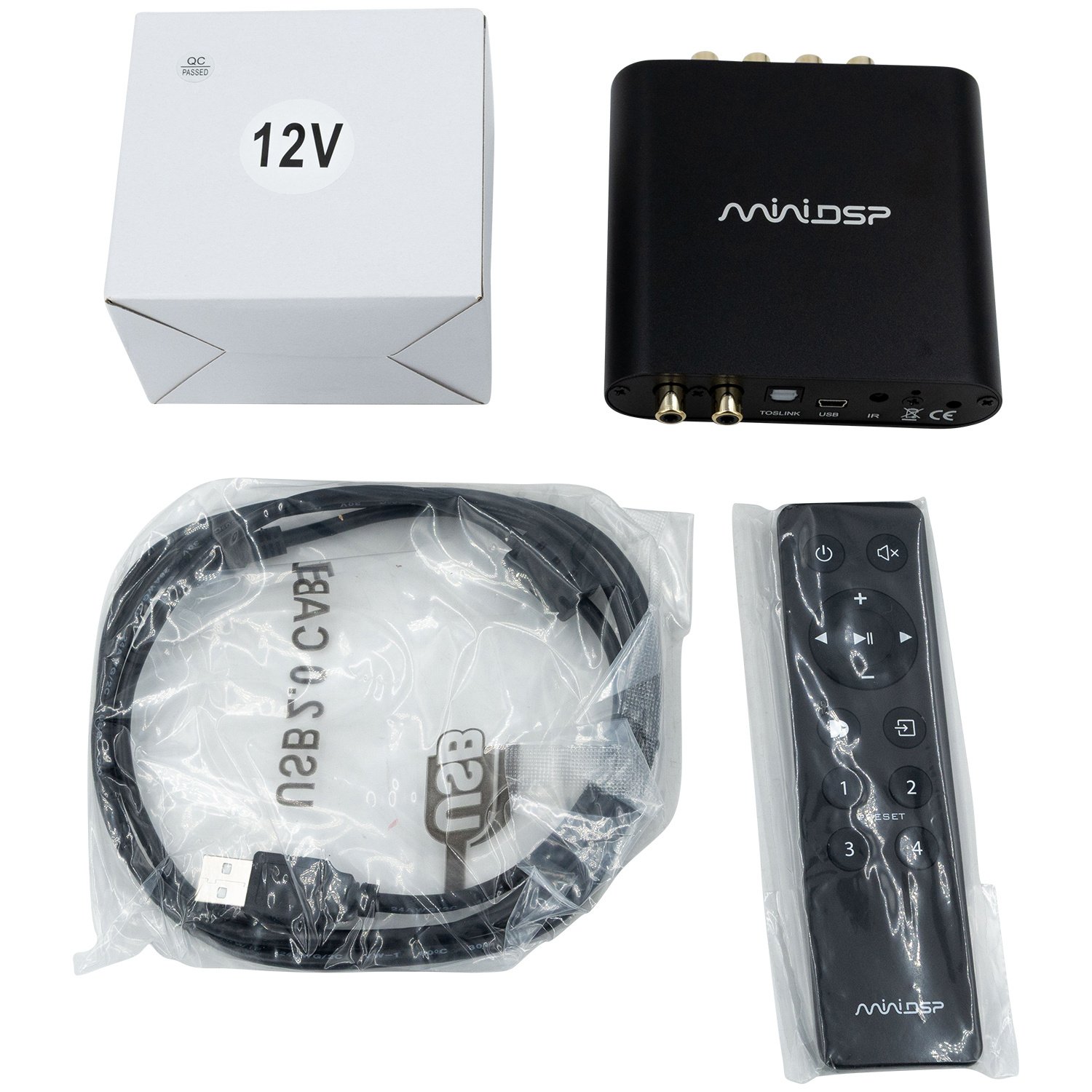

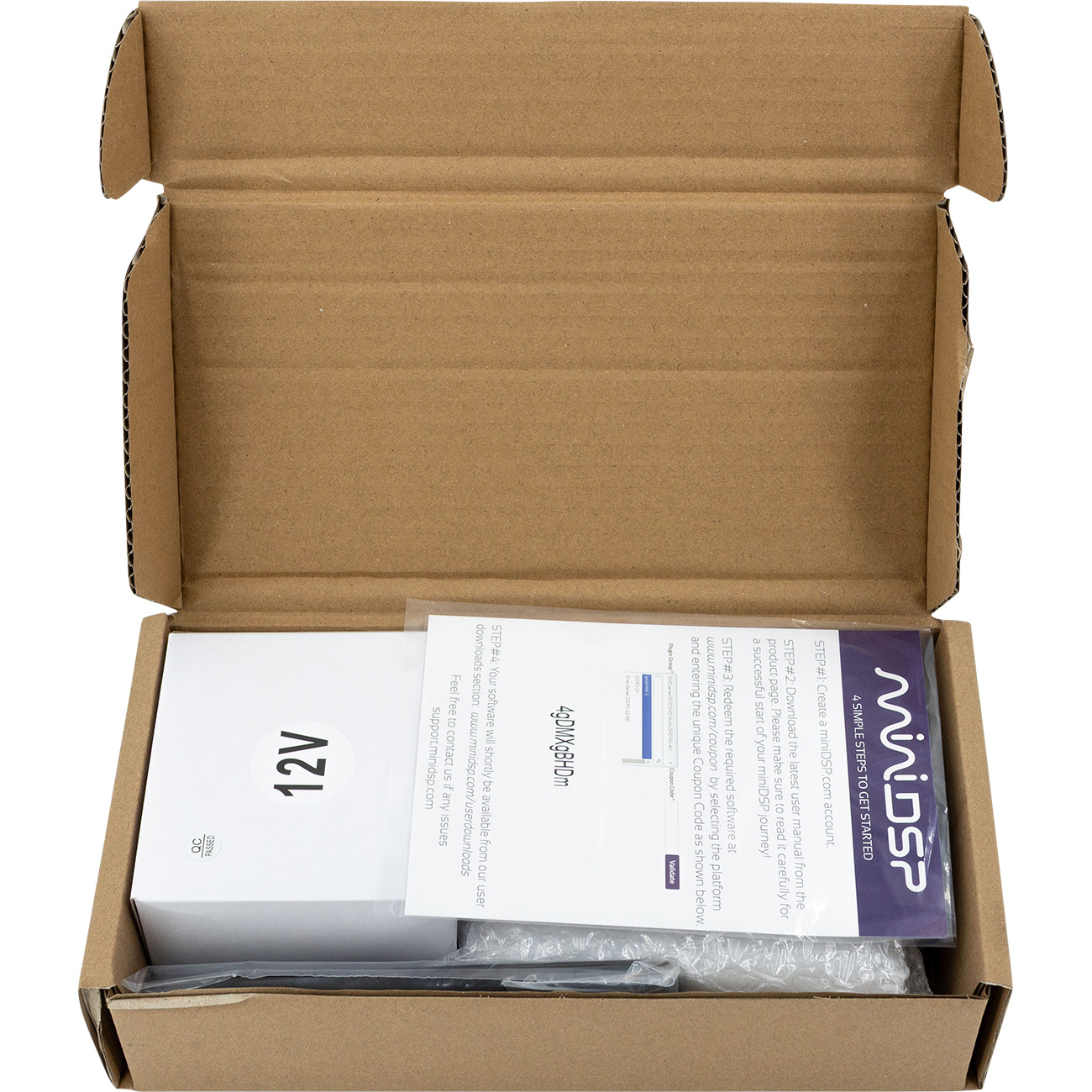

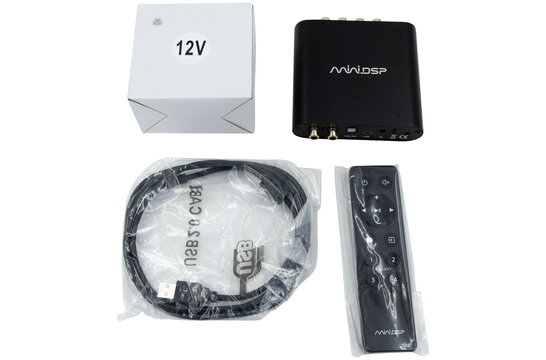

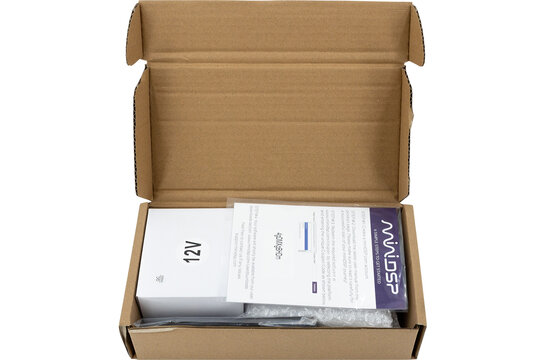

        What's included with this product?

        • 1 x miniDSP 2x4 HD Boxed
        • 1 x infrared remote
        • 1 x shielded mini USB cable
        • 1 x 12V power supply with UK/EU/US/AU plugs
        • 1 x coupon code for miniDSP plugin download



        Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.



        Frequently Asked Questions

        What is the difference between miniDSP 2x4 and miniDSP 2x4 HD?

        The 2x4HD has 10x more processing power, USB audio streaming, and a lot more control features. It's the next-generation platform based on XMOS + SHARC DSP. Please be aware that the miniDSP 2x4 is end of life and will not be manufactured anymore.



        What is the maximum delay for miniDSP 2x4 HD?

        The miniDSP 2x4 HD units have a range of allowable delay values that extends to 80 msec.



        Can I use a RCA to XLR adapter with the 2x4 HD?

        You can indeed build an adapter to use the unbalanced inputs/outputs with balanced connectors. However, please note that this doesn't mean you will be benefited from the advantage of balanced connections (ex. better noise rejection, higher output power). An unbalanced to Balanced conversion is also prone to grounding issues (ground loops). We strongly recommend for that matter to either use an active converter or isolation transformer adaptor.

        Show more

        Specifications

        Article number
        2x4 HD Boxed
        Device type
        Boxed
        Device serie
        miniDSP in a Box
        DSP chip
        Analog Devices ADSP21489
        Processing resolution & sample rate
        32 bit / up to 192 kHz
        Input / ouput configuration
        2 / 4
        Audio input connectivity
        RCA, Stereo USB, Stereo TOSLINK (optical)

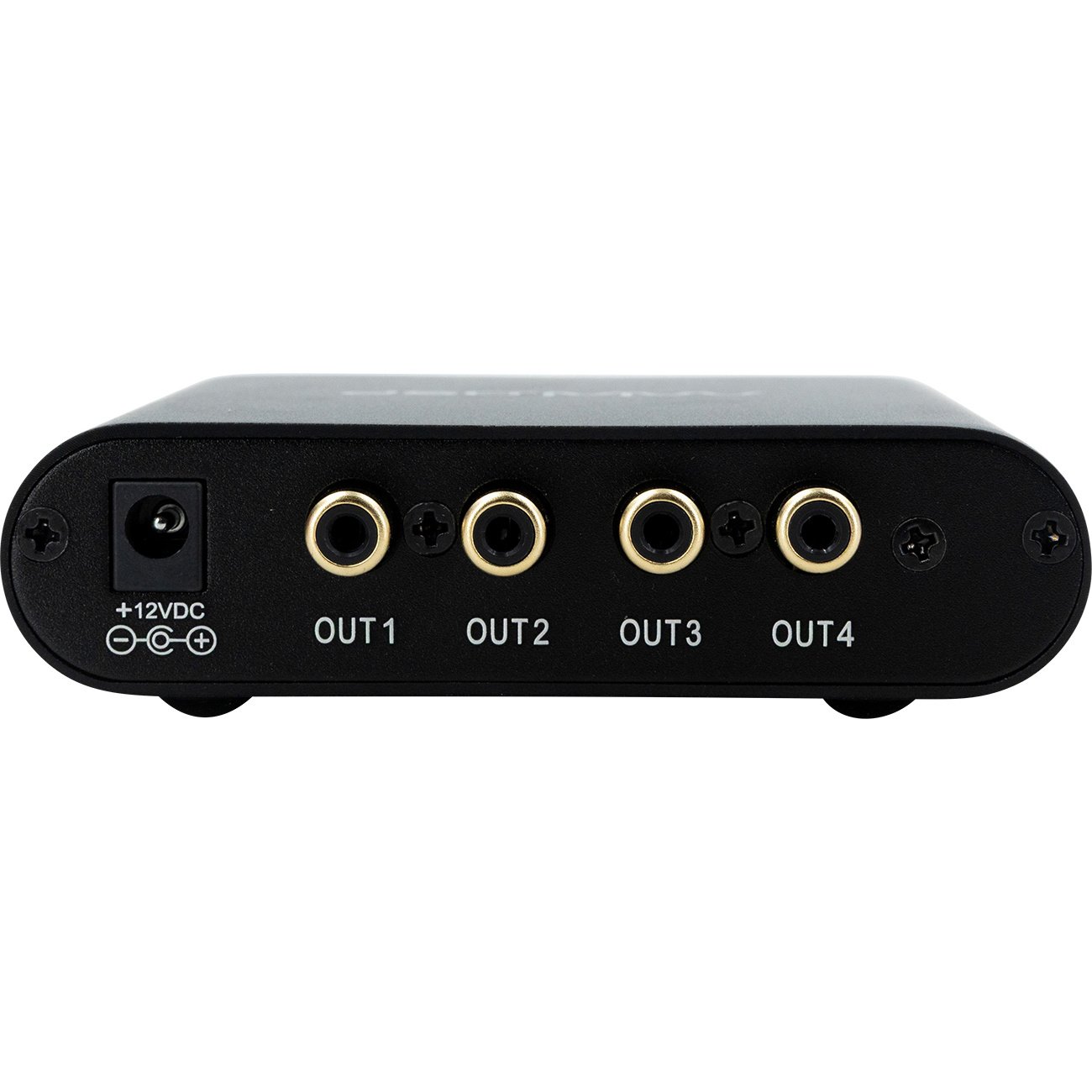

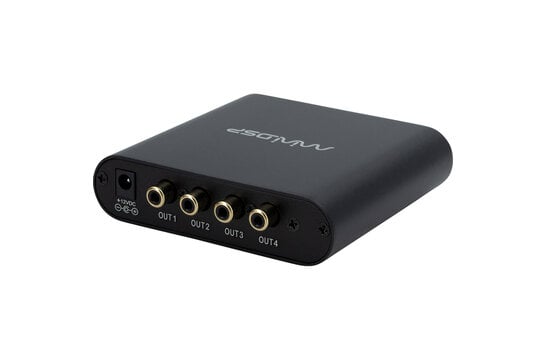

        Audio output connectivity
        RCA
        Max input level
        2 / 4 Vrms (selectable)
        Max output level
        2 V
        Input impedance
        10k ohms
        Output impedance
        560 ohms
        Calibration software
        miniDSP 2x4 HD1 plugin
        IIR
        FIR
        Dirac Live®
        -
        DSP presets
        4
        Impulse response correction
        -
        Infrared remote learning
        UMIK-1 included
        No
        Room EQ wizard support

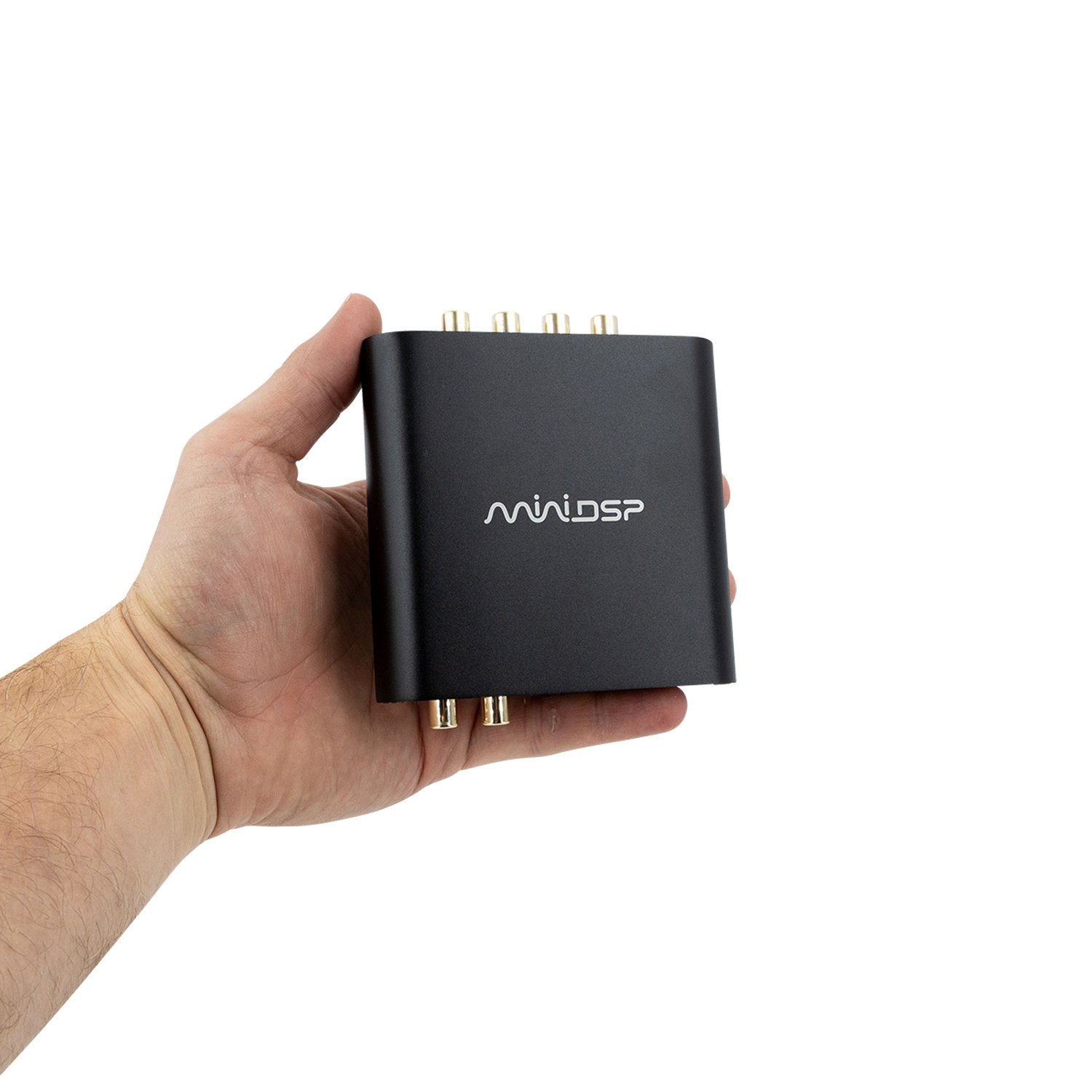

        Dimensions
        119 x 93 x 16 mm
        Power
        12 VDC

        Show more
