      miniDSP 2x4 FLEX DSP audio processor | Balanced (TRS)

      € 619,79€ 749,95 3 In stock: delivery time 1-4 business days
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      miniDSP Flex, 400MHz Sharc DSP audio processor, toolbox for subwoofer or multiway speaker tuning, Optional Dirac Live license for room correction (available via miniDSP), Bluetooth LDAC/APTX/AAC streaming, Flexible I/O versions for unbalanced/balanced/digital connectivity Array.



      Highlights

      • Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP
      • Multi-Core USB Audio processor (XMOS)
      • Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC
      • Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz)
      • Audiophile performance: [email protected](A), THD+N @ -110dB (0.0003%)
      • Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA)
      • Balanced (TRS)
      • USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl)
      • White/Black OLED front panel controller with IR control



      Product details

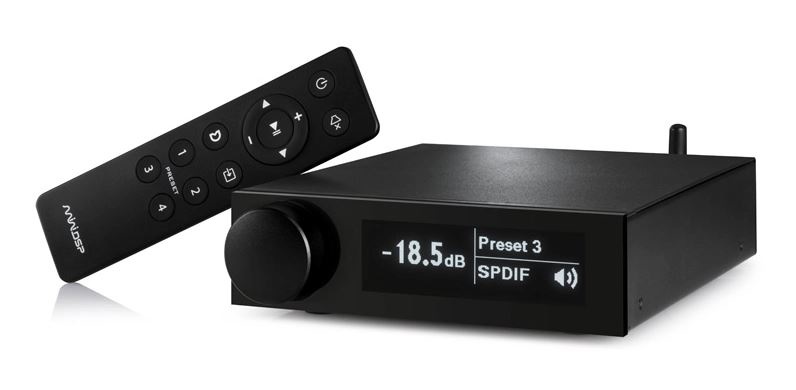

      2x4 FLEX DSP audio processor | Balanced (TRS)



      The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment.

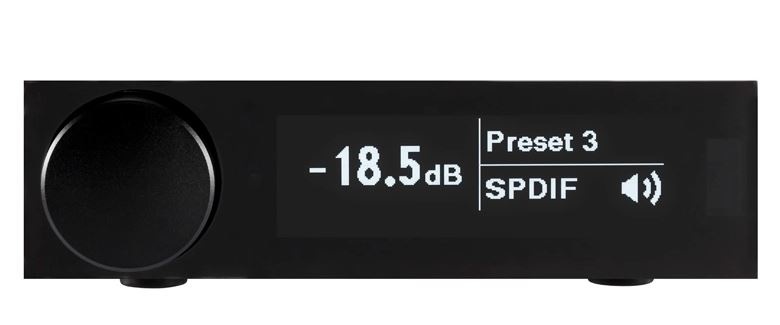

      All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning.



      The miniDSP Flex will find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest!

      Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.



      What's in the box?

      • Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration
      • IR remote v2
      • 12V univeral power supply (UK/EU/US/AU plugs)
      • USB cable

      Specifications

      Article number
      2x4 Flex (TRS)
      Device type
      DSP audio processor
      Device serie
      FLEX
      DSP chip
      DSP SHARC ADSP21489 @ 400MHZ
      Processing resolution & sample rate
      32 bit/96 kHz (32bit/48 kHz with Dirac Live® license)
      Input / ouput configuration
      2 channels in / 4 channels out

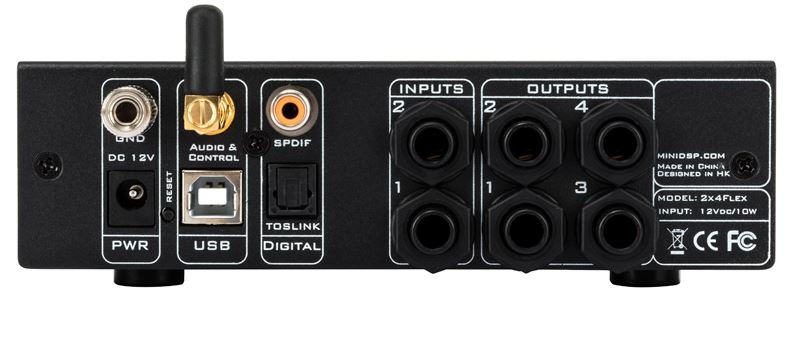

      Audio input connectivity
      2 x balanced 6.35 mm TRS jack (as XLR)
      Audio output connectivity
      4 x balanced 6.35 mm TRS jack (as XLR)
      Max input level
      4 V RMS
      Max output level
      4 V RMS
      Input impedance
      200 kΩ
      Output impedance
      200 Ω
      FIR
      Dirac Live®
      Not included
      DSP presets
      Up to 4 presets
      Infrared remote learning
      UMIK-1 included
      No
      Dimensions
      150x180x41 mm

      Show more

      Reviews

      0 from 5Based on 0 reviews
      Review this product

      There are no reviews written yet about this product..
