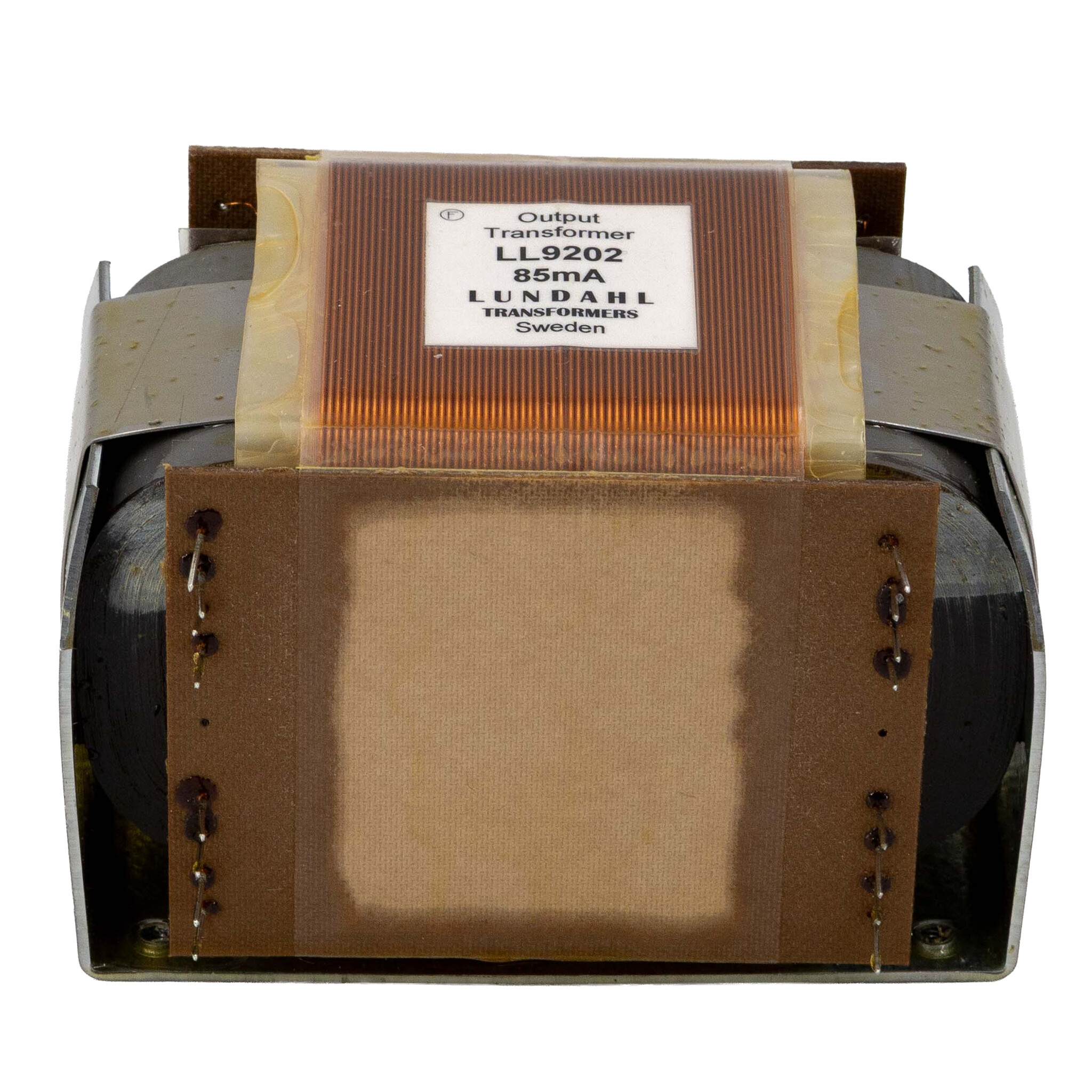

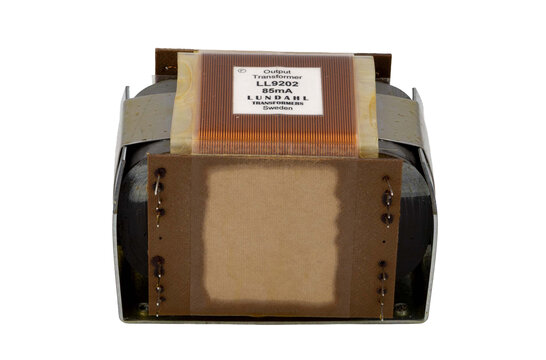

        LL9202-85 Output Transformer for Tube Amplifiers 85mA

        Lundahl LL9202-85 Output Transformer for Tube Amplifiers 85mA

        €279,95

        2 In stock

        Add to cart

        Lundahl LL9202-85 Output Transformer for Tube Amplifiers 85mA

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Lundahl
        New
        LL9202-85 Output Transformer for Tube Amplifiers 85mA
        € 231,36€ 279,95 2 In stock
        € 279,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        LL9202-85 Output Transformer for Tube Amplifiers 85mA

        Product description Lundahl LL9202-85 Output Transformer

        The Lundahl LL9202-85 is an open-frame tube amplifier output transformer with an 85 mA single-ended DC current rating, wide-band winding design and a special audio C-core for high-quality amplifier builds.



        Highlights of the Lundahl LL9202-85

        • Output transformer for tube amplifiers, optimized for single-ended operation at 85 mA
        • Special Lundahl audio C-core with 400 µ core air gap
        • Highly sectioned winding structure for very low leakage inductance
        • Low-capacitance coil winding technique supports a wide frequency range
        • Open-frame construction for installation inside an amplifier housing
        • 2.5 kg transformer with 5.08 mm pin spacing and 4 x M4 mounting holes



        Product details Lundahl LL9202-85

        Lundahl LL9202-85 Output Transformer for Tube Amplifiers 85 mA



        The Lundahl LL9202-85 is a tube output transformer from the LL1620, LL1623, LL1627 and LL9202 family. It is designed as a high-quality audio component for tube amplifiers, using the same core size, winding structure and secondary arrangement as the related models, while the LL9202 version provides the highest primary impedance level in the range.



        Its highly sectioned windings use harmonically sized sections to minimize leakage inductance. Combined with a low-capacitance coil winding technique, this construction supports wide frequency response and clean signal transfer. The LL9202 has a turns ratio of 4 x 26.5 : 8 x 1, 600 ohm primary static resistance with all primary sections in series, 0.4 ohm average resistance per secondary and 20 mH primary leakage inductance with the primary in series.



        The LL9202-85 variant is specified for single-ended use at 85 mA DC current with a 400 µ core air gap and 57 H primary inductance. For LL9202 applications, primary load impedance options include 23 kΩ, 11 kΩ and 6.5 kΩ depending on the selected secondary connection for 4, 8 or 16 ohm loads. Maximum single-ended output power at 30 Hz is specified up to 25 W in the 0.5 dB loss connection alternative, or up to 50 W with the 0.8 dB loss connection alternative.



        The transformer uses Lundahl’s special audio C-core and is built as an open-frame unit for mounting inside an amplifier enclosure. Practical installation details include a 2.5 kg weight, 5.08 mm pin spacing, 4 x M4 mounting holes and isolation ratings of 3 kV between primary and secondary windings and 1.5 kV between windings and core.

        Show more

        Specifications

        Article number
        LL9202-85
        EAN
        9508518389415
        Transformer Type
        Tube amplifier output transformer
        Primary Voltage
        525 V
        Secundary Voltage
        40 V
        Primary Impedance
        23 / 11 / 6.5 kΩ
        Secundary Impedance
        4 / 8 / 16 Ω
        Power Handling
        13 / 25 / 50 Watt
        Core Type
        C-core
        Inductance
        57 H
        Max Output Voltage
        40 V
        Turns Ratio
        4 x 26.5 : 8 x 1
        # Mounting holes
        4
        Dimensions (L x B x H)
        118 x 85 x 78 mm

        Show more
