        LL3723-PP Output Transformer for Tube Amplifiers Push-Pull

        Lundahl LL3723-PP Output Transformer for Tube Amplifiers Push-Pull

        €349,95

        2 In stock

        Add to cart

        Lundahl LL3723-PP Output Transformer for Tube Amplifiers Push-Pull

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Lundahl
        New
        LL3723-PP Output Transformer for Tube Amplifiers Push-Pull
        € 289,21€ 349,95 2 In stock
        € 349,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        LL3723-PP Output Transformer for Tube Amplifiers Push-Pull

        Product description Lundahl LL3723-PP Output Transformer

        The Lundahl LL3723-PP is a push-pull tube amplifier output transformer with UL taps, designed for 4.3 kΩ primary impedance and 4 or 8 Ω secondary loads.



        Highlights of the Lundahl LL3723-PP

        • Push-pull tube amplifier output transformer with UL taps
        • 4.3 kΩ primary impedance with 4 Ω and 8 Ω secondary connections
        • 37% UL tap from B+ for ultra-linear operation
        • High-quality grain-oriented silicon steel C-core construction
        • Frequency response of ±1 dB from 5 Hz to 60 kHz
        • Maximum output power of 160 W at 30 Hz



        Product details Lundahl LL3723-PP

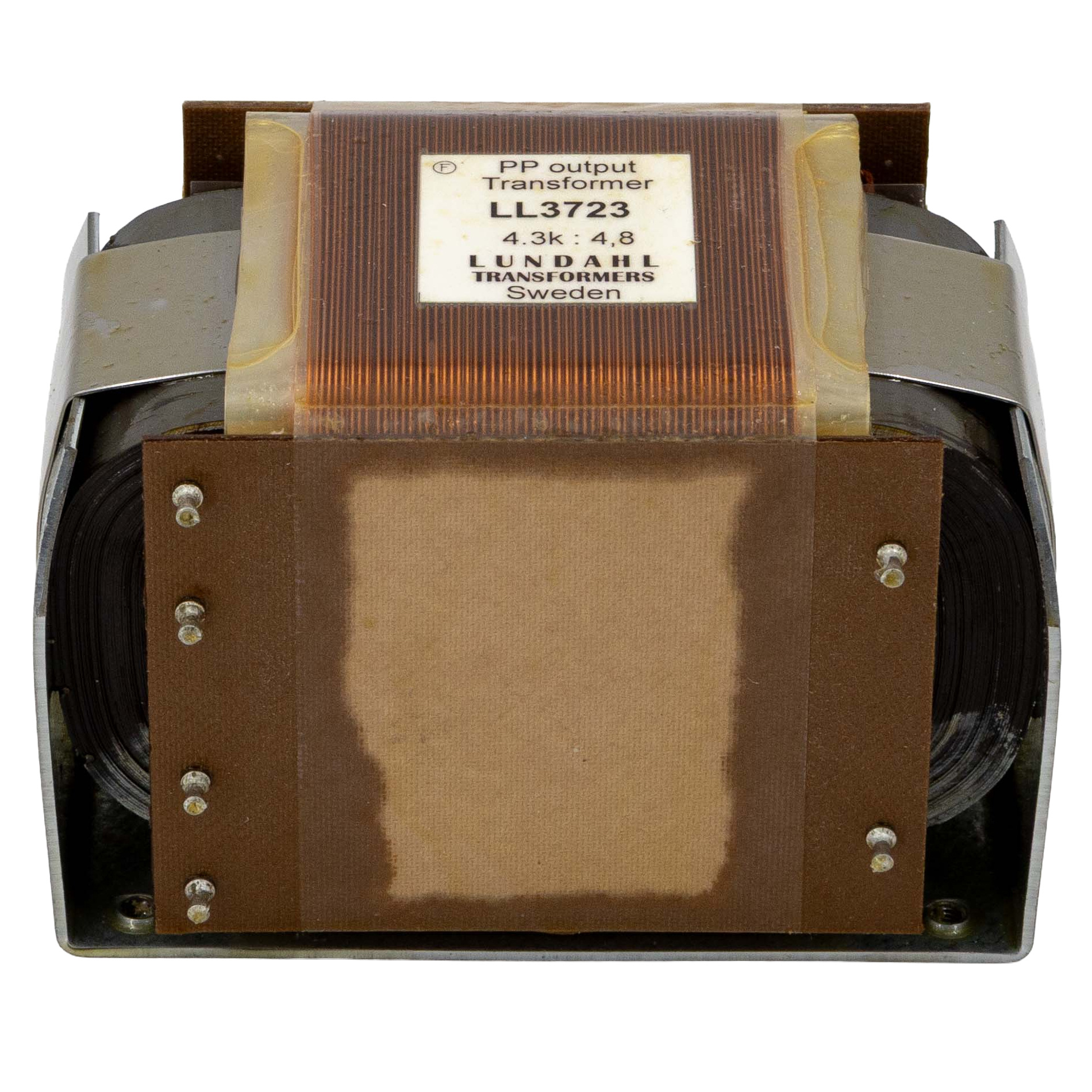

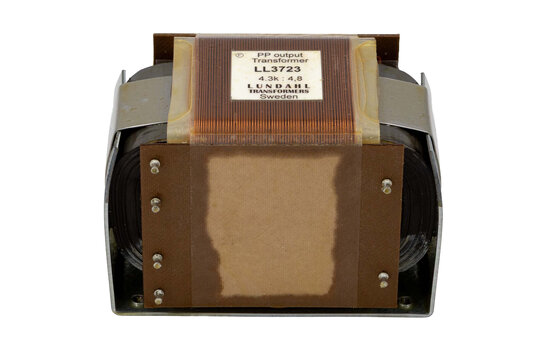

        Lundahl LL3723-PP Output Transformer for Push-Pull Tube Amplifiers 4.3 kΩ to 4/8 Ω



        The Lundahl LL3723-PP is built for push-pull tube amplifiers and provides a 4.3 kΩ primary with secondary taps for both 4 Ω and 8 Ω loudspeaker loads. Its 37% ultra-linear tap from B+ supports UL operation, making it a precise output stage component for demanding tube amplifier designs.



        Internally, the transformer uses two coils, each made up of three sections: one primary section and two secondary sections. The winding arrangement is designed to minimize destructive capacitive coupling between primary and secondary windings while maintaining extremely small phase error between the anode and UL tap.



        The LL3723-PP uses a high-quality grain-oriented silicon steel C-core, supporting strong low-frequency capability and wide bandwidth. With a primary inductance of approximately 1000 H, 18 mH primary leakage inductance, and a frequency response of ±1 dB from 5 Hz to 60 kHz, it is a serious choice among high-performance audio components for tube amplifier construction.



        For practical integration, the LL3723-PP supports up to 150 mA recommended primary DC current through the windings, with a maximum of 300 mA DC from B+. It handles up to 850 V RMS primary signal voltage at 30 Hz, offers 160 W maximum output power at 30 Hz, and weighs 2.5 kg. This makes it a robust option within amplifier accessories for serious push-pull tube amplifier projects.

        Show more

        Specifications

        Article number
        LL3723-PP
        EAN
        9507215645466
        Transformer Type
        Push-pull tube amplifier output transformer
        Primary Voltage
        850 V
        Primary Impedance
        4.3 kΩ
        Secundary Impedance
        4 / 8 Ω
        Power Handling
        160 Watt
        Core Material
        grain-oriented silicon steel
        Core Type
        C-core
        Inductance
        1000 H
        Turns Ratio
        33:1 / 22:1
        Frequency Response
        5-60000 Hz
        # Mounting holes
        4
        Dimensions (L x B x H)
        115 x 85 x 77 mm

        Show more
