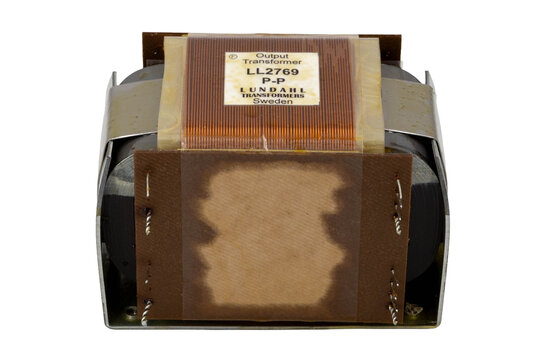

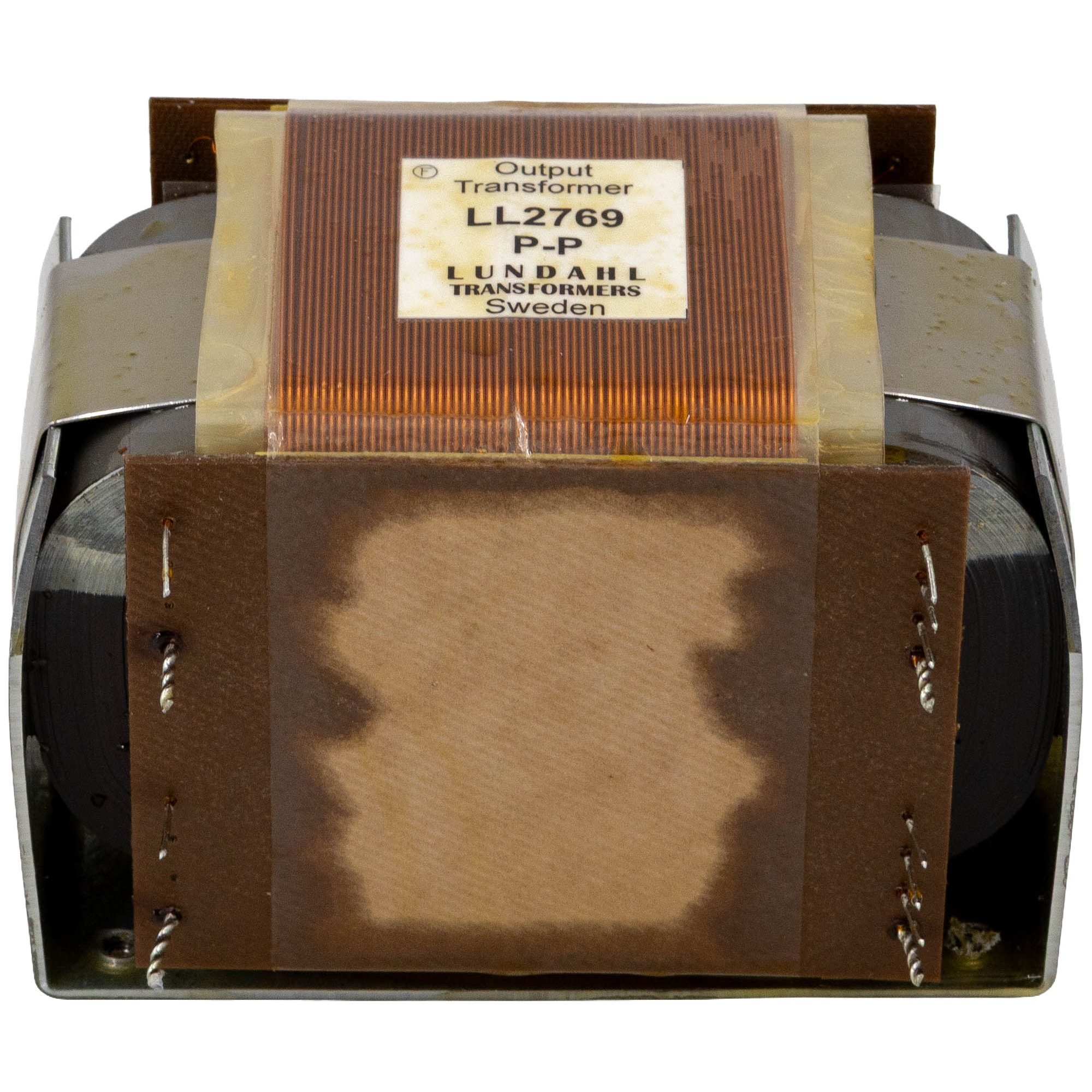

        LL2769-PP Output Transformer for Tube Amplifiers Push-Pull

        Lundahl LL2769-PP Output Transformer for Tube Amplifiers Push-Pull

        €279,95

        2 In stock

        Add to cart

        Lundahl LL2769-PP Output Transformer for Tube Amplifiers Push-Pull

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Lundahl
        New
        LL2769-PP Output Transformer for Tube Amplifiers Push-Pull
        € 231,36€ 279,95 2 In stock
        € 279,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        LL2769-PP Output Transformer for Tube Amplifiers Push-Pull

        Product description Lundahl LL2769-PP Output Transformer

        The Lundahl LL2769-PPr is a high-quality tube amplifier output transformer for push-pull designs, intended for tubes such as EL34, KT88 and KT150. It supports 4.7 kΩ primary configurations with 5 Ω and 8 Ω secondary connections.



        Highlights of the Lundahl LL2769-PPr

        • Tube amplifier output transformer for push-pull operation
        • Designed for tubes such as EL34, KT88 and KT150
        • 4.7 kΩ primary with 5 Ω and 8 Ω secondary connection options
        • High-quality grain-oriented silicon steel C-core
        • Two-coil construction with 5 sections per coil
        • Maximum recommended primary heating DC current of 180 mA



        Product details Lundahl LL2769-PPr

        Lundahl LL2769-PPr Tube Amplifier Output Transformer 4.7 kΩ to 5 Ω / 8 Ω Push-Pull



        The Lundahl LL2769-PPr is built for tube amplifiers using output tubes such as EL34, KT88 and KT150. Its push-pull primary connection makes it suitable for serious tube amplifier projects where a robust, purpose-built output transformer is required.



        Internally, the transformer uses two coils, each made up of 5 sections, combined with a high-quality grain-oriented silicon steel C-core from Lundahl’s own production. This construction supports stable output transformer performance while keeping the design suitable for demanding audio components applications.



        The LL2769-PPr offers 4.7 kΩ primary operation with secondary connection options for 5 Ω and 8 Ω loads. A tapped secondary connection for 5 Ω and 8 Ω is also supported, giving builders practical flexibility when matching the transformer to different loudspeaker impedances.



        Key electrical ratings include an approximate turns ratio of 4 x 30 : 2 x (4 + 2 + 1), a maximum recommended primary heating DC current of 180 mA and a maximum primary signal voltage at 30 Hz of 690 V RMS in push-pull operation. With a weight of 2.5 kg and M4 mounting holes, it is a substantial choice for tube amplifier builds and related amplifier accessories work.

        Show more

        Specifications

        Article number
        LL2769-PP
        EAN
        9509548656959
        Transformer Type
        Tube amplifier output transformer
        Primary Voltage
        690 V
        Primary Impedance
        4.7 kΩ
        Secundary Impedance
        5 / 8 Ω
        Core Material
        Silicon steel
        Core Type
        C-core
        Inductance
        160 H
        Max Output Voltage
        690 V
        Turns Ratio
        4 x 30 : 2 x (4 + 2 + 1)
        # Mounting holes
        4
        Dimensions (L x B x H)
        115 x 77 x 87 mm

        Show more
