        LL1676 High Level Input Transformer for Tube Amplifiers

        Lundahl LL1676 High Level Input Transformer for Tube Amplifiers

        €159,95

        2 In stock

        Add to cart

        Lundahl LL1676 High Level Input Transformer for Tube Amplifiers

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Lundahl
        New
        LL1676 High Level Input Transformer for Tube Amplifiers
        € 132,19€ 159,95 2 In stock
        € 159,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        LL1676 High Level Input Transformer for Tube Amplifiers

        Product description Lundahl LL1676 Input Transformer

        The Lundahl LL1676 is a high level tube amplifier input transformer with a 1+1:2+2 turns ratio, built around Lundahl’s amorphous core technology for wide bandwidth, low phase shift and strong magnetic shielding.



        Highlights of the Lundahl LL1676

        • High level tube amplifier input transformer with 1+1:2+2 turns ratio
        • Two coils with two-section primary windings and high level secondary windings
        • Amorphous strip core with less than 0.5° phase shift at 10 Hz
        • Mu-metal housing for magnetic shielding
        • 10 Hz to 40 kHz frequency response within ±0.5 dB with 600 Ω source and 10 kΩ load
        • 3 kV primary to secondary isolation and 1.5 kV winding to shield isolation



        Product details Lundahl LL1676

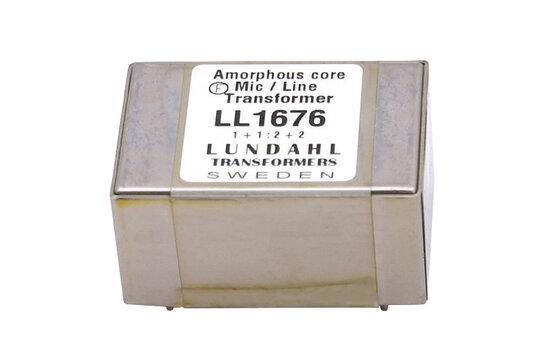

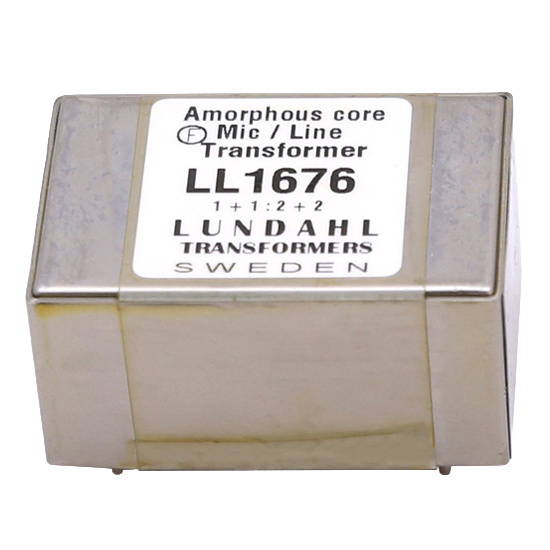

        Lundahl LL1676 High Level Tube Amplifier Input Transformer 1+1:2+2



        The LL1676 is designed for high level input use in tube amplifier circuits. As part of a carefully built signal path, it is a precision audio component with two coils, each combining a two-sectioned primary winding and a high level secondary winding separated by electrostatic shields.



        Its two-component amorphous strip core provides very high permeability, helping the transformer achieve a phase shift of less than 0.5 degree at 10 Hz. This makes the LL1676 well suited to demanding amplifiers where low-frequency phase accuracy and high level handling are important.



        Performance is specified at 10 Hz to 40 kHz within ±0.5 dB with a 600 Ω source and 10 kΩ load, with the -3 dB point at 80 kHz. The self-resonance point is 70 kHz, and the recommended termination for best frequency response with a 600 Ω source is 10 kΩ to 33 kΩ.



        The LL1676 is magnetically shielded by a mu-metal housing and is built for PCB mounting. It measures 43 x 28 x 21 mm above the PCB, weighs 80 g, uses 5.08 mm pin spacing with 30.48 mm row spacing, and requires a recommended PCB hole diameter of 1.5 mm.

        Show more

        Specifications

        Article number
        LL1676
        EAN
        9503182295888
        Transformer Type
        High level Tube Amplifier Input Transformer
        Primary Impedance
        600 Ω
        Core Material
        Amorphous
        Core Type
        Two-component amorphous strip core
        Max Output Voltage
        22 V
        Turns Ratio
        1 + 1 : 2 + 2
        Frequency Response
        10–40000 Hz
        Dimensions (L x B x H)
        43 x 28 x 21 mm

        Show more
