L-pads adjust the relative volume of drivers connected to them by placing added resistance in series and parallel, keeping impedance a constant 8 ohm load. This L-pad is rated at 50 watts RMS, is designed to be used with 8 ohm loads, features a 1" shaft length, and comes with mounting hardware, faceplate, and knob.
Highlights
- Easy level adjustment without changing impedance
- Great for speaker design tweaking
- Maintains constant 8 ohm impedance
- Mounting hardware included
Product Details

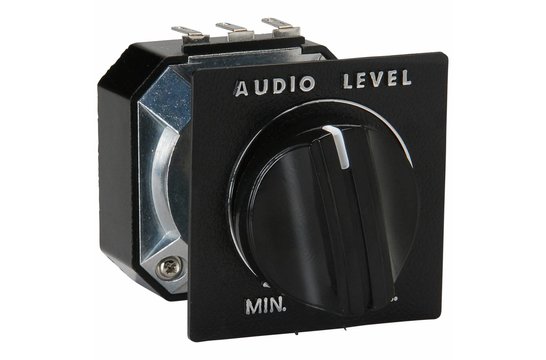

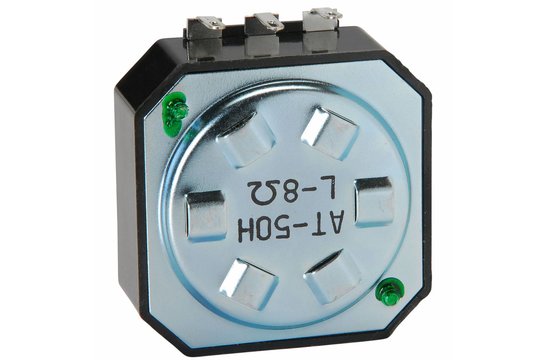

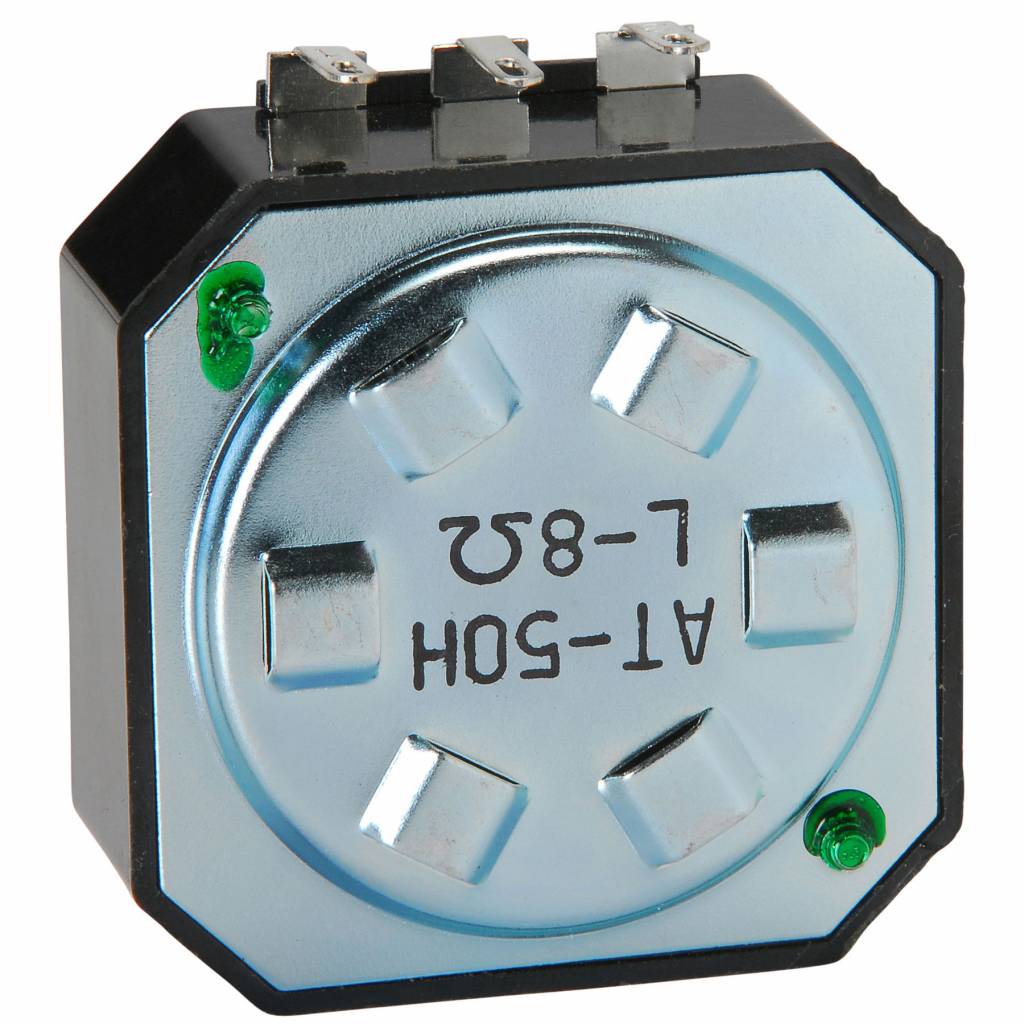

Speaker L-Pad Attenuator 50W Mono 1" Shaft 8 Ohm

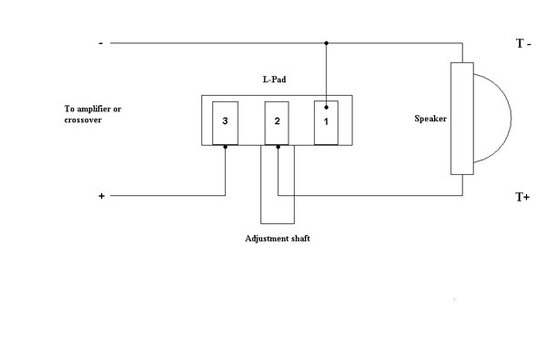

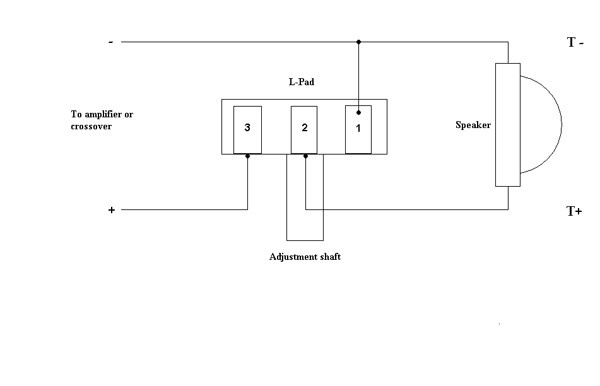

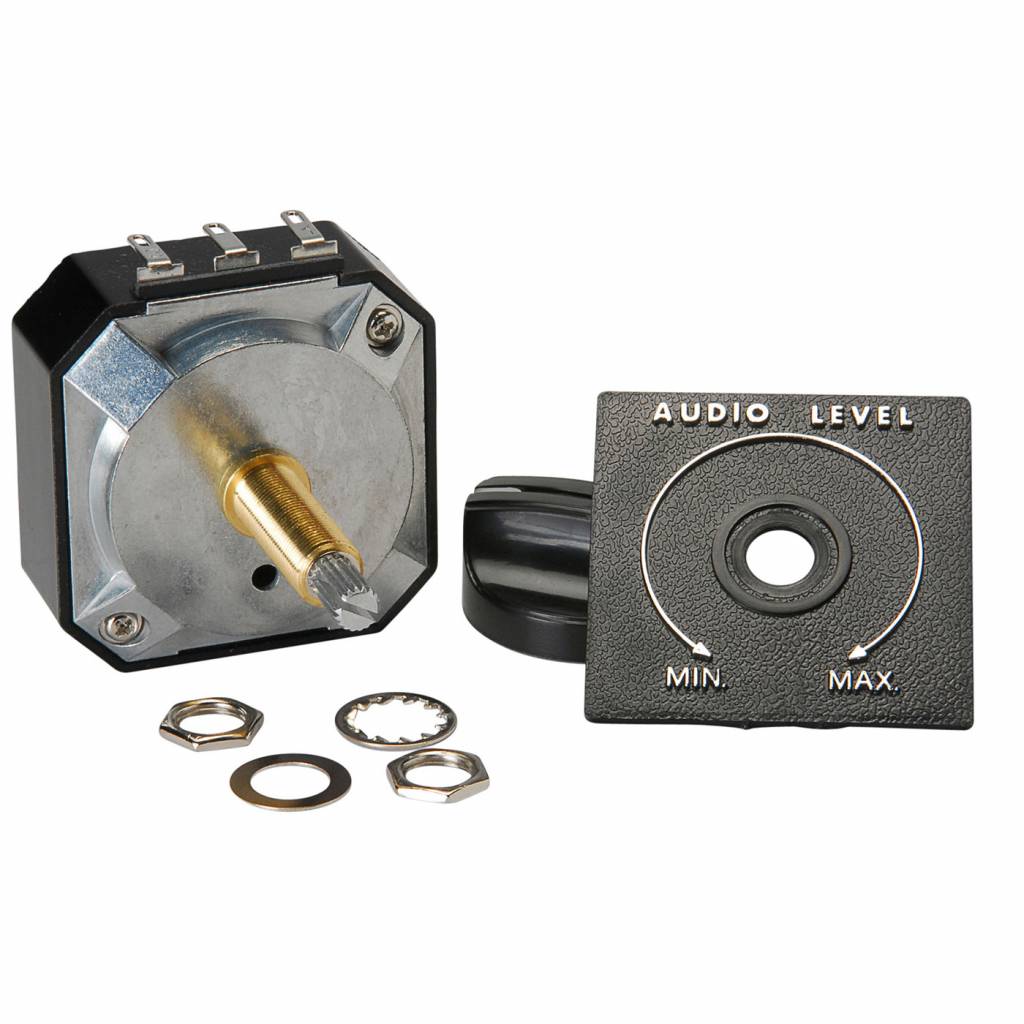

L-pads adjust the relative volume of drivers connected to them by placing added resistance in series. At the same time, a counter-resistance is placed in parallel with the driver to maintain a constant impedance which allows the original crossover design to be used. L-pads are to be placed in between the amplifier and speaker, or in between the crossover and driver. This particular L-pad is rated at 50 watts RMS, is designed to be used with 8 ohm loads, features a 1" shaft length with 2" square body, and comes with mounting hardware, faceplate, and volume control knob.
