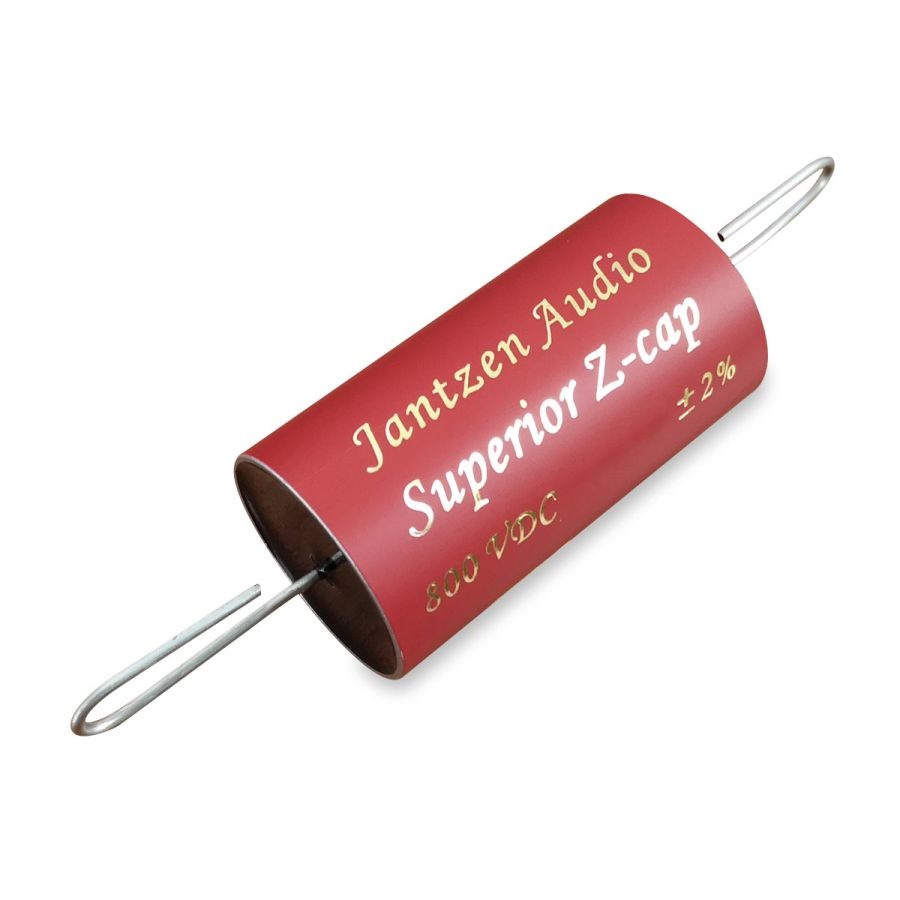

    Jantzen Audio 001-0522 | 0,56 µF | 2% | 800 V | Superior Z-Cap

    € 8,64€ 10,45 1 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €9,93 per piece
    • -10% Order 10 for only €9,41 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    With the Superior Z-Cap even the finest nuances can be heard. The sound never gets over-edged, superb naturalness with a somewhat bright top-end.



    Highlights

    • Capacitor foil: Metalized (ZnAl) polypropylene foil
    • Dielectric insulation: Polypropylene film
    • Terminal leads: PCOCC copper wire
    • Capacitance tolerance: +/- 2%
    • Signal direction: None (non-polarized capacitor)



    Product details

    Jantzen Audio 001-0522 | 0,56 µF | 2% | 800 V | Superior Z-Cap



    All Jantzen Audio Z-Caps are nitrogen filled, which means that you get more foil per capacitor and no risk of the evaporation that can occur in oil/dielectric fluid filled capacitors. Highly recommended for use as a high-end tweeter capacitor or as a coupling cap in an amplifier. For the best performance, signal should enter on the left-hand side (From reading direction).



    Specifications: Metallization: Aluminium and Zinc particles • Ends: Are made from copper thread • Dielectric: Polypropylene • Tolerance: 1% - 2% • Loss angle tan = 0.00002 to 1K • Loss angle tan = 0.00001 to 10K • Film: Metallized polypropylene • Dimension dia- 17/ 43 mm. hor • Axial • Non inductive construction • 0,47 uF - 22 uF AC value of the voltage rating 800 VDC / 425 VAC. • Loss factor: 1K 0.00002 • Working Temperature Range: - 30C to + 85C.

    Specifications

    Article number
    001-0522
    Capacitance (µF)
    0,56 µF
    Voltage Rating
    800 V
    Tolerance
    2%
    Dimensions: Ø * L (mm)
    17 x 43
    Termination Style
    Axial
