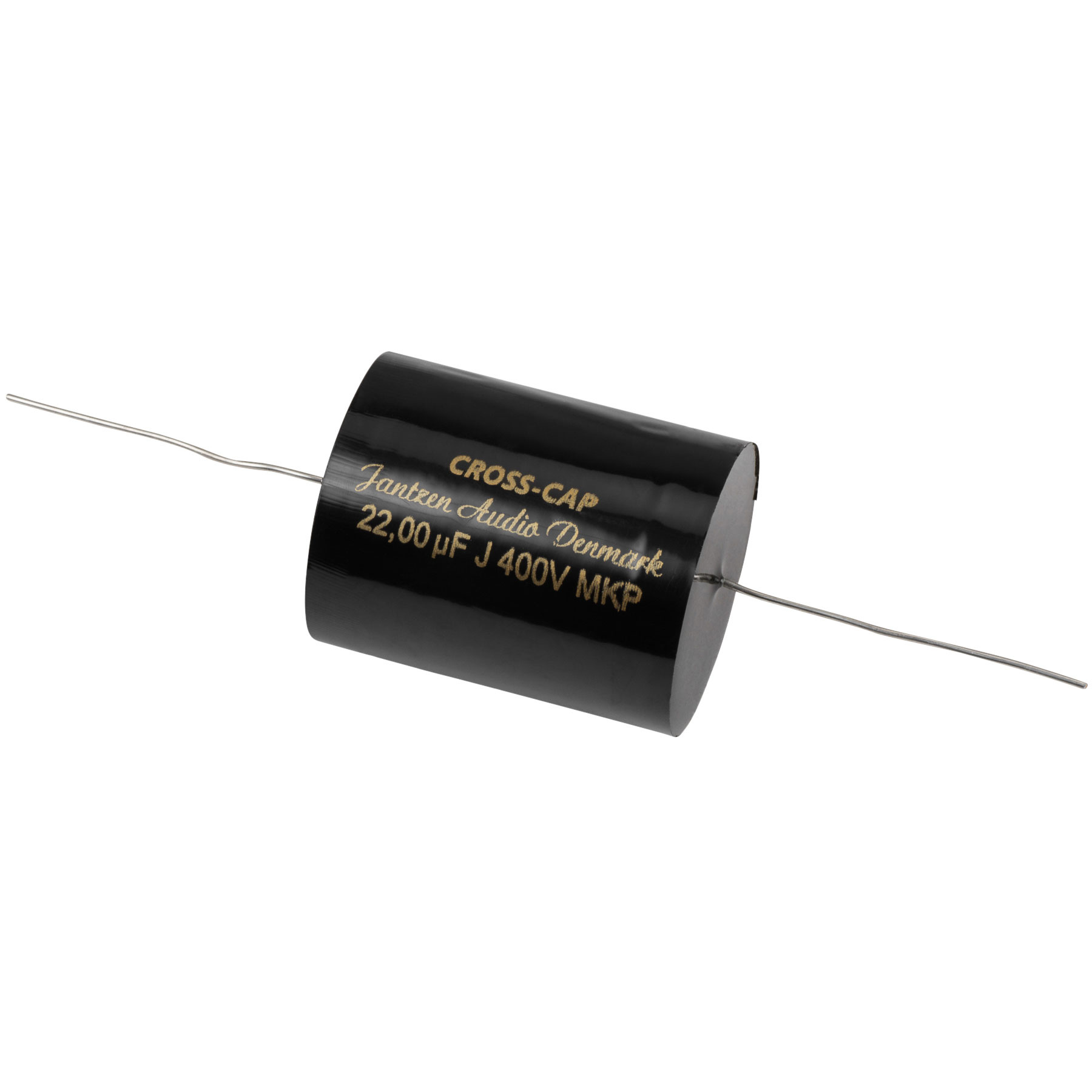

Jantzen Audio 001-0272 | 22 µF | 5% | 400 V | MKP Capacitor

In stock

  • Article code: 001-0272
  • Stock: 2 In stock

The Cross Cap, entry-level, MKP capacitor has got the best sonic quality and the best electrical peculiarity in its price class. These capacitors uses high quality foil, produced and metalized in the EU. They do not make any unpleasant distortion on sound

€ 6,55 Incl. 21% VAT

  • Buy 4 for €6,22 each and save 5% Sale 5%
  • Buy 10 for €5,90 each and save 10% Sale 10%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Jantzen Audio 001-0272 | 22 µF | 5% | 400 V | MKP Capacitor

The Cross Cap, entry-level, MKP capacitor has got the best sonic quality and the best electrical peculiarity in its price class. These capacitors uses high quality foil, produced and metalized in the EU. They do not make any unpleasant distortion on sound and do not “colour” the sound.



Highlights

  • Capacitor foil: Metalized (ZnAl) polypropylene foil
  • Dielectric insulation: Polypropylene film
  • Terminal leads: Tinned 4N copper wire



Product details

Jantzen Audio 001-0272 | 22 µF | 5% | 400 V | MKP Capacitor



The Cross Cap offers great performance and quality, at a very reasonable price point. This is Jantzen entry level audiophile multipurpose capacitor. The Cross Cap is available in a very wide range of capacitance values. Made from high quality metalized polypropylene foil. Single foil (standard type MKP/PP foil) construction. The Cross Cap is virtually free of distortion and delivers a pleasant and rather neutral sonic profile. Cross Caps can be used as power supply capacitors in tube amplifiers. For upgrading coupling capacitors in amplifiers, we recommend the Jantzen Superior Z series.



Specifications: Voltage rating: 400 VDC / 250 VAC • Working Temperature Range: -40C to + 85C • Capacitance tolerance: +/- 5%.

Specifications

Specifications for: 001-0272 | 22 µF | 5% | 400 V | MKP Capacitor

  • Capacitance (µF) The capacitance of the capacitor measured in farad (F) 22 µF
  • Voltage Rating Maximum amount of voltage (in AC or DC) that a capacitor can safely be exposed to and can store. 400 V
  • Tolerance Indicates how close the printed value meets reality in percentage. 5%
  • Dimensions: Ø * L (mm) Dimensions in diameter x Length, in millimeters 34 x 46
  • Termination Style Construction type, could be 'Axial' (horizontal cylinder) or 'Radial' (vertical cylinder) leads. Radial type, both the leads come out the bottom of the cylinder. Axial type, one lead end along the axis of the cylinder. Axial
