        000-5309 | 8,2 mH | 1 Ω | 3% | 21 AWG | Iron Core Coil with Discs

        Product description Jantzen Audio 000-5309 | 8,2 mH | 1 Ω | 3% | 21 AWG

        Top-tier 8.2mH, 1Ω, 21AWG Iron Core Coil by Jantzen Audio for audio crossovers.



        Highlights

        • Precision-engineered 8.2mH inductance value with a tight 3% tolerance
        • Low 1Ω resistance maintains driver damping and efficiency
        • High-purity 21 AWG copper wire for superior signal fidelity
        • Robust power handling thanks to optimal core/disc size and wire thickness



        Product details

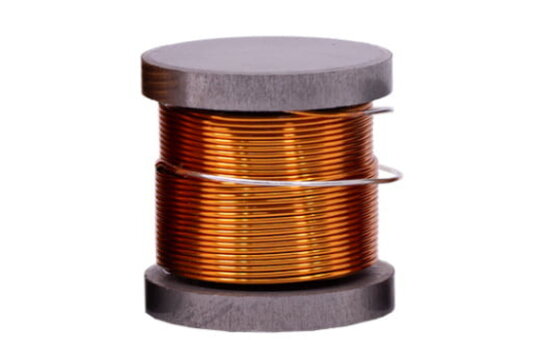

        Jantzen Audio 000-5309 | 8,2 mH | 1 Ω | 3% | 21 AWG | Iron Core Coil with Discs



        The Jantzen Audio 000-5309 Iron Core Coil is an essential component for audiophiles looking to craft or upgrade their speaker crossovers, particularly for the bass and mid sections. This coil features a high-purity copper wire wound meticulously around a Permite core with discs, ensuring minimal distortion through an extremely low Direct Current Resistance (DCR). The low DCR value also ensures that the driver's damping factor remains unaltered, preserving the efficiency and integrity of the audio signal. The specialized non-ferrite core material reduces hysteresis significantly when compared to traditional ferrite core coils, thus enabling higher power handling without incurring losses typically associated with standard iron core designs. With an inductance of 8.2mH, a resistance of 1Ω, and a capacitance tolerance of 3%, this 21 AWG coil is engineered for precision and durability. The coil's dimensions and wire thickness have been optimized to provide a remarkable power handling capability, making it a reliable choice for audiophiles and sound enthusiasts who demand the best from their audio systems.

        Show more

        Specifications

        Article number
        000-5309
        EAN
        9507433495171
        Coil type
        Iron core coils
        Inductance
        8.2 mH
        DCR
        1 ohms
        Tolerance
        3%
        Wire diameter
        21 AWG
        Dimensions: Ø * H (mm)
        35 x 45
